Air Cleaner Removal/Installation

  1. Remove the cable clamp (A), and the bolts (B).

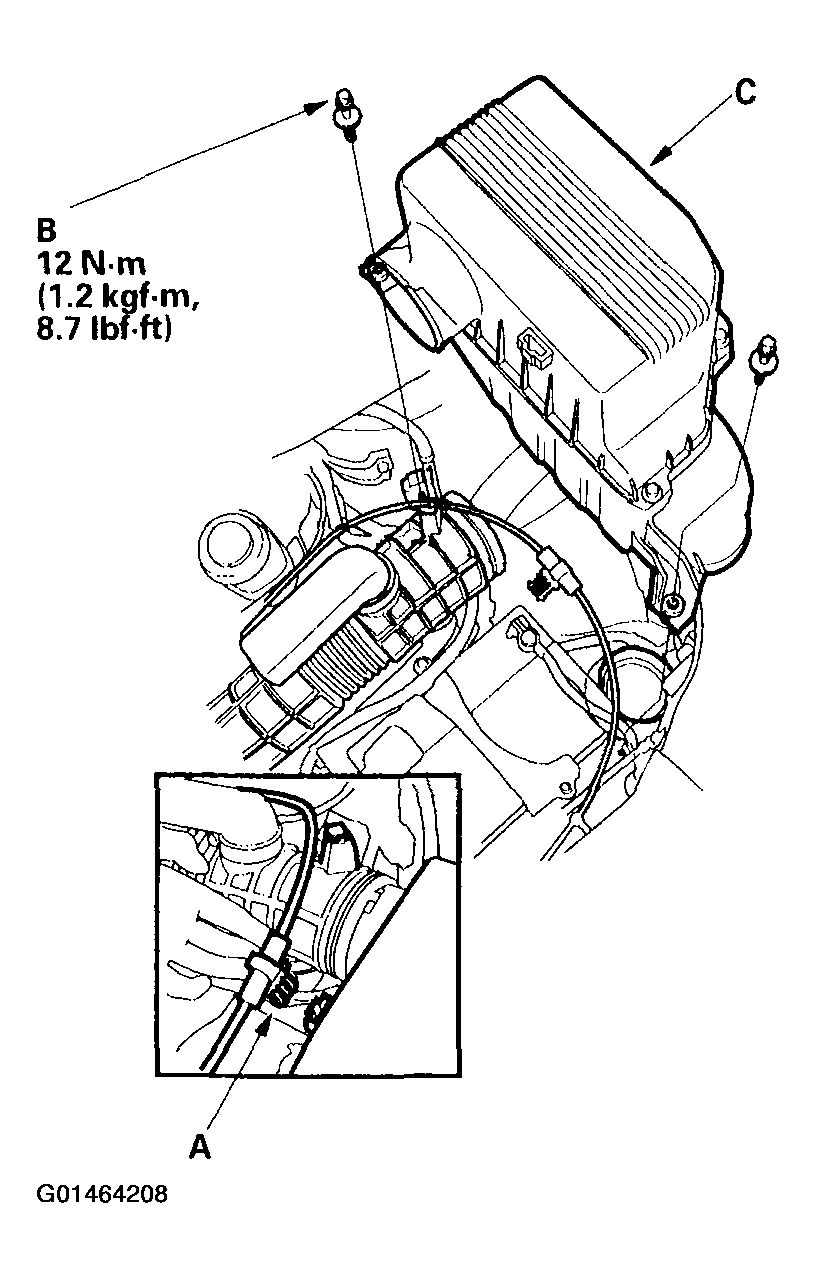

    Fig 1: Removing The Cable Clamp & The Bolts
    G01464208Courtesy of AMERICAN HONDA MOTOR CO., INC.
  2. Remove the air cleaner (C).
  3. Install the parts in the reverse order of removal.
