Throttle Body Disassembly/Reassembly

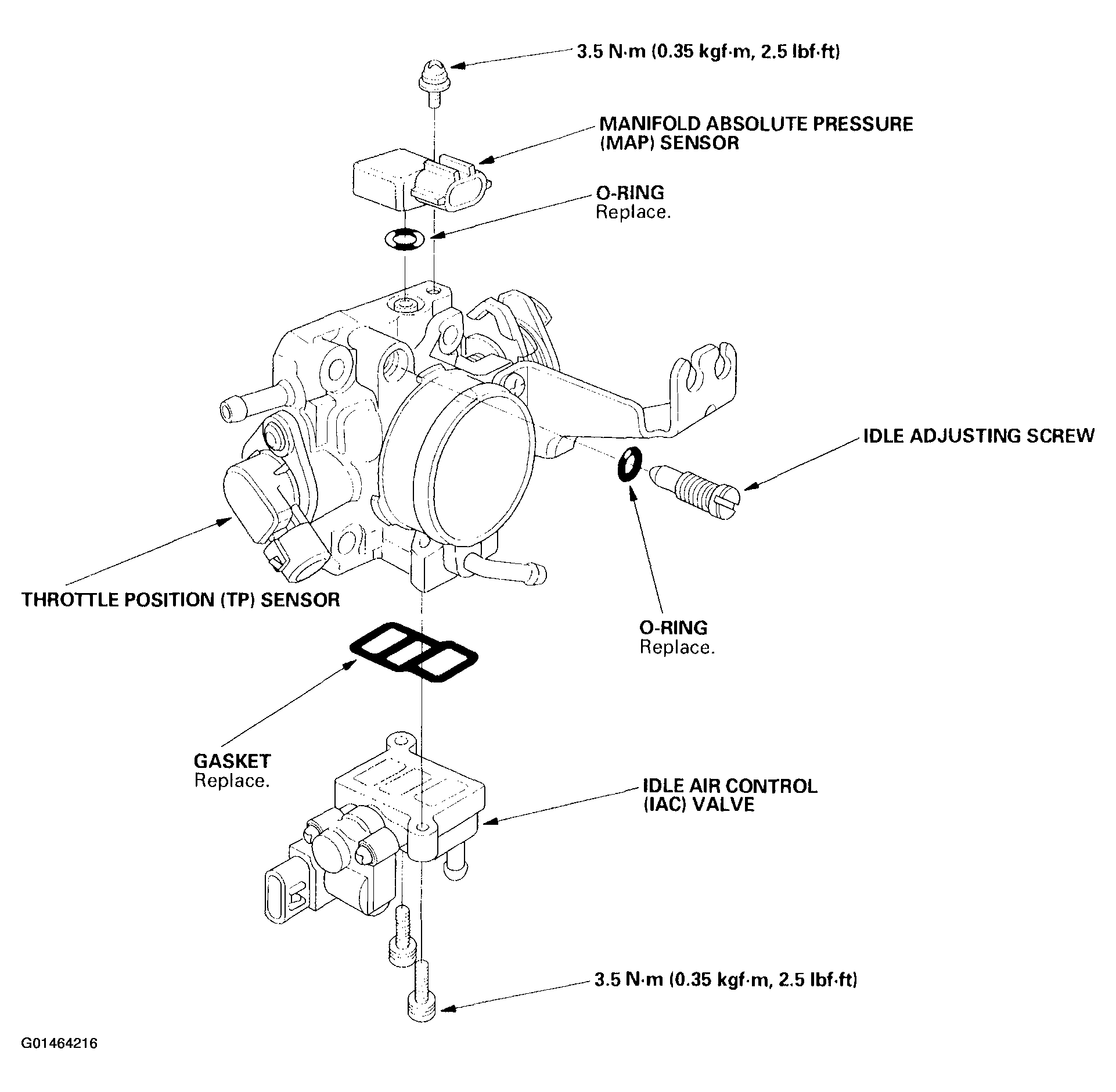

Fig 1: Exploded View Of The Throttle Body Assembly
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
