Throttle Body Removal/Installation

NOTE:

Do not adjust the throttle stop screw.
After reassembly, adjust the cruise control actuator cable (see CRUISE CONTROL ACTUATOR CABLE ADJUSTMENT ) and the throttle cable (see Throttle Cable Adjustment ).
The Throttle Position (TP) sensor is not removable or adjustable.

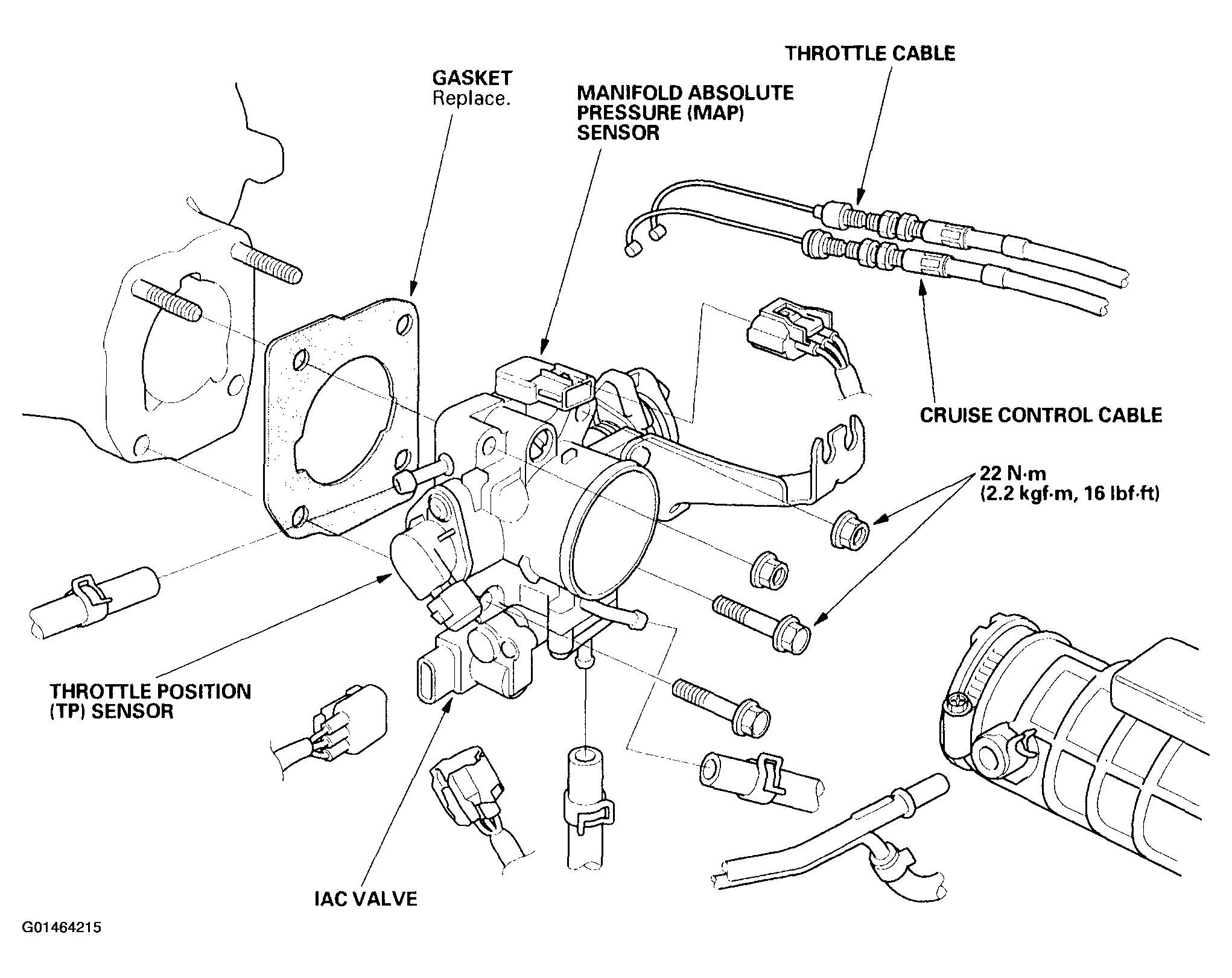

Fig 1: Removing/Installing The Throttle Body

Courtesy of AMERICAN HONDA MOTOR CO., INC.
