CMP Sensor Replacement
- Set the No. 1 piston at top dead center (TDC) (see TIMING BELT REMOVAL
).
- Remove the upper and lower cover (see step 11 on TIMING BELT REMOVAL
).
- To hold the timing belt adjuster in its current position, thread in the battery clamp bolt hand-tight (see step 14 on TIMING BELT REMOVAL
).
- Remove the idler pulley bolt and the idler pulley, then remove the timing belt (see step 16 on TIMING BELT REMOVAL
).

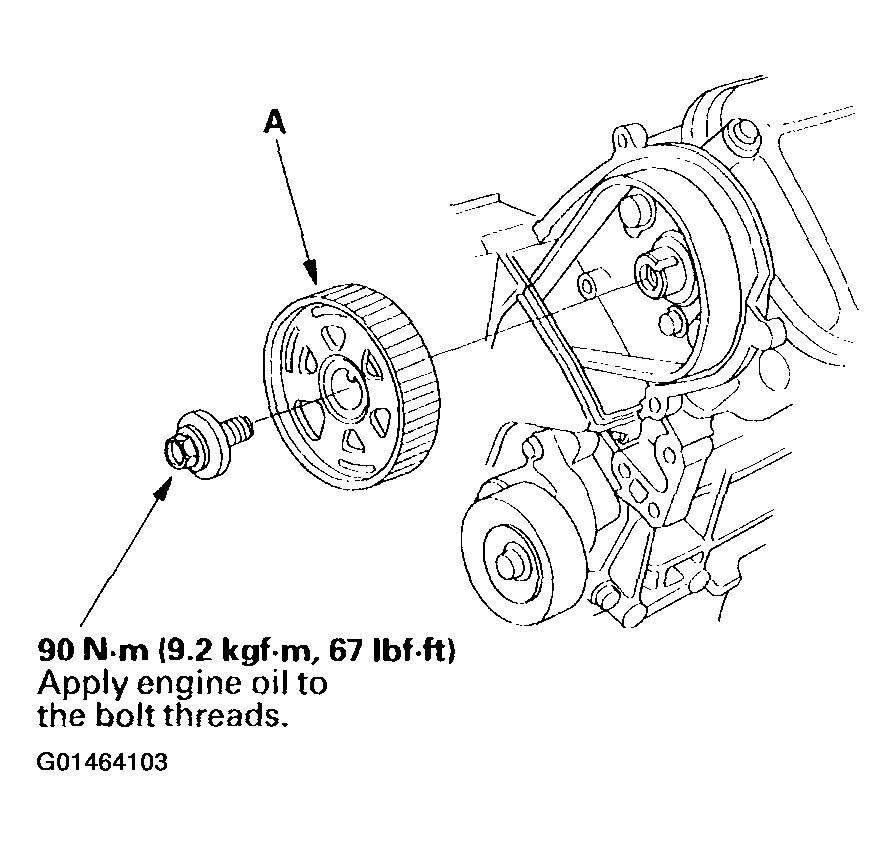

- Remove the front camshaft pulley (A).
Courtesy of AMERICAN HONDA MOTOR CO., INC.

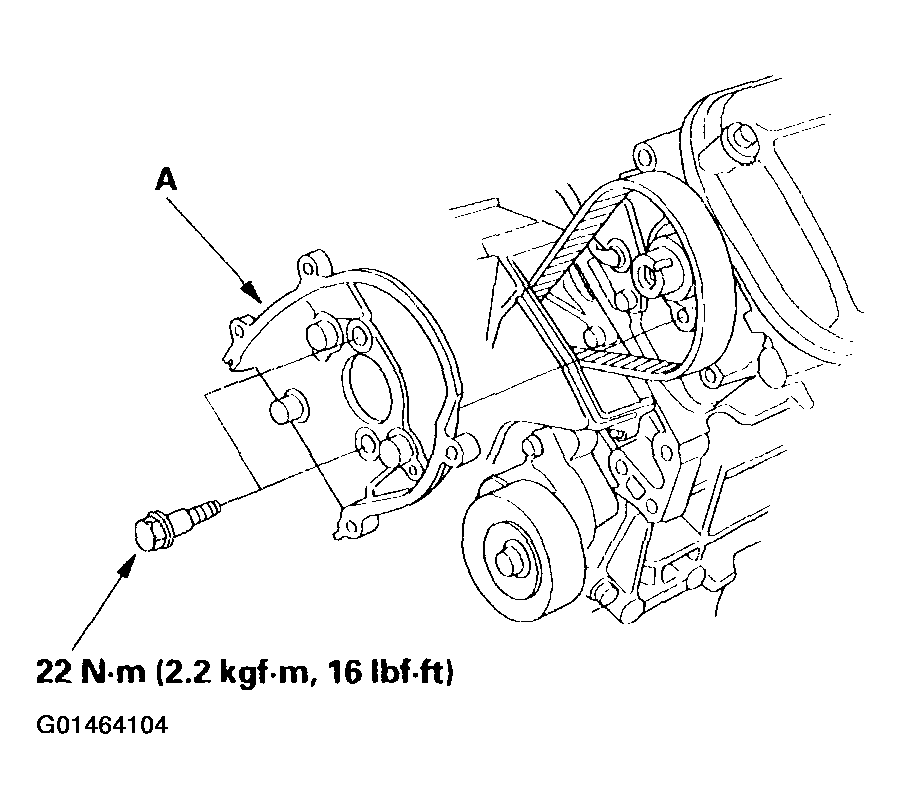

- Disconnect the CMP sensor connector, then remove the back cover (A).
Courtesy of AMERICAN HONDA MOTOR CO., INC.

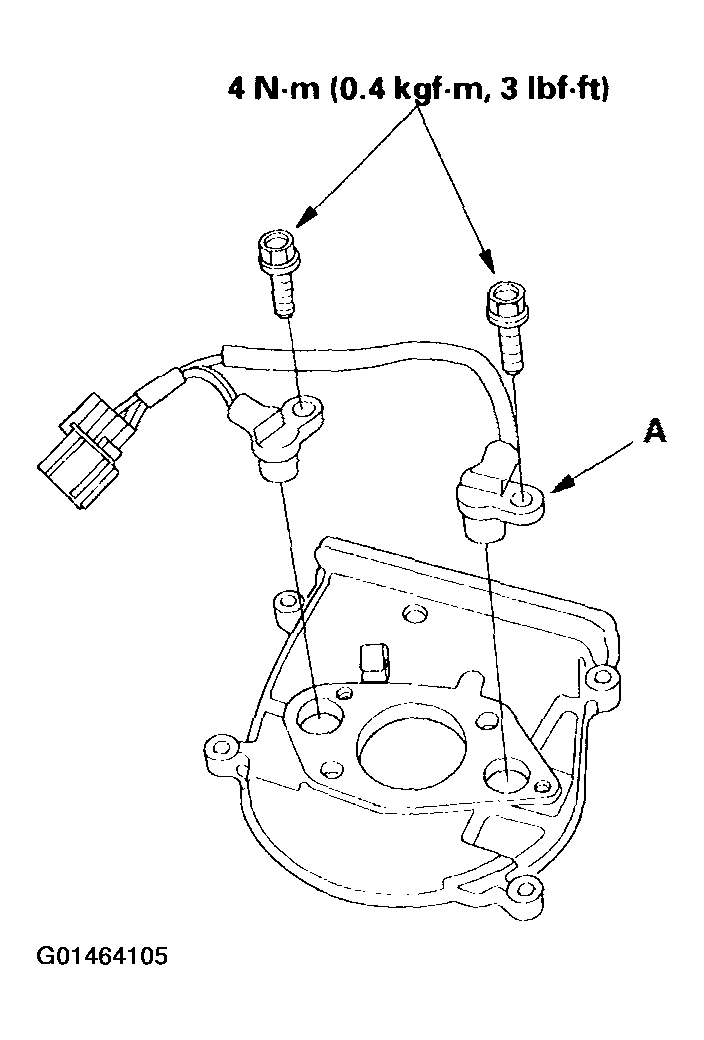

- Remove the CMP sensor (A) from the back cover.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
- Install the sensor in reverse order of removal. Reinstall the timing belt (see TIMING BELT INSTALLATION
) and other removed parts.
