ECT Sensor Replacement

Remove the intake manifold cover (see INTAKE MANIFOLD REMOVAL & INSTALLATION ).
Disconnect the ECT sensor 2P connector.
Remove the ECT sensor (A).

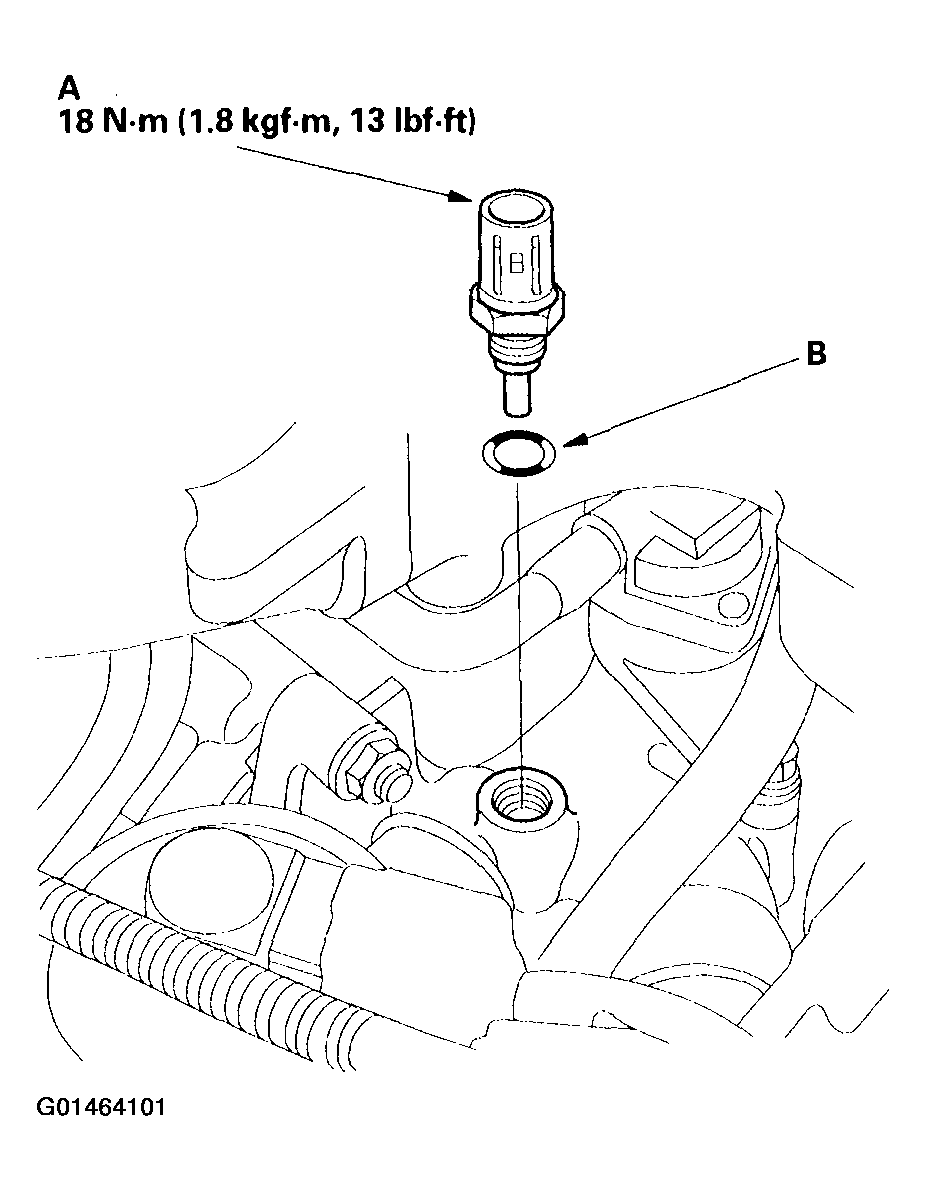

Fig 1: Removing The ECT Sensor
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Install the sensor in the reverse order of removal with a new O-ring (B).
