IAT Sensor Replacement

Remove the intake manifold cover (see INTAKE MANIFOLD REMOVAL & INSTALLATION ).
Disconnect the IAT sensor 2P connector.
Remove the IAT sensor (A).

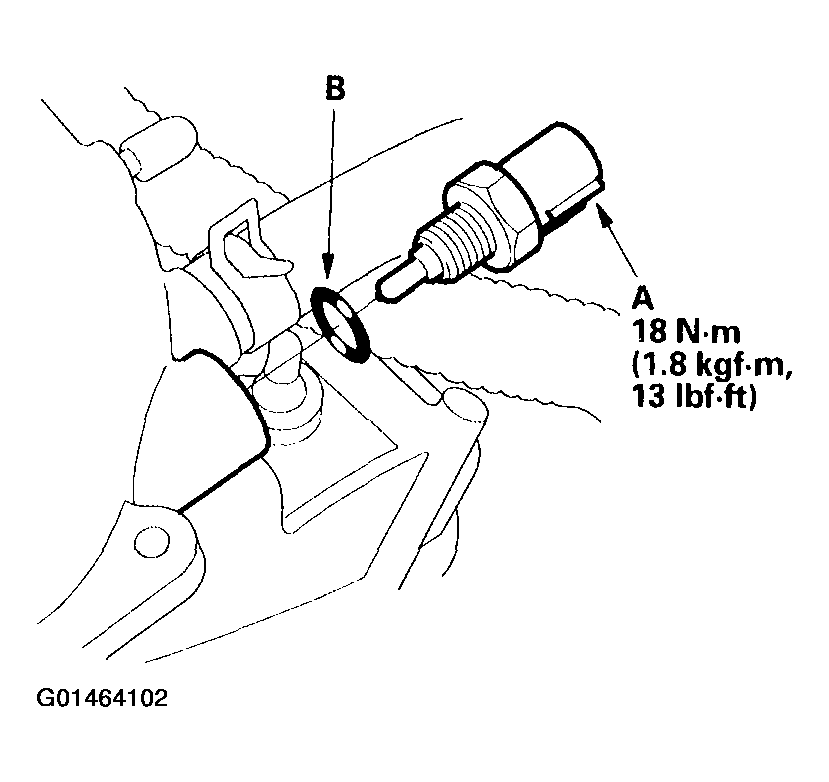

Fig 1: Removing The IAT Sensor
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Install the sensor in the reverse order of removal with a new O-ring (B).
