Third Row Child Seat Tether Anchor Replacement

  1. Remove the rear trim panel (see TRIM REMOVAL/INSTALLATION - CARGO AREA ).
  2. Remove the screws (A), and remove the third row child seat tether anchors (B).

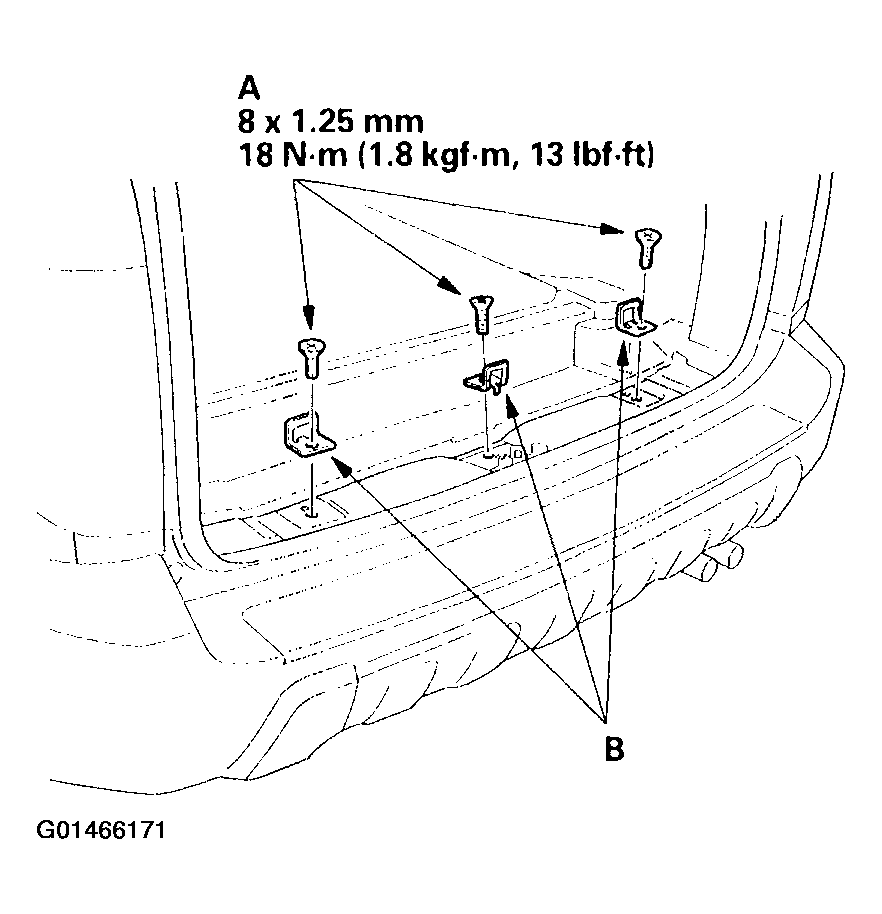

    Fig 1: Removing The Third Row Child Seat Tether Anchors
    G01466171Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Install the anchor in the reverse order of removal, and apply liquid thread lock to the threads of the child seat tether anchor screws.
