Frame: Specifications

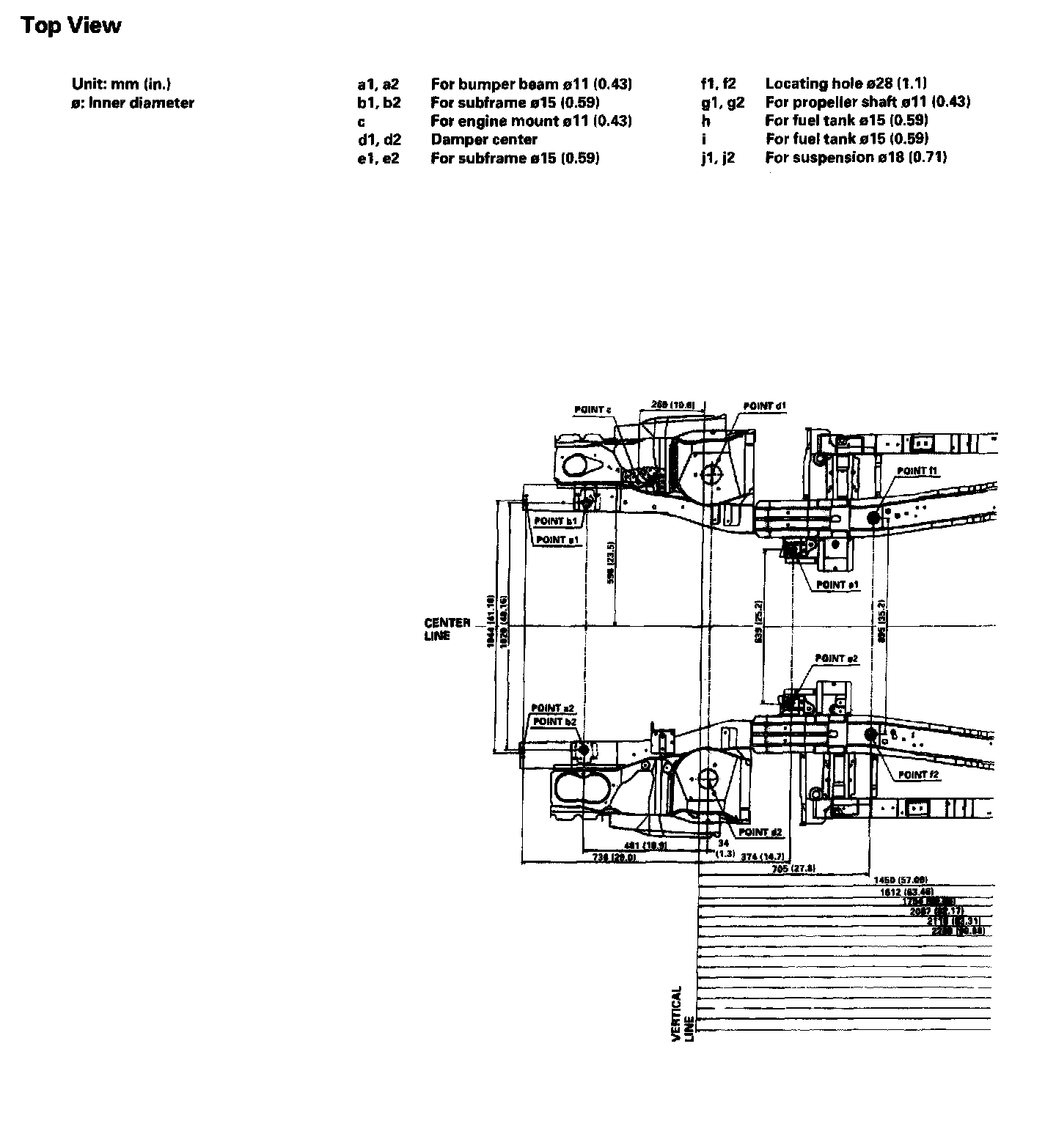

Frame Repair Chart (Part 1):

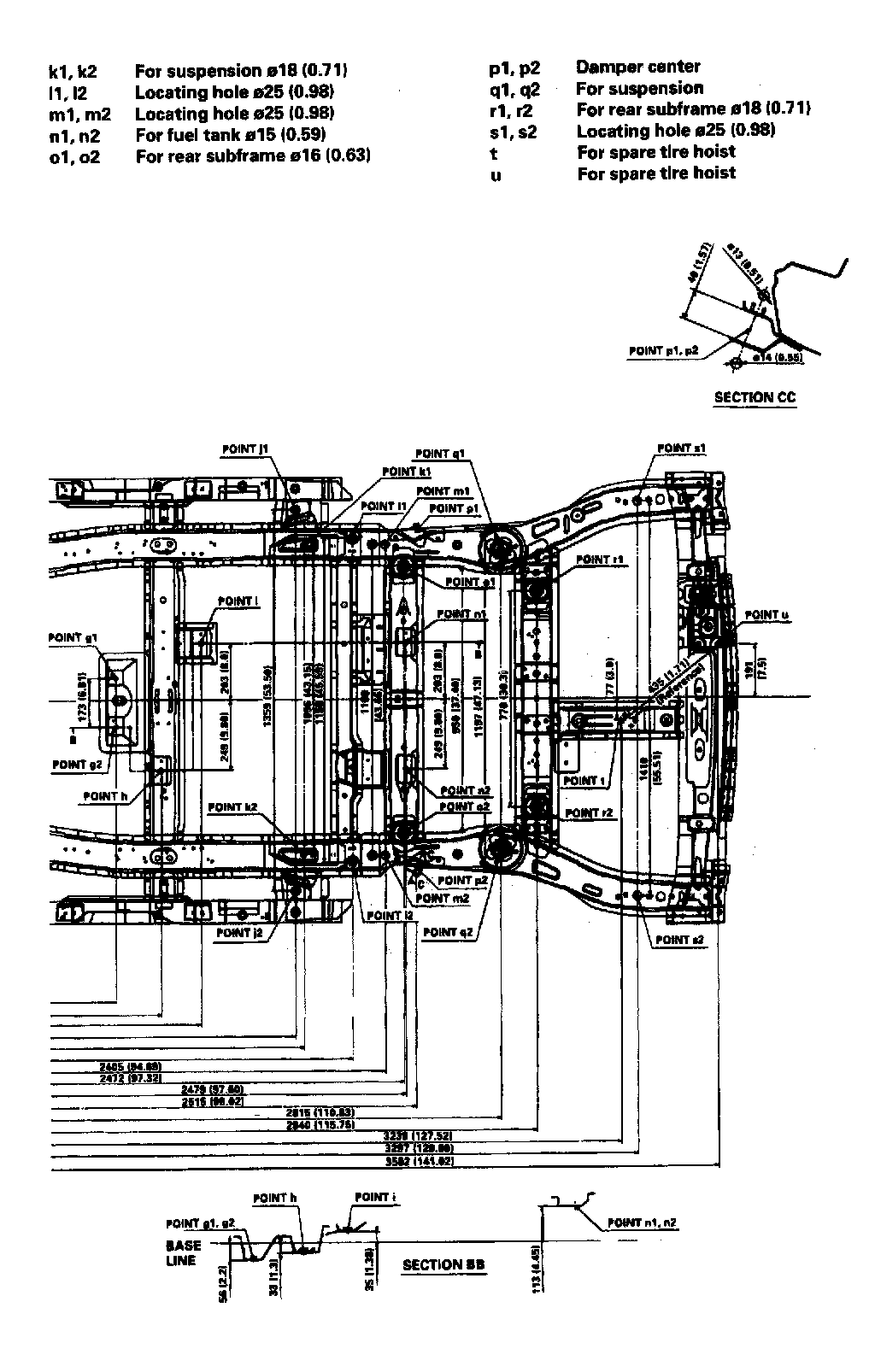

Frame Repair Chart (Part 2):

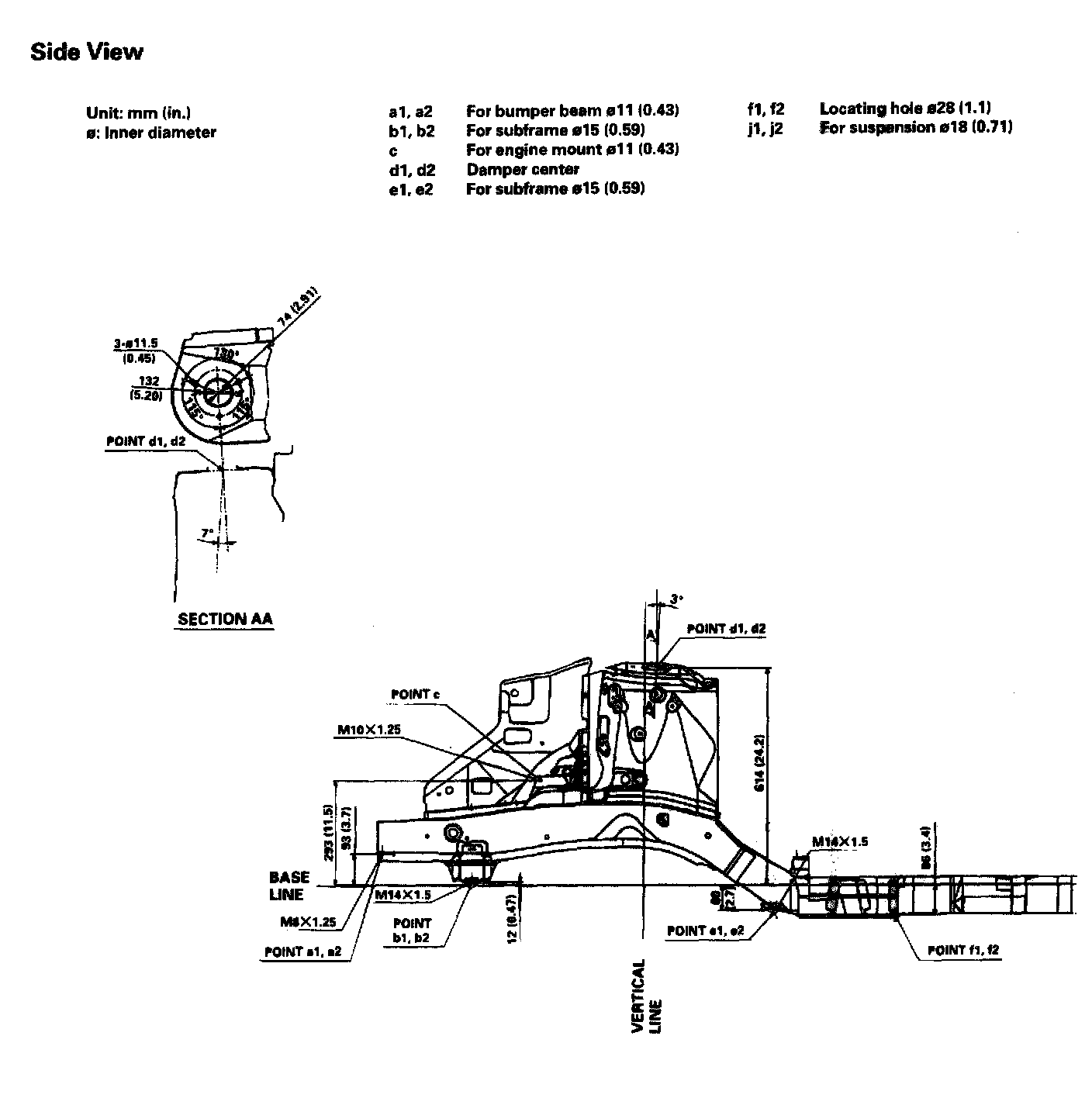

Frame Repair Chart (Part 3):

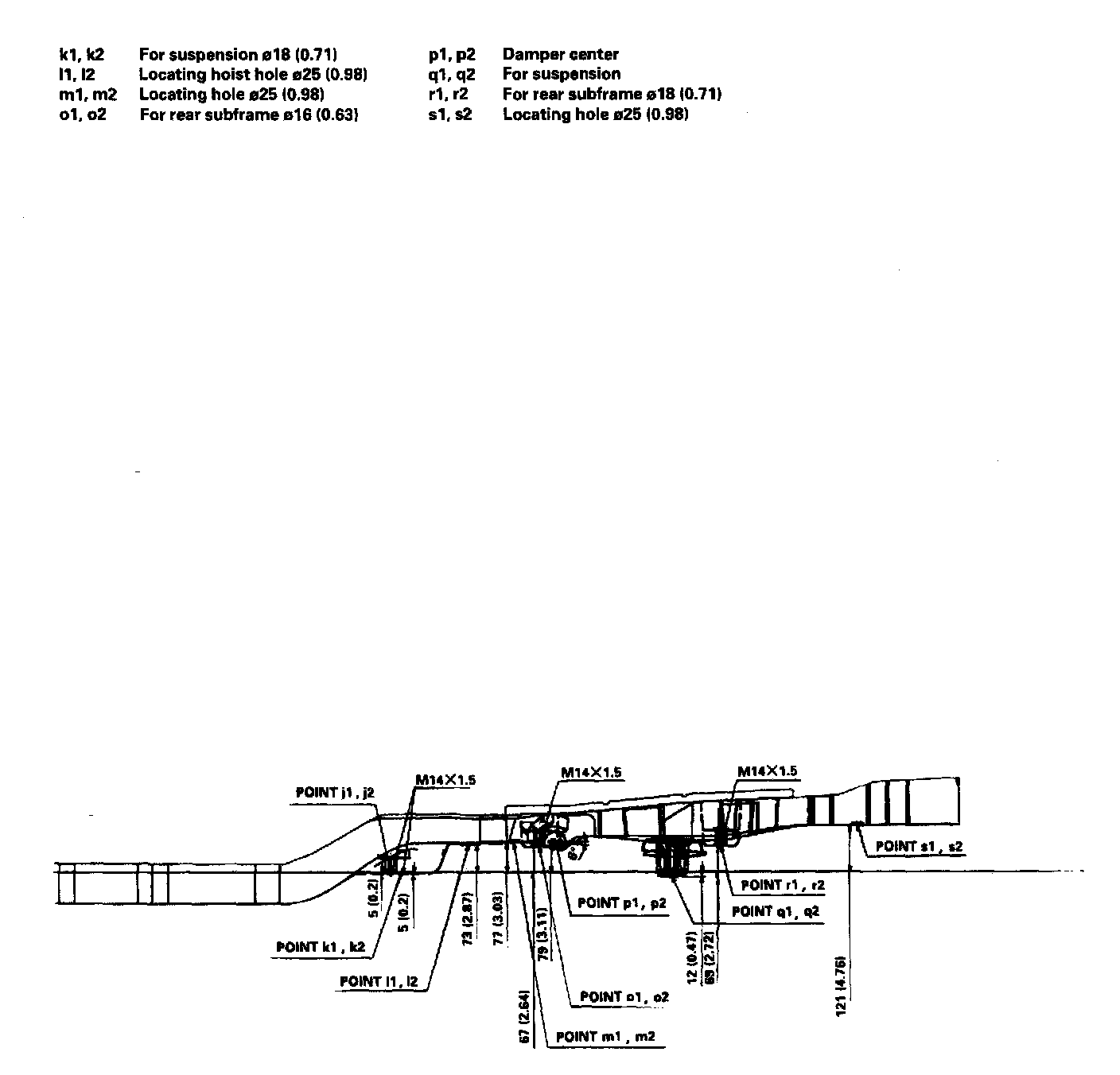

Frame Repair Chart (Part 4):
