Climate Control Unit

Climate Control Unit Removal and Installation

1. Remove the center front covers and the center lower cover.

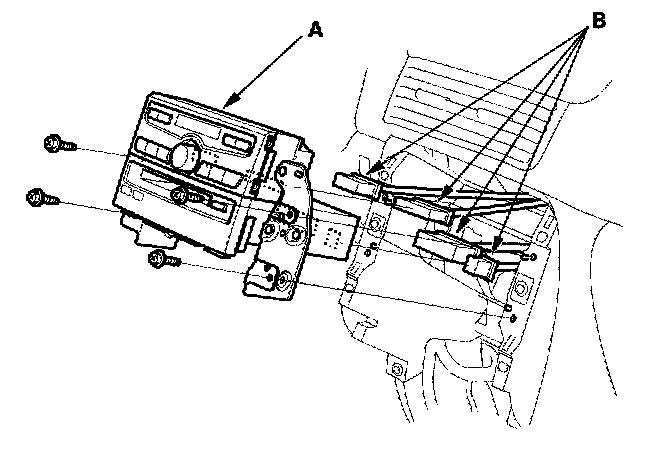

2. Remove the screws, and remove the climate control unit (A) with the brackets from the dashboard, then disconnect the connectors (B).

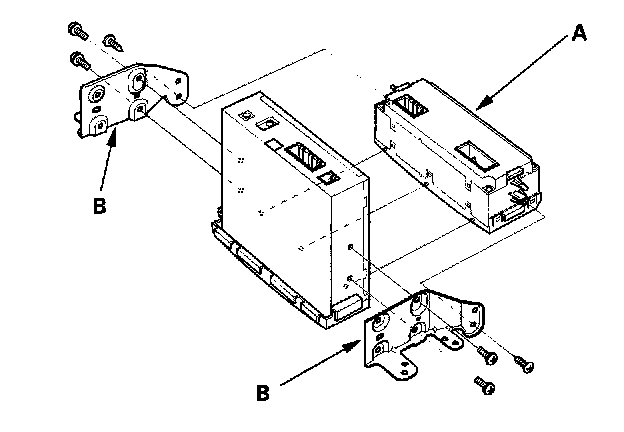

3. Remove the screws and the climate control unit (A) from the brackets (B).
4. Install the control unit in the reverse order of removal. After installation, operate the control unit controls to see whether it works properly.
5. Run the self-diagnoses function to confirm that there are no problems in the system.
