Rear Console Box Replacement

Rear Console Box Replacement

NOTE: Take care not to scratch the front seat and related parts.

1. Remove these items, then remove the rear console box as shown:
- Roll bar upper trim, both sides
- Spare tire

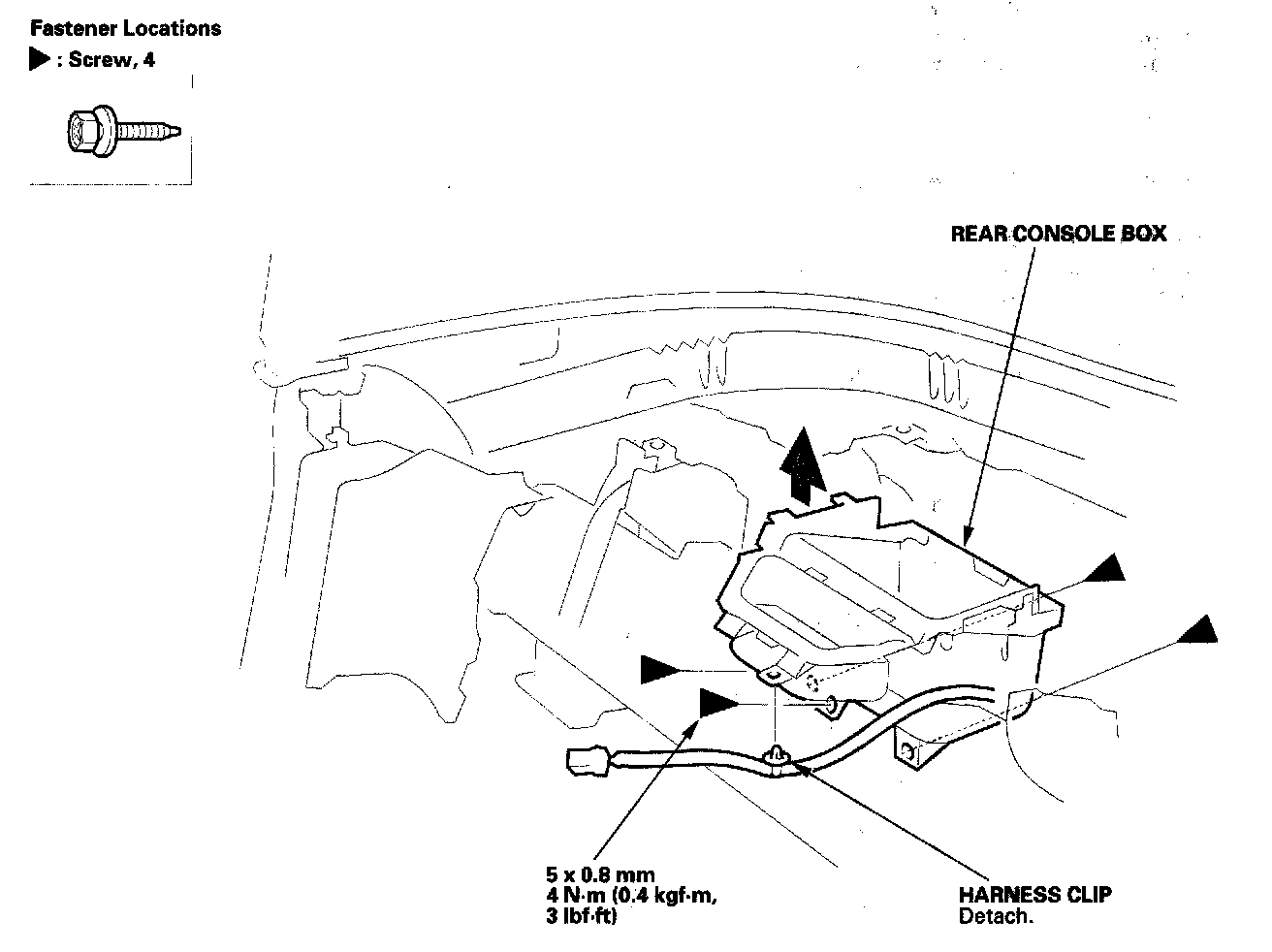

2. Remove the rear console box as shown.




3. Install the rear console box in the reverse order of removal.
