Removal and Replacement

Seat Removal/Installation

NOTE: Take care not to scratch the body or tear the seat covers.

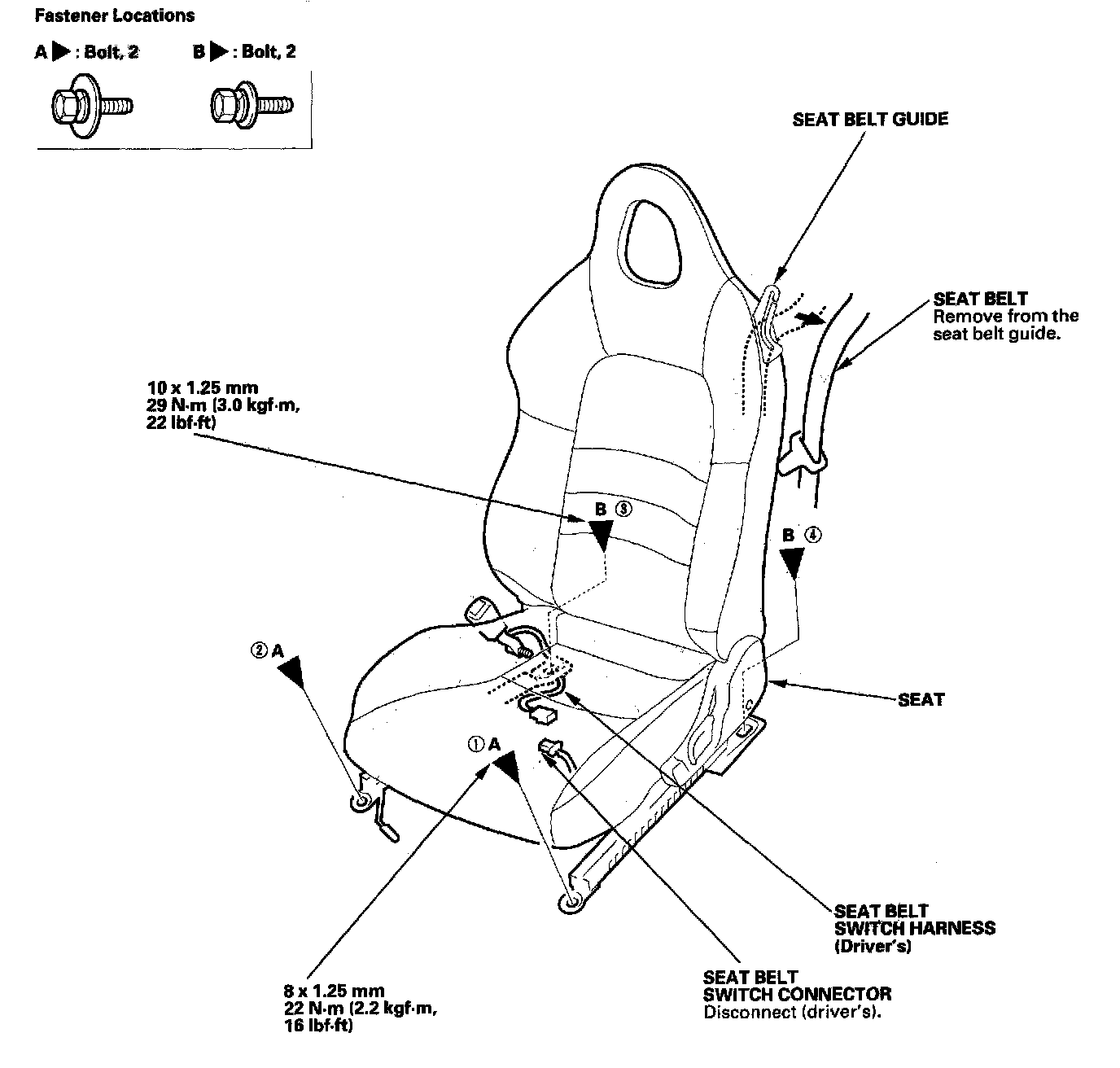

1. Remove the seat as shown.




2. Install the seat in the reverse order of removal, and note these items:
- Slip the seat belt through the slits in the seat belt guide properly.
- Make sure the seat belt switch connector is plugged in properly.
- Apply liquid thread lock to the seat mounting bolts before reinstallation.
- Tighten the seat mounting bolts to the specified torque in the sequence shown. Slide the seat all the way back and tighten (1) and (2), then slide it forward and tighten (3) and (4).
