Cruise Control Switch: Diagrams

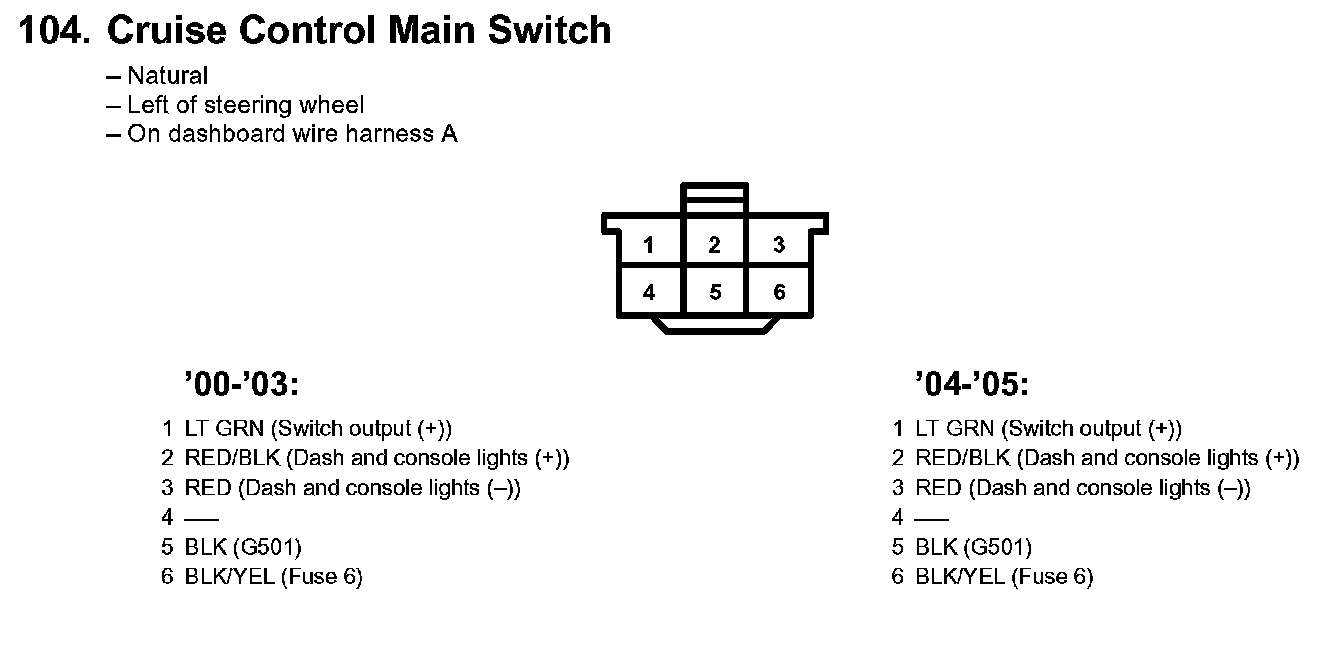

104. Cruise Control Main Switch:

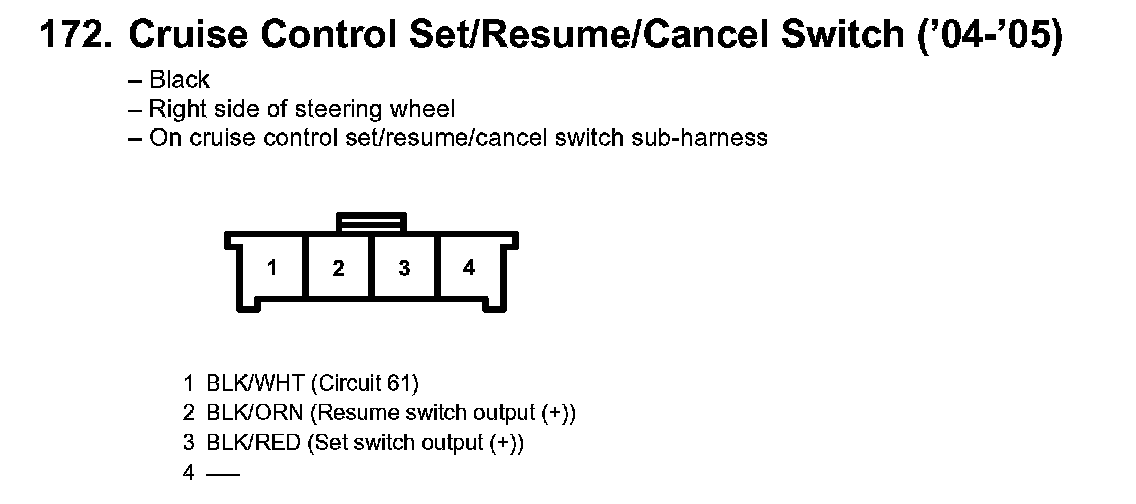

172. Cruise Control Set/Resume/Cancel Switch:
