Main Switch/Indicator/Illumination

Cruise Control Main Switch/Indicator/Illumination Test

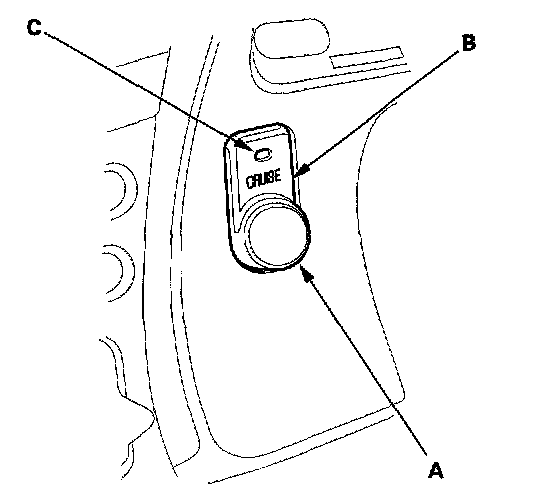

1. Turn the ignition switch ON (II). Turn the lighting switch and the cruise control main switch (A) ON.
2. Check that the illumination indicator (B) and the indicator light (0 in the cruise control main switch come on.
3. If the indicator does not come on, remove the switch and replace the bulb.
4. If the indicator does not come on after the bulb has been replaced, replace the cruise control main switch.
