Alarm Module, (Vehicle Antitheft)

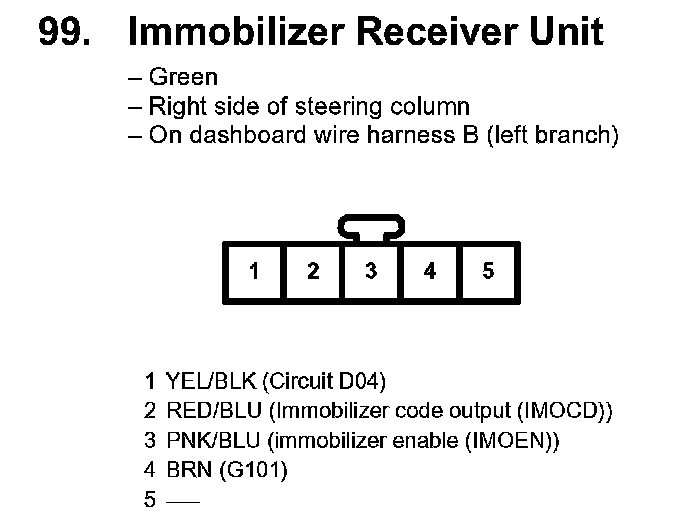

99. Immobilizer Receiver Unit:

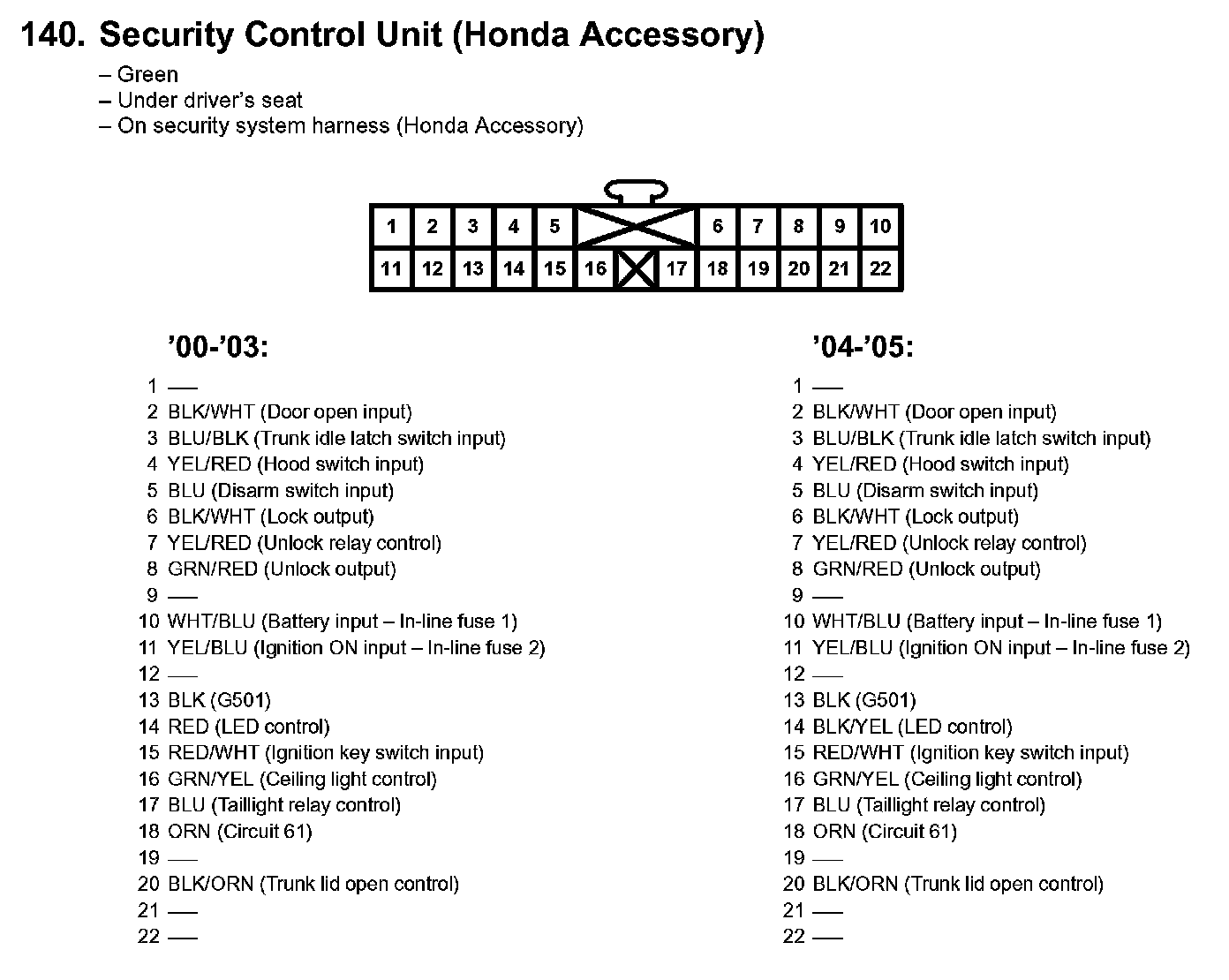

140. Security Control Unit (Honda Accessory):
