System Diagram

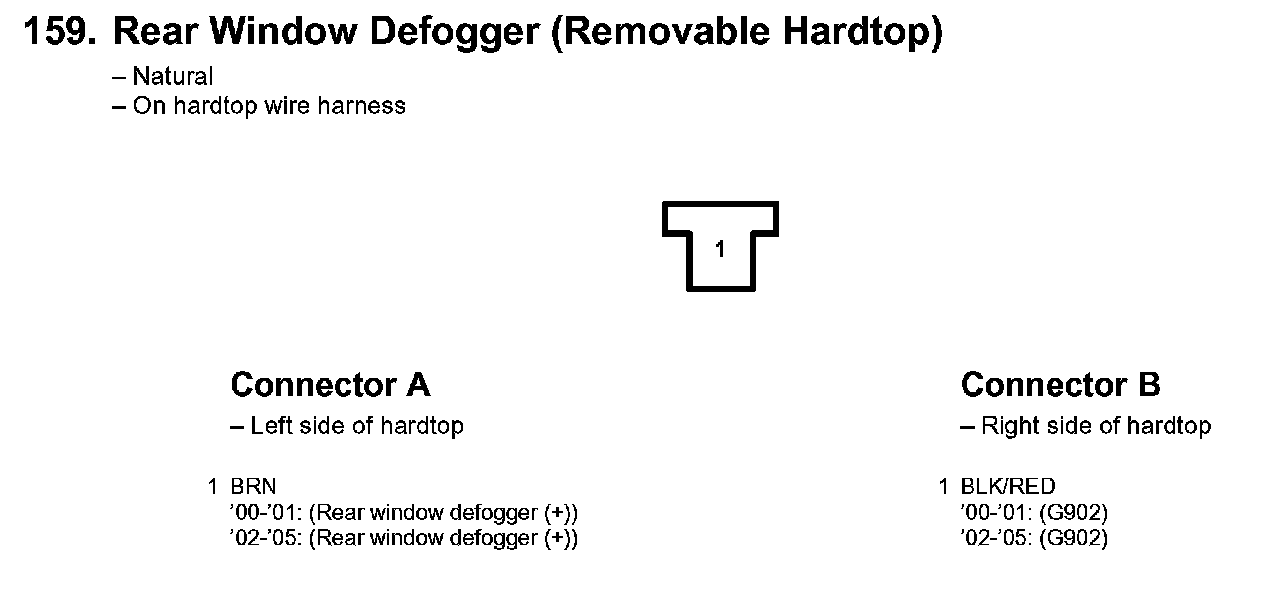

159. Rear Window Defogger (Removable Hardtop):

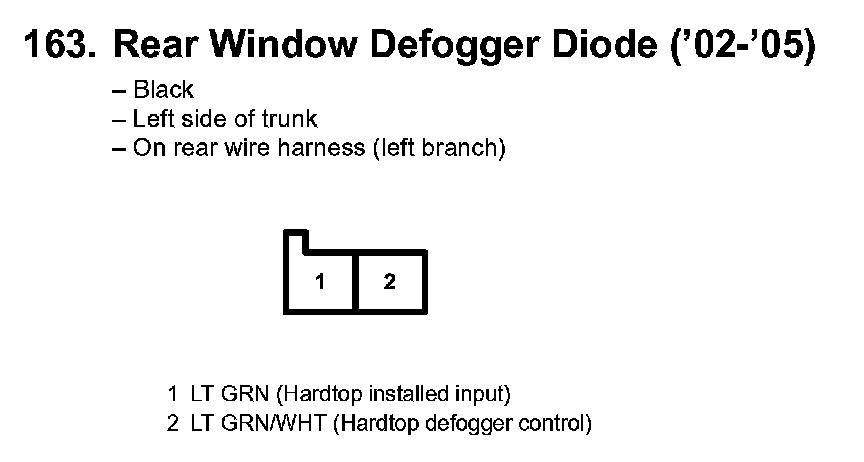

163. Rear Window Defogger Diode:

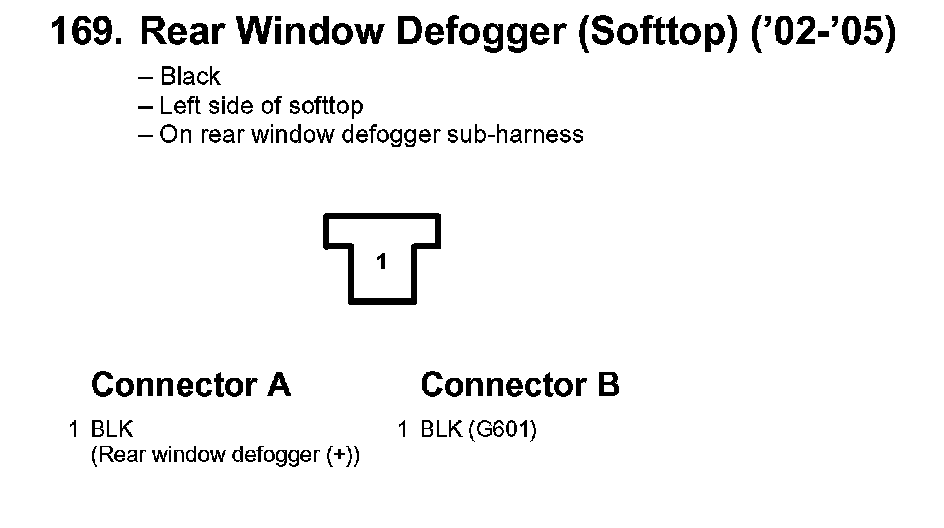

169. Rear Window Defogger (Softtop):
