Disassembly

Transmission Disassembly

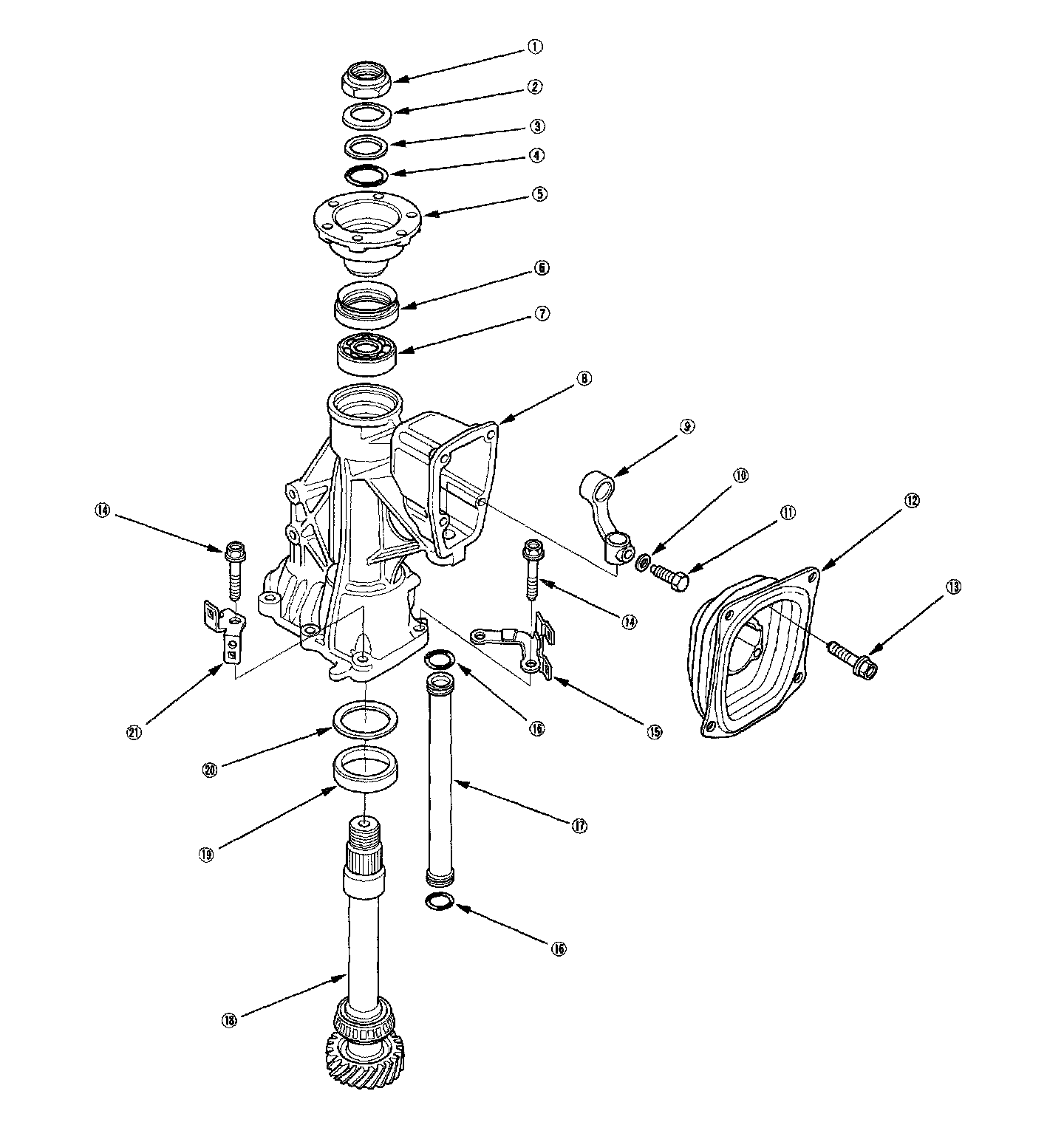

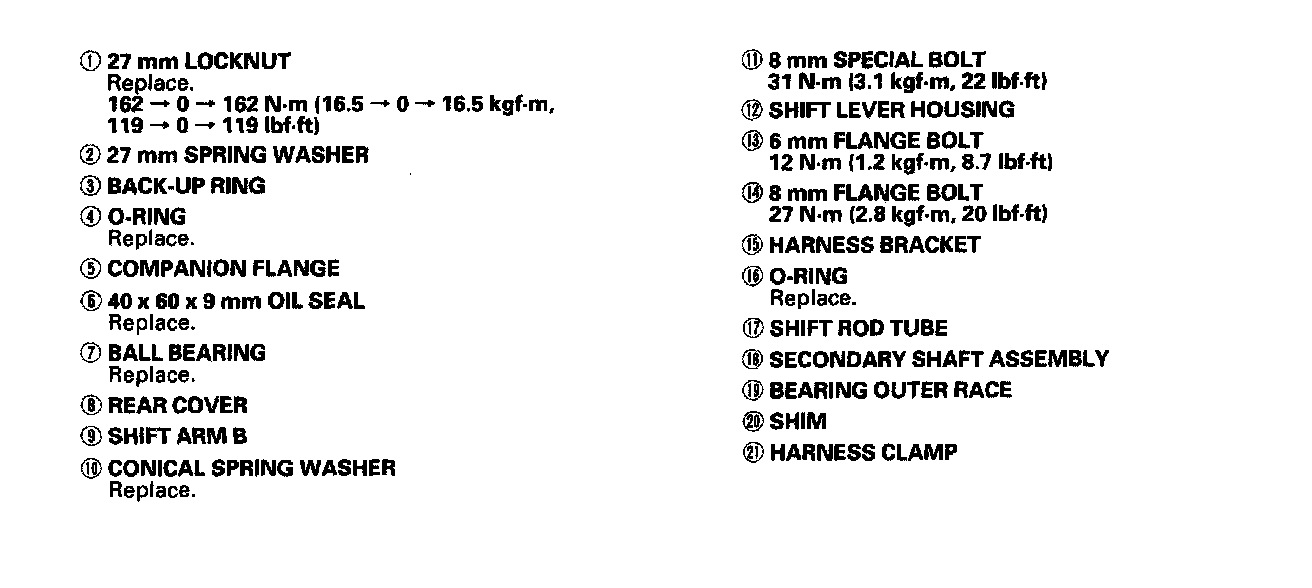

Exploded View-Rear Cover

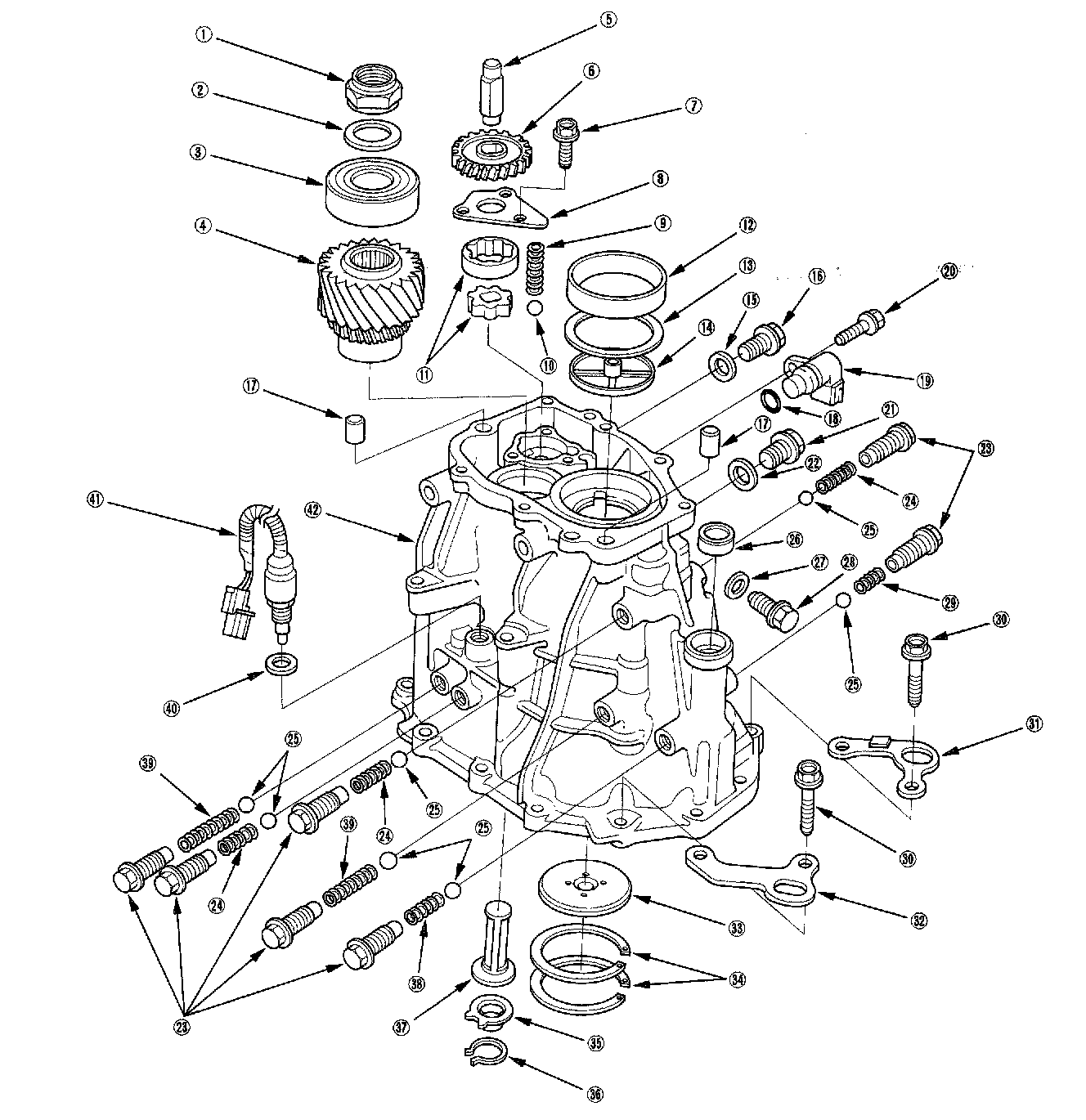

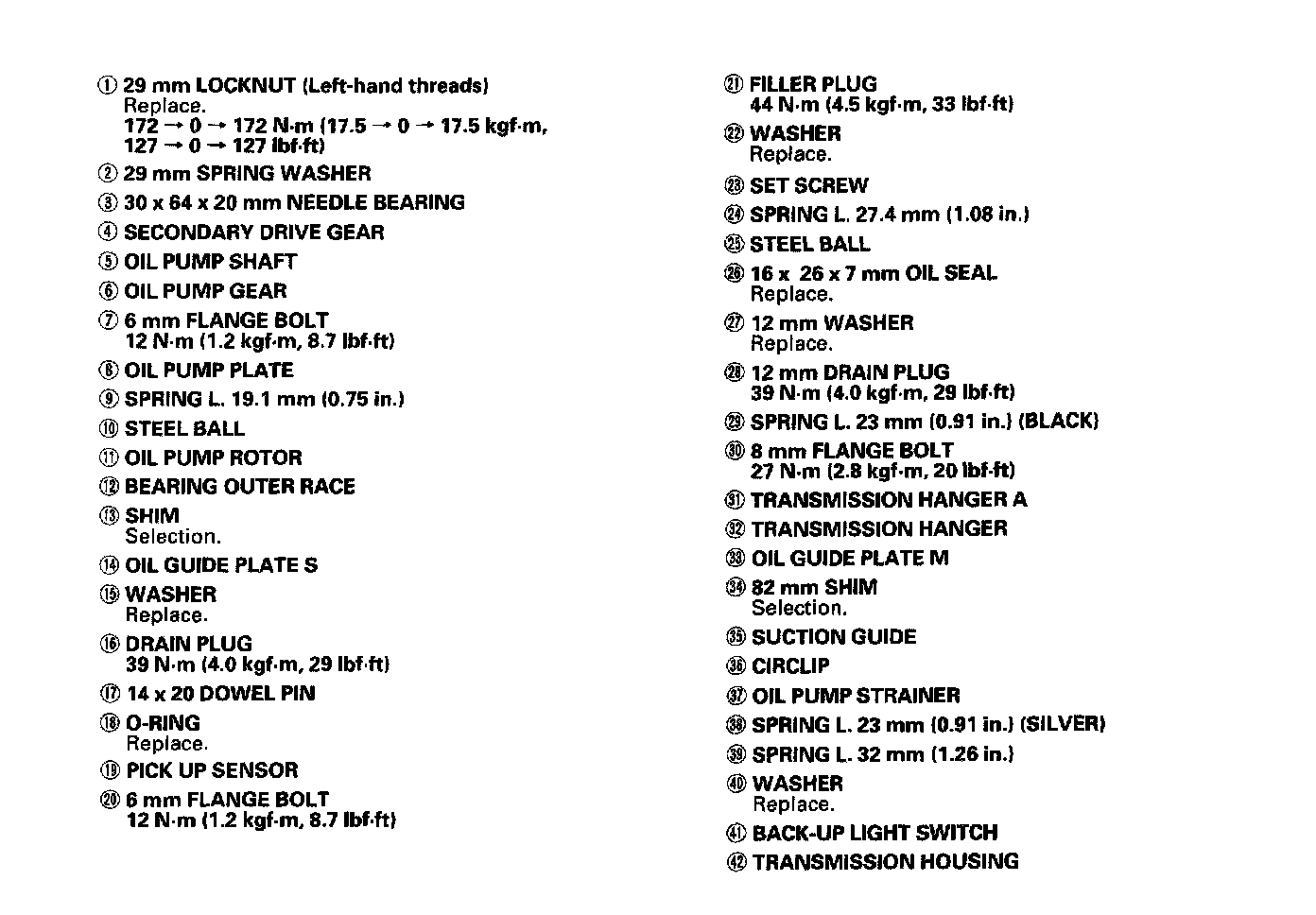

Exploded View-Transmission Housing

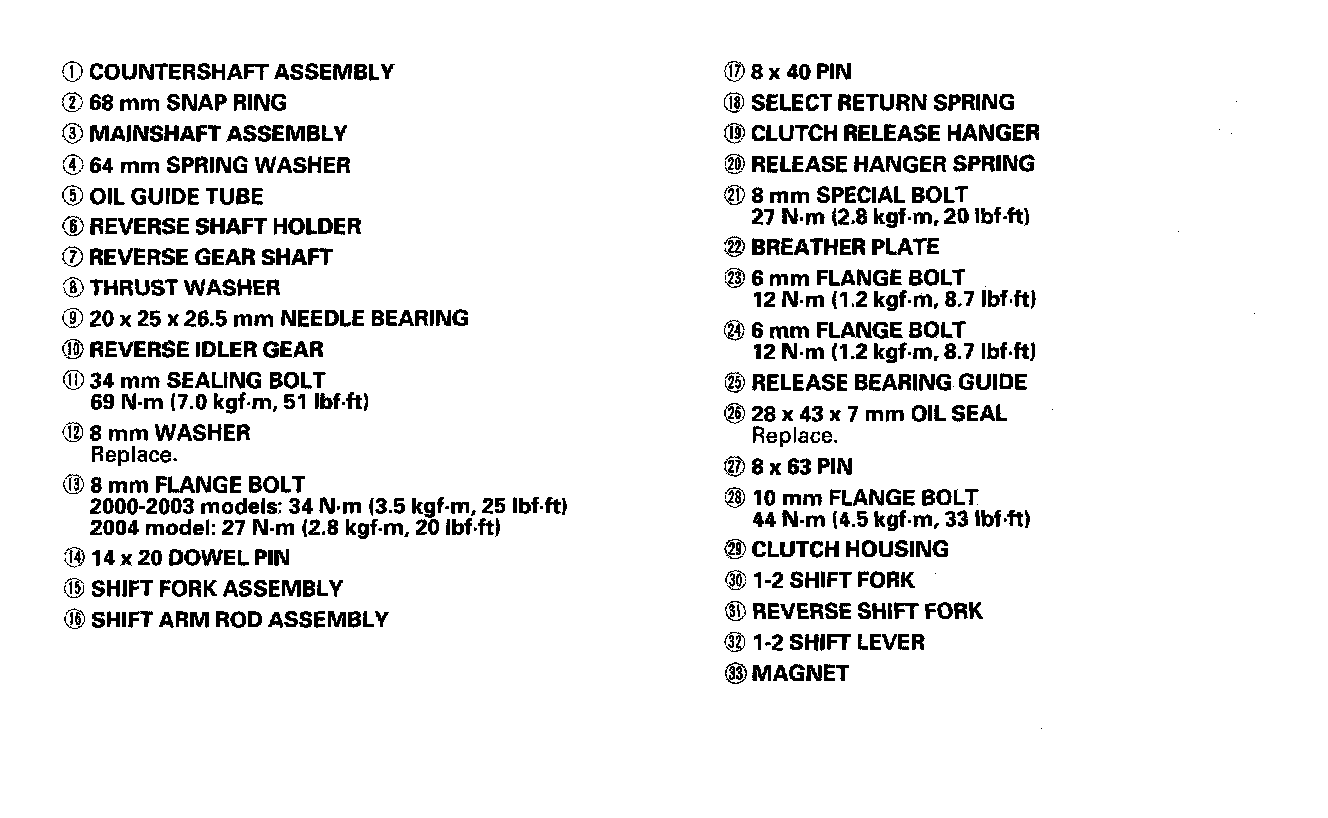

Exploded View-Clutch Housing
