Ignition Switch Lead

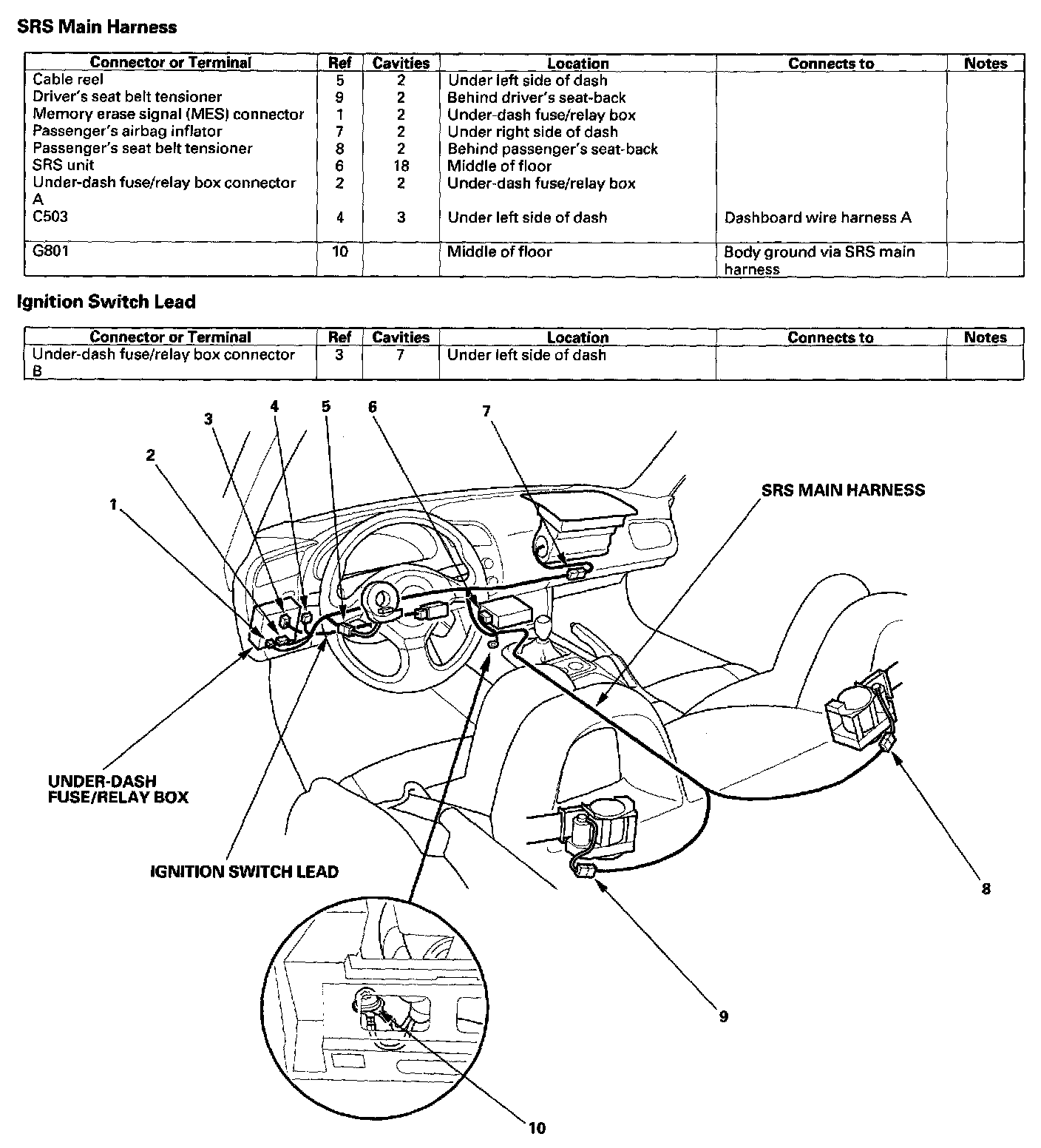

SRS Main Harness/ignition Switch Lead:

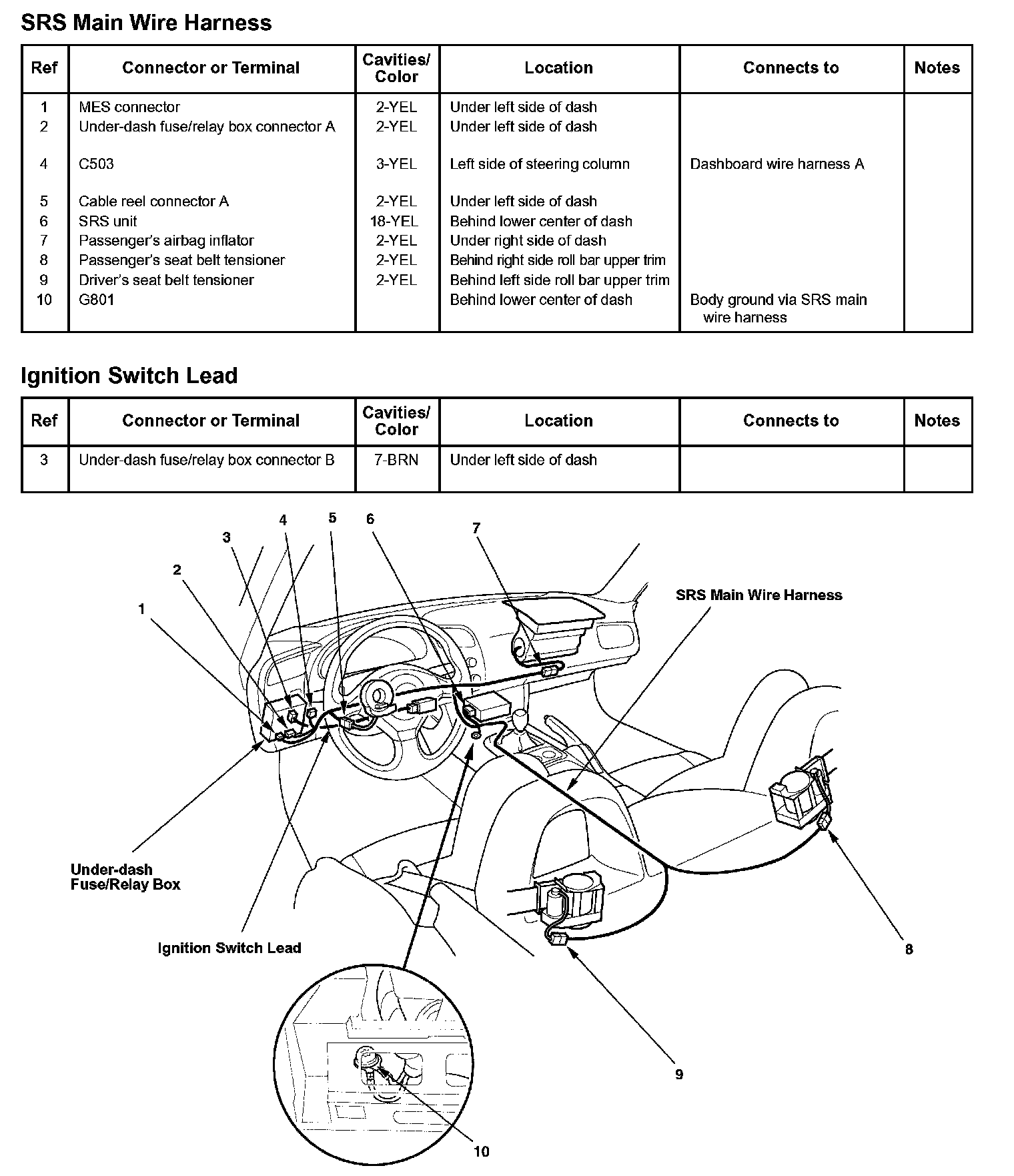

SRS Main Wire Harness/Ignition Switch Lead:
