Main Relay (Computer/Fuel System): Locations

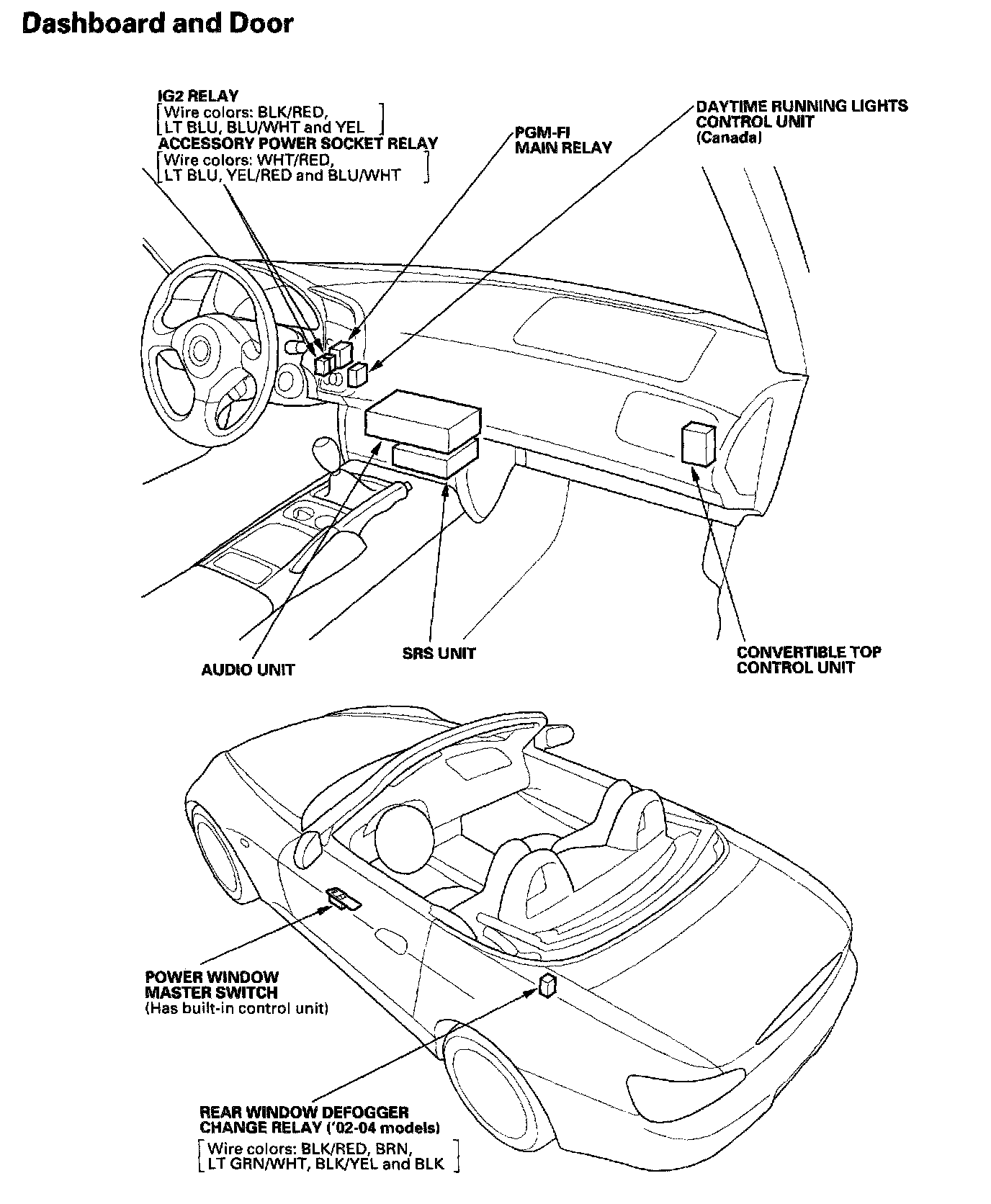

Relay And Engine Control Unit Locations - Dashboard And Door:

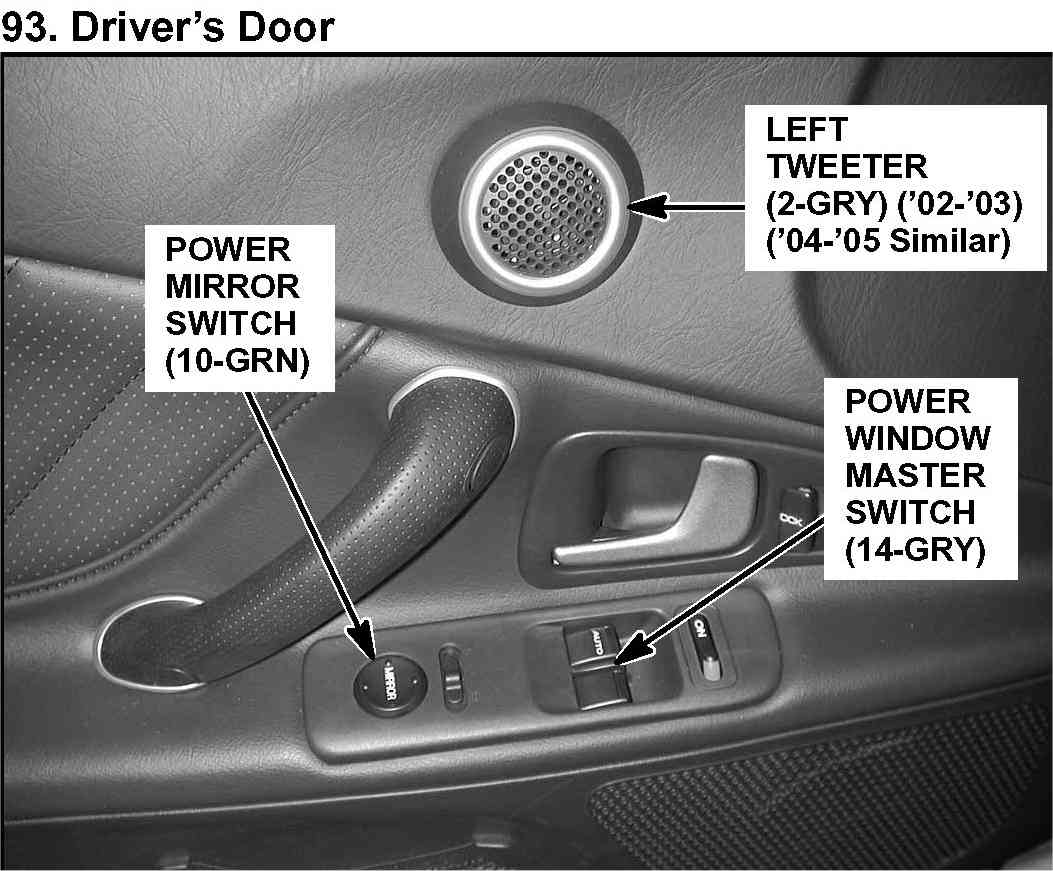

93. Driver's Door:

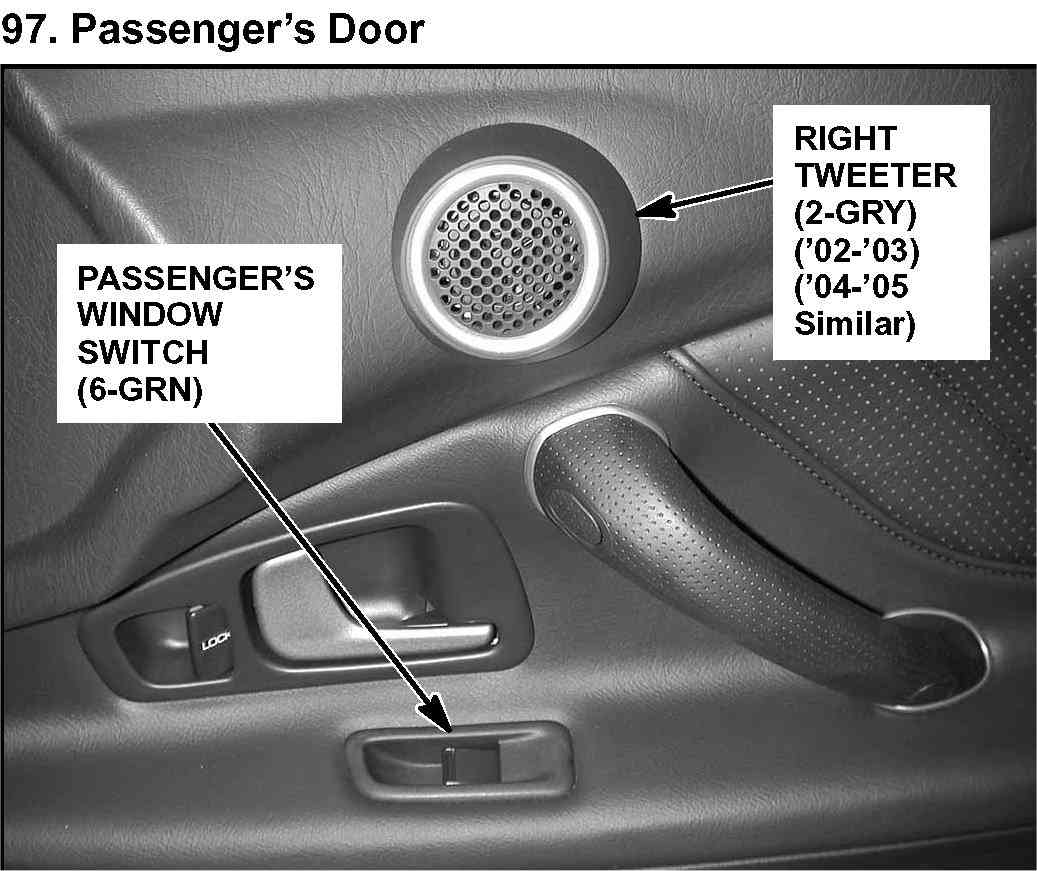

97. Passenger's Door:

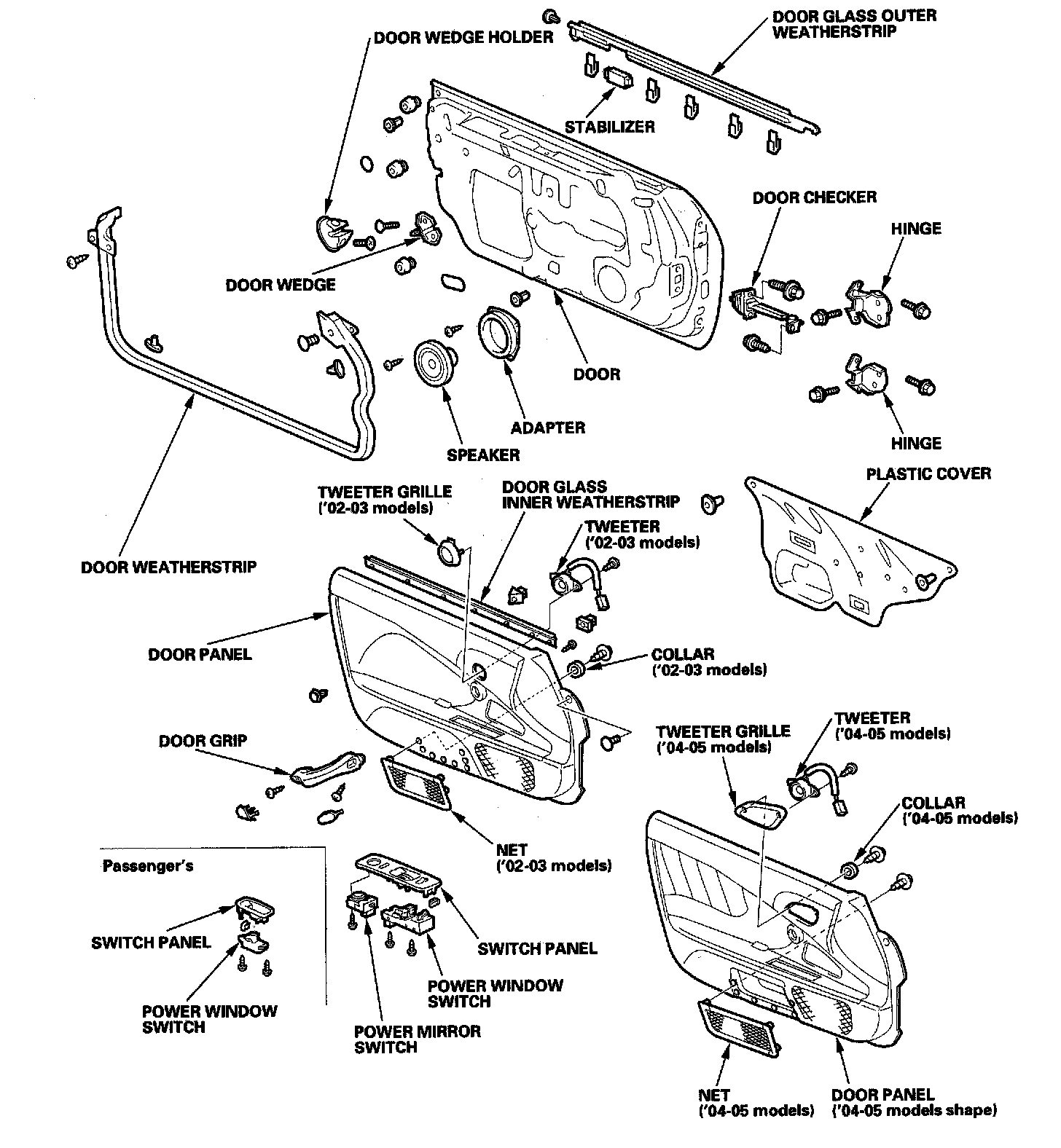

Doors - Component Location Index:
