Vehicle Speed Sensor: Locations

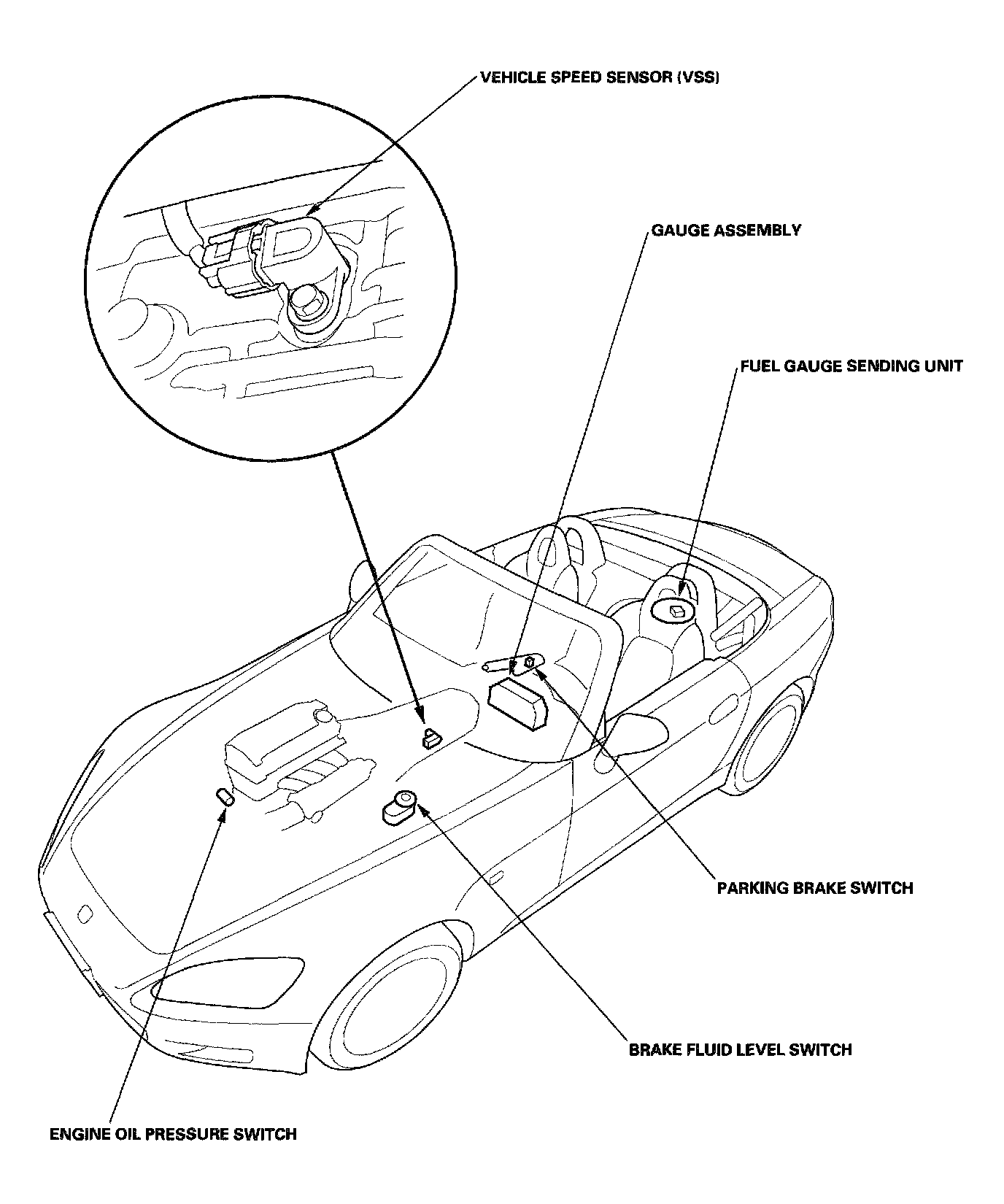

Gauges - Component Location Index:

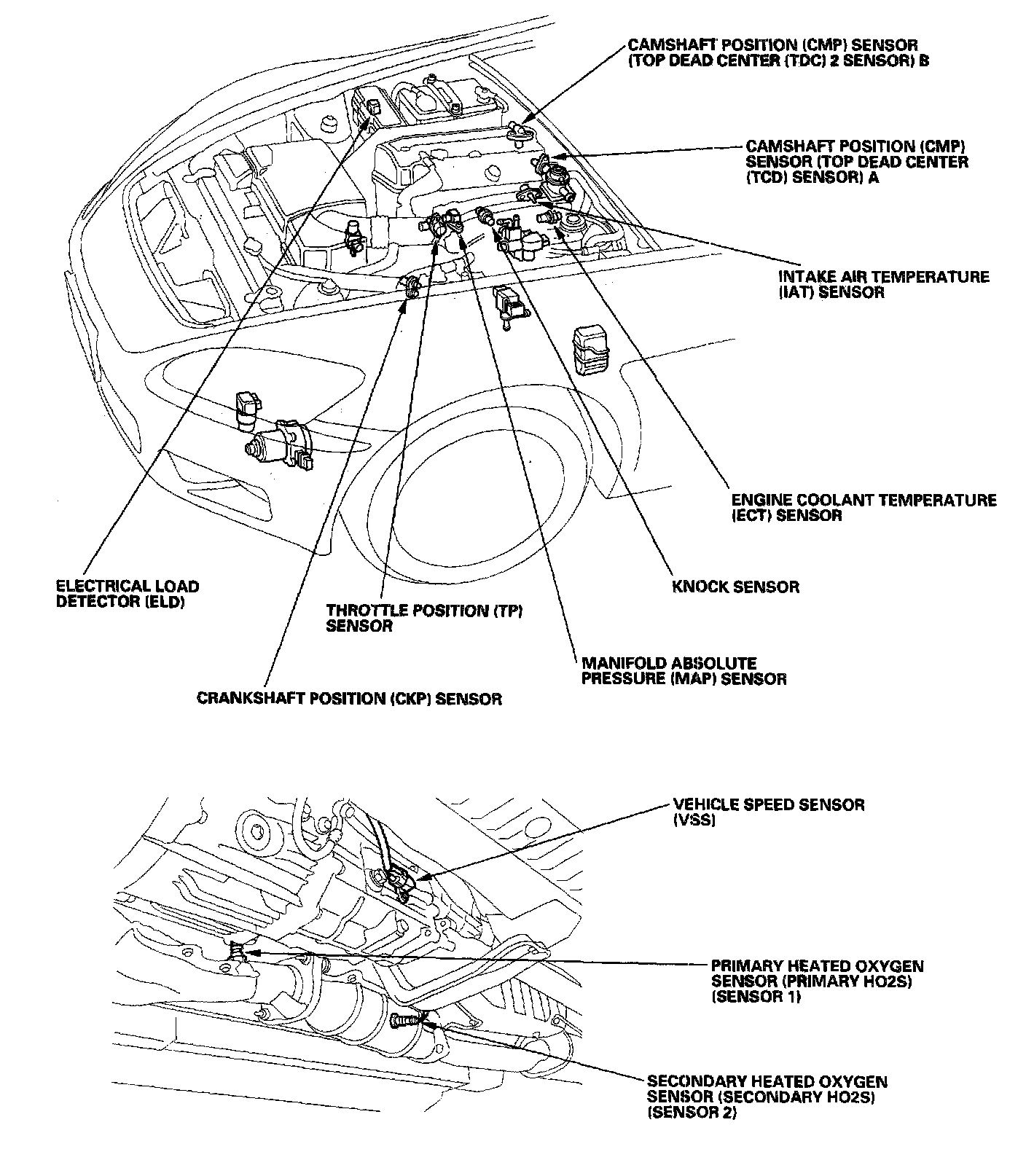

PGM-FI System - Component Location Index:

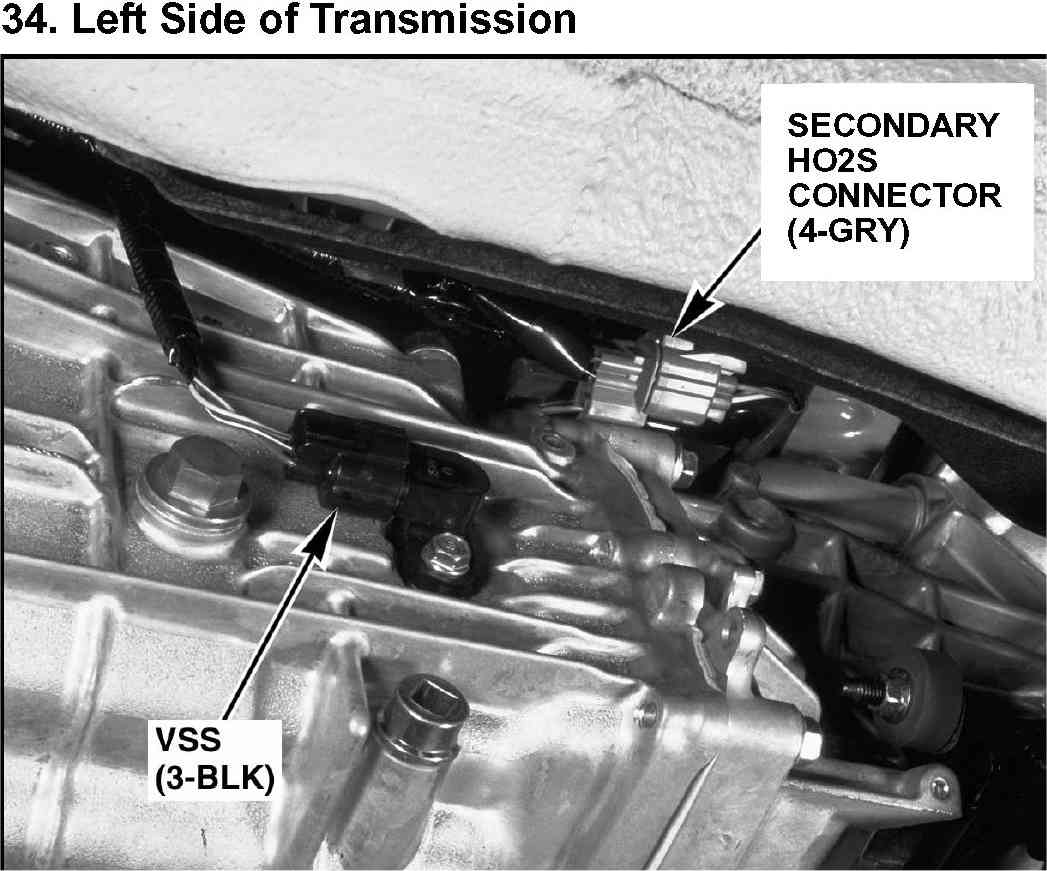

34. Left Side of Transmission:
