Vehicle Speed Sensor: Service and Repair

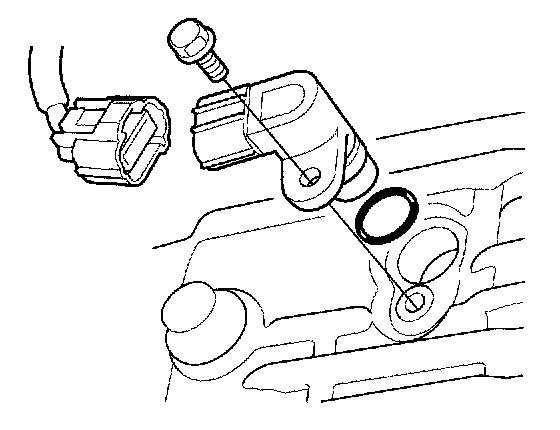

VSS Replacement

1. Raise the vehicle, and make sure it is securely supported.




2. Disconnect the 3P connector from the vehicle speed sensor (VSS).
3. Remove the mounting bolt, then remove the VSS.
4. Install in the reverse order of removal.
