ECM Circuit Diagrams

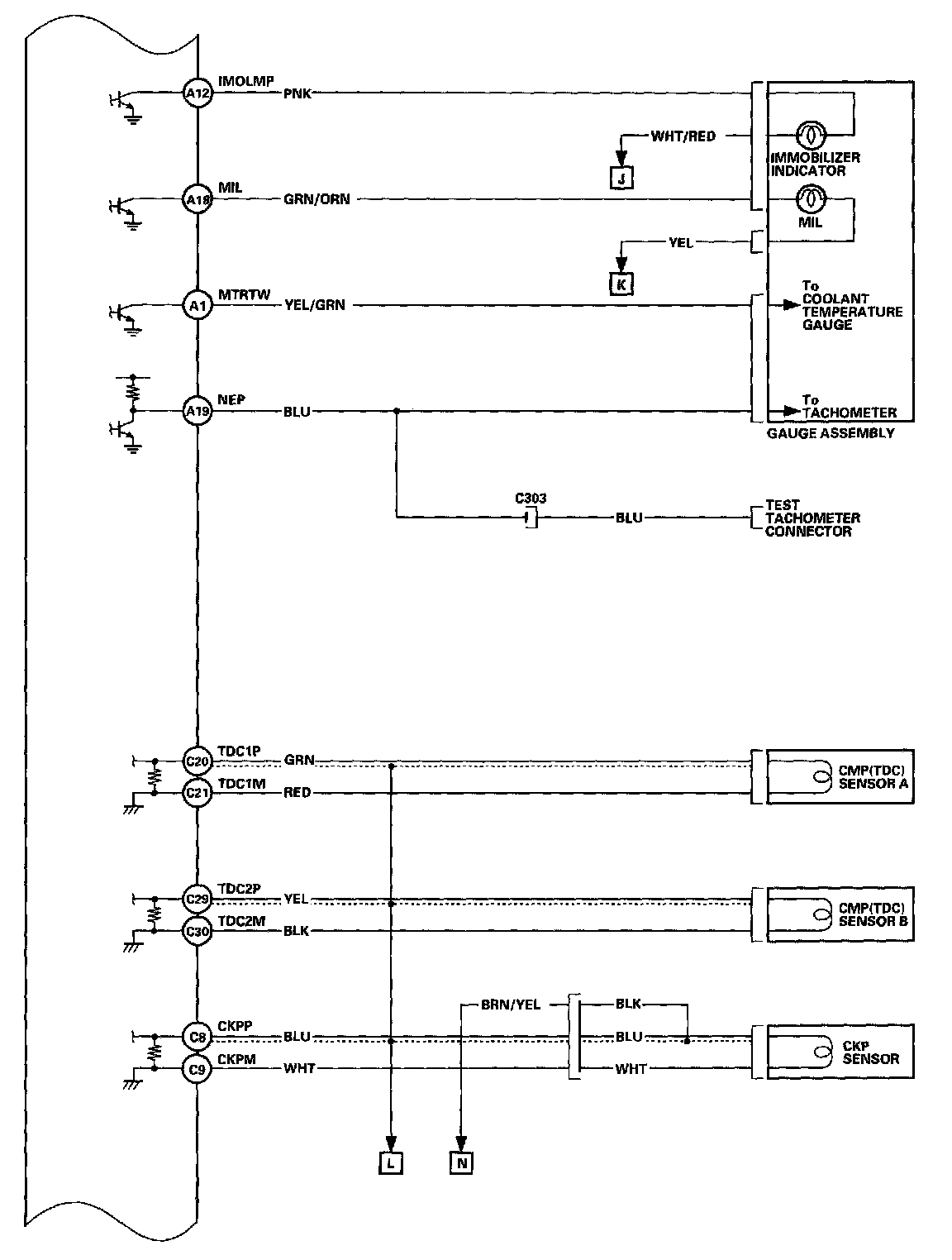

ECM Circuit Diagram 11-31:

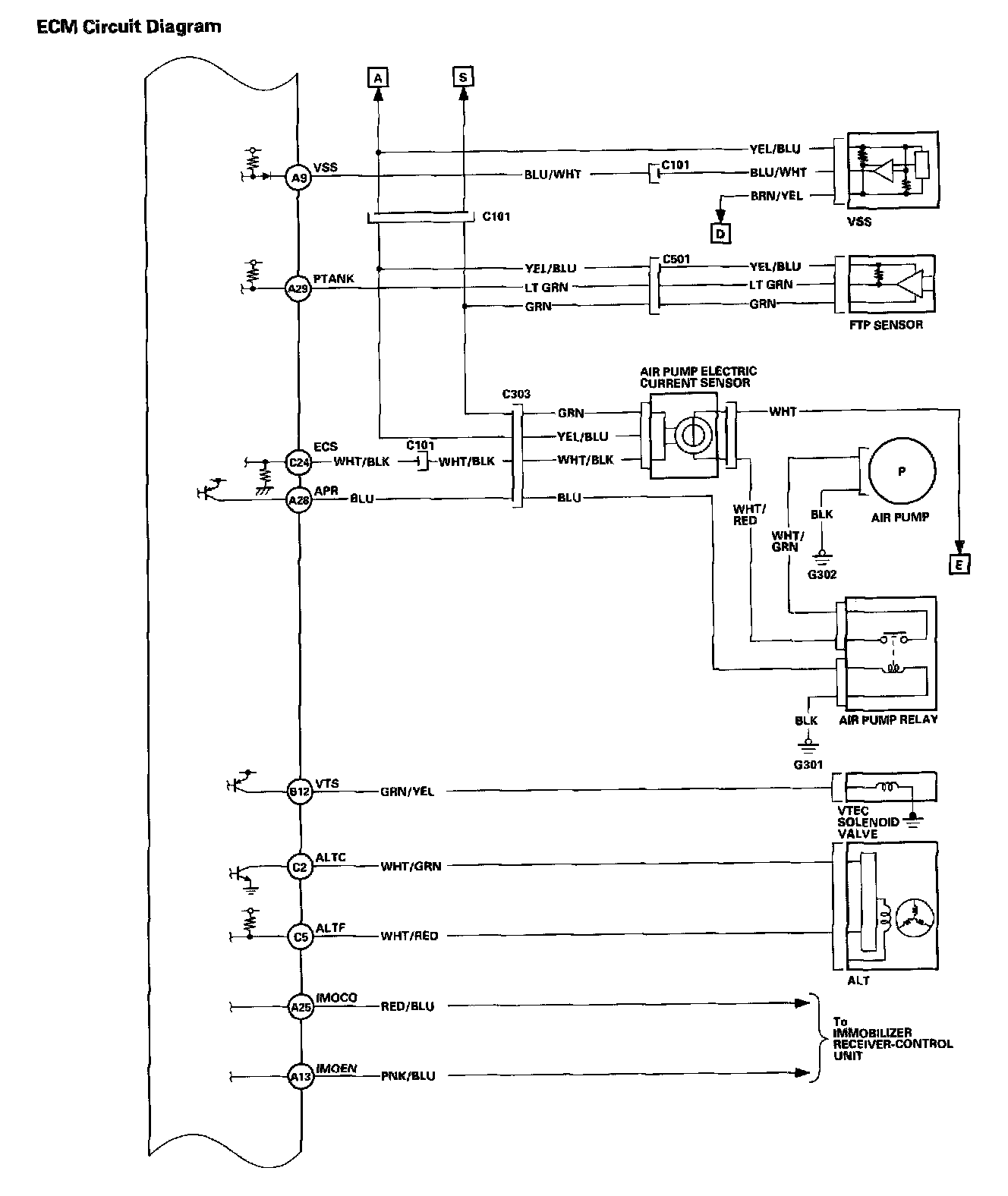

ECM Circuit Diagram 11-32:

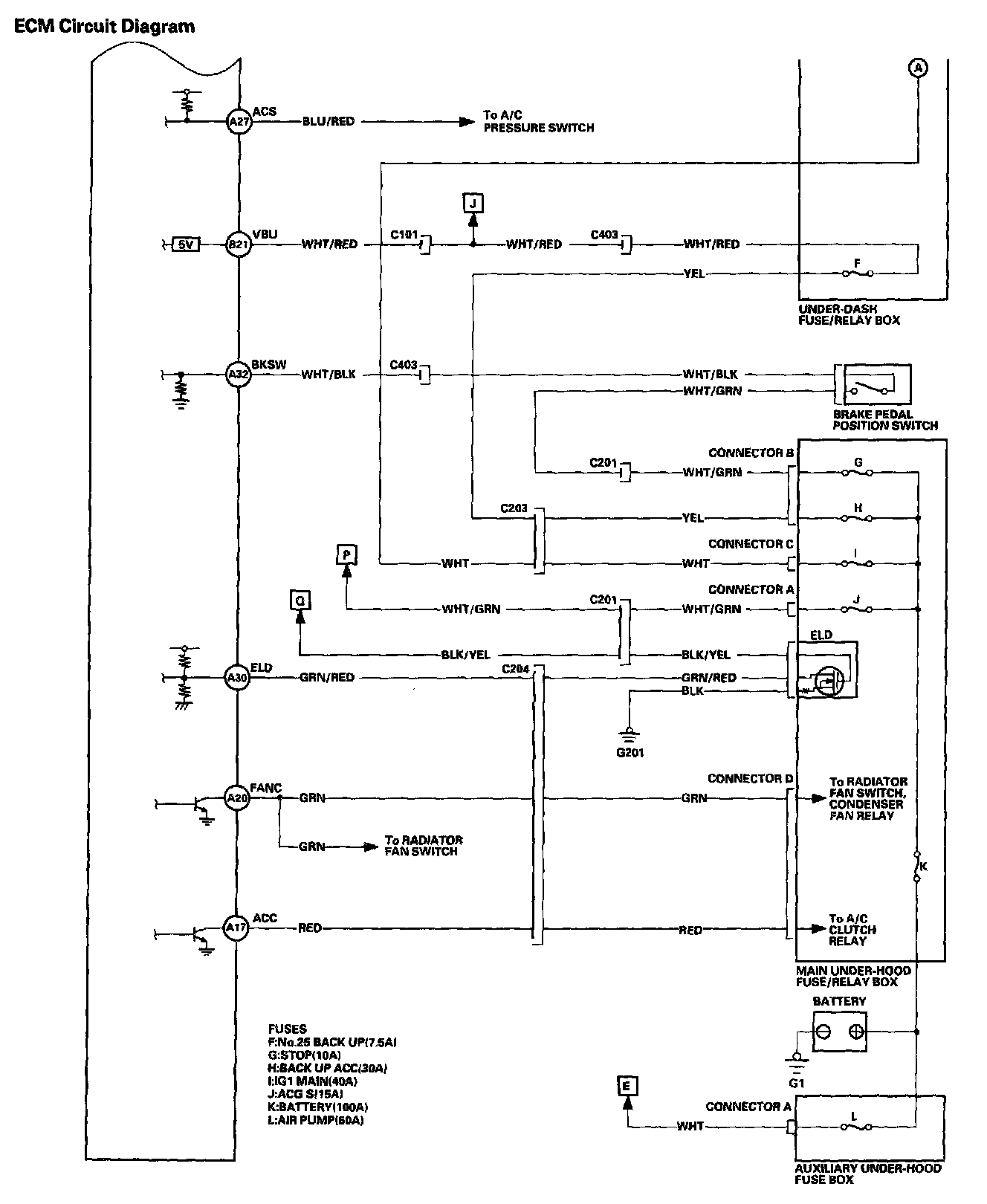

ECM Circuit Diagram 11-33:

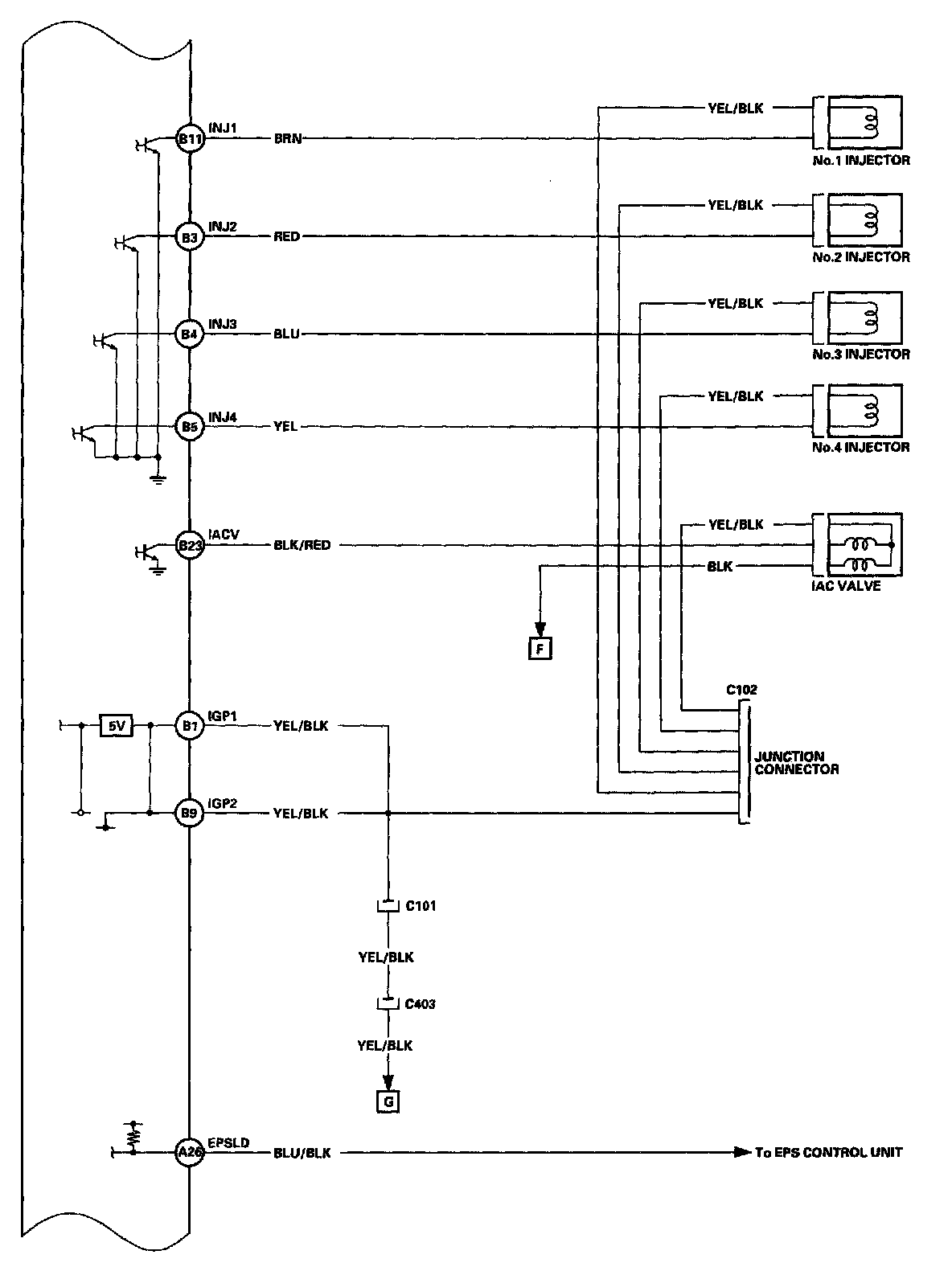

ECM Circuit Diagram 11-34:

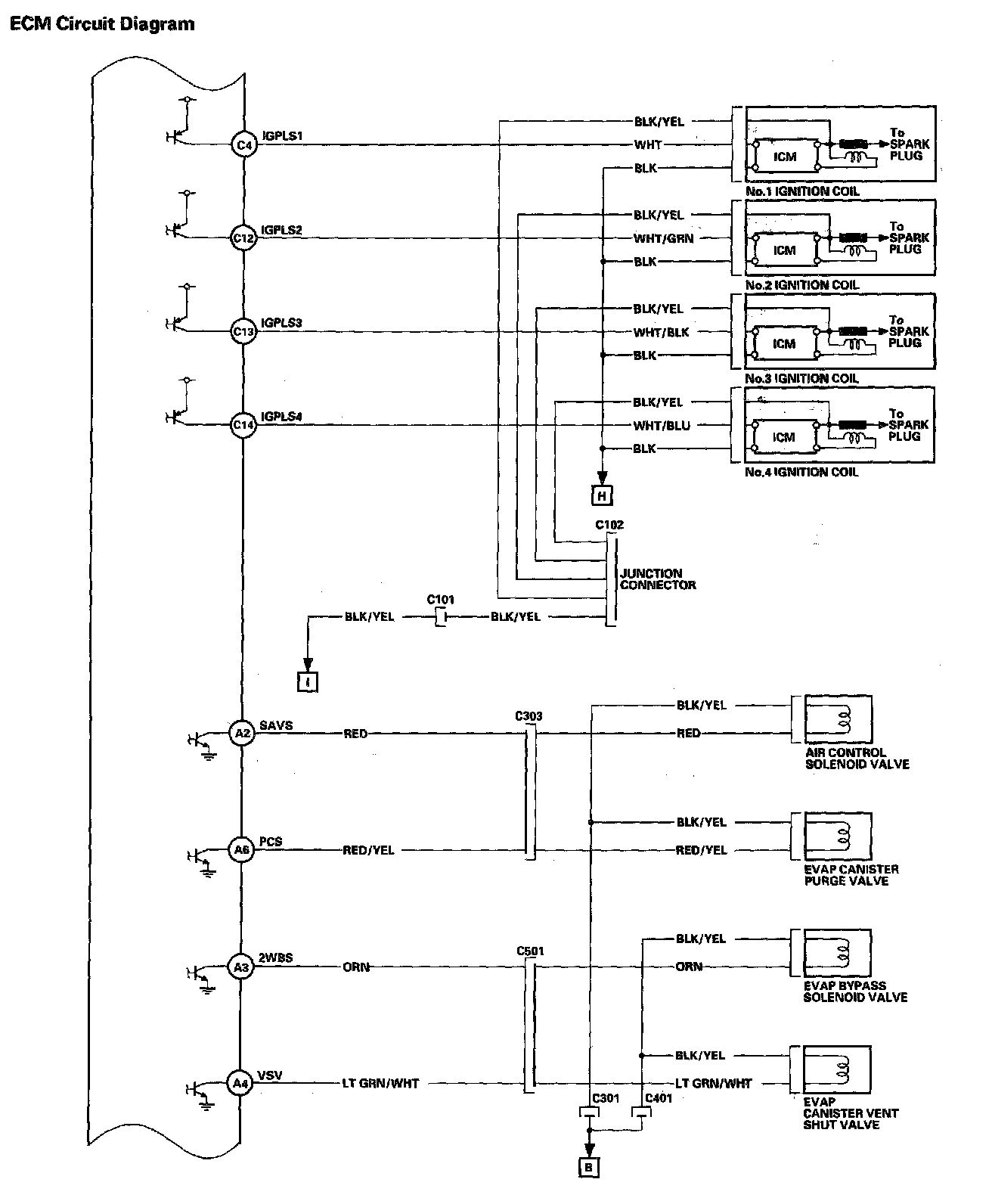

ECM Circuit Diagram 11-35:

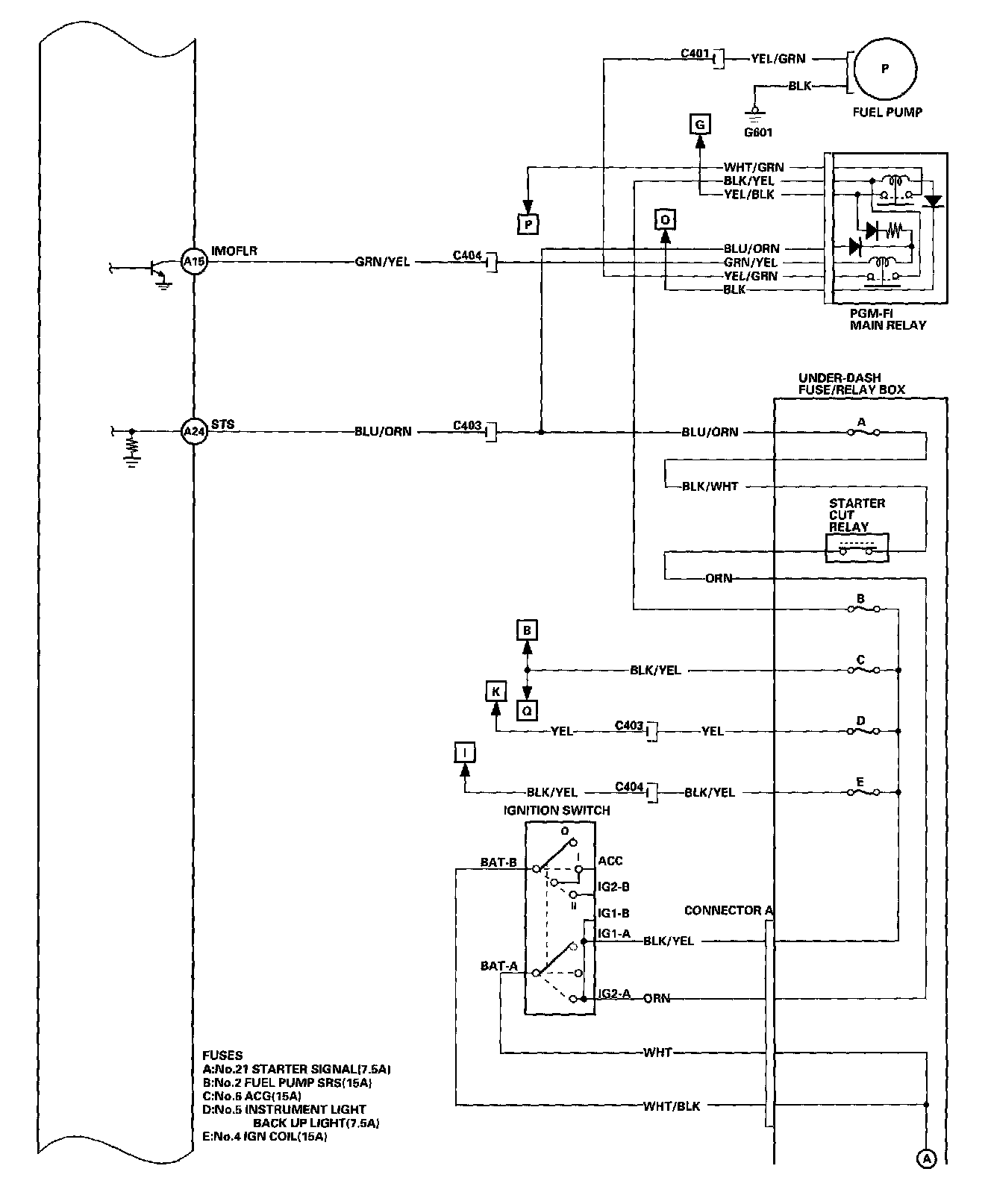

ECM Circuit Diagram 11-36:

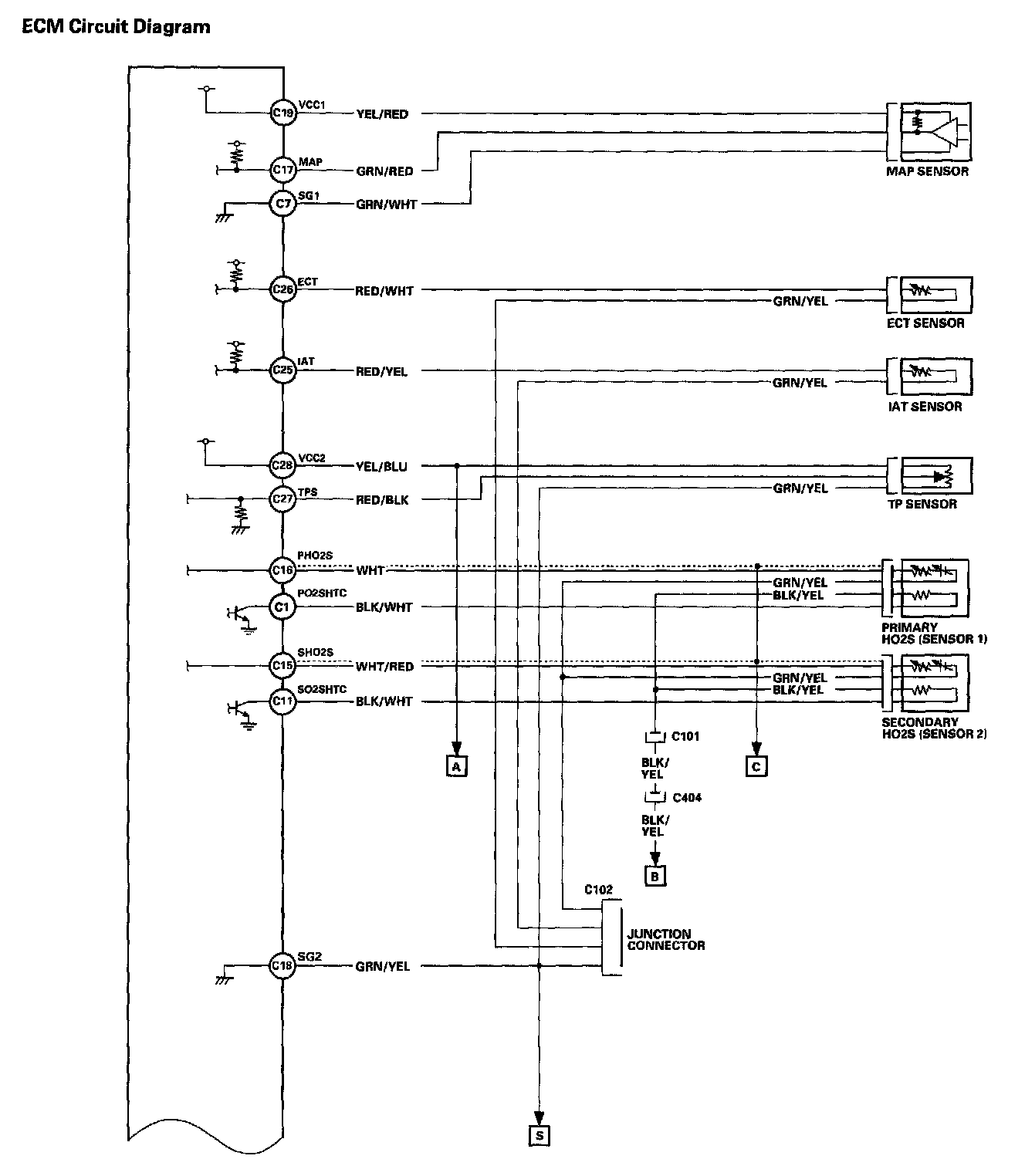

ECM Circuit Diagram 11-37:

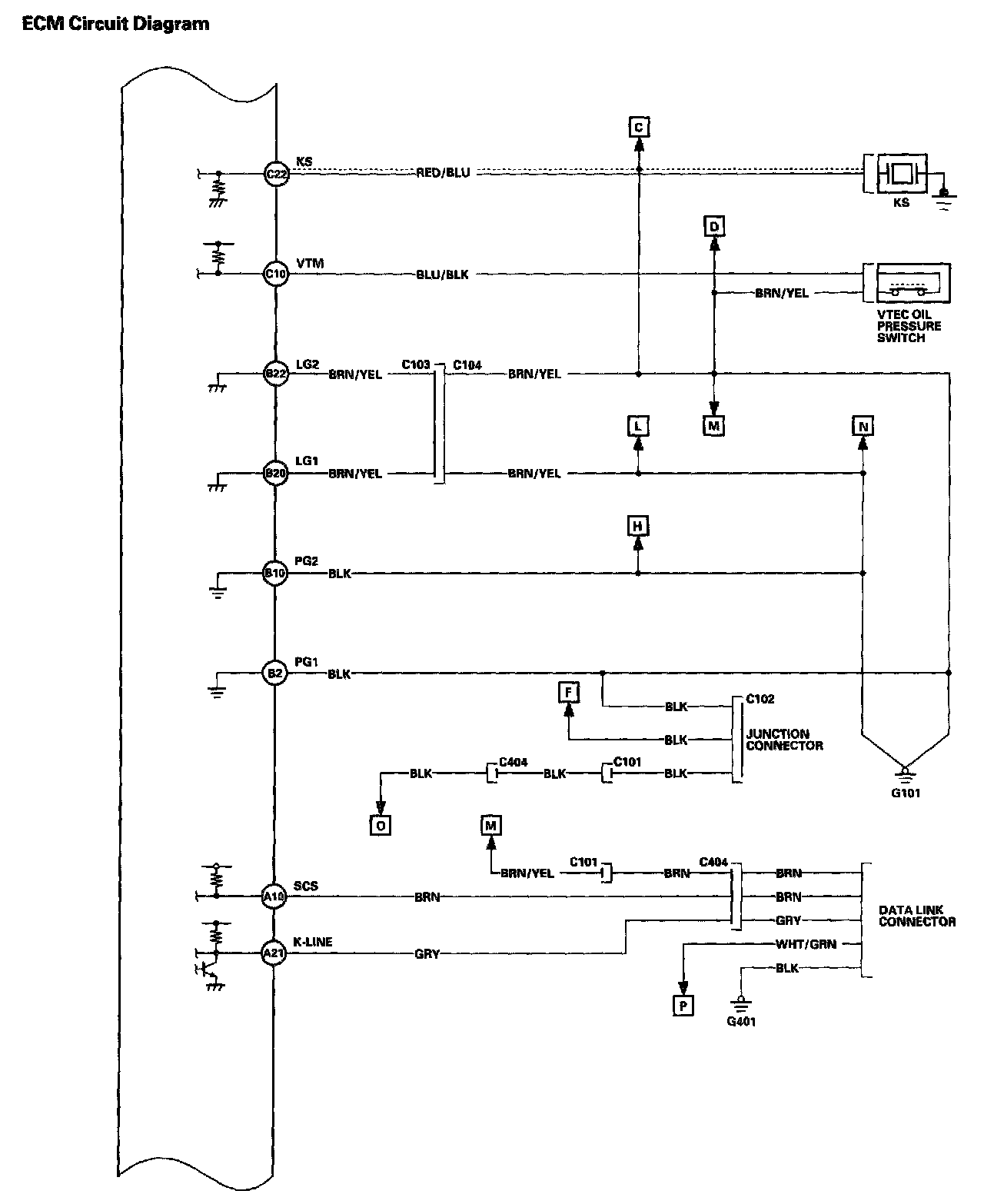

ECM Circuit Diagram 11-38:
