Power Window Switch: Service and Repair

Passenger's Window Switch Test/Replacement

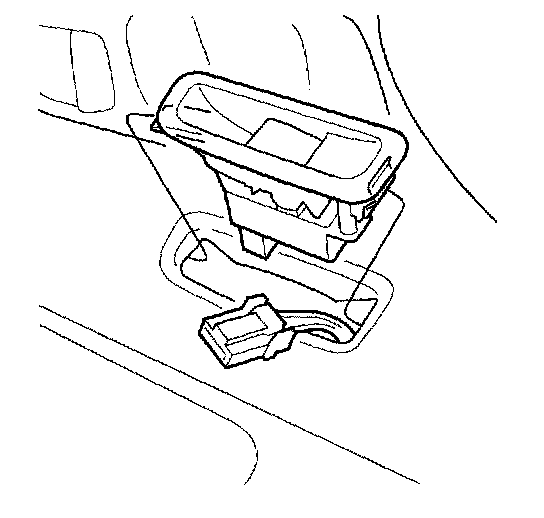

1. Remove the switch and switch panel from the door panel.
2. Disconnect the 6P connector from the switch.

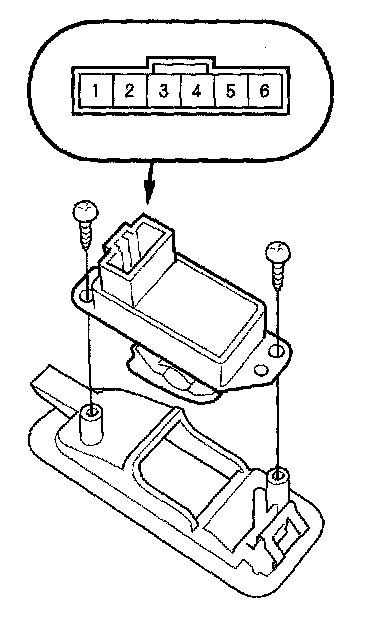

3. Remove the two mounting screws from the switch panel.

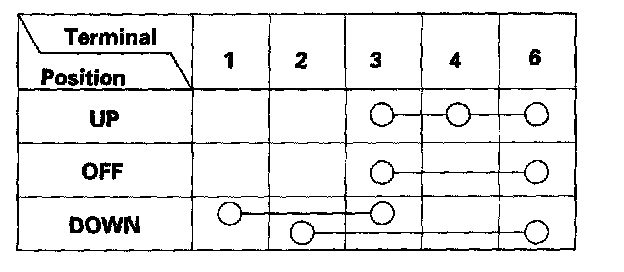

4. Check for continuity between the terminals in each switch position according to the table.
5. If the continuity is not as specified, replace the switch.
