Master Switch Test/Replacement

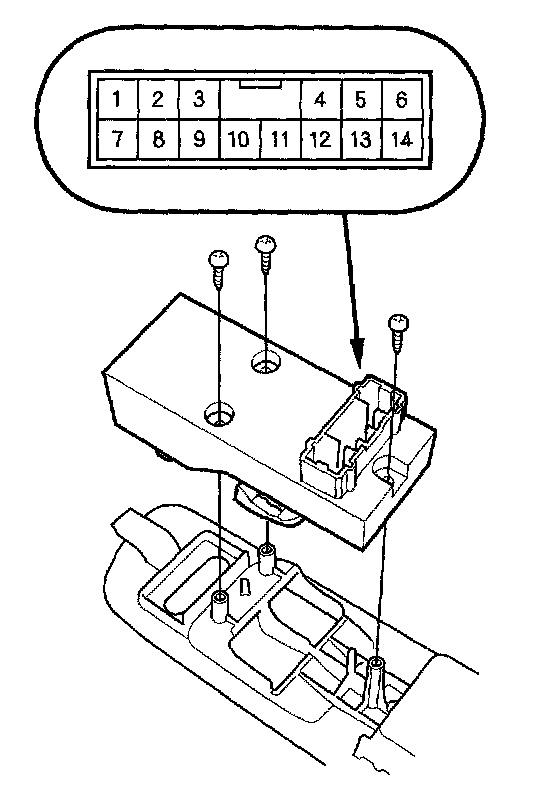

Master Switch Test1. Remove the driver's door panel.
2. Disconnect the 14P connector from the power window master switch.
3. Check the power window master switch for continuity between the terminals in each switch position according to the table.
Driver's Switch
NOTE: The driver's switch is combined with the control unit so you cannot isolate the switch to test it. Instead, run the master switch input test procedures.

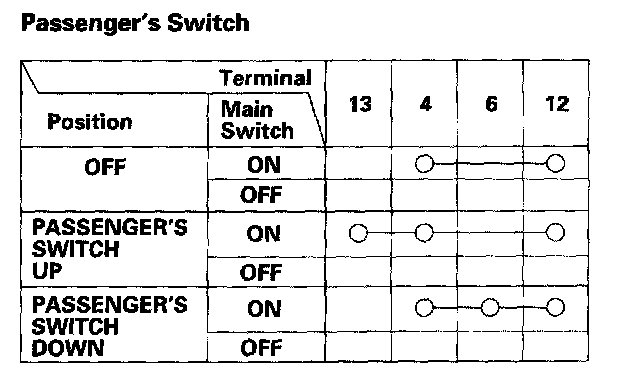

Passenger's Switch
4. If the continuity is not as specified, replace the switch.
