Component Location Graphics

NOTE: Figures may show multiple component locations. Refer to appropriate table for proper figure references.

Fig 1: Main Under-Hood Fuse/Relay Box

G00292121

Courtesy of AMERICAN HONDA MOTOR CO., INC.

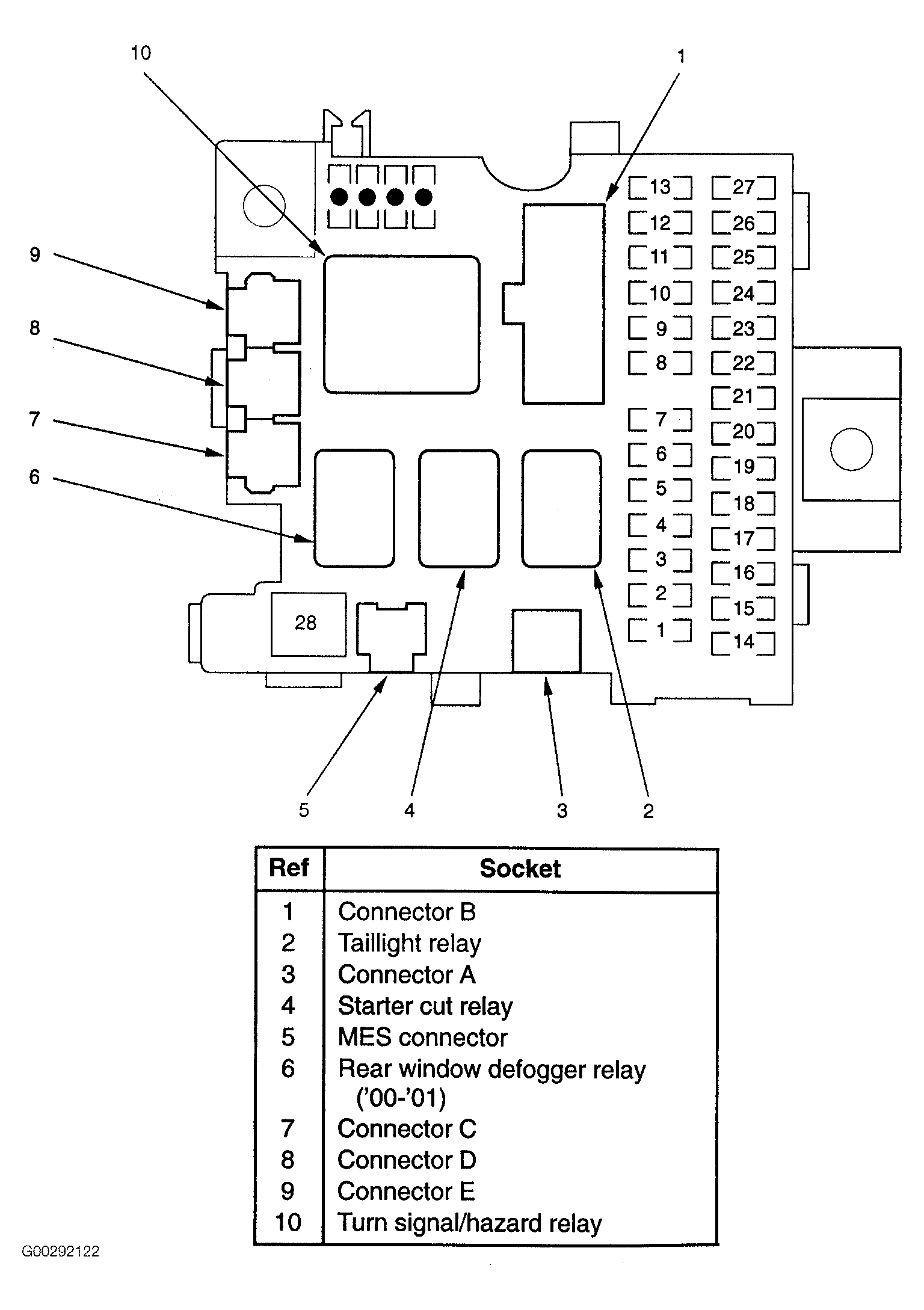

Fig 2: Under-Dash Fuse/Relay Box

G00292122

Courtesy of AMERICAN HONDA MOTOR CO., INC.

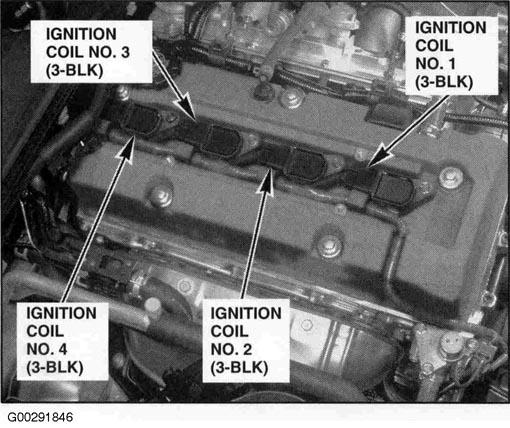

Fig 3: Top Of Engine

G00291846

Courtesy of AMERICAN HONDA MOTOR CO., INC.

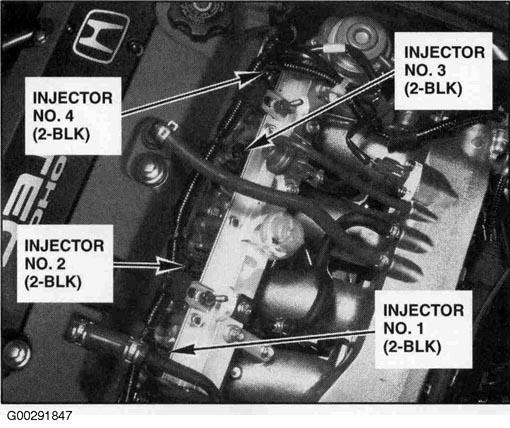

Fig 4: Top Of Engine

G00291847

Courtesy of AMERICAN HONDA MOTOR CO., INC.

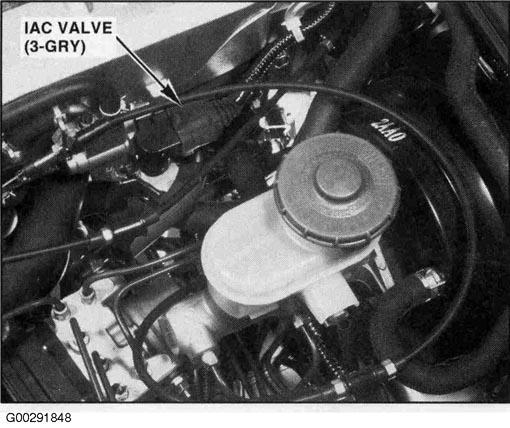

Fig 5: Left Side Of Engine

G00291848

Courtesy of AMERICAN HONDA MOTOR CO., INC.

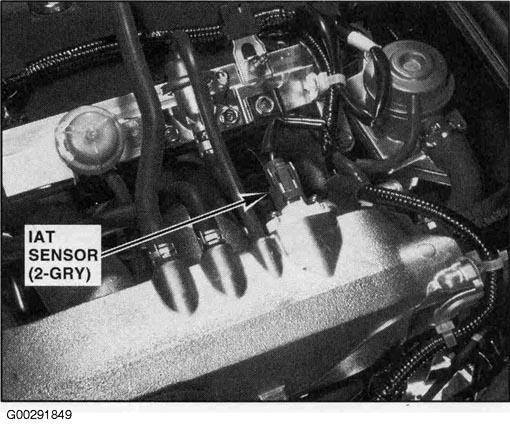

Fig 6: Left Rear Of Engine

G00291849

Courtesy of AMERICAN HONDA MOTOR CO., INC.

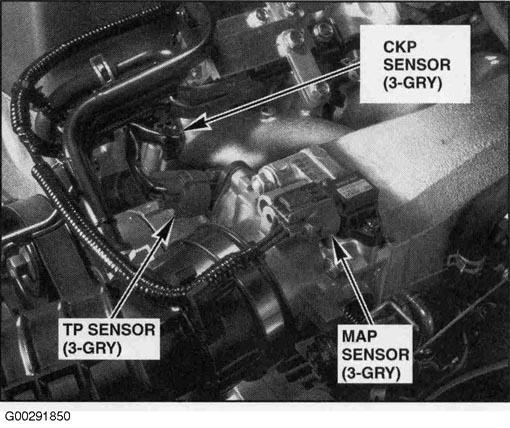

Fig 7: Left Front Of Engine

G00291850

Courtesy of AMERICAN HONDA MOTOR CO., INC.

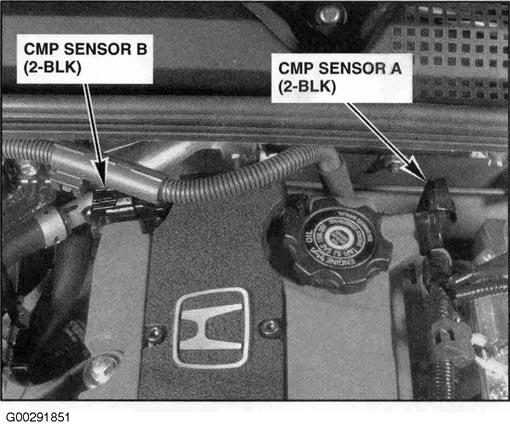

Fig 8: Rear Of Engine Compartment

G00291851

Courtesy of AMERICAN HONDA MOTOR CO., INC.

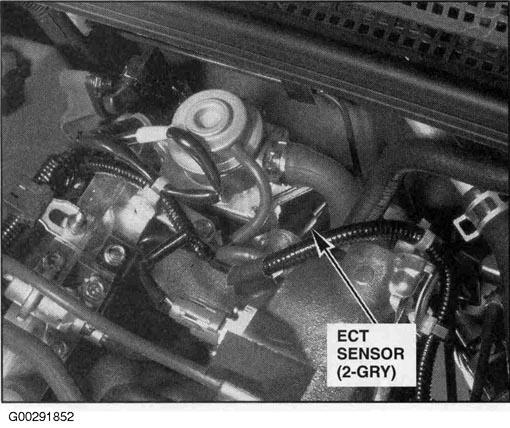

Fig 9: Rear Of Engine Compartment

G00291852

Courtesy of AMERICAN HONDA MOTOR CO., INC.

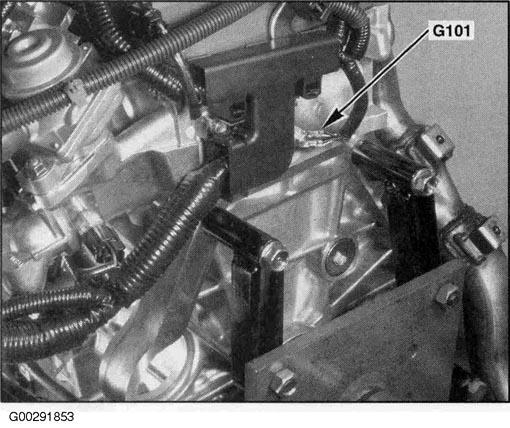

Fig 10: Rear Side Of Engine

G00291853

Courtesy of AMERICAN HONDA MOTOR CO., INC.

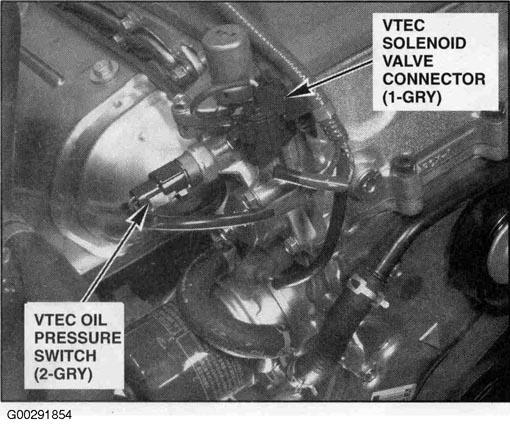

Fig 11: Right Side Of Engine Compartment

G00291854

Courtesy of AMERICAN HONDA MOTOR CO., INC.

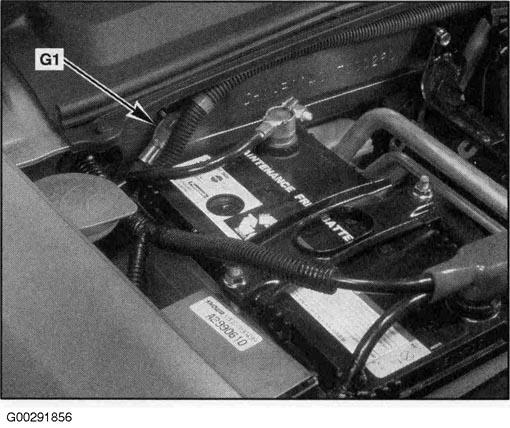

Fig 12: Right Rear Of Engine Compartment

G00291856

Courtesy of AMERICAN HONDA MOTOR CO., INC.

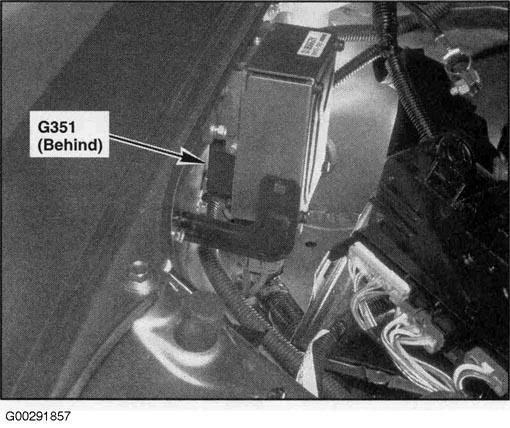

Fig 13: Right Rear Of Engine Compartment

G00291857

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 14: Right Rear Of Engine Compartment

G00291858

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 15: Right Rear Of Engine Compartment

G00291860

Courtesy of AMERICAN HONDA MOTOR CO., INC.

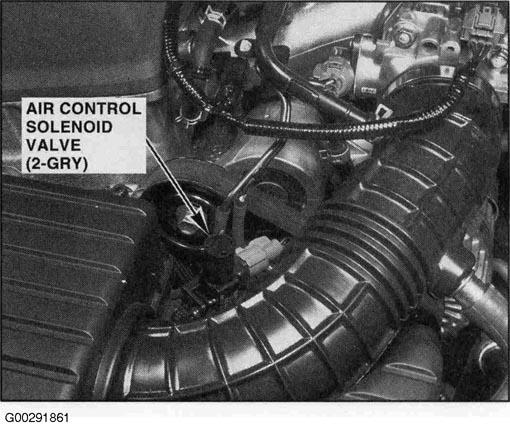

Fig 16: Left Side Of Engine Compartment

G00291861

Courtesy of AMERICAN HONDA MOTOR CO., INC.

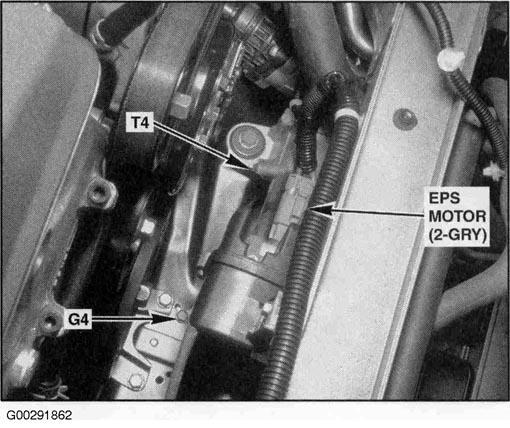

Fig 17: Engine Compartment (Below Front Beam)

G00291862

Courtesy of AMERICAN HONDA MOTOR CO., INC.

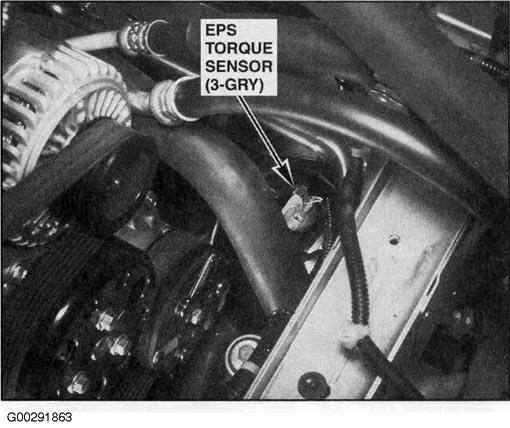

Fig 18: Engine Compartment (Below Front Beam)

G00291863

Courtesy of AMERICAN HONDA MOTOR CO., INC.

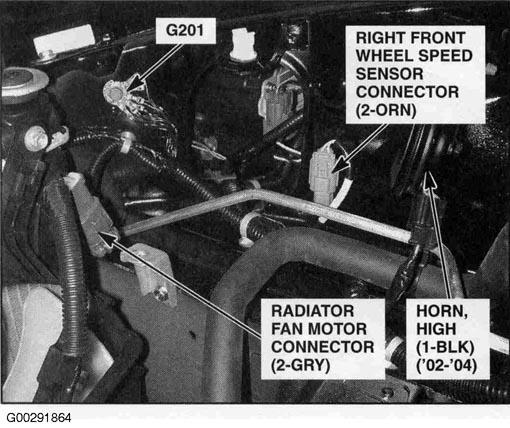

Fig 19: Right Front Of Engine Compartment

G00291864

Courtesy of AMERICAN HONDA MOTOR CO., INC.

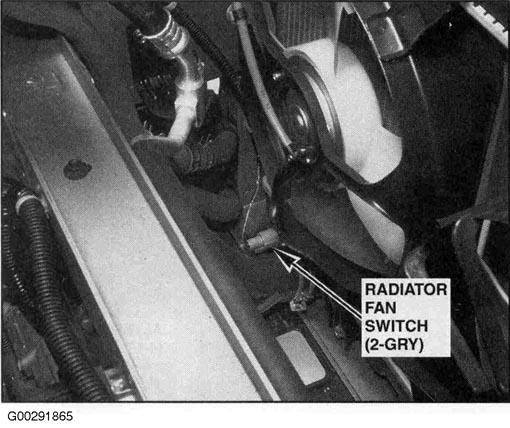

Fig 20: Lower Left Front Of Engine Compartment

G00291865

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 21: Left Front Of Engine Compartment

G00291866

Courtesy of AMERICAN HONDA MOTOR CO., INC.

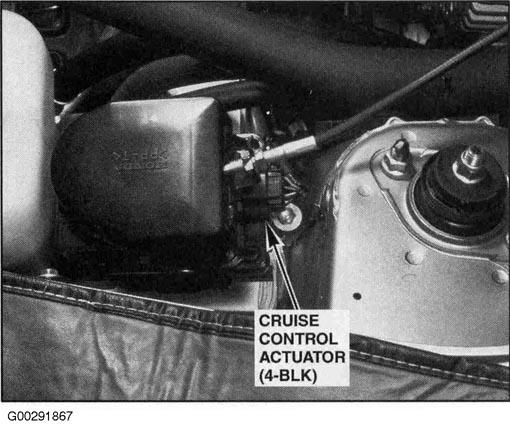

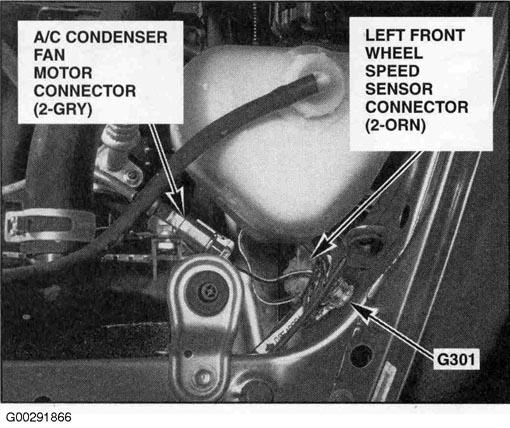

Fig 22: Left Front Of Engine Compartment

G00291867

Courtesy of AMERICAN HONDA MOTOR CO., INC.

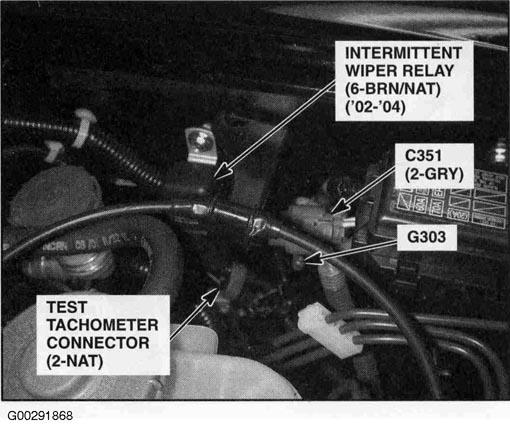

Fig 23: Left Rear Of Engine Compartment

G00291868

Courtesy of AMERICAN HONDA MOTOR CO., INC.

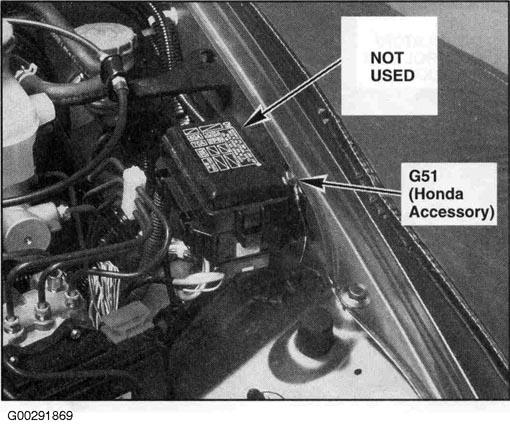

Fig 24: Left Rear Of Engine Compartment

G00291869

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 25: Left Rear Of Engine Compartment

G00291871

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 26: Left Rear Of Engine Compartment

G00291872

Courtesy of AMERICAN HONDA MOTOR CO., INC.

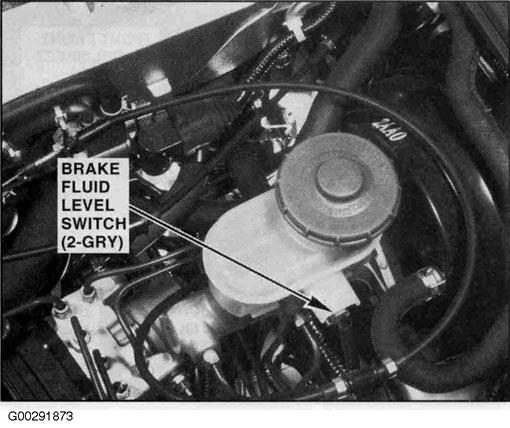

Fig 27: Left Rear Of Engine Compartment

G00291873

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 28: Left Front Of Engine

G00291874

Courtesy of AMERICAN HONDA MOTOR CO., INC.

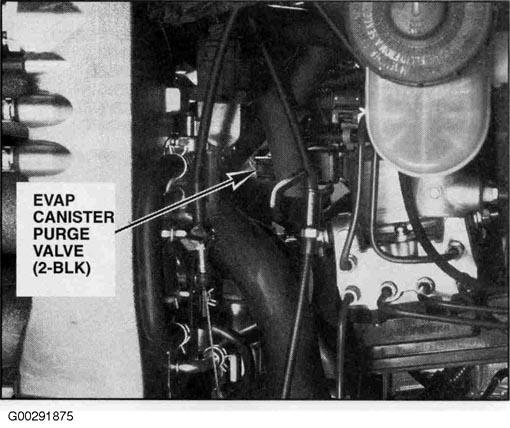

Fig 29: Left Rear Of Engine Compartment

G00291875

Courtesy of AMERICAN HONDA MOTOR CO., INC.

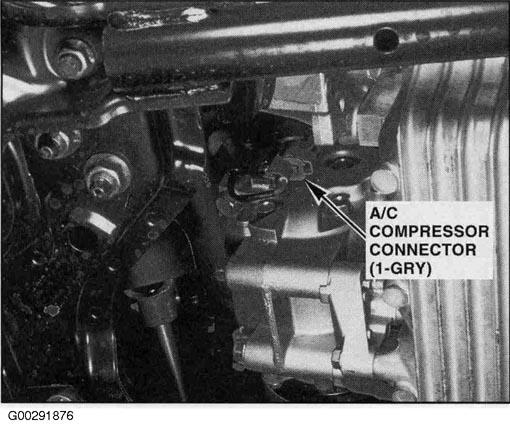

Fig 30: Lower Left Side Of Engine

G00291876

Courtesy of AMERICAN HONDA MOTOR CO., INC.

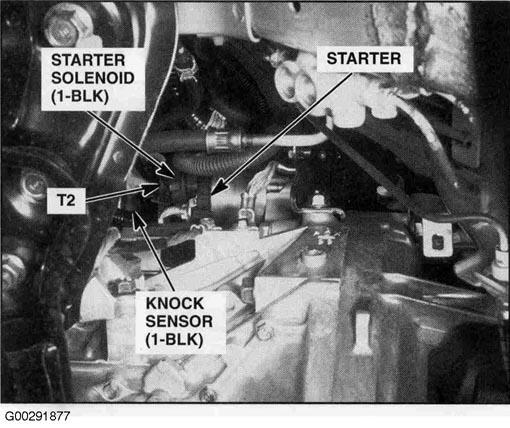

Fig 31: Lower Left Side Of Engine

G00291877

Courtesy of AMERICAN HONDA MOTOR CO., INC.

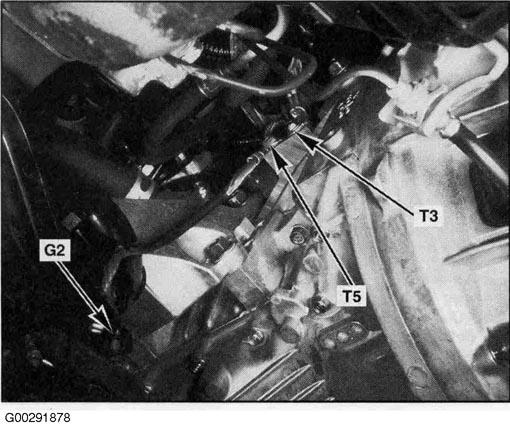

Fig 32: Lower Left Side Of Engine

G00291878

Courtesy of AMERICAN HONDA MOTOR CO., INC.

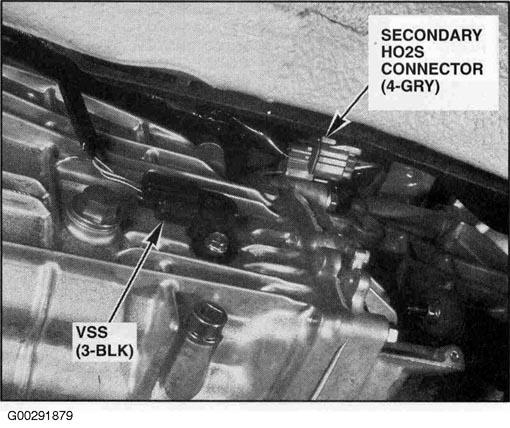

Fig 33: Left Side Of Transmission

G00291879

Courtesy of AMERICAN HONDA MOTOR CO., INC.

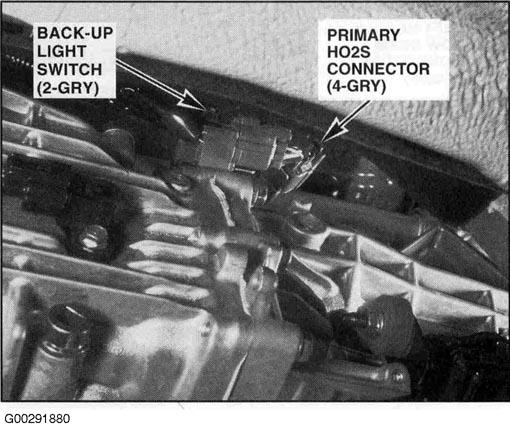

Fig 34: Upper Left Side Of Transmission

G00291880

Courtesy of AMERICAN HONDA MOTOR CO., INC.

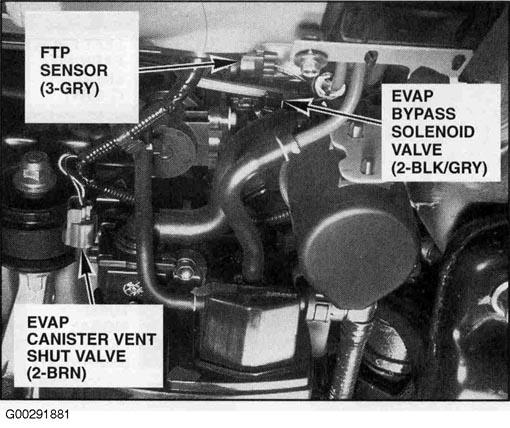

Fig 35: Left Rear Underside Of Vehicle

G00291881

Courtesy of AMERICAN HONDA MOTOR CO., INC.

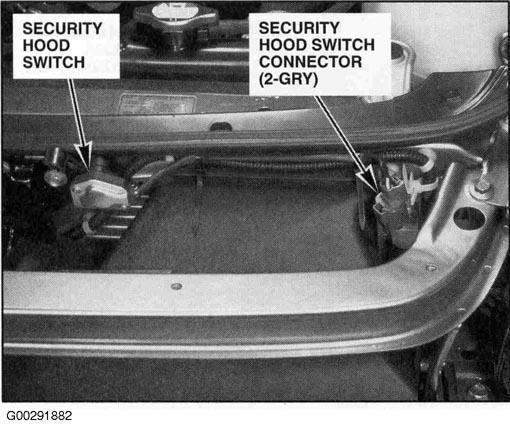

Fig 36: Front Of Engine Compartment

G00291882

Courtesy of AMERICAN HONDA MOTOR CO., INC.

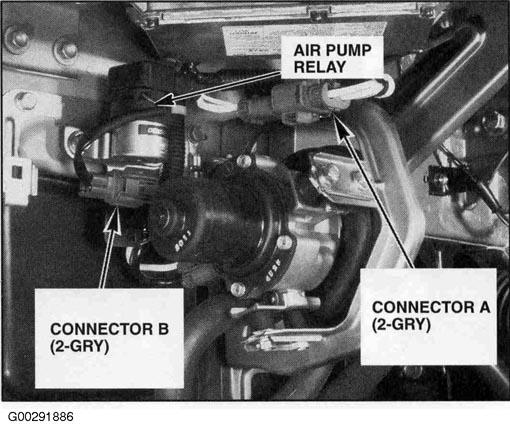

Fig 37: Behind Left Side Of Front Bumper

G00291886

Courtesy of AMERICAN HONDA MOTOR CO., INC.

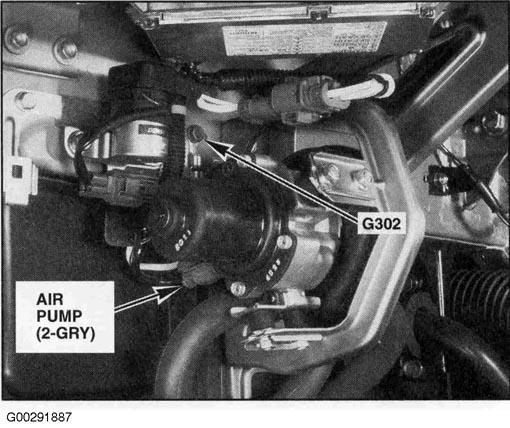

Fig 38: Behind Left Side Of Front Bumper

G00291887

Courtesy of AMERICAN HONDA MOTOR CO., INC.

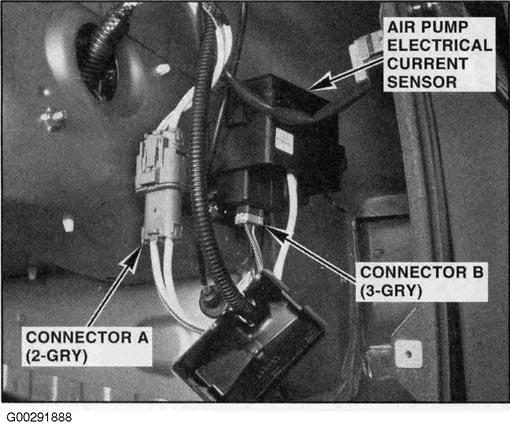

Fig 39: Behind Left Front Wheelwell

G00291888

Courtesy of AMERICAN HONDA MOTOR CO., INC.

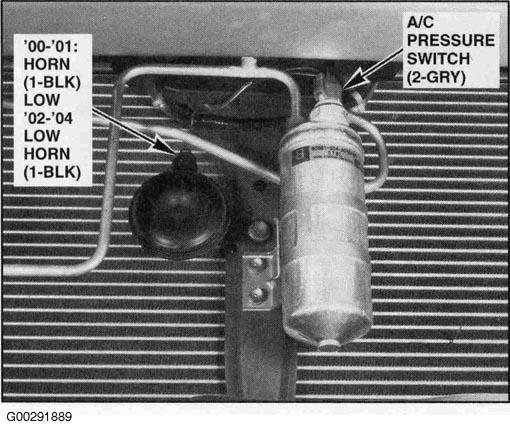

Fig 40: Behind Center Of Front Bumper

G00291889

Courtesy of AMERICAN HONDA MOTOR CO., INC.

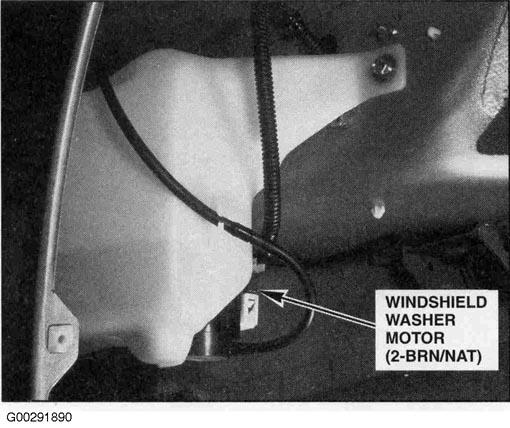

Fig 41: Behind Right Front Wheelwell

G00291890

Courtesy of AMERICAN HONDA MOTOR CO., INC.

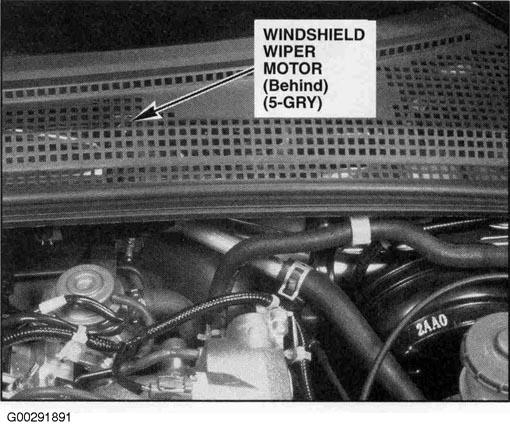

Fig 42: Below Cowl Cover

G00291891

Courtesy of AMERICAN HONDA MOTOR CO., INC.

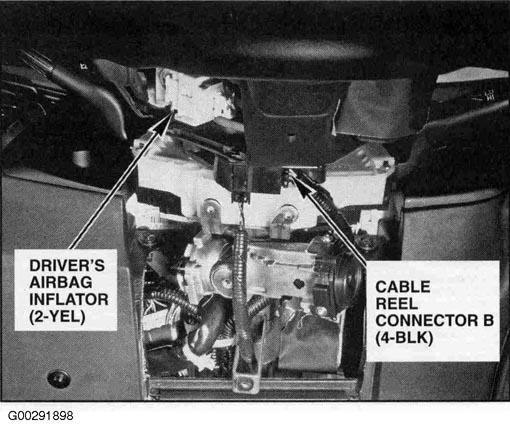

Fig 43: Below Steering Wheel

G00291898

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 44: Behind Lower Center Of Dash

G00291901

Courtesy of AMERICAN HONDA MOTOR CO., INC.

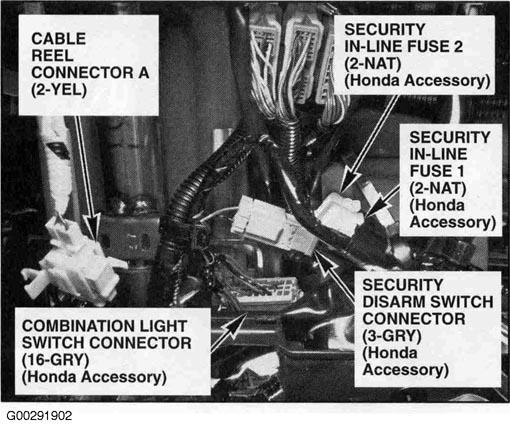

Fig 45: Under Left Side Of Dash

G00291902

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 46: Right Side Of Steering Column

G00291903

Courtesy of AMERICAN HONDA MOTOR CO., INC.

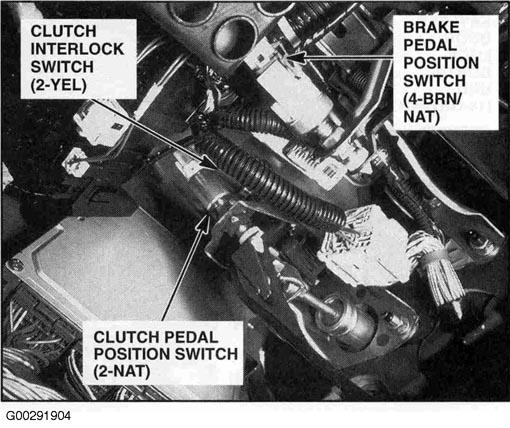

Fig 47: Under Left Side Of Dash

G00291904

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 48: Under Left Side Of Dash

G00291905

Courtesy of AMERICAN HONDA MOTOR CO., INC.

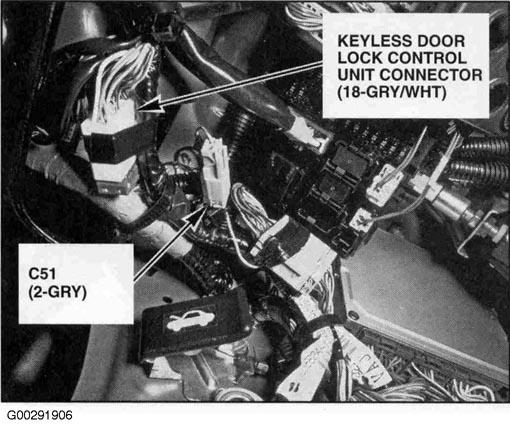

Fig 49: Under Left Side Of Dash

G00291906

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 50: Under Left Side Of Dash

G00291907

Courtesy of AMERICAN HONDA MOTOR CO., INC.

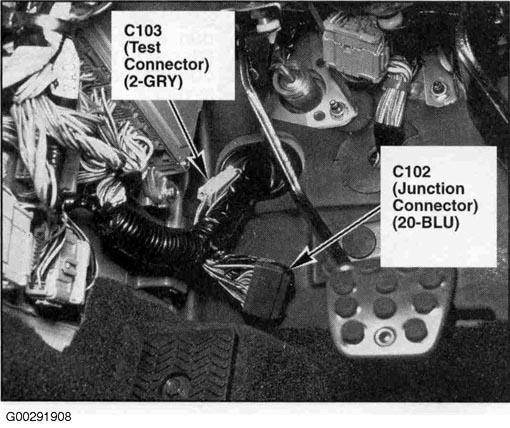

Fig 51: Behind Left Kick Panel

G00291908

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 52: Behind Left Kick Panel

G00291909

Courtesy of AMERICAN HONDA MOTOR CO., INC.

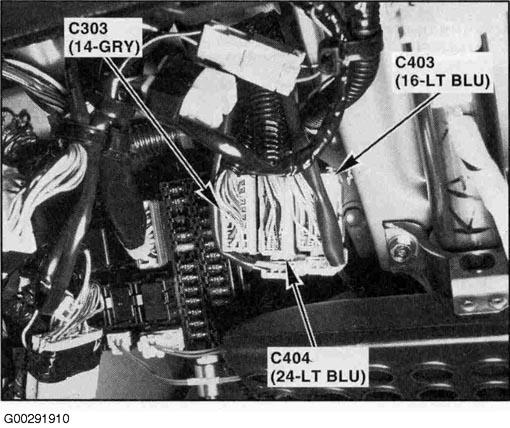

Fig 53: Left Side Of Steering Column

G00291910

Courtesy of AMERICAN HONDA MOTOR CO., INC.

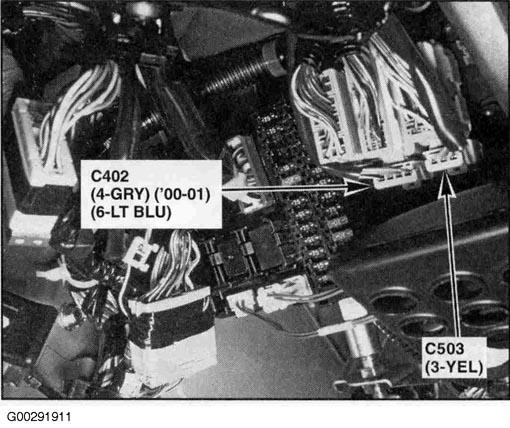

Fig 54: Left Side Of Steering Column

G00291911

Courtesy of AMERICAN HONDA MOTOR CO., INC.

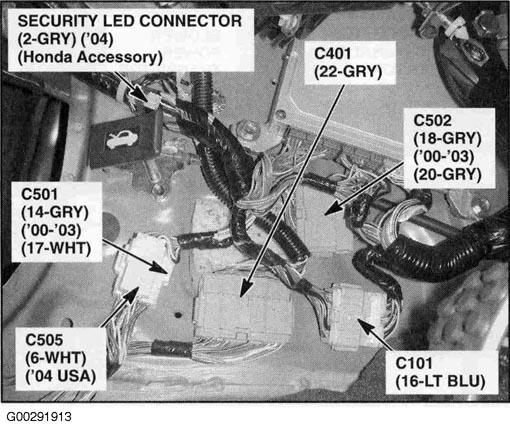

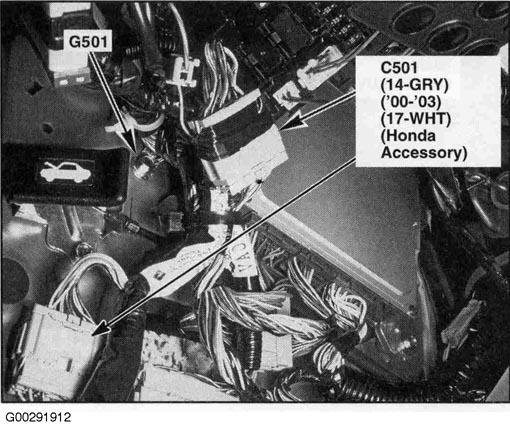

Fig 55: Behind Left Kick Panel

G00291912

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 56: Behind Left Kick Panel

G00291913

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 57: Under Left Side Of Dash

G00291914

Courtesy of AMERICAN HONDA MOTOR CO., INC.

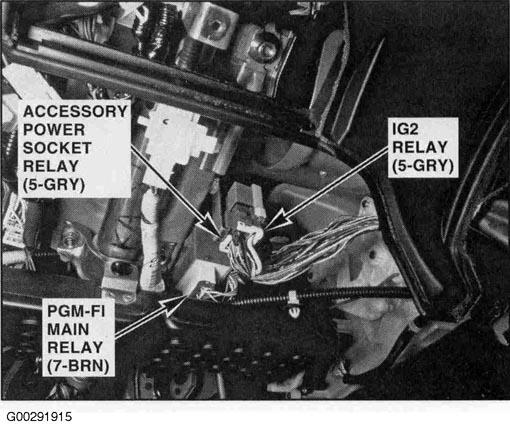

Fig 58: Right Side Of Steering Column

G00291915

Courtesy of AMERICAN HONDA MOTOR CO., INC.

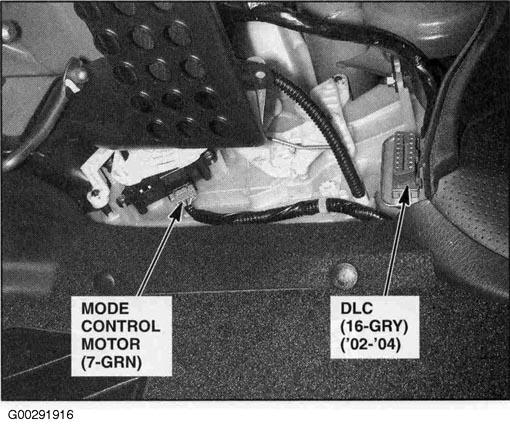

Fig 59: Under Left Side Of Dash

G00291916

Courtesy of AMERICAN HONDA MOTOR CO., INC.

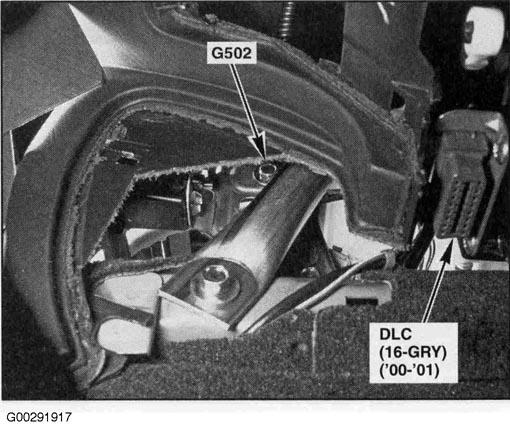

Fig 60: Right Side Of Audio Unit

G00291917

Courtesy of AMERICAN HONDA MOTOR CO., INC.

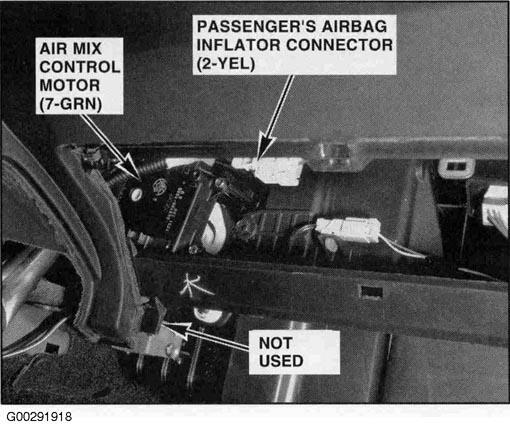

Fig 61: Under Right Side Of Dash

G00291918

Courtesy of AMERICAN HONDA MOTOR CO., INC.

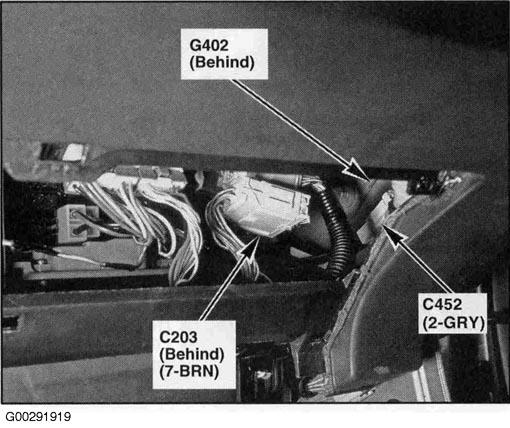

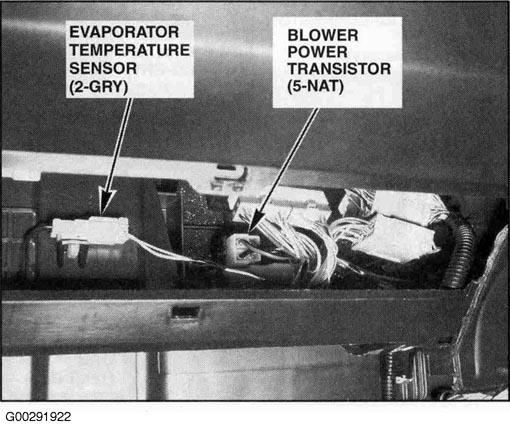

Fig 62: Under Right Side Of Dash

G00291919

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 63: Under Right Side Of Dash

G00291920

Courtesy of AMERICAN HONDA MOTOR CO., INC.

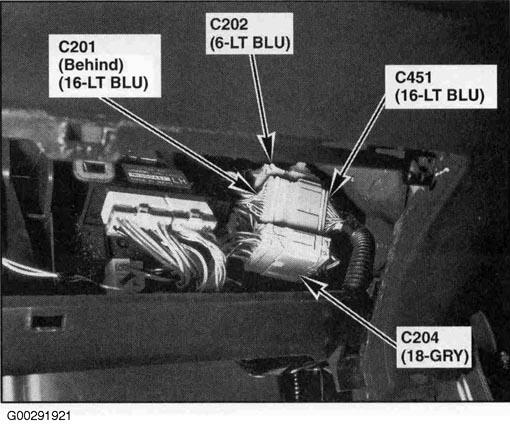

Fig 64: Under Right Side Of Dash

G00291921

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 65: Under Right Side Of Dash

G00291922

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 66: Under Right Side Of Dash

G00291923

Courtesy of AMERICAN HONDA MOTOR CO., INC.

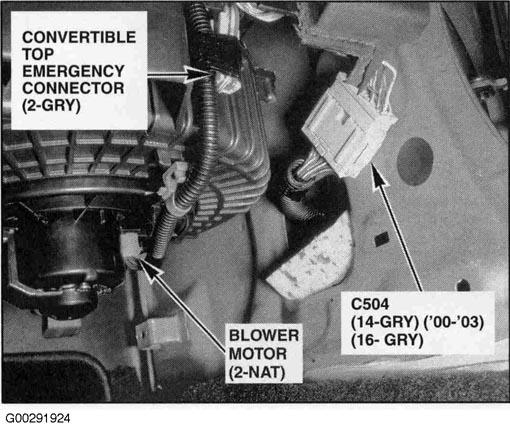

Fig 67: Under Right Side Of Dash

G00291924

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 68: Under Driver's Seat

G00291931

Courtesy of AMERICAN HONDA MOTOR CO., INC.

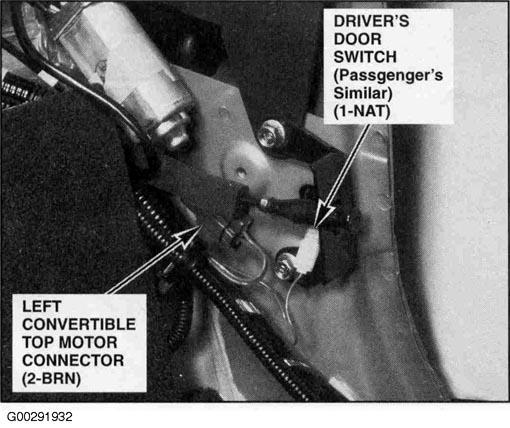

Fig 69: Behind Left & Right Rear Trim

G00291932

Courtesy of AMERICAN HONDA MOTOR CO., INC.

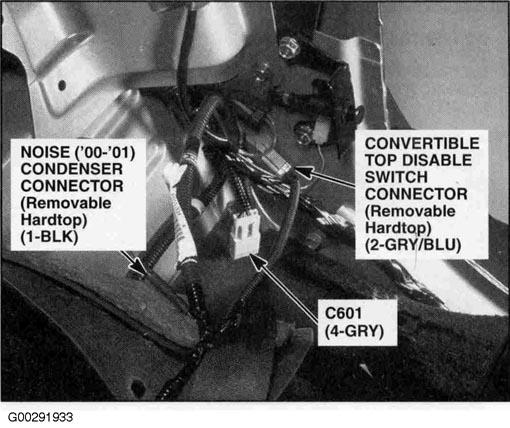

Fig 70: Behind Left Side Rear Trim

G00291933

Courtesy of AMERICAN HONDA MOTOR CO., INC.

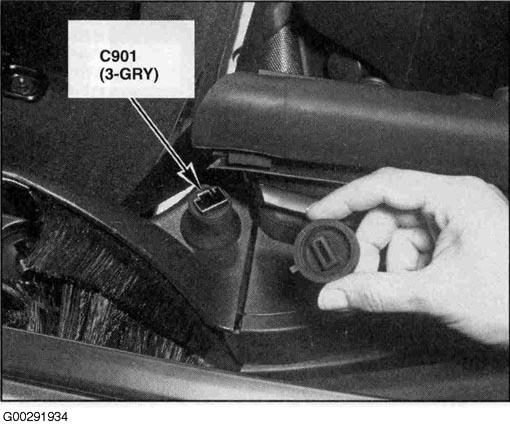

Fig 71: Top Of Left Side Rear Trim (Removable Hardtop)

G00291934

Courtesy of AMERICAN HONDA MOTOR CO., INC.

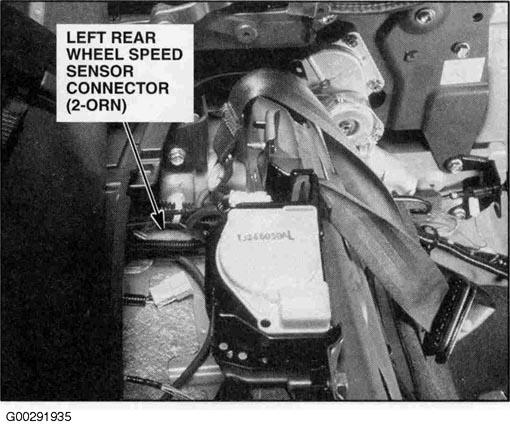

Fig 72: Below Left & Right Rear Trim

G00291935

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 73: Below Left & Right Side Roll Bar Upper Trim

G00291936

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 74: Top Of Fuel Tank

G00291937

Courtesy of AMERICAN HONDA MOTOR CO., INC.

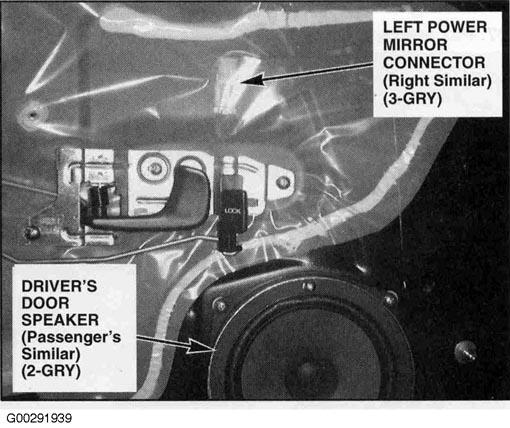

Fig 75: Driver's & Passenger's Door

G00291939

Courtesy of AMERICAN HONDA MOTOR CO., INC.

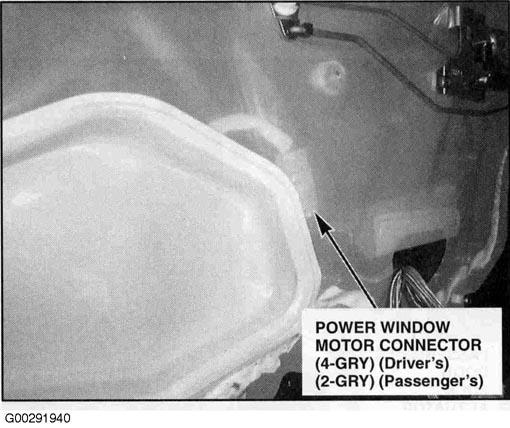

Fig 76: Driver's & Passenger's Door

G00291940

Courtesy of AMERICAN HONDA MOTOR CO., INC.

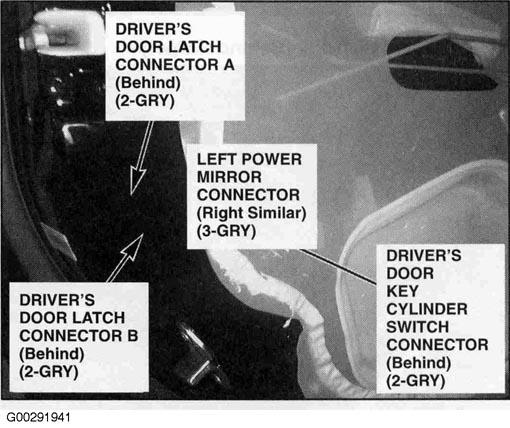

Fig 77: Driver's Door

G00291941

Courtesy of AMERICAN HONDA MOTOR CO., INC.

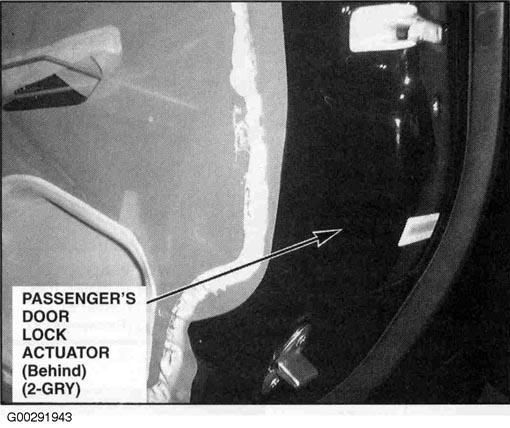

Fig 78: Passenger's Door

G00291943

Courtesy of AMERICAN HONDA MOTOR CO., INC.

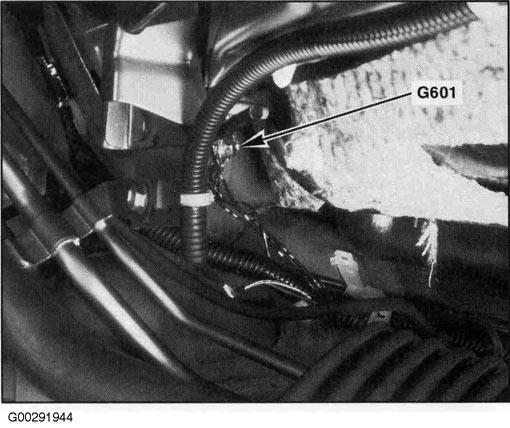

Fig 79: Left Front Of Trunk

G00291944

Courtesy of AMERICAN HONDA MOTOR CO., INC.

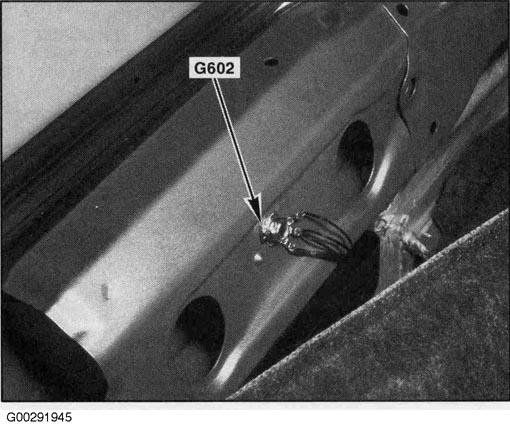

Fig 80: Left Rear Of Trunk

G00291945

Courtesy of AMERICAN HONDA MOTOR CO., INC.

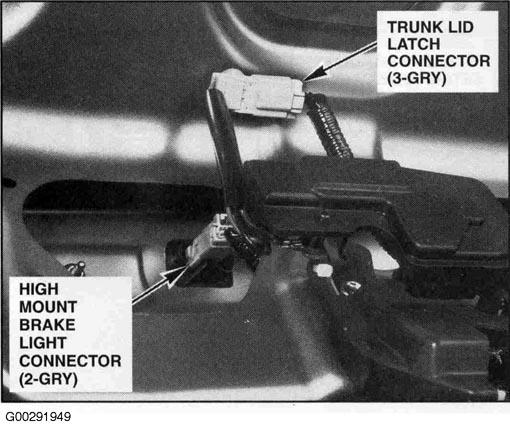

Fig 81: Middle Of Trunk Lid

G00291949

Courtesy of AMERICAN HONDA MOTOR CO., INC.

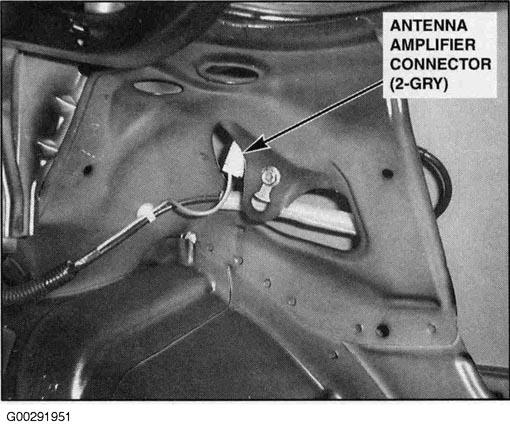

Fig 82: Right Front Of Trunk

G00291951

Courtesy of AMERICAN HONDA MOTOR CO., INC.

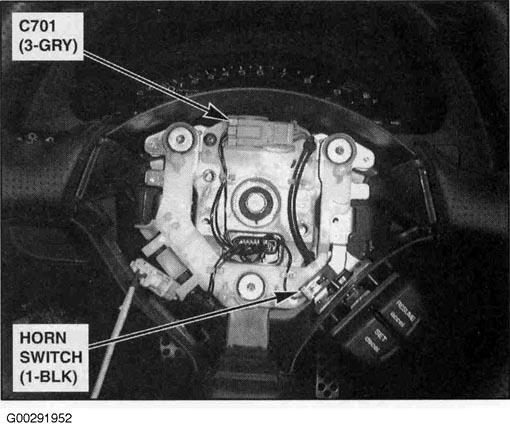

Fig 83: Inside Steering Wheel

G00291952

Courtesy of AMERICAN HONDA MOTOR CO., INC.

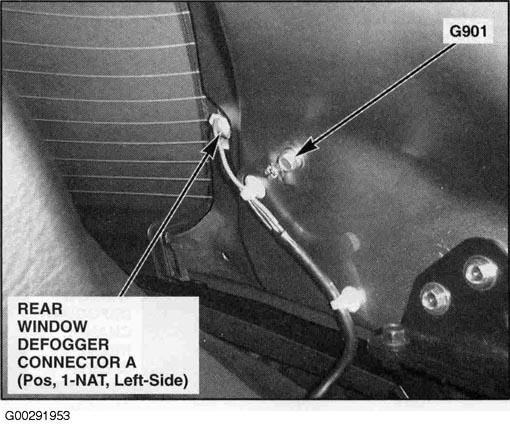

Fig 84: Left Side Of Removable Hardtop

G00291953

Courtesy of AMERICAN HONDA MOTOR CO., INC.

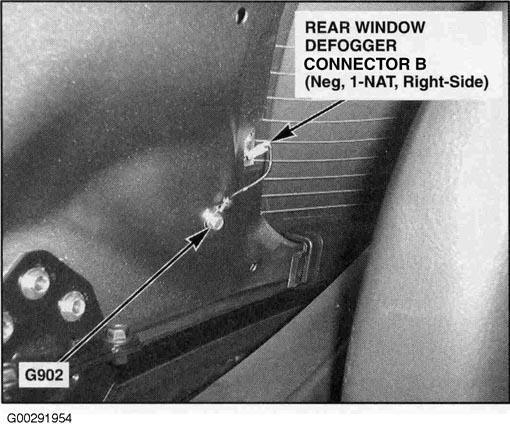

Fig 85: Right Side Of Removable Hardtop

G00291954

Courtesy of AMERICAN HONDA MOTOR CO., INC.

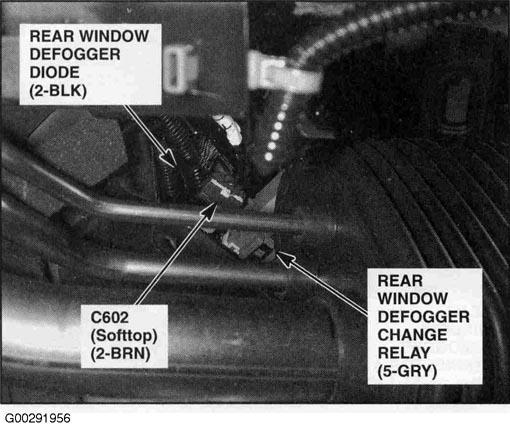

Fig 86: Left Side Of Trunk

G00291956

Courtesy of AMERICAN HONDA MOTOR CO., INC.

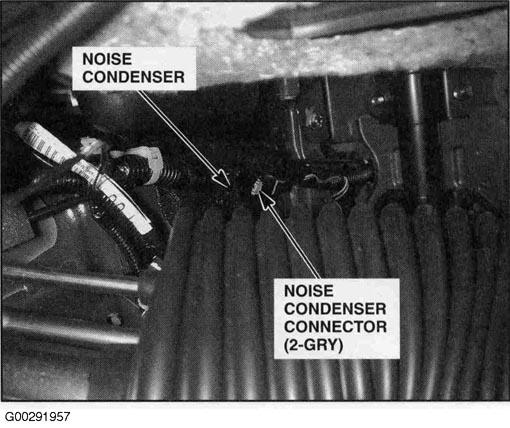

Fig 87: Left Side Of Trunk

G00291957

Courtesy of AMERICAN HONDA MOTOR CO., INC.

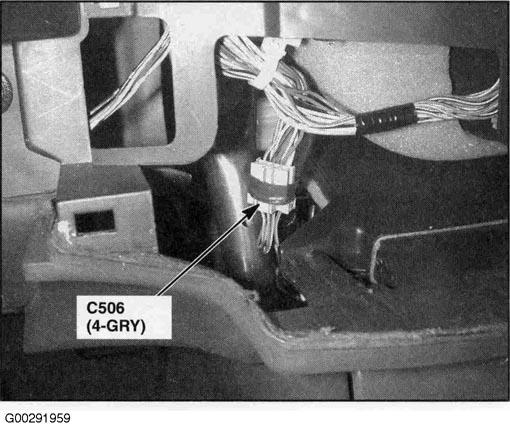

Fig 88: Right Side Of Steering Column

G00291959

Courtesy of AMERICAN HONDA MOTOR CO., INC.

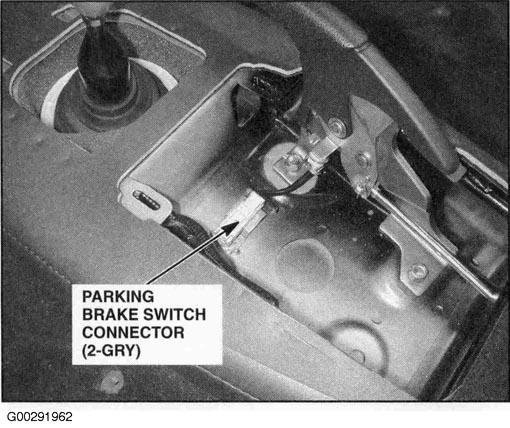

Fig 89: Below Center Console

G00291962

Courtesy of AMERICAN HONDA MOTOR CO., INC.

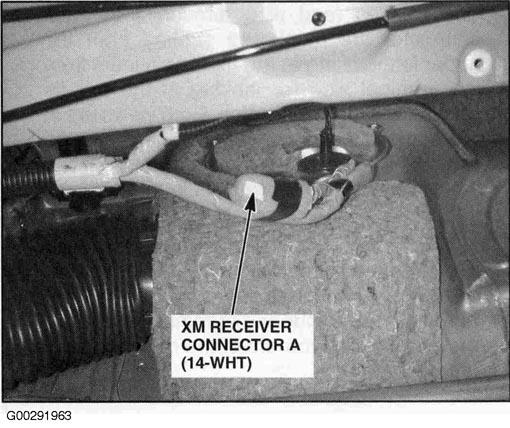

Fig 90: Left Side Of Trunk

G00291963

Courtesy of AMERICAN HONDA MOTOR CO., INC.
