Control Units
CONTROL UNITS LOCATION
| Component | Location |
|---|---|

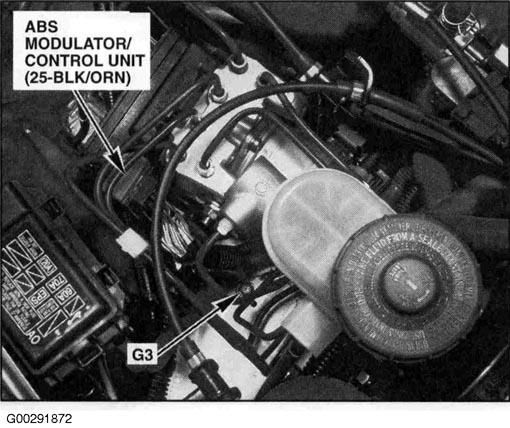

| ABS Modulator/Control Unit | Below master cylinder. See Figure . |

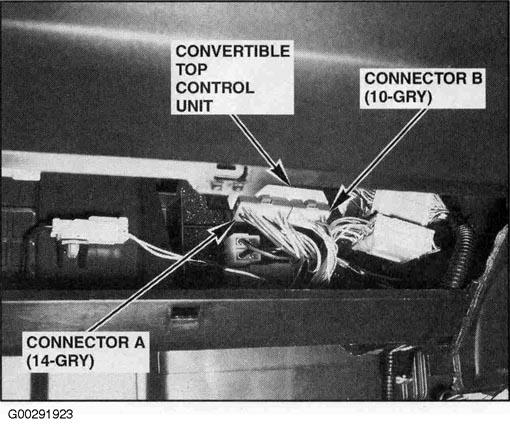

| Convertible Top Control Unit | Under right side of dash. See Figure . |

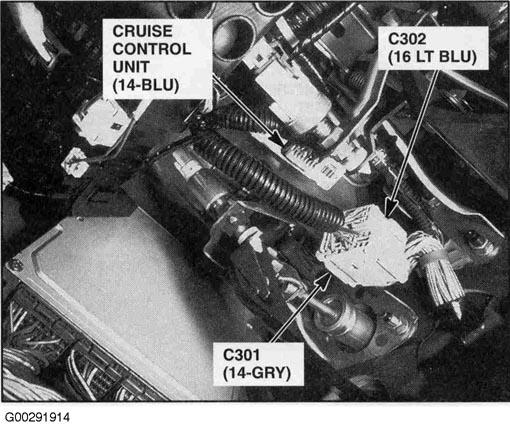

| Cruise Control Unit | Under left side of dash. See Figure . |

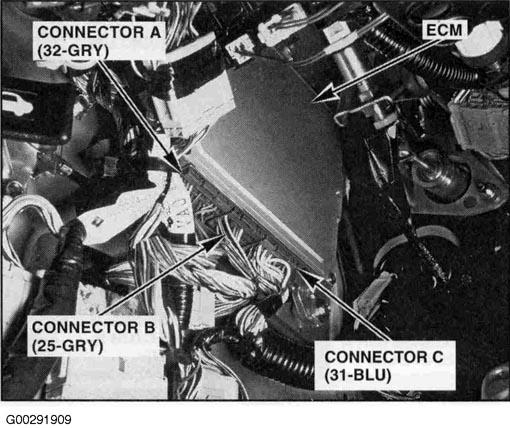

| ECM | Behind left kick panel. See Figure . |

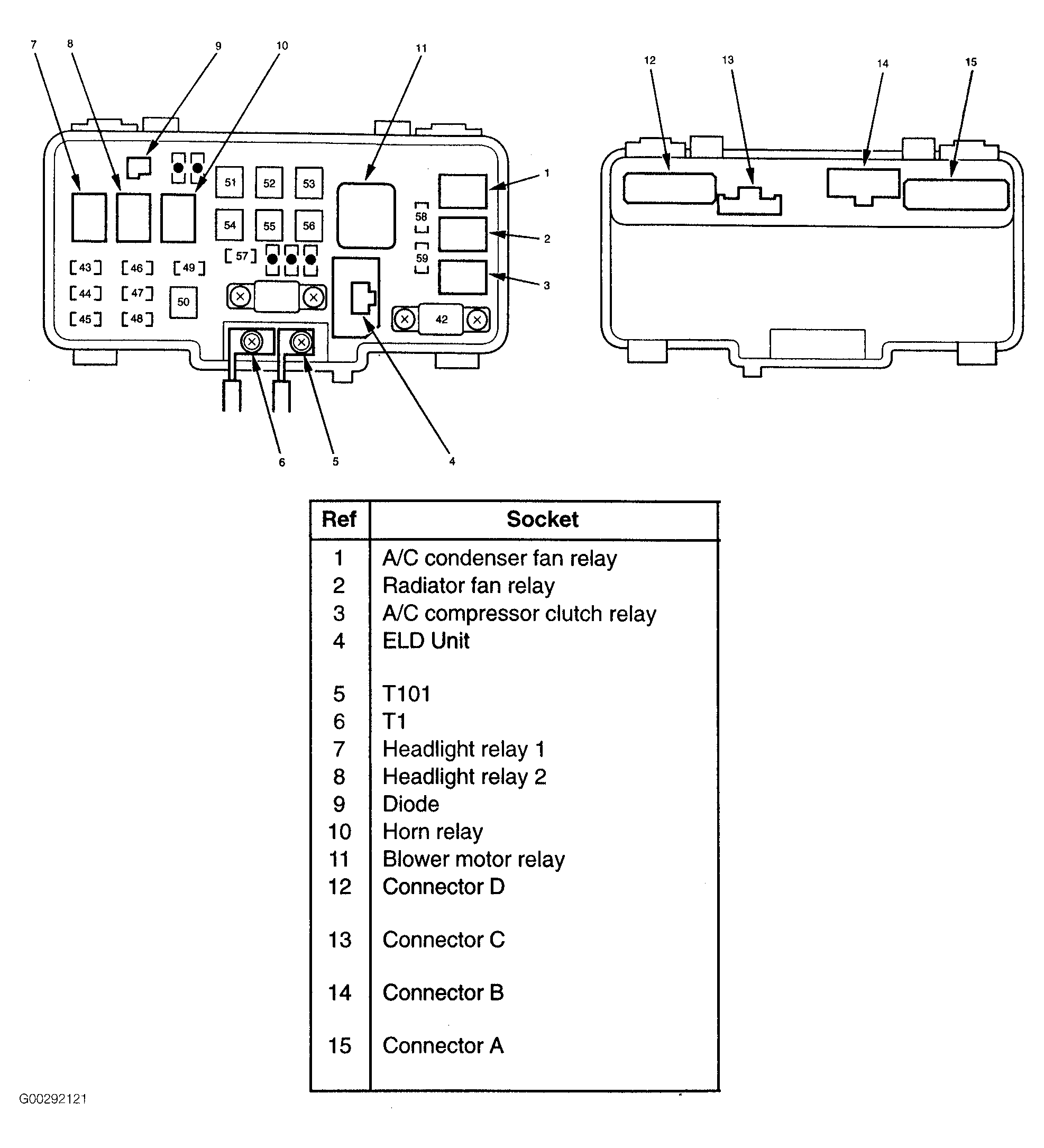

| ELD Unit | In main under-hood fuse/relay box. See Figure . |

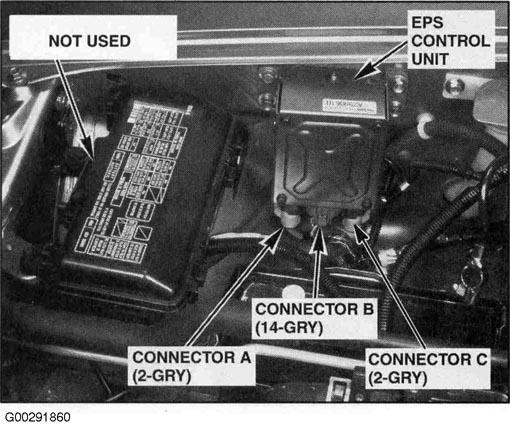

| EPS Control Unit | Right of battery. See Figure . |

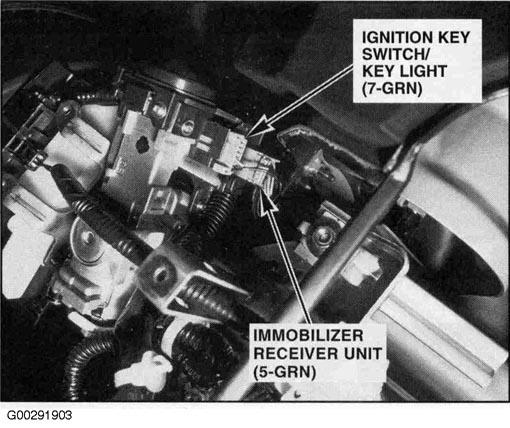

| Immobilizer Receiver Unit | Under left side of dash. See Figure . |

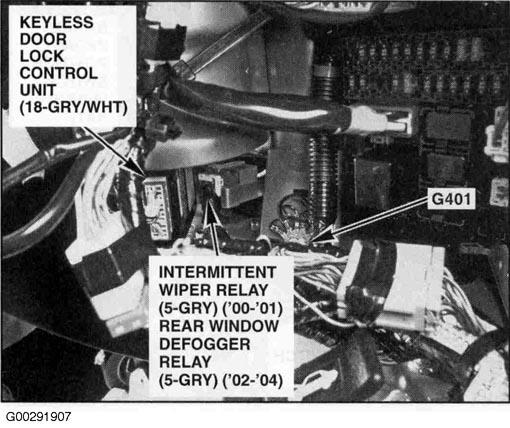

| Keyless Door Lock Control Unit | Under left side of dash. See Figure . |

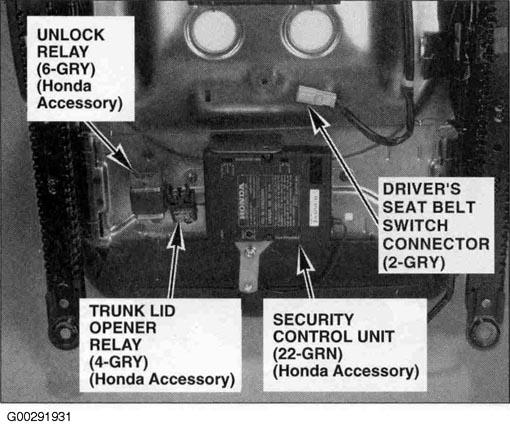

| Security Control Unit (Honda Accessory) | Under driver's seat. See Figure . |

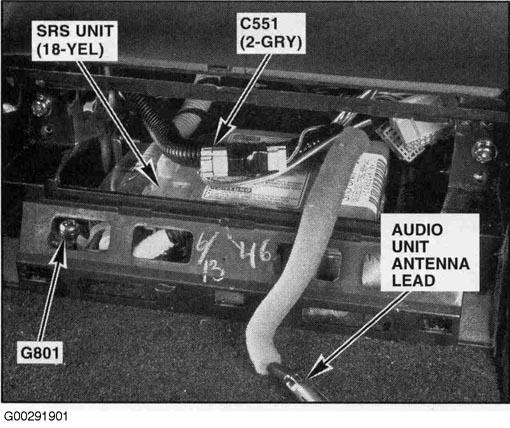

| SRS Unit | Behind center of dash, below radio. See Figure . |
