Electrical Component Locator: Miscellaneous
MISCELLANEOUS LOCATION
| Component | Location |
|---|---|
| Alternator | On left front of engine. See Figure . |
| Antenna Amplifier Connector | At right front of trunk. See Figure . |
| Blower Power Transistor | Under right side of dash. See Figure . |
| Cable Reel Connector A | Under left side of dash. See Figure . |
| Cable Reel Connector B | Below steering wheel. See Figure . |
| Convertible Top Emergency Connector | Taped to blower motor harness. See Figure . |

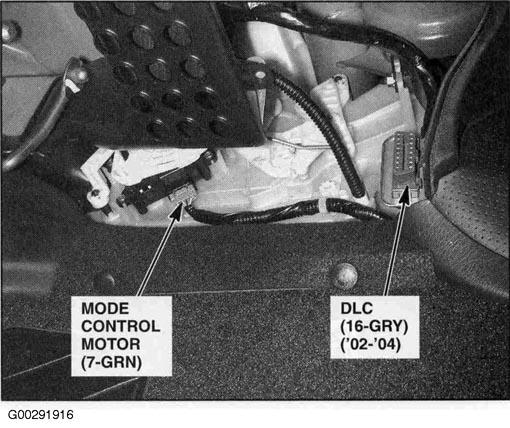

| DLC | Under left side of dash. See Figure . |
| Driver's Airbag Inflator | Below steering wheel. See Figure . |
| Driver's Seat Belt Tensioner | Below Left Side Roll Bar Upper Trim. See Figure . |
| Fuel Tank Unit | On top of fuel tank, below rear tray. See Figure . |

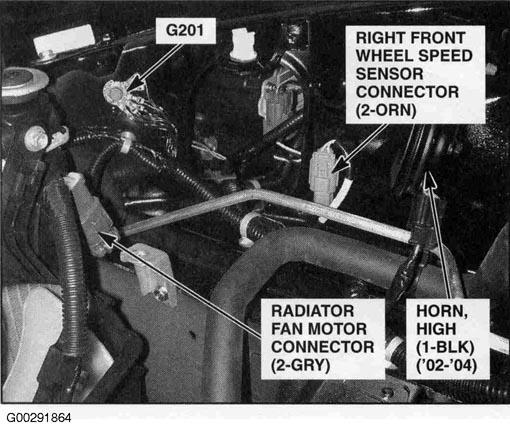

| High Horn | At right front of engine compartment. See Figure . |
| Ignition Coils No. 1 | On top of valve cover. See Figure . |
| Ignition Coils No. 2 | On top of valve cover. See Figure . |
| Ignition Coils No. 3 | On top of valve cover. See Figure . |
| Ignition Coils No. 4 | On top of valve cover. See Figure . |
| Junction Connector (C102) | Behind left kick panel. See Figure . |

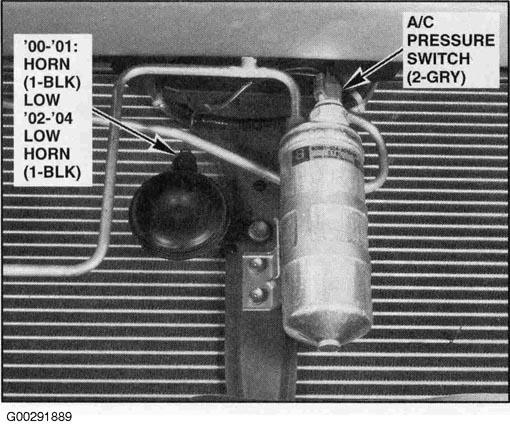

| Low Horn | Behind center of front bumper. See Figure . |
| MES Connector | On under-dash fuse/relay box. See Figure . |

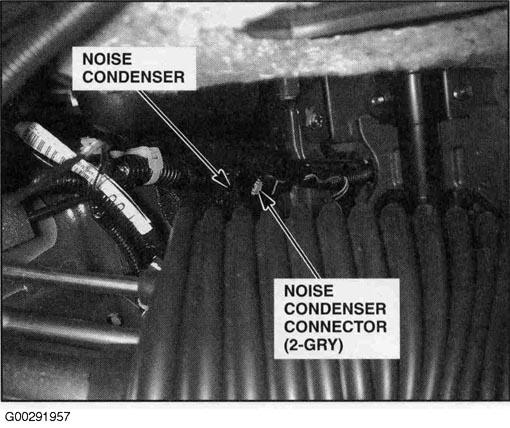

| Noise Condenser | At left side of trunk. See Figure . |
| Passenger's Airbag Inflator Connector | Under right side of dash. See Figure . |
| Passenger's Seat Belt Tensioner | Below Right Side Roll Bar Upper Trim. See Figure . |
| Rear Window Defogger Diode | At left side of trunk. See Figure . |
| Security In-Line Fuse 1 (Honda Accessory) | Under left side of dash. See Figure . |
| Security In-Line Fuse 2 (Honda Accessory) | Under left side of dash. See Figure . |
| Test Connector (C103) | Behind left kick panel. See Figure . |
| Test Tachometer Connector | At left rear of engine compartment. See Figure . |
| XM Receiver Connector | At left side of trunk. See Figure . |
