Variable Valve Timing Pressure Switch: Locations

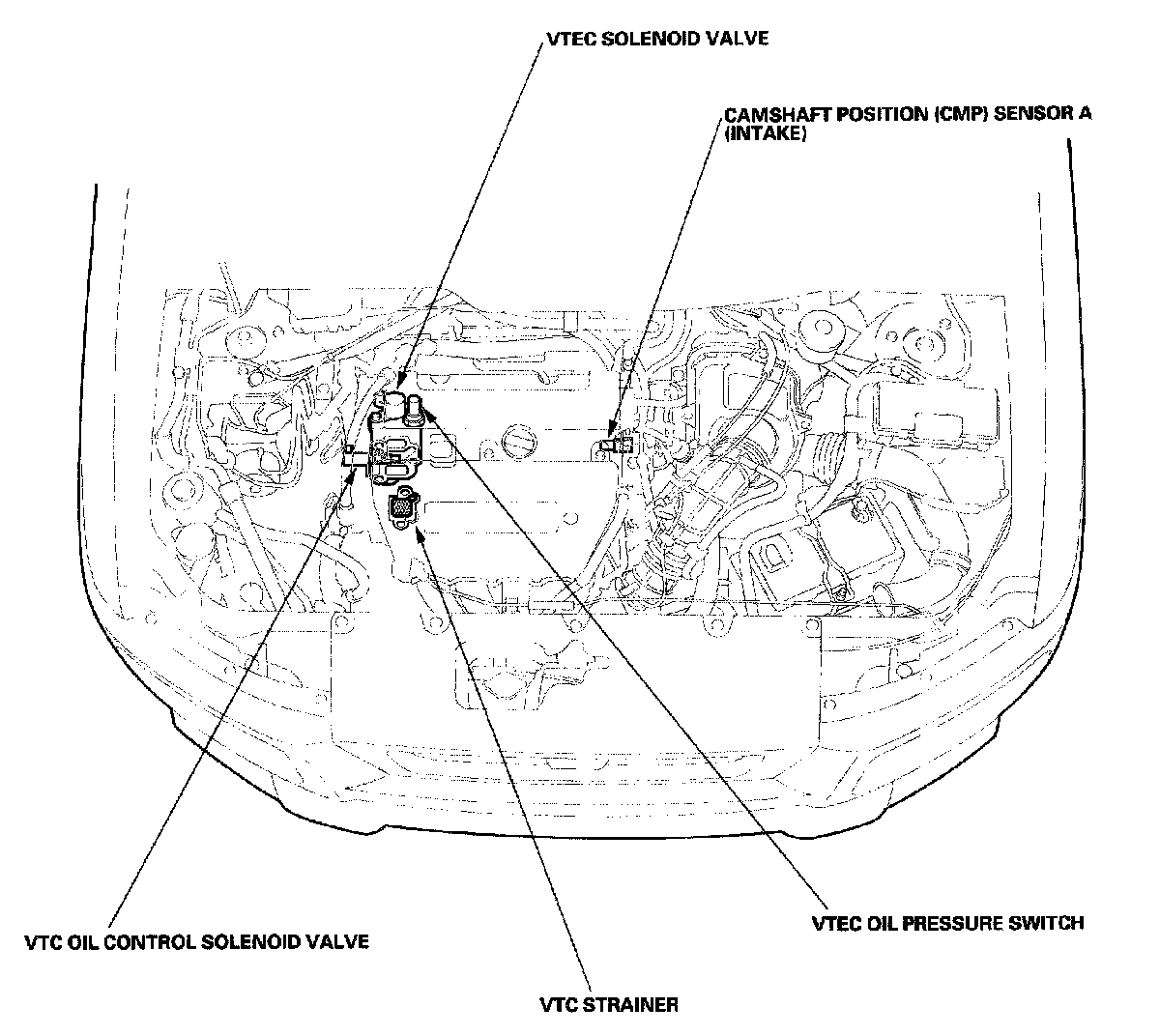

VTEC/VTC - Component Location Index:

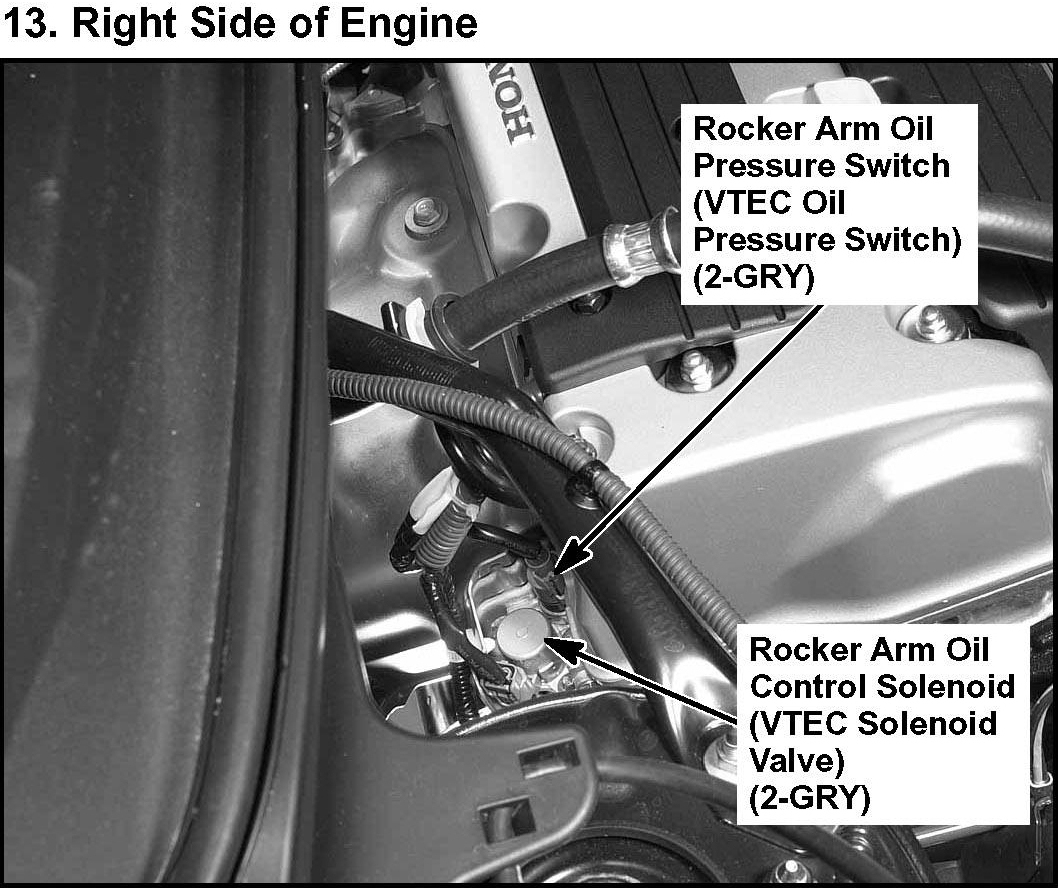

13. Right Side Of Engine:
