Coolant Temperature Sensor/Switch (For Computer): Service and Repair

ECT Sensor Replacement

1. Remove the air cleaner.
2. Remove the EVAP canister purge valve.
3. Unbolt the under-hood fuse/relay box bolt, and move the assembly aside.

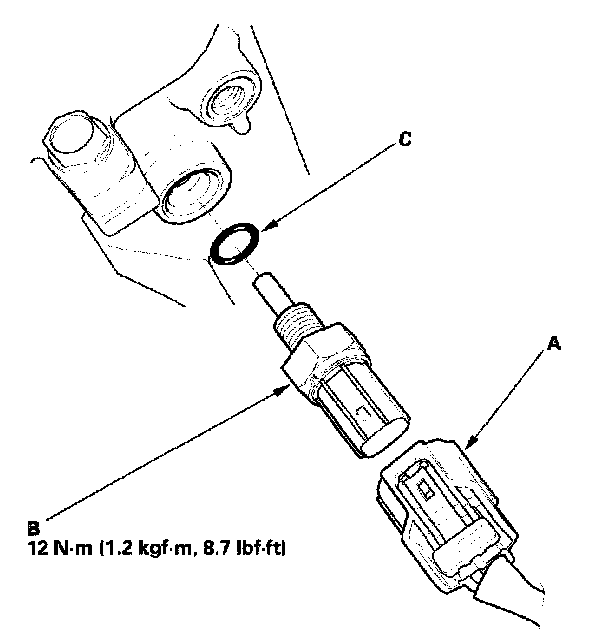

4. Disconnect the ECT sensor connector (A).
5. Remove the ECT sensor (B).
6. Install the sensor in the reverse order of removal with a new O-ring (C).
