EVAP Vent Shut Float Replacement

Remove the left rear wheel.
Remove the fuel pipe cover.

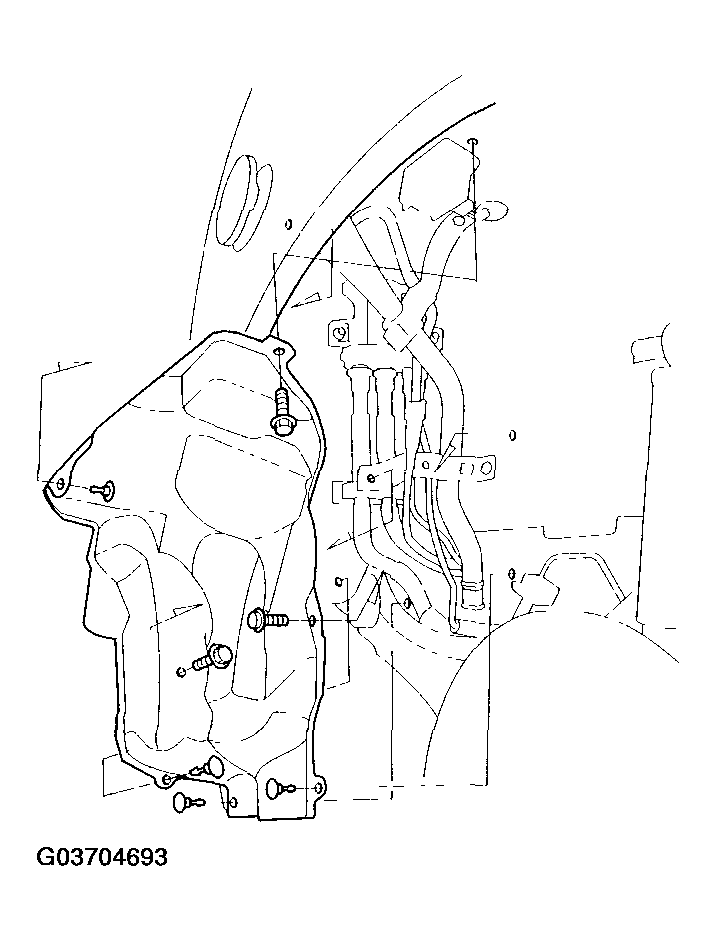

Fig 1: Removing Fuel Pipe Cover
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Disconnect the fuel joint tubes (A).

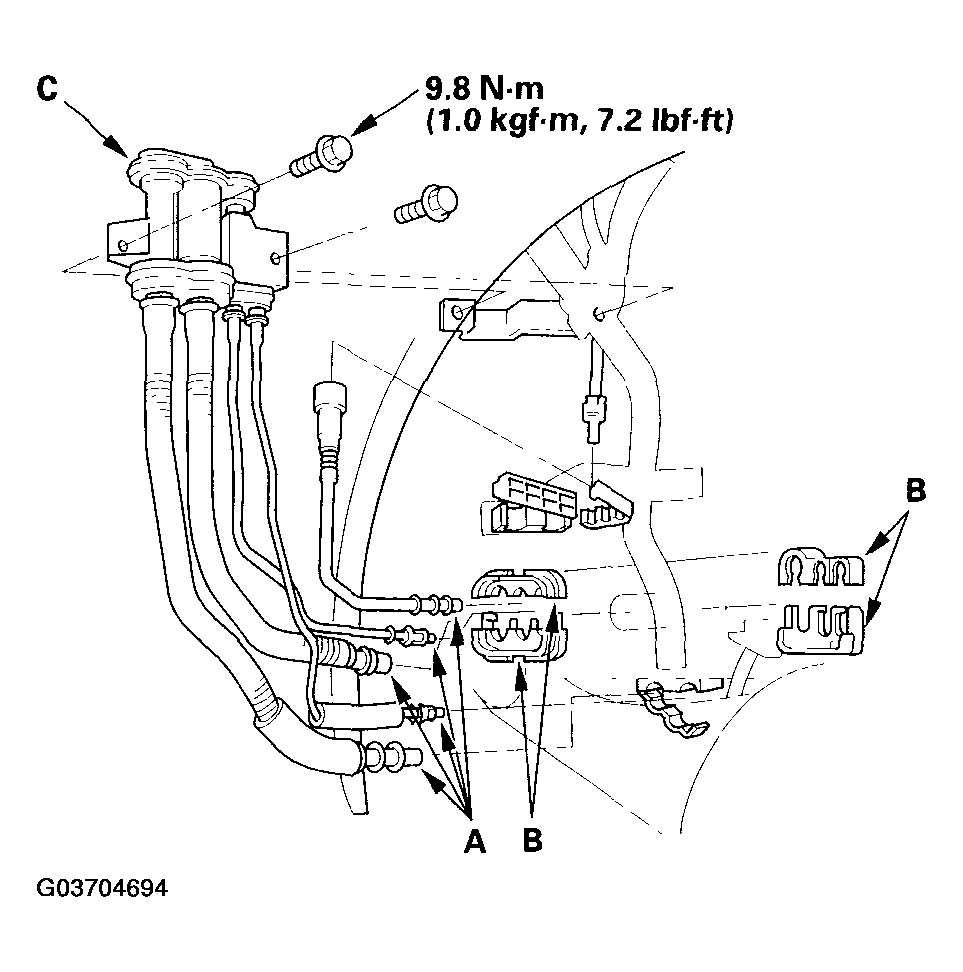

Fig 2: Disconnecting Fuel Joint Tubes
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Remove the fuel line clips (B).
Remove the EVAP vent shut float (C).
Install the EVAP vent shut float in the reverse order of removal.
