Fuel Tank Replacement
- Relieve the fuel pressure (see FUEL PRESSURE RELIEVING
).
- Drain the fuel tank (see FUEL TANK DRAINING
).
- Raise the vehicle, and support it with jackstands.

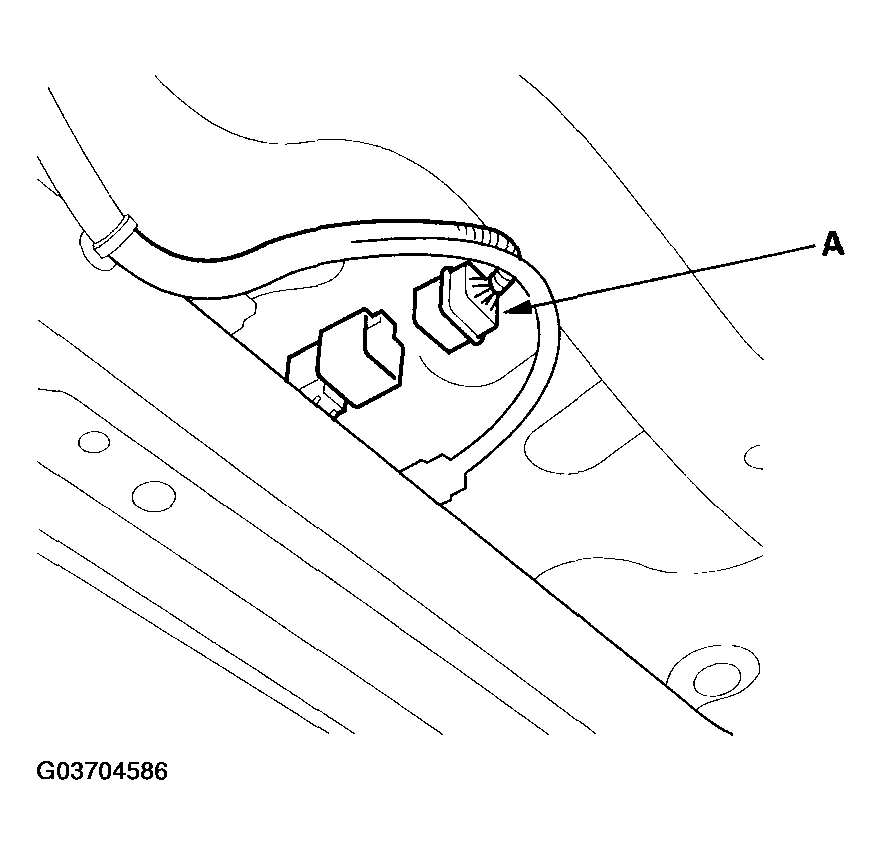

- Disconnect the fuel pump subharness 4P connector (A).
Courtesy of AMERICAN HONDA MOTOR CO., INC.
- Disconnect the fuel line quick-connect fitting (A).
Courtesy of AMERICAN HONDA MOTOR CO., INC.

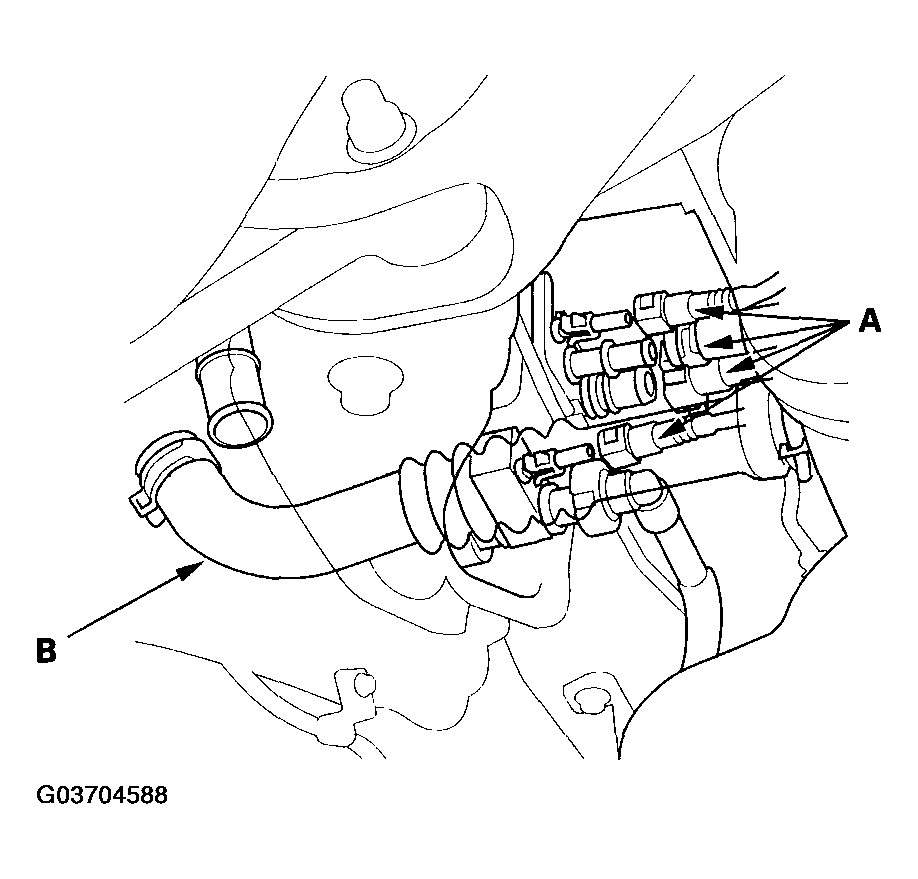

- Disconnect the fuel vapor hoses (A), and the filler neck hose and clamp (B), then gently twist the hoses as you pull to avoid damaging them.
Courtesy of AMERICAN HONDA MOTOR CO., INC.

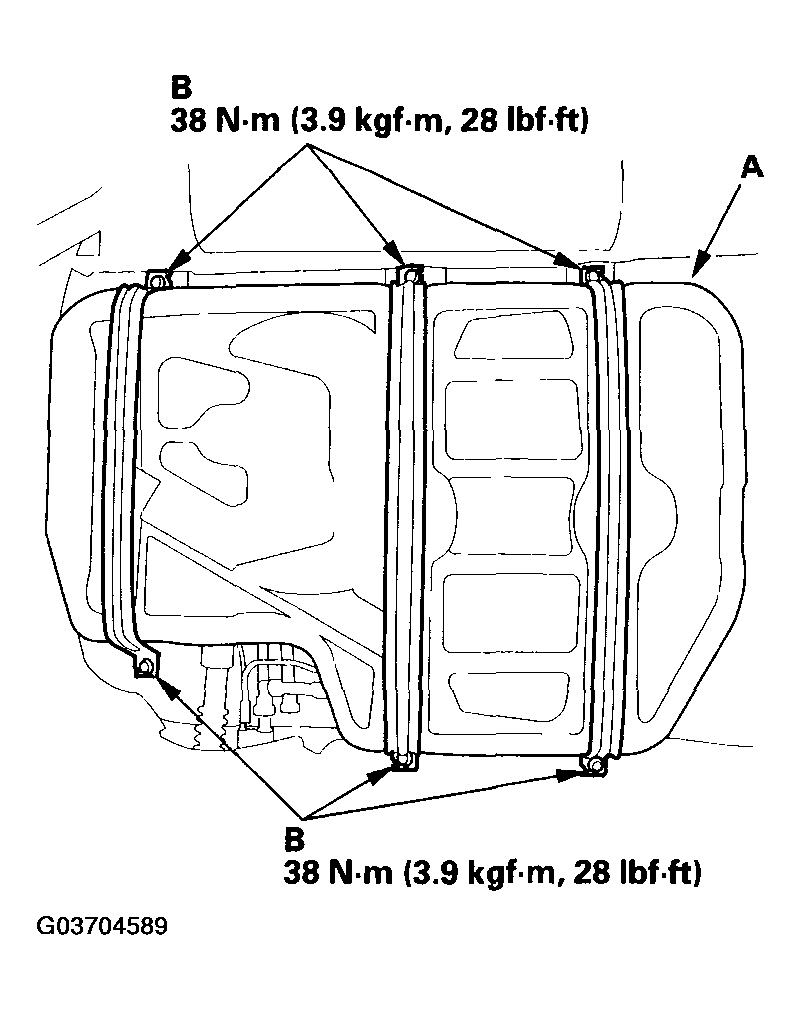

- Place a jack or other support under the fuel tank (A).
Courtesy of AMERICAN HONDA MOTOR CO., INC.
- Remove the strap bolts (B).

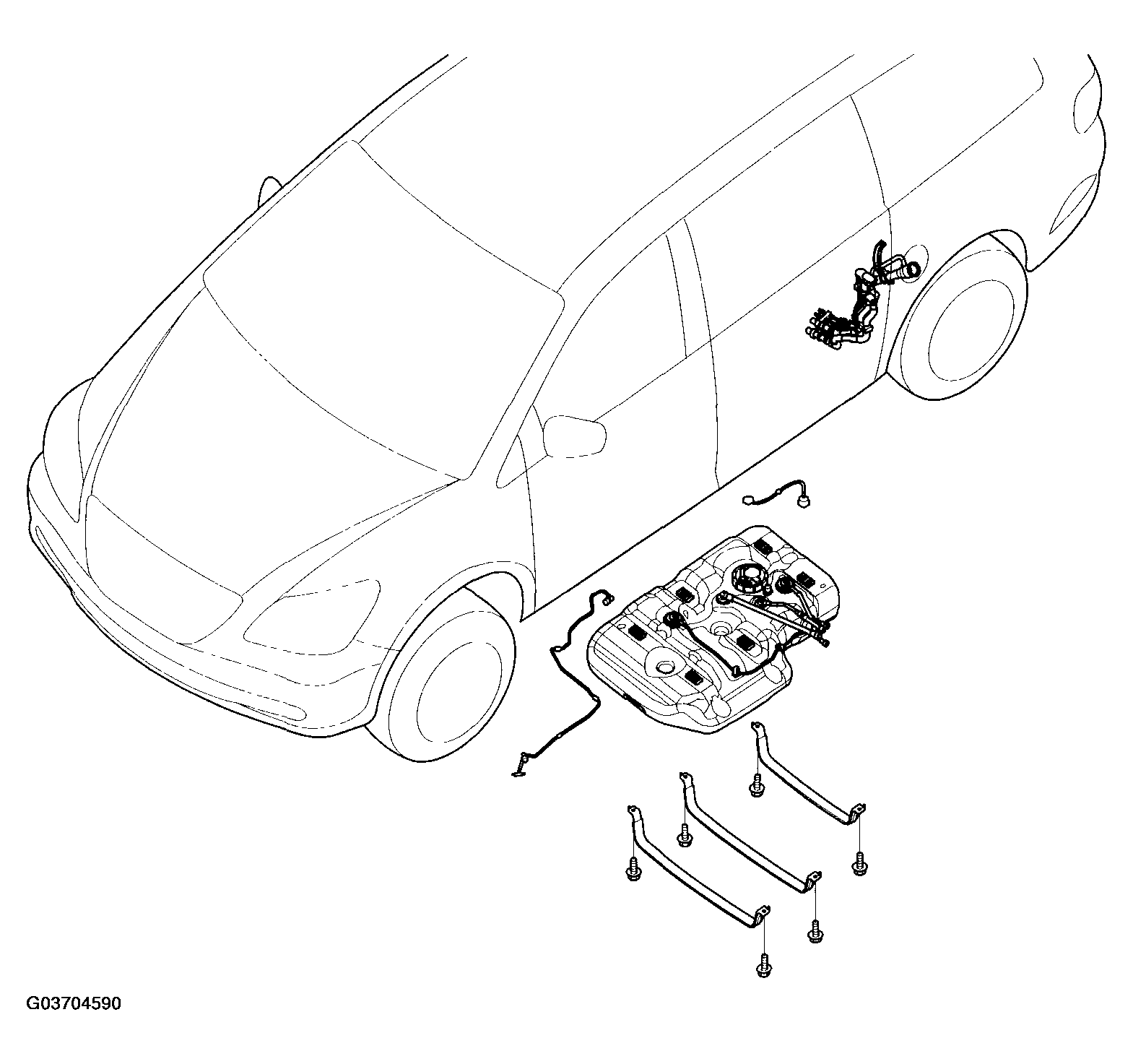

- Remove the fuel tank. If it sticks to the undercoated mounts, carefully pry it off the mounts.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
- Install the parts in the reverse order of removal.
