Resonator Removal/Installation

Remove the front bumper (see FRONT BUMPER REMOVAL/INSTALLATION ).

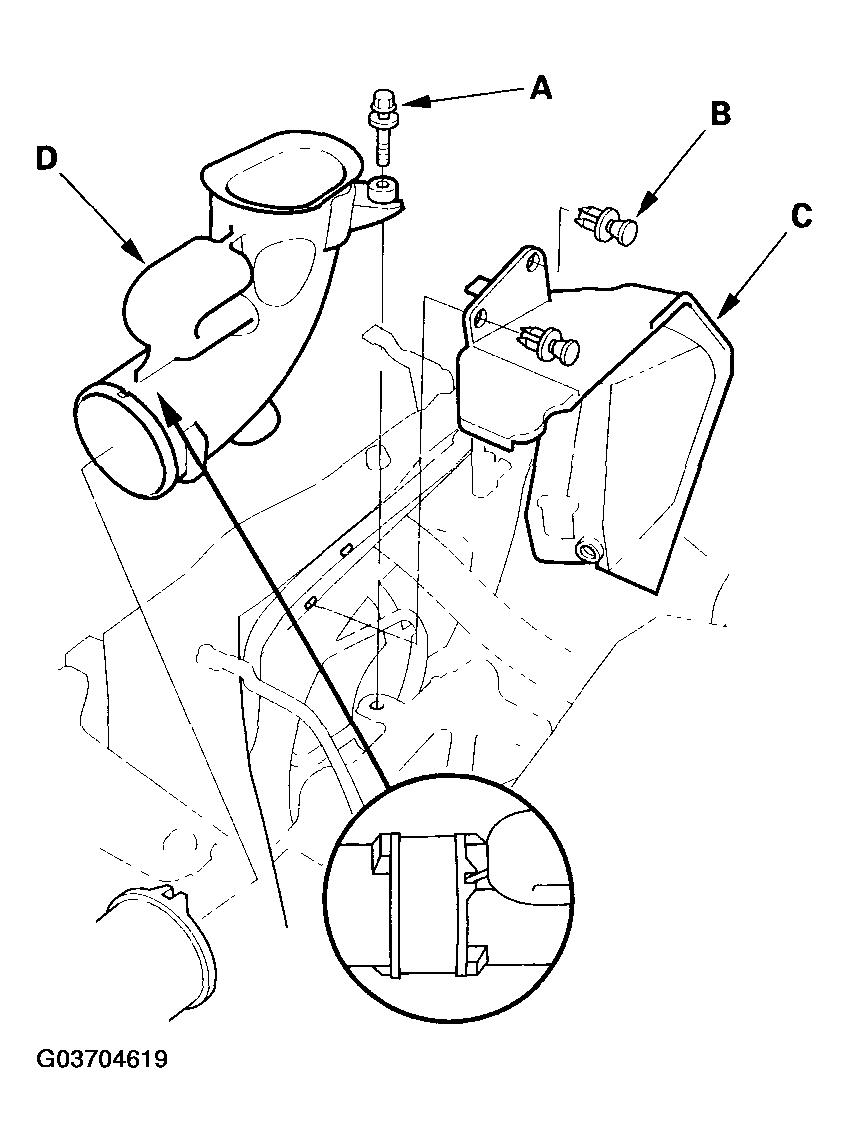

Remove the bolt (A), clips (B), and cover (C).

Fig 1: Removing Bolt, Clips And Cover
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Remove the intake air duct (D).

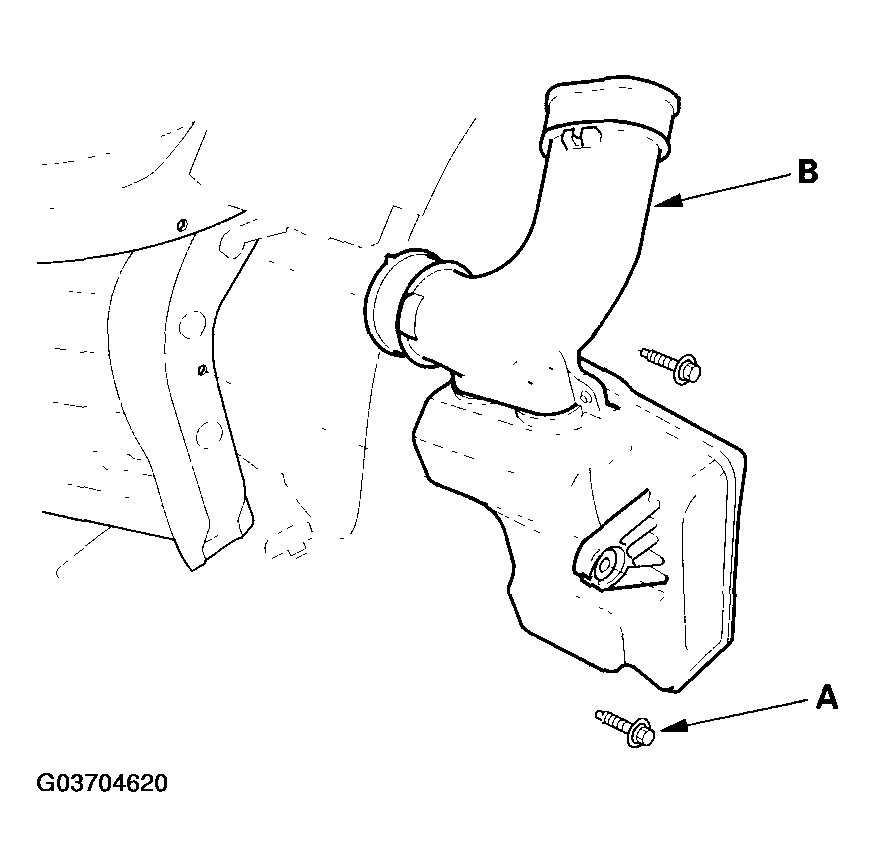

Remove the bolts (A), and resonator (B).

Fig 2: Removing Resonator
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Install the parts in the reverse order of removal.
