Injector Replacement

  1. Relieve fuel pressure (see FUEL PRESSURE RELIEVING ).
  2. Remove the intake manifold (see REMOVAL ).
  3. Disconnect the connectors from the injectors (A).

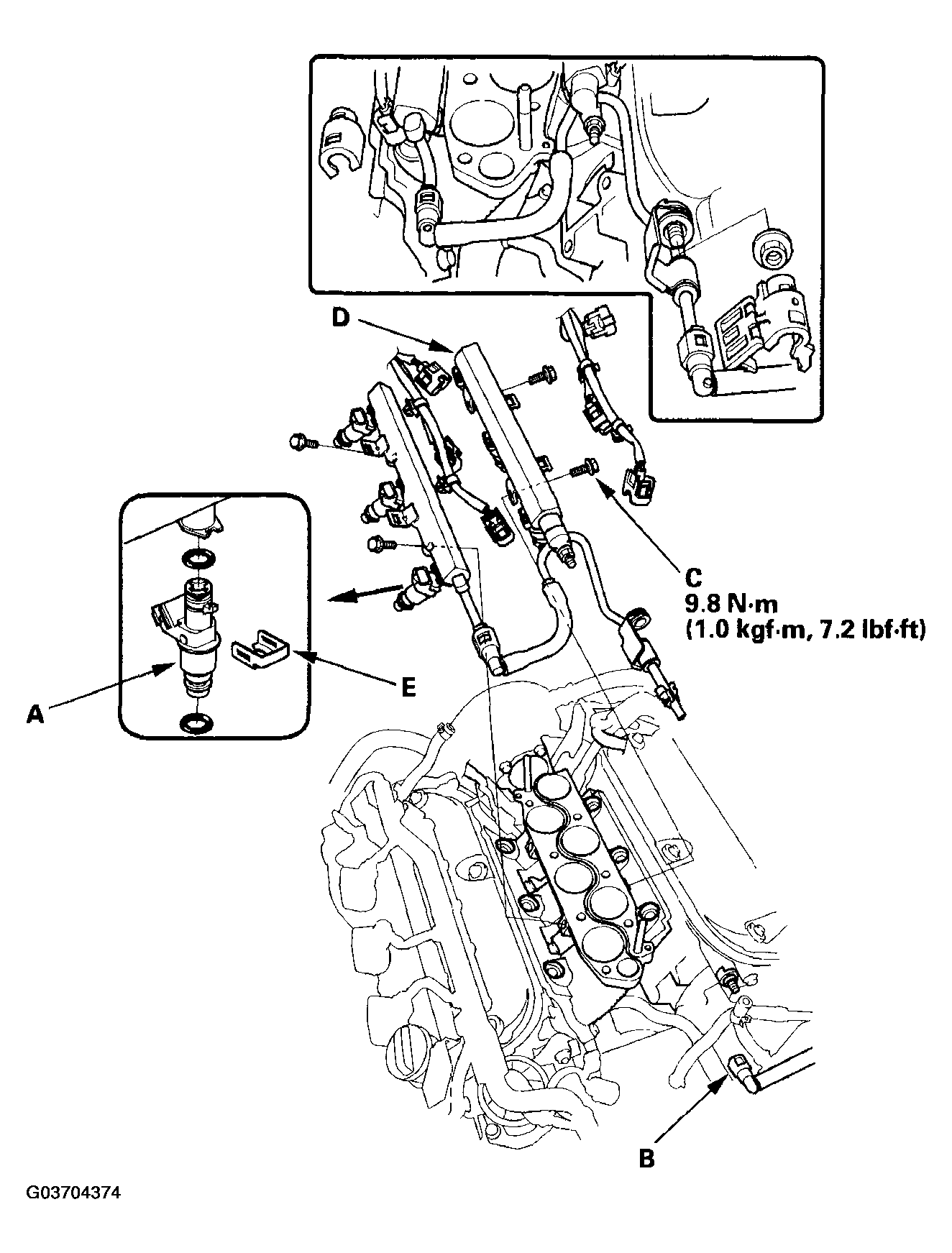

    Fig 1: Removing Injectors
    G03704374Courtesy of AMERICAN HONDA MOTOR CO., INC.
  4. Disconnect the quick-connect fitting (B).
  5. Remove the fuel rail mounting bolts (C) from the fuel rail (D).
  6. Remove the injector clip (E) from the fuel rail.
  7. Remove the injectors from the rails.
  8. Coat the new O-ring (A) with clean engine oil, and insert the injectors (B) into the fuel rail (C).

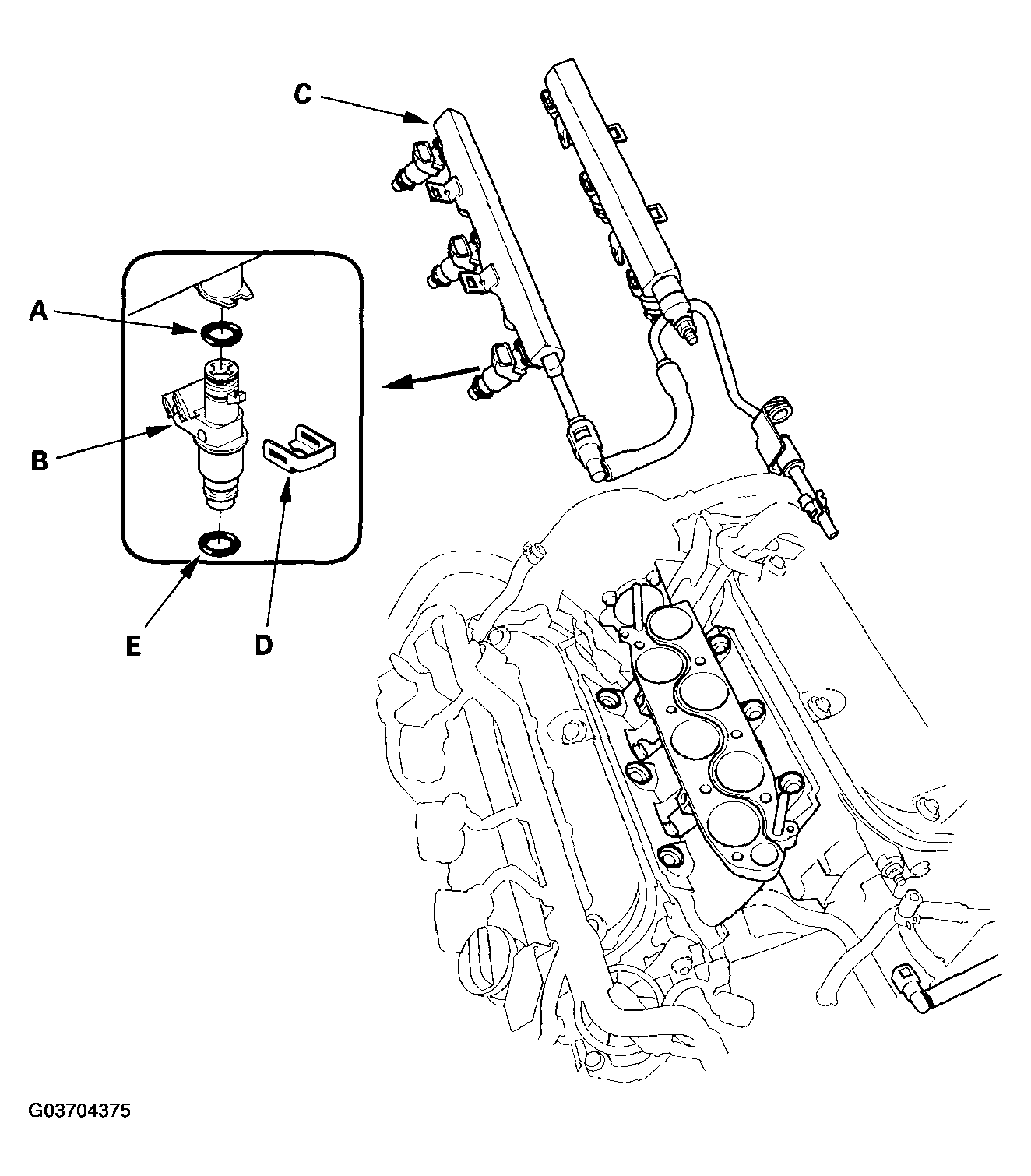

    Fig 2: Inserting Injectors Into Fuel Rail
    G03704375Courtesy of AMERICAN HONDA MOTOR CO., INC.
  9. Install the injector clip (D).
  10. Coat the new injector O-ring (E) with clean engine oil.
  11. Install the injectors in the injector base.
  12. Install the fuel rail mounting bolts.
  13. Install the connectors on the injectors.
  14. Connect the quick-connect fitting (see FUEL LINE/QUICK-CONNECT FITTING INSTALLATION ).
  15. Turn the ignition switch ON (II), but do not operate the starter. After the fuel pump runs about 2 seconds, the fuel pressure in the fuel line rises. Repeat this two or three times, then check for fuel leakage.
  16. Install the intake manifold (see INSTALLATION ).
