Knock Sensor Replacement

Remove the intake manifold (see REMOVAL ).
Remove the injector rails and the base.

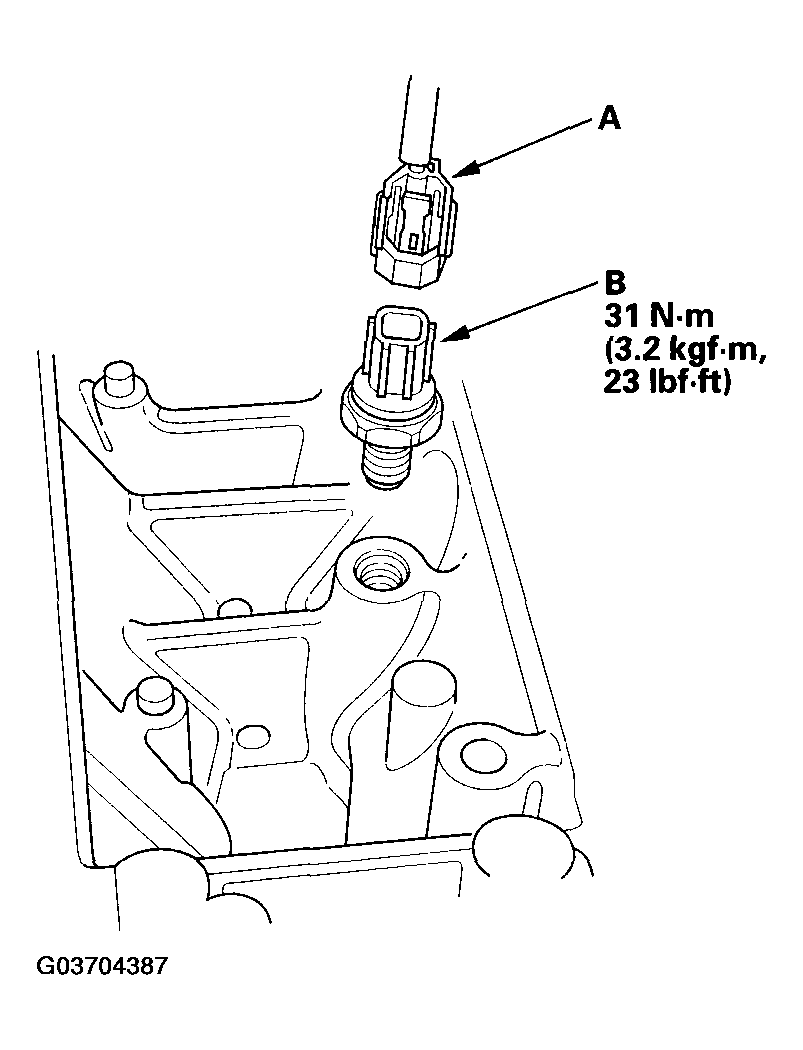

Disconnect the knock sensor 1P connector (A), then remove the knock sensor (B).

Fig 1: Removing Knock Sensor
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Install the sensor in the reverse order of removal.
