MAP Sensor Replacement

  1. Remove the intake manifold cover (see step 1 in REMOVAL ).
  2. Disconnect the MAP sensor connector (A).

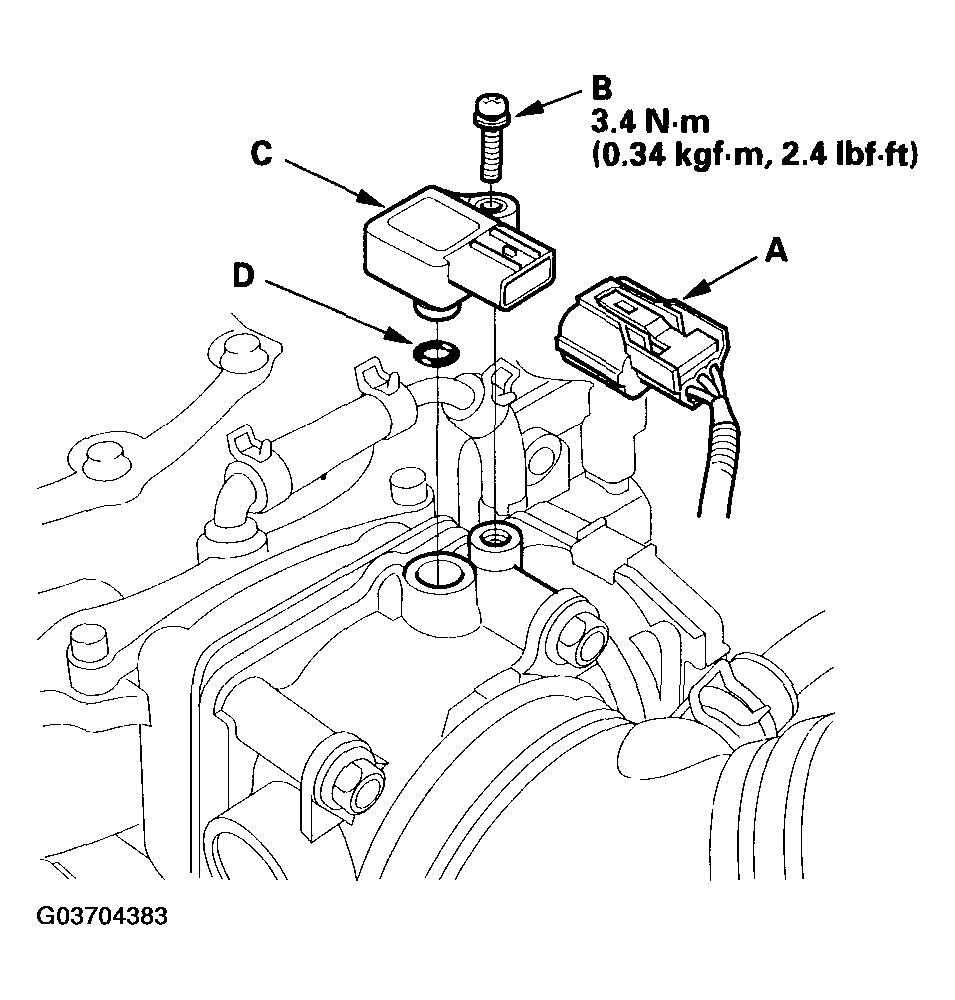

    Fig 1: Disconnecting MAP Sensor Connector
    G03704383Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Remove the screw (B).
  4. Remove the MAP sensor (C).
  5. Install the sensor in the reverse order of removal with a new O-ring (D).
