Circuit Diagram

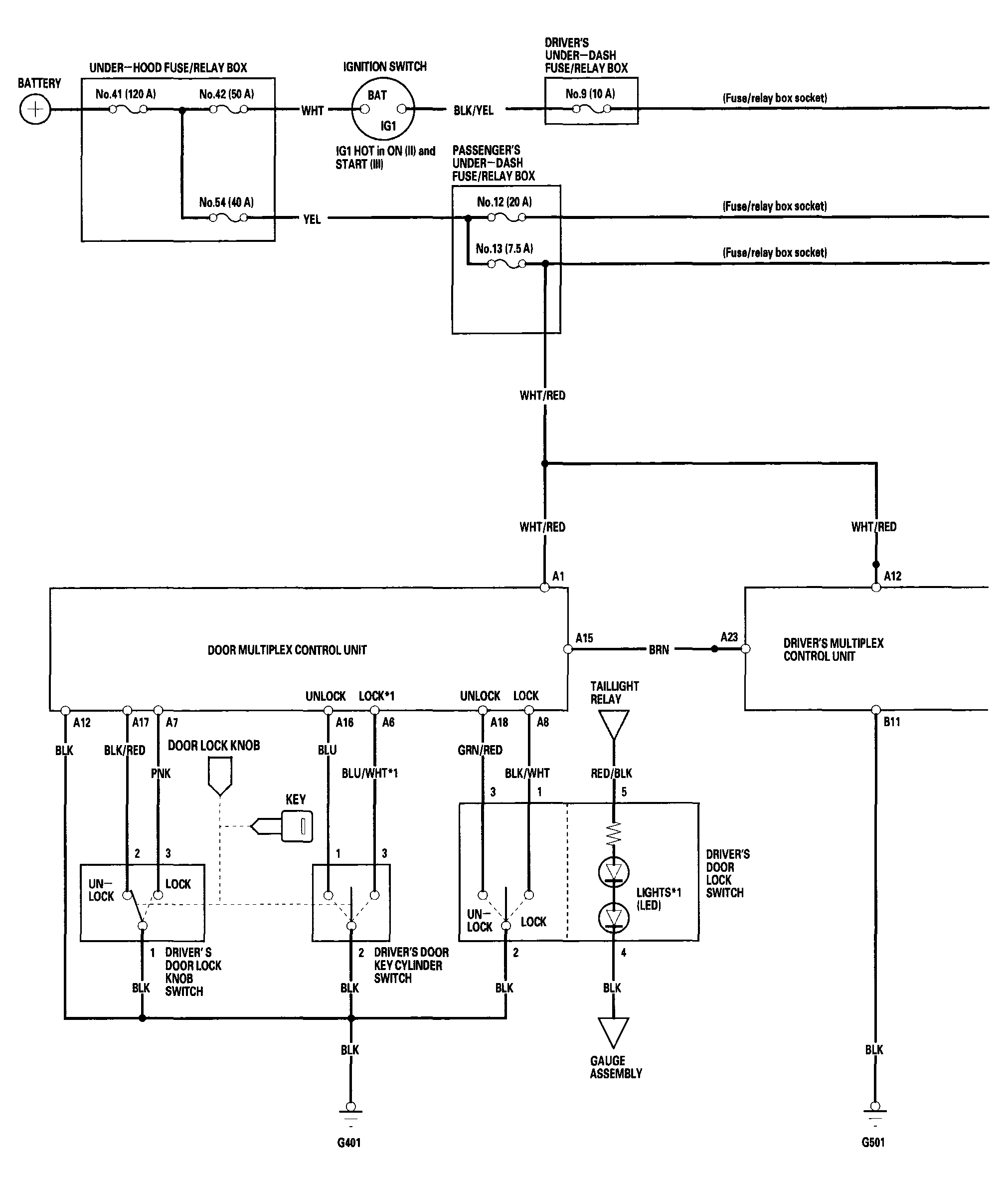

Fig 1: Keyless Entry/Security Alarm Circuit Diagram

Courtesy of AMERICAN HONDA MOTOR CO., INC.

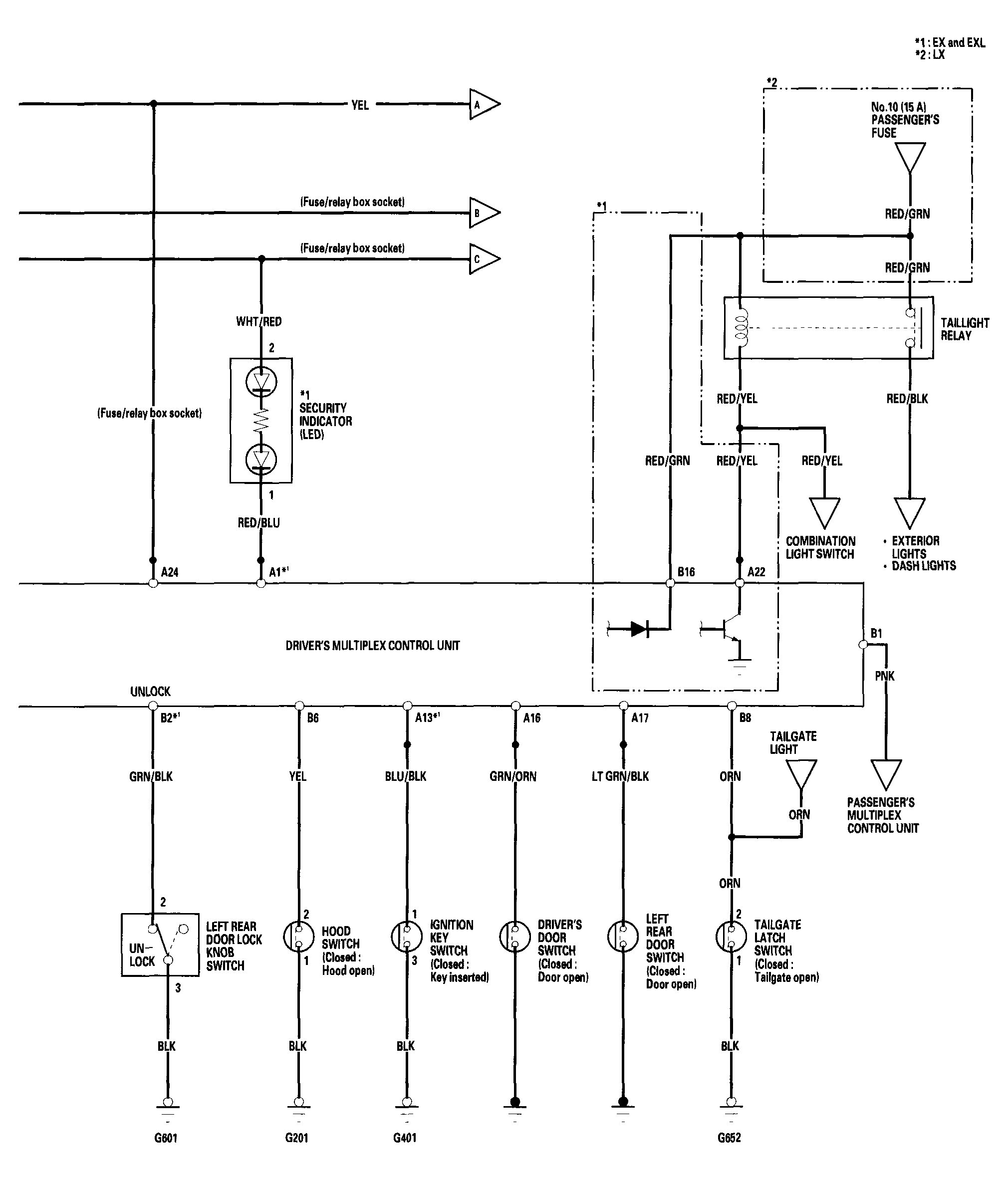

Fig 2: Drivers's Multiplex Control Unit Circuit Diagram

Courtesy of AMERICAN HONDA MOTOR CO., INC.

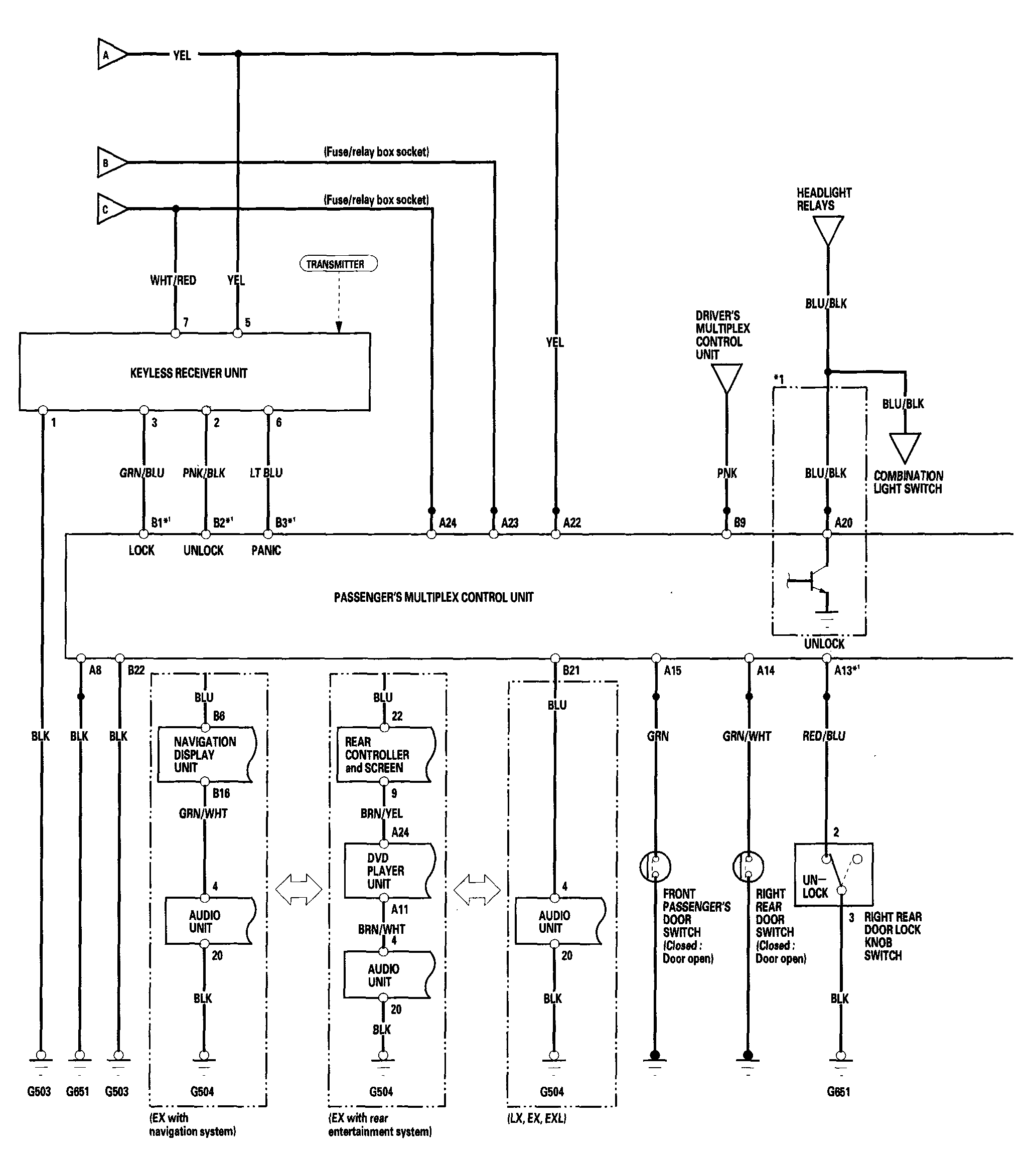

Fig 3: Keyless Entry/Security Alarm Circuit Diagram

Courtesy of AMERICAN HONDA MOTOR CO., INC.

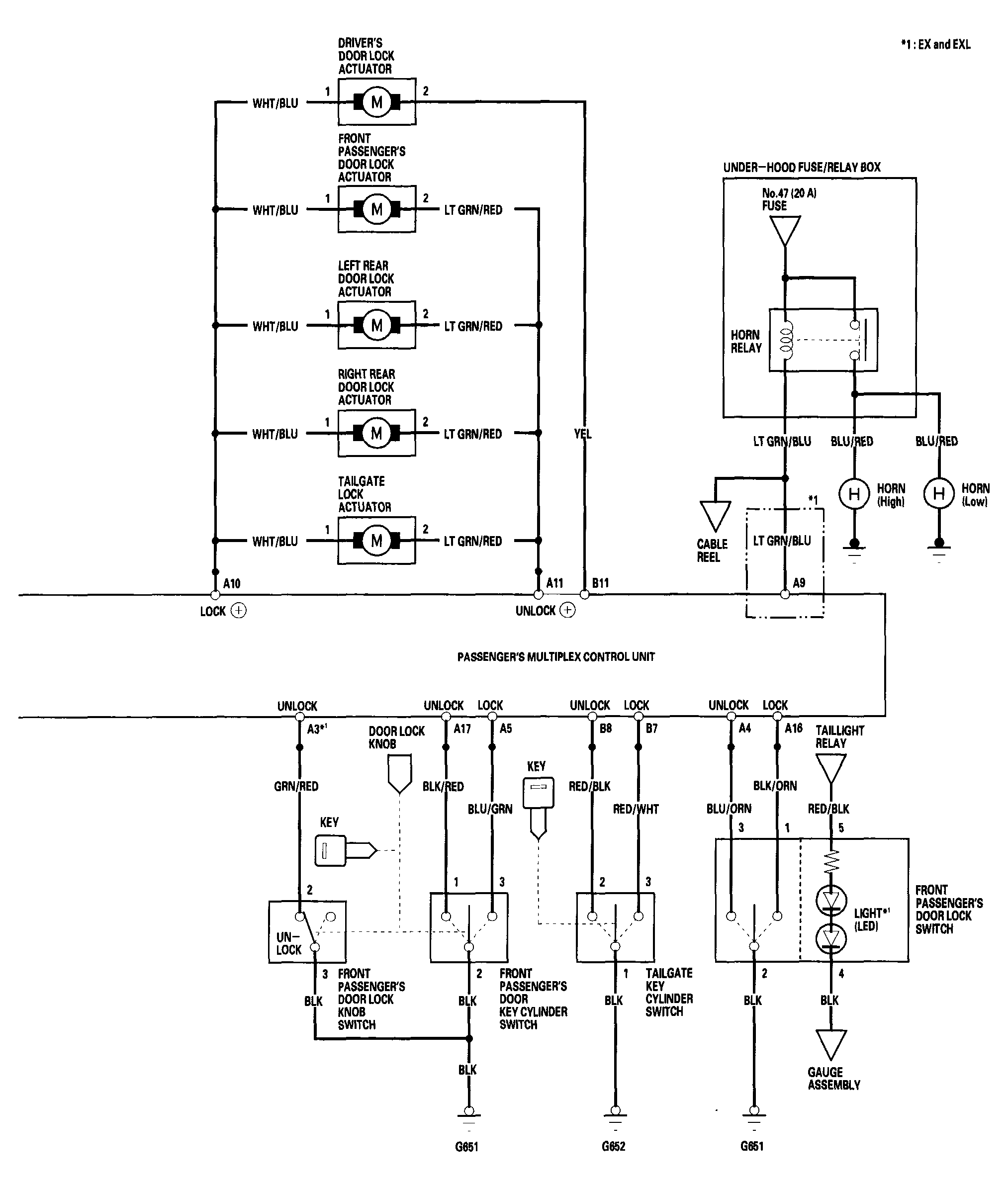

Fig 4: Passengers's Multiplex Control Unit Circuit Diagram

Courtesy of AMERICAN HONDA MOTOR CO., INC.
