Component Location Index

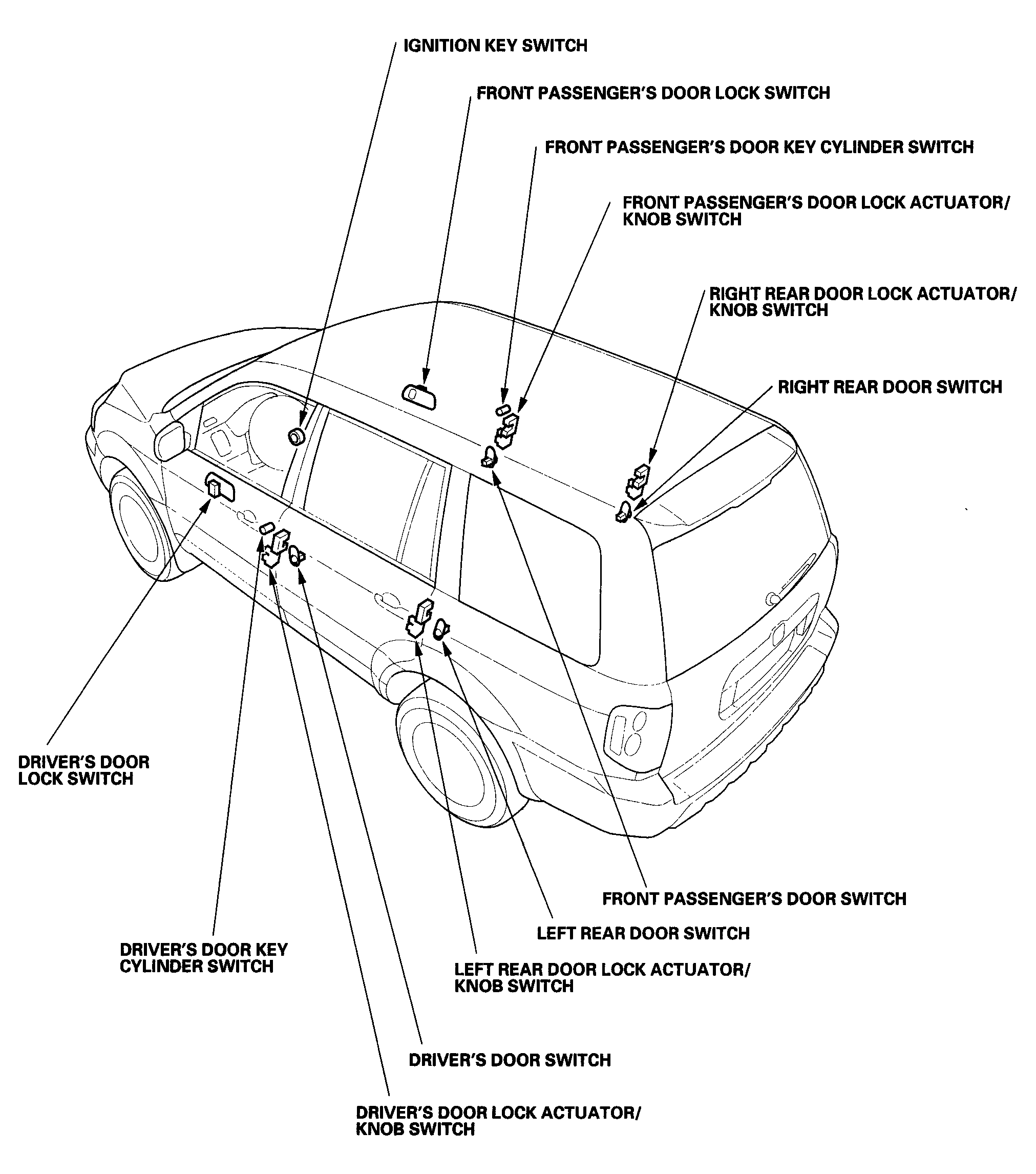

Fig 1: Identifying Keyless Entry/Security Alarm Component Location
Courtesy of AMERICAN HONDA MOTOR CO., INC.

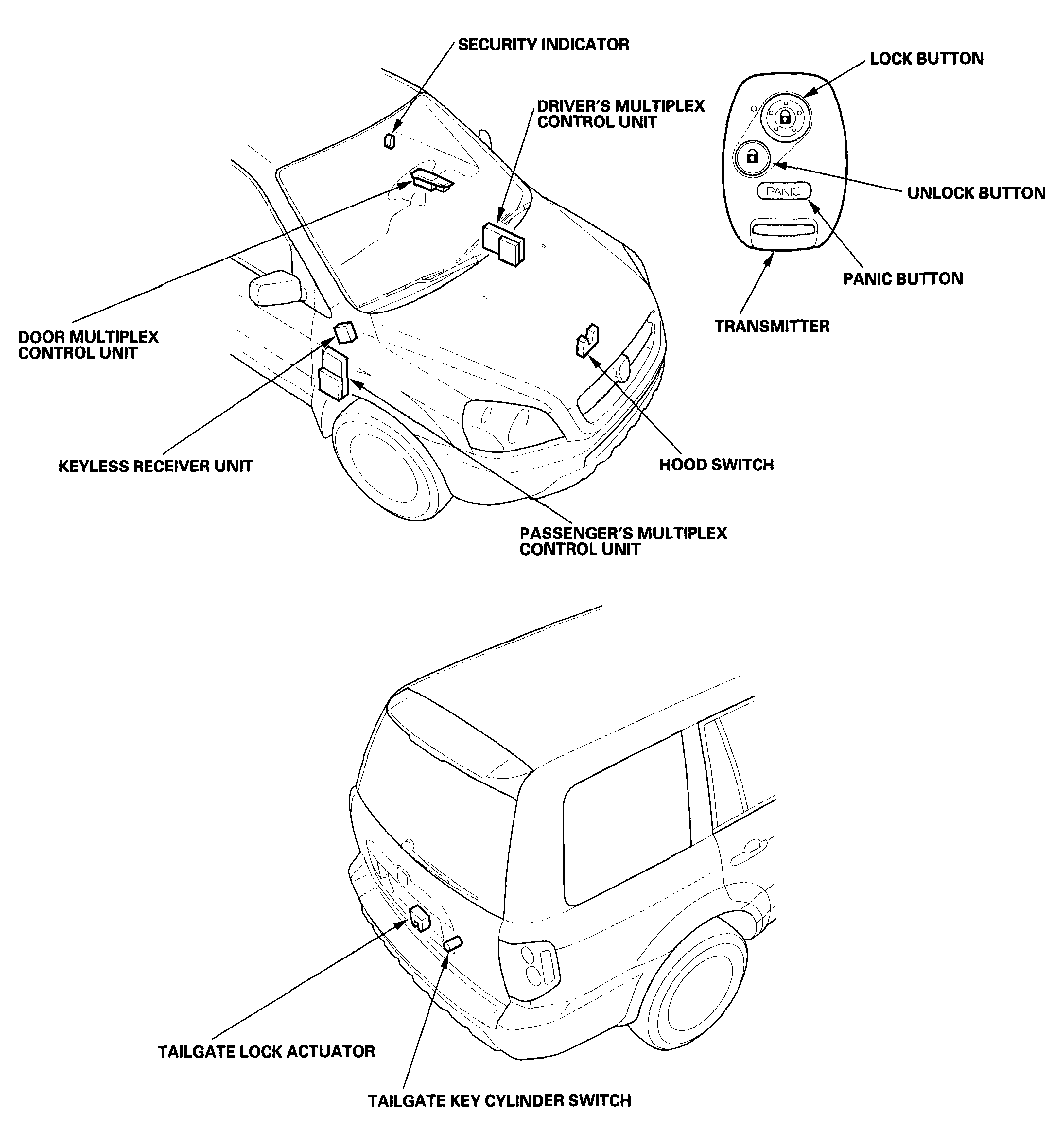

Fig 2: Identifying Keyless Entry/Security Alarm Component Location
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
