Driver's Door
- Remove the driver's door panel (see
FRONT DOOR PANEL REMOVAL/INSTALLATION
).

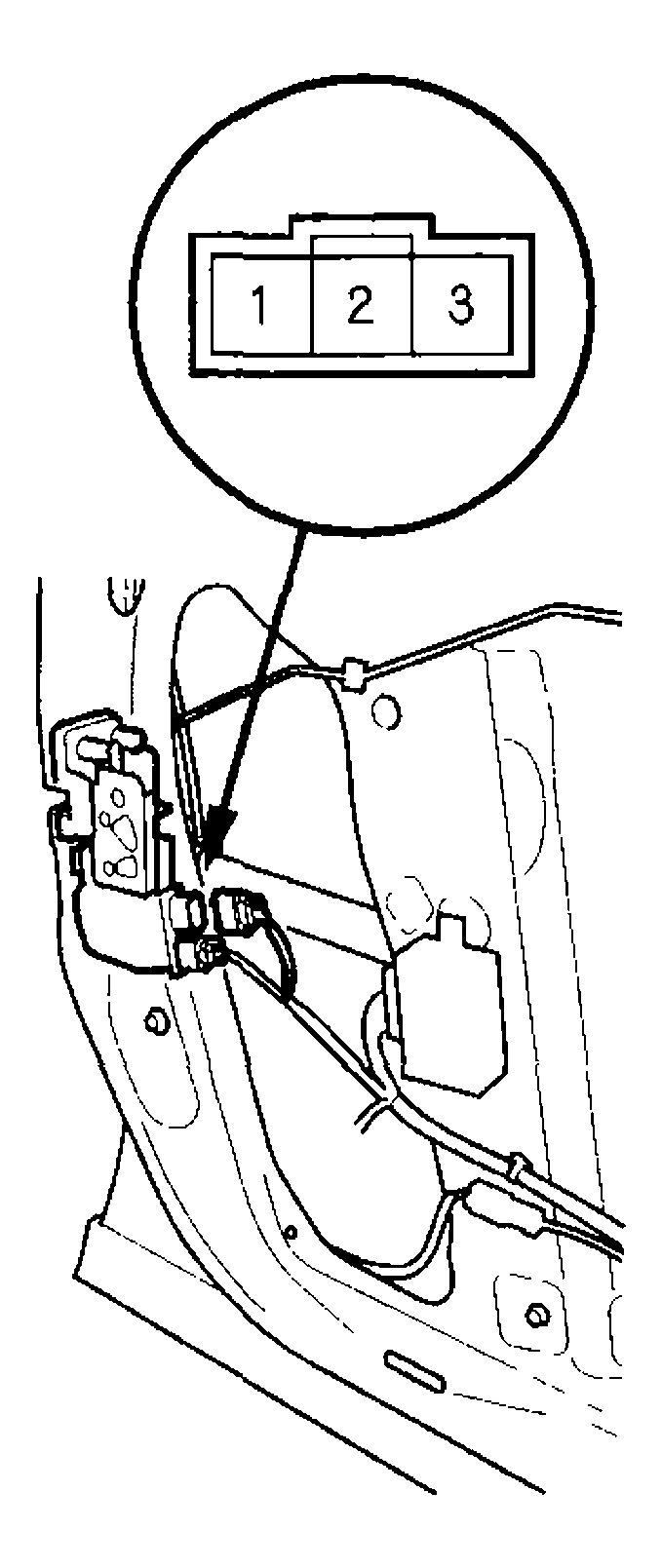

- Disconnect the 3P connector from the actuator.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
- Check for continuity between the terminals.
- There should be continuity between the No. 1 and No. 3 terminals when the door lock knob switch is in the LOCK position and no continuity when it is in the UNLOCK position.
- There should be continuity between the No. 2 and No. 3 terminals when the door lock knob switch is in the UNLOCK position and no continuity when it is in the LOCK position.
- If the continuity is not as specified, replace the door lock actuator.
