Component Location Graphics

NOTE: Figures may show multiple component locations. Refer to appropriate table for proper figure references.

Fig 1: Driver's Under-Dash Fuse/Relay Box

G00292075

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 2: Passenger's Under-Dash Fuse/Relay Box

G00292076

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 3: Under-Hood Fuse/Relay Box

G00292077

Courtesy of AMERICAN HONDA MOTOR CO., INC.

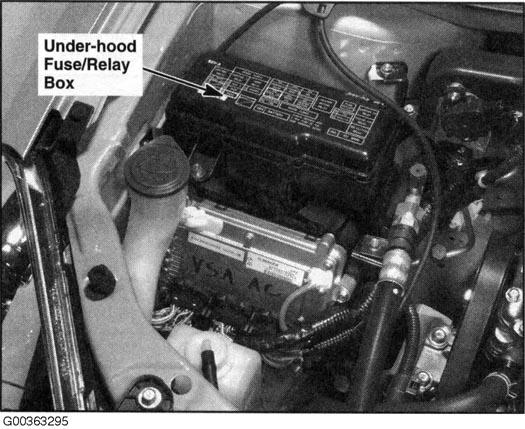

Fig 4: Right Side Of Engine Compartment

G00363295

Courtesy of AMERICAN HONDA MOTOR CO., INC.

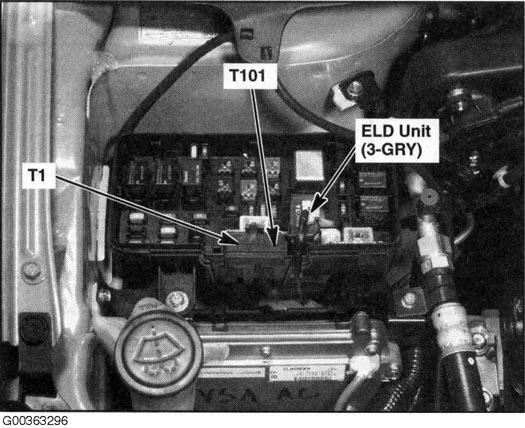

Fig 5: Right Side Of Engine Compartment

G00363296

Courtesy of AMERICAN HONDA MOTOR CO., INC.

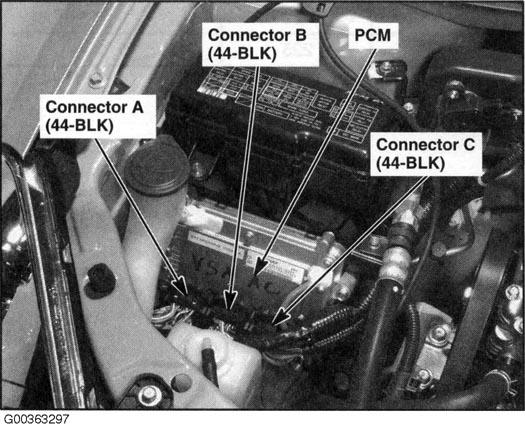

Fig 6: Right Side Of Engine Compartment

G00363297

Courtesy of AMERICAN HONDA MOTOR CO., INC.

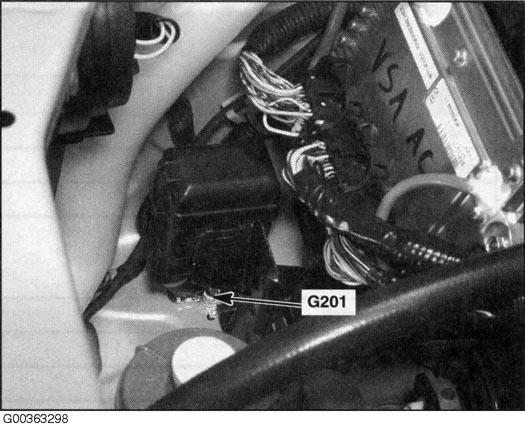

Fig 7: Right Side Of Engine Compartment

G00363298

Courtesy of AMERICAN HONDA MOTOR CO., INC.

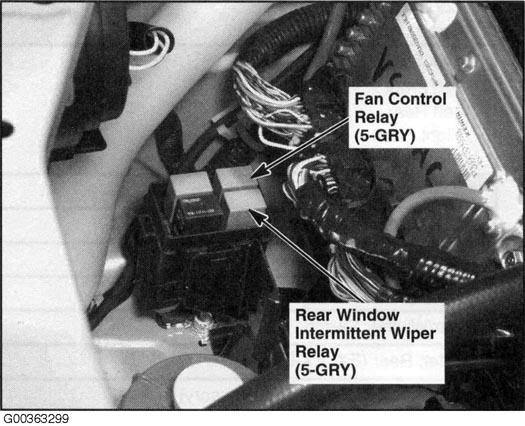

Fig 8: Right Side Of Engine Compartment

G00363299

Courtesy of AMERICAN HONDA MOTOR CO., INC.

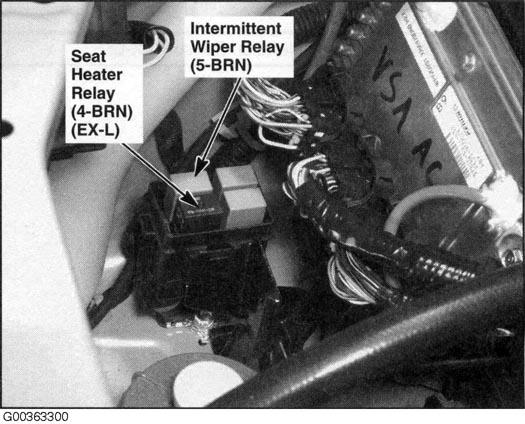

Fig 9: Right Side Of Engine Compartment

G00363300

Courtesy of AMERICAN HONDA MOTOR CO., INC.

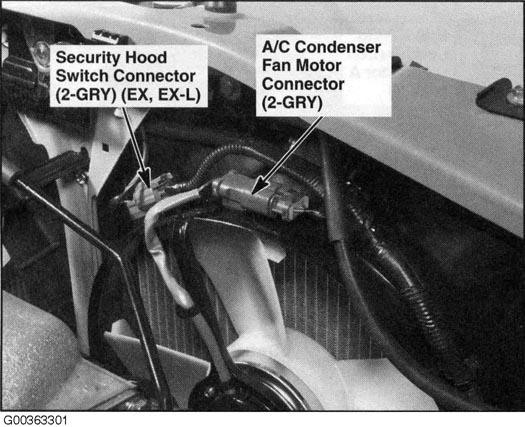

Fig 10: Middle Of Engine Compartment

G00363301

Courtesy of AMERICAN HONDA MOTOR CO., INC.

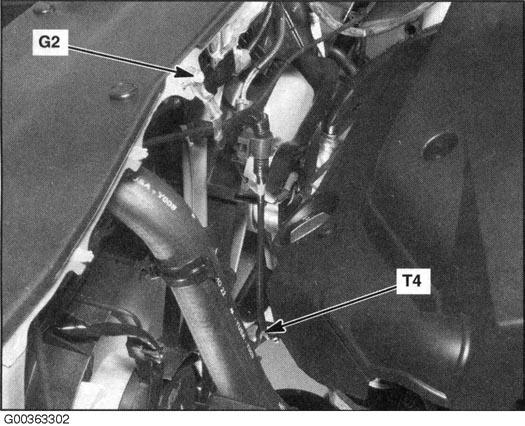

Fig 11: Front Of Engine Compartment

G00363302

Courtesy of AMERICAN HONDA MOTOR CO., INC.

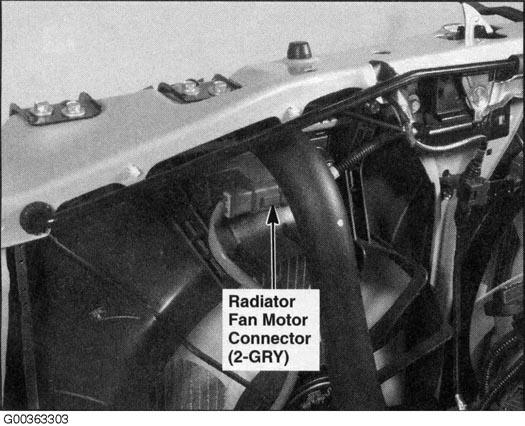

Fig 12: Middle Of Engine Compartment

G00363303

Courtesy of AMERICAN HONDA MOTOR CO., INC.

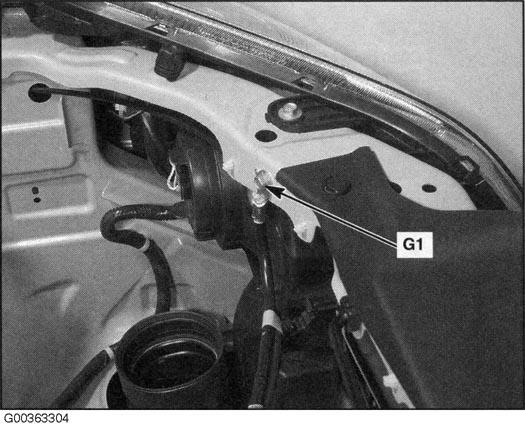

Fig 13: Left Side Of Engine Compartment

G00363304

Courtesy of AMERICAN HONDA MOTOR CO., INC.

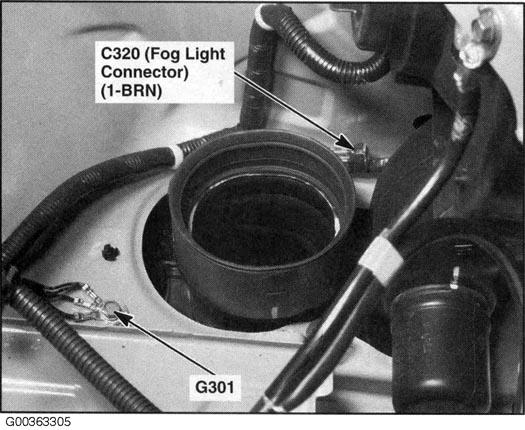

Fig 14: Left Side Of Engine Compartment

G00363305

Courtesy of AMERICAN HONDA MOTOR CO., INC.

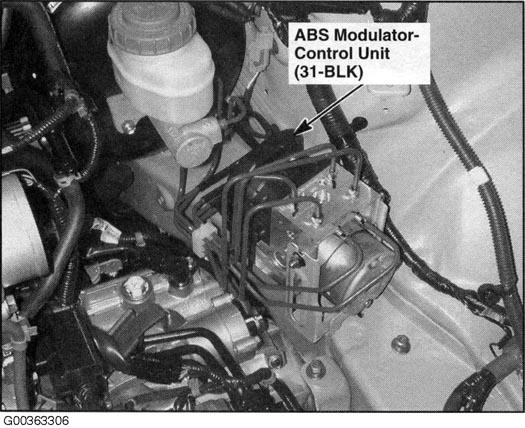

Fig 15: Left Side Of Engine Compartment (LX, EX)

G00363306

Courtesy of AMERICAN HONDA MOTOR CO., INC.

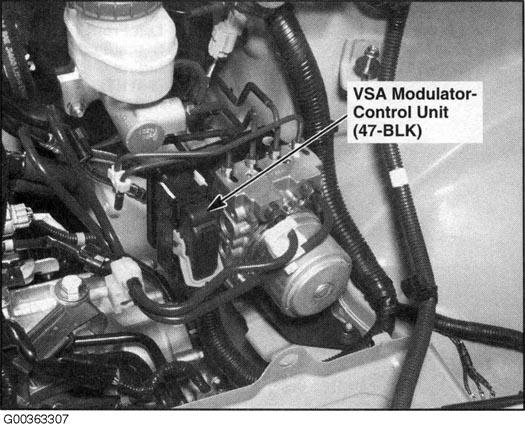

Fig 16: Left Side Of Engine Compartment (EX-L)

G00363307

Courtesy of AMERICAN HONDA MOTOR CO., INC.

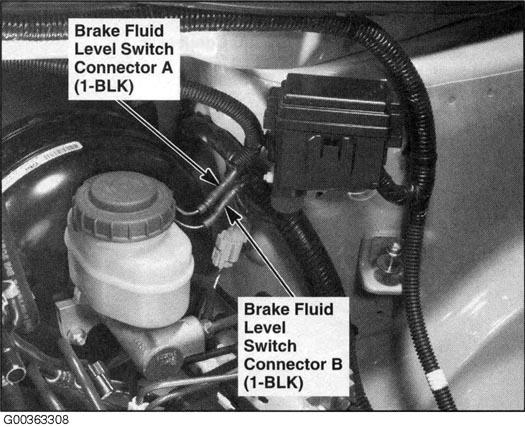

Fig 17: Left Side Of Engine Compartment

G00363308

Courtesy of AMERICAN HONDA MOTOR CO., INC.

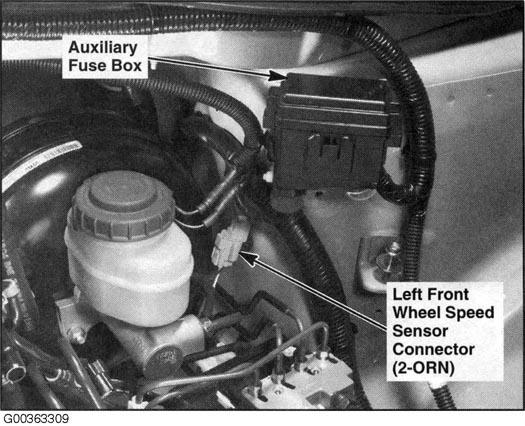

Fig 18: Left Side Of Engine Compartment

G00363309

Courtesy of AMERICAN HONDA MOTOR CO., INC.

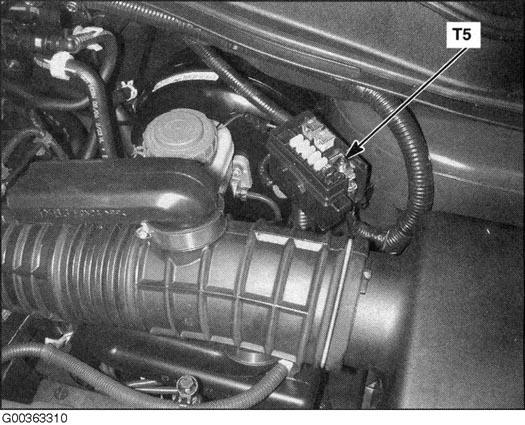

Fig 19: Left Side Of Engine Compartment

G00363310

Courtesy of AMERICAN HONDA MOTOR CO., INC.

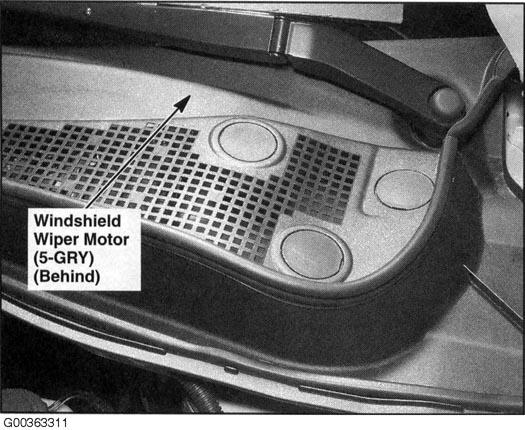

Fig 20: Under Left Side Of Cowl Cover

G00363311

Courtesy of AMERICAN HONDA MOTOR CO., INC.

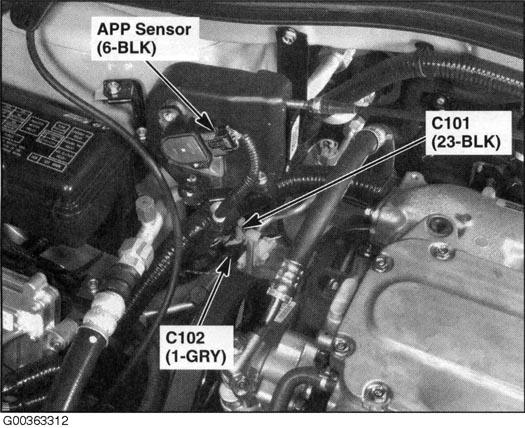

Fig 21: Right Side Of Engine Compartment

G00363312

Courtesy of AMERICAN HONDA MOTOR CO., INC.

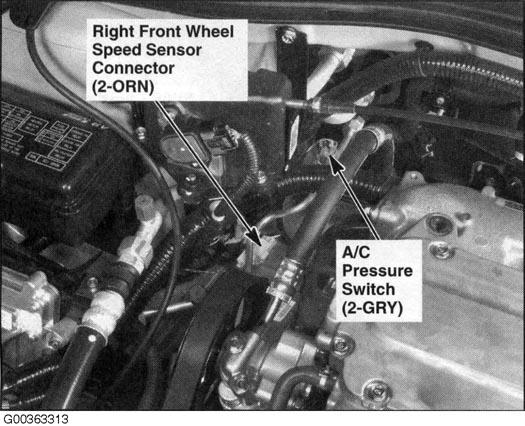

Fig 22: Right Side Of Engine Compartment

G00363313

Courtesy of AMERICAN HONDA MOTOR CO., INC.

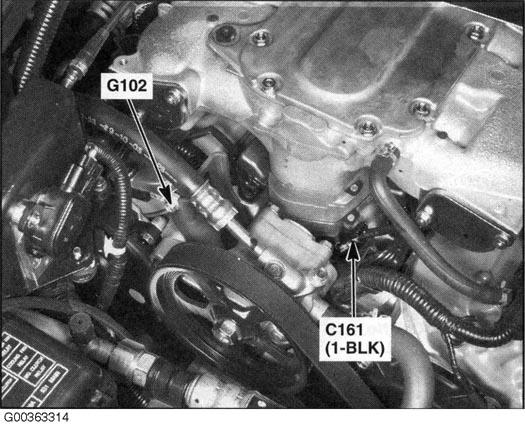

Fig 23: Right Side Of Engine Compartment

G00363314

Courtesy of AMERICAN HONDA MOTOR CO., INC.

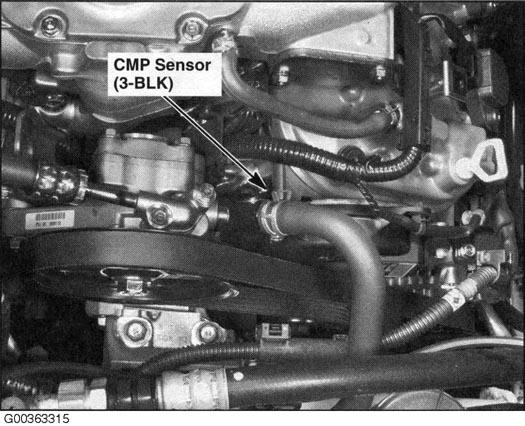

Fig 24: Right Side Of Engine Compartment

G00363315

Courtesy of AMERICAN HONDA MOTOR CO., INC.

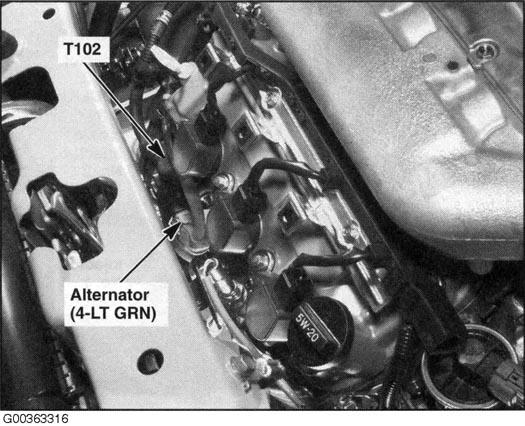

Fig 25: Middle Of Engine Compartment

G00363316

Courtesy of AMERICAN HONDA MOTOR CO., INC.

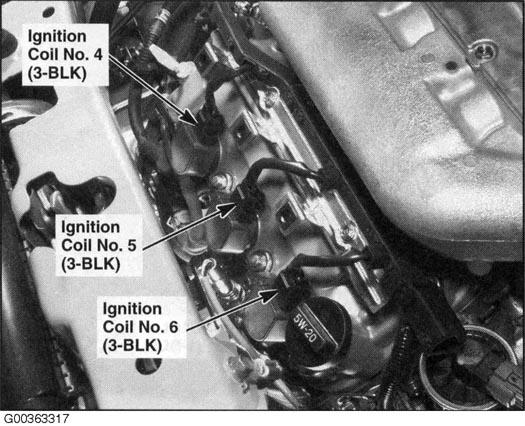

Fig 26: Middle Of Engine Compartment

G00363317

Courtesy of AMERICAN HONDA MOTOR CO., INC.

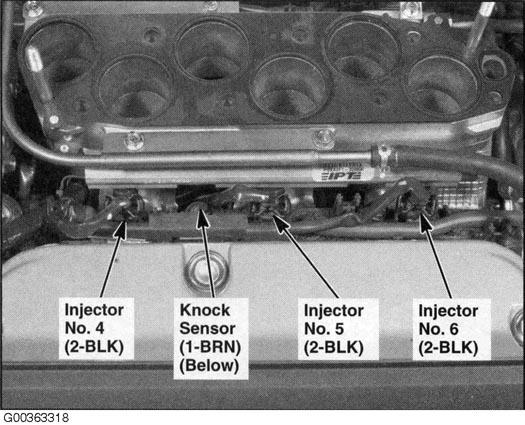

Fig 27: Middle Of Engine Compartment

G00363318

Courtesy of AMERICAN HONDA MOTOR CO., INC.

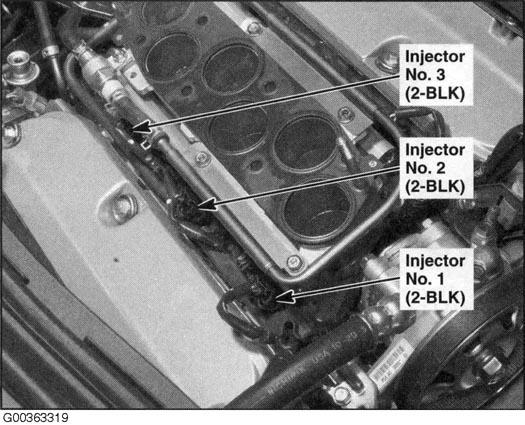

Fig 28: Middle Of Engine Compartment

G00363319

Courtesy of AMERICAN HONDA MOTOR CO., INC.

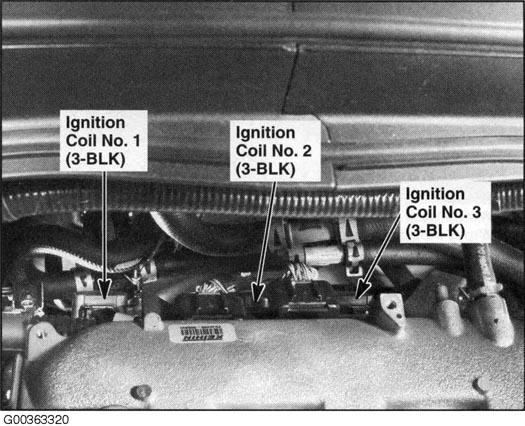

Fig 29: Middle Of Engine Compartment

G00363320

Courtesy of AMERICAN HONDA MOTOR CO., INC.

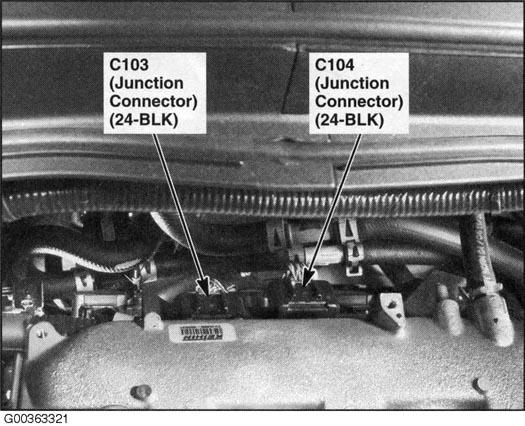

Fig 30: Middle Of Engine Compartment

G00363321

Courtesy of AMERICAN HONDA MOTOR CO., INC.

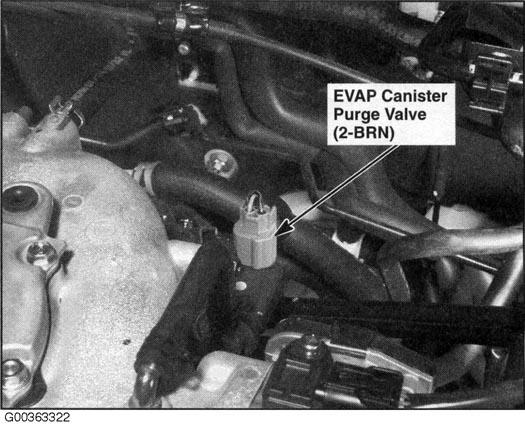

Fig 31: Left Side Of Engine Compartment

G00363322

Courtesy of AMERICAN HONDA MOTOR CO., INC.

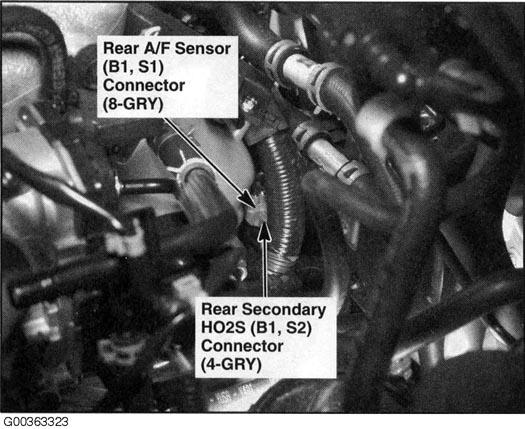

Fig 32: Left Side Of Engine Compartment

G00363323

Courtesy of AMERICAN HONDA MOTOR CO., INC.

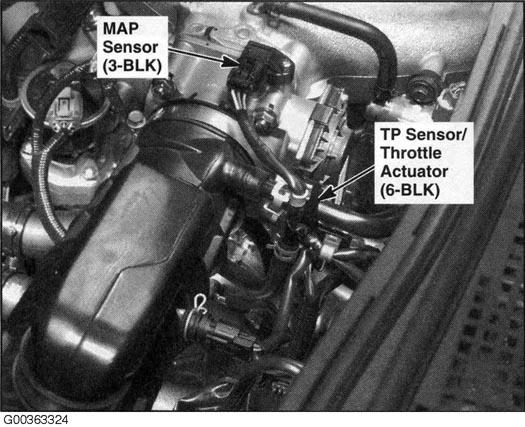

Fig 33: Left Side Of Engine Compartment

G00363324

Courtesy of AMERICAN HONDA MOTOR CO., INC.

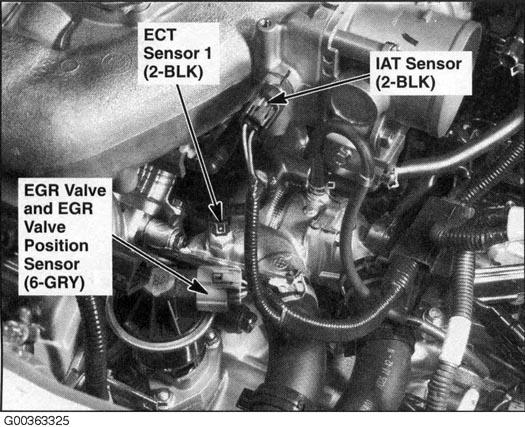

Fig 34: Left Side Of Engine Compartment

G00363325

Courtesy of AMERICAN HONDA MOTOR CO., INC.

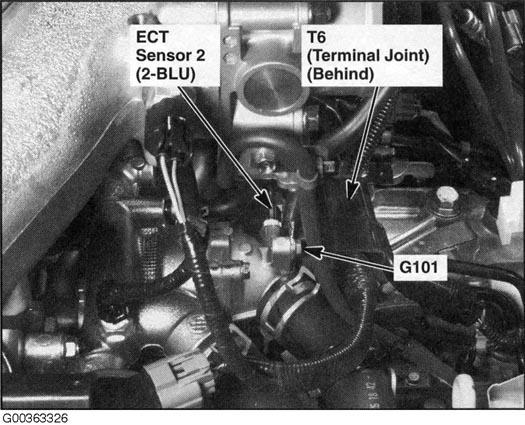

Fig 35: Left Side Of Engine Compartment

G00363326

Courtesy of AMERICAN HONDA MOTOR CO., INC.

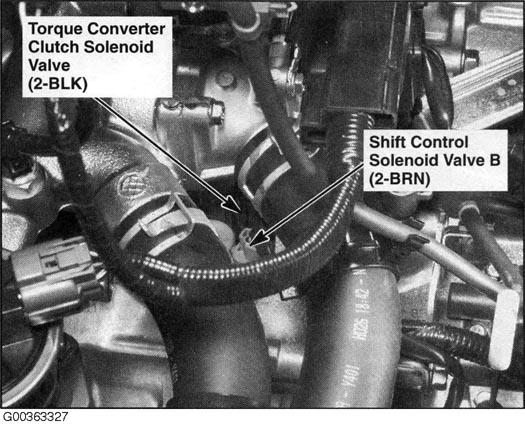

Fig 36: Left Side Of Engine Compartment

G00363327

Courtesy of AMERICAN HONDA MOTOR CO., INC.

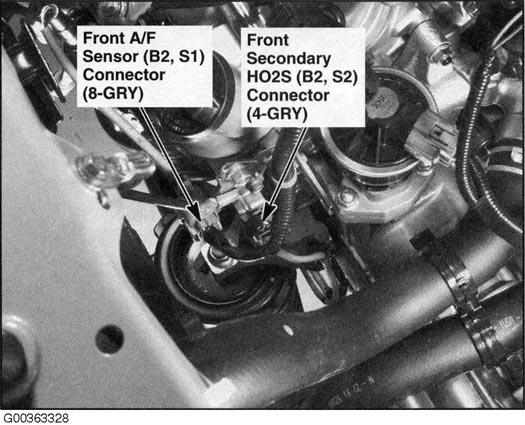

Fig 37: Left Side Of Engine Compartment

G00363328

Courtesy of AMERICAN HONDA MOTOR CO., INC.

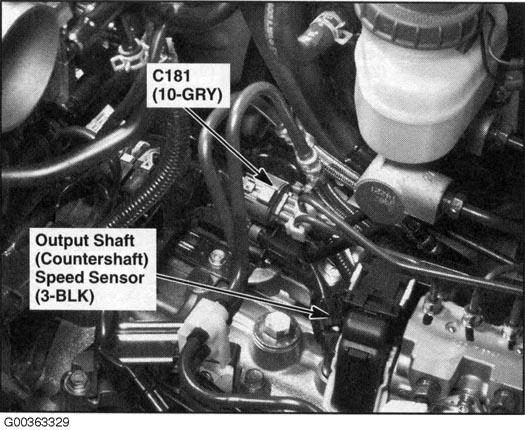

Fig 38: Transmission Housing

G00363329

Courtesy of AMERICAN HONDA MOTOR CO., INC.

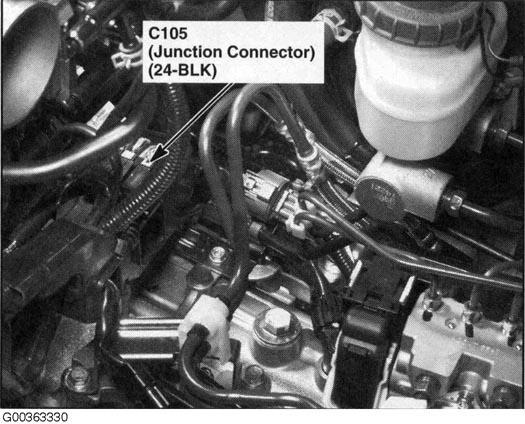

Fig 39: Middle Of Engine Compartment

G00363330

Courtesy of AMERICAN HONDA MOTOR CO., INC.

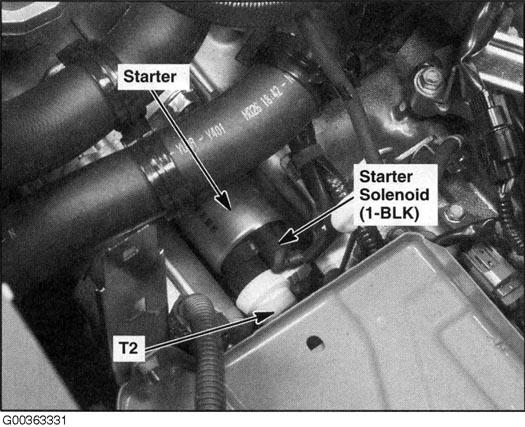

Fig 40: Left Side Of Engine Compartment

G00363331

Courtesy of AMERICAN HONDA MOTOR CO., INC.

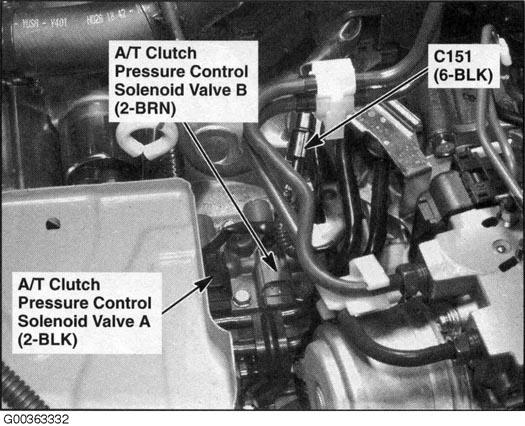

Fig 41: Left Side Of Engine Compartment

G00363332

Courtesy of AMERICAN HONDA MOTOR CO., INC.

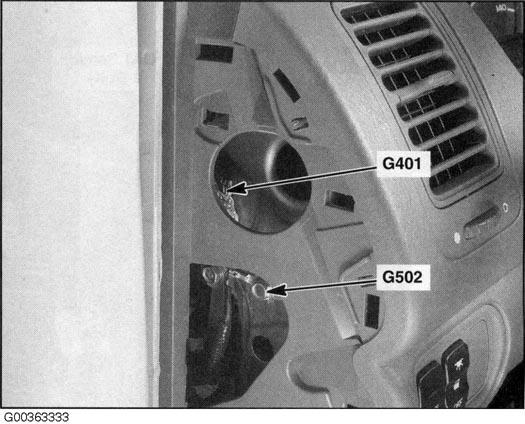

Fig 42: Left Side Of Dash

G00363333

Courtesy of AMERICAN HONDA MOTOR CO., INC.

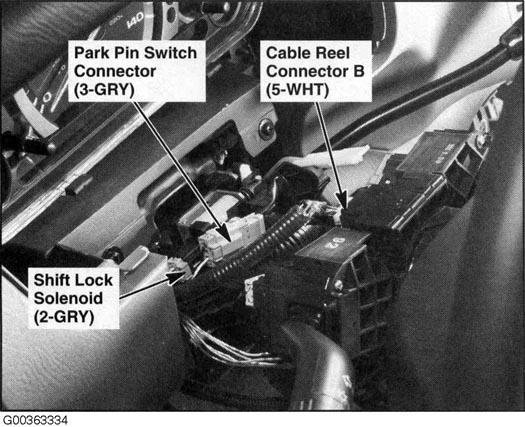

Fig 43: In Steering Column Cover

G00363334

Courtesy of AMERICAN HONDA MOTOR CO., INC.

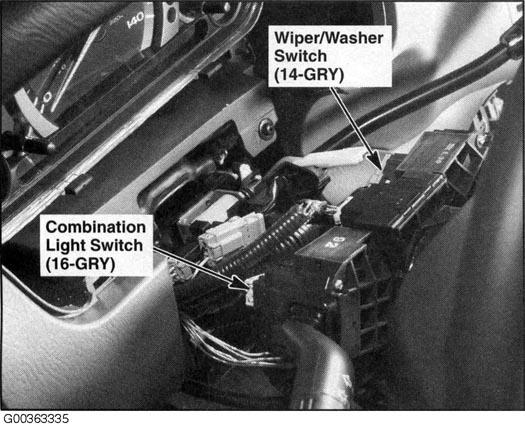

Fig 44: In Steering Column Cover

G00363335

Courtesy of AMERICAN HONDA MOTOR CO., INC.

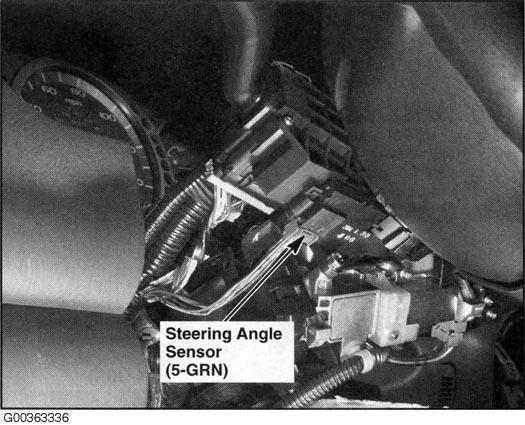

Fig 45: In Steering Column Cover (EX-L)

G00363336

Courtesy of AMERICAN HONDA MOTOR CO., INC.

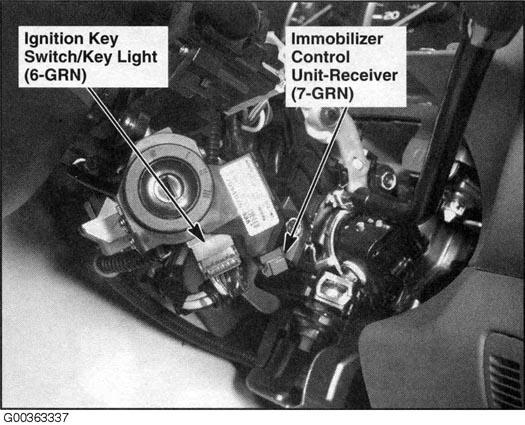

Fig 46: In Steering Column Cover

G00363337

Courtesy of AMERICAN HONDA MOTOR CO., INC.

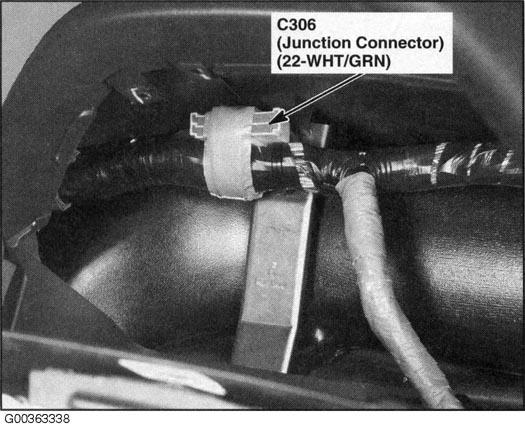

Fig 47: Behind Gauge Assembly

G00363338

Courtesy of AMERICAN HONDA MOTOR CO., INC.

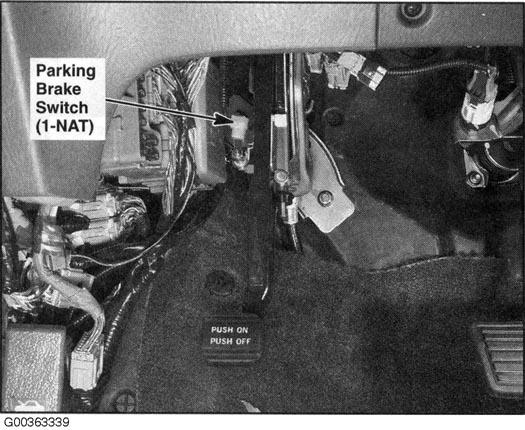

Fig 48: Under Left Side Of Dash

G00363339

Courtesy of AMERICAN HONDA MOTOR CO., INC.

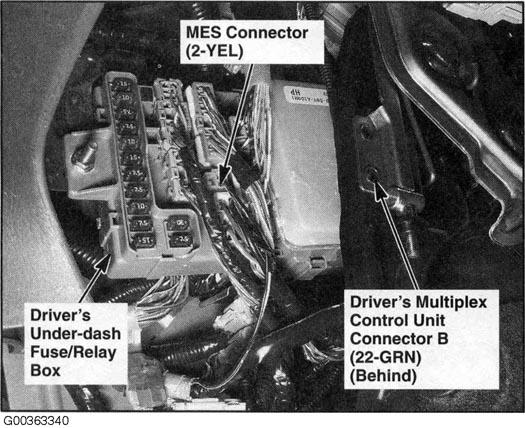

Fig 49: Under Left Side Of Dash

G00363340

Courtesy of AMERICAN HONDA MOTOR CO., INC.

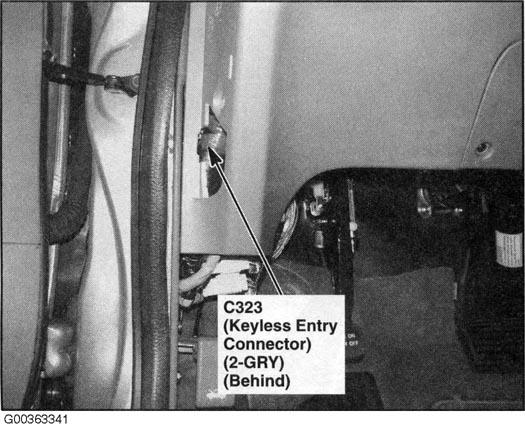

Fig 50: Behind Left Kick Panel

G00363341

Courtesy of AMERICAN HONDA MOTOR CO., INC.

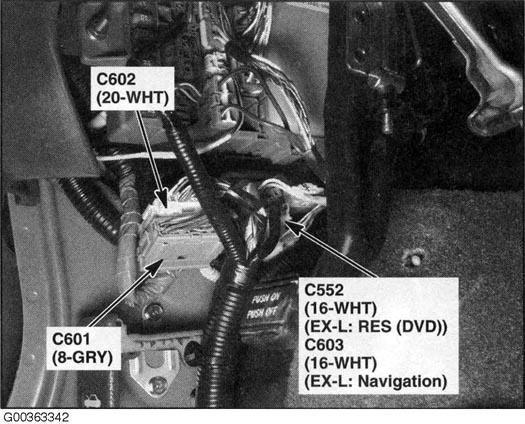

Fig 51: Behind Left Kick Panel

G00363342

Courtesy of AMERICAN HONDA MOTOR CO., INC.

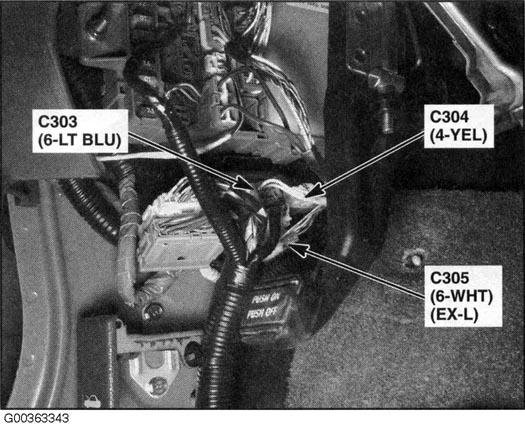

Fig 52: Behind Left Kick Panel

G00363343

Courtesy of AMERICAN HONDA MOTOR CO., INC.

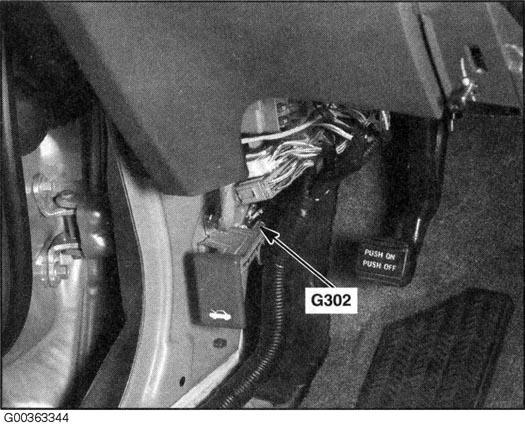

Fig 53: Behind Left Kick Panel

G00363344

Courtesy of AMERICAN HONDA MOTOR CO., INC.

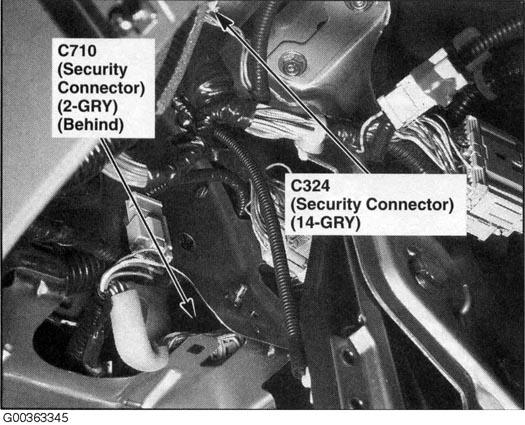

Fig 54: Under Left Side Of Dash (LX)

G00363345

Courtesy of AMERICAN HONDA MOTOR CO., INC.

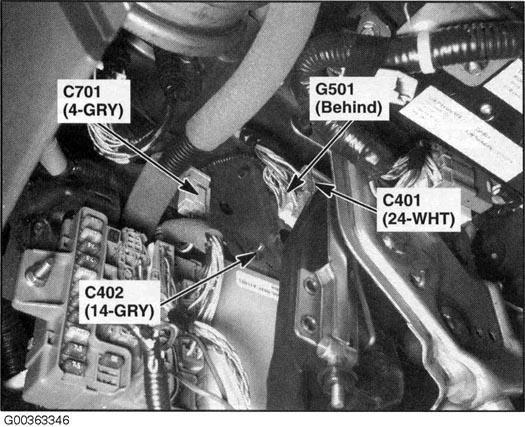

Fig 55: Under Left Side Of Dash

G00363346

Courtesy of AMERICAN HONDA MOTOR CO., INC.

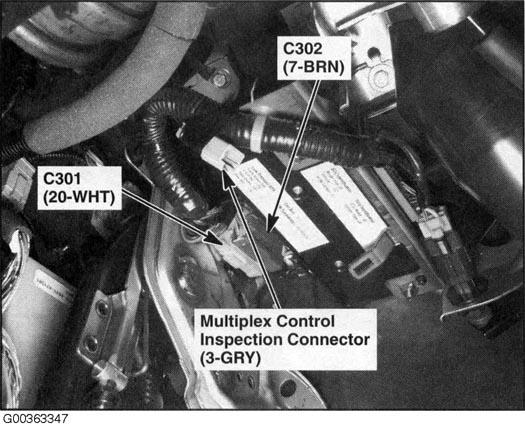

Fig 56: Under Left Side Of Dash

G00363347

Courtesy of AMERICAN HONDA MOTOR CO., INC.

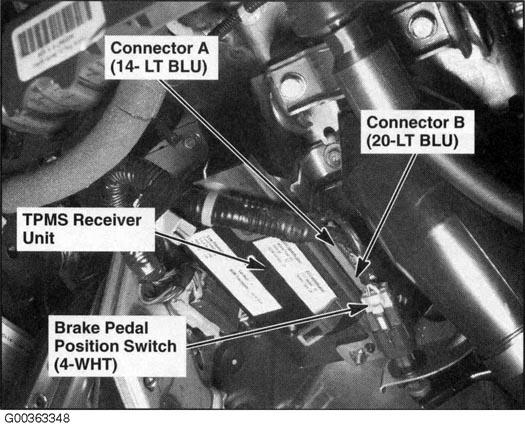

Fig 57: Under Left Side Of Dash

G00363348

Courtesy of AMERICAN HONDA MOTOR CO., INC.

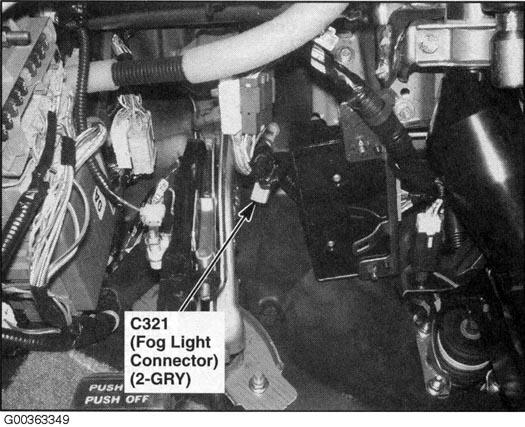

Fig 58: Under Left Side Of Dash

G00363349

Courtesy of AMERICAN HONDA MOTOR CO., INC.

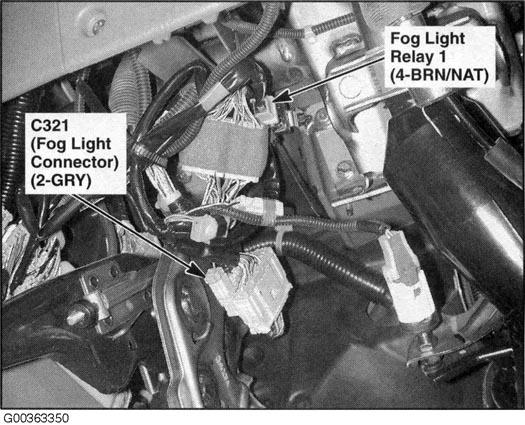

Fig 59: Under Left Side Of Dash (Honda Accessory)

G00363350

Courtesy of AMERICAN HONDA MOTOR CO., INC.

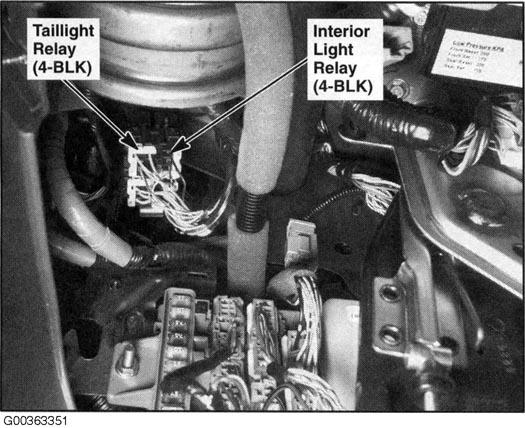

Fig 60: Under Left Side Of Dash

G00363351

Courtesy of AMERICAN HONDA MOTOR CO., INC.

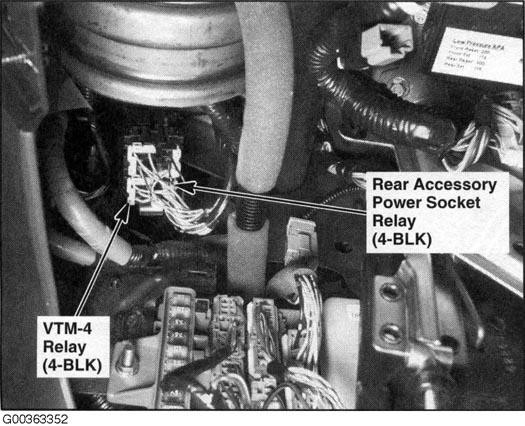

Fig 61: Under Left Side Of Dash

G00363352

Courtesy of AMERICAN HONDA MOTOR CO., INC.

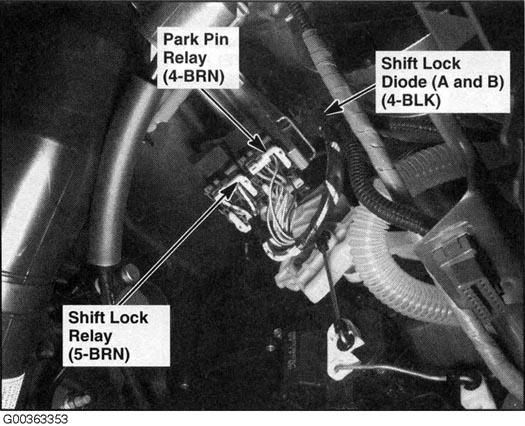

Fig 62: Under Left Side Of Dash

G00363353

Courtesy of AMERICAN HONDA MOTOR CO., INC.

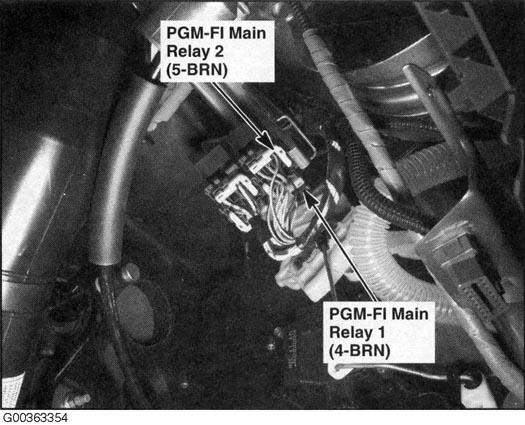

Fig 63: Under Left Side Of Dash

G00363354

Courtesy of AMERICAN HONDA MOTOR CO., INC.

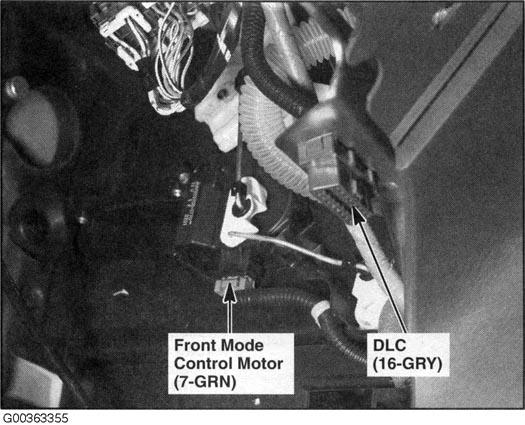

Fig 64: Under Left Side Of Dash

G00363355

Courtesy of AMERICAN HONDA MOTOR CO., INC.

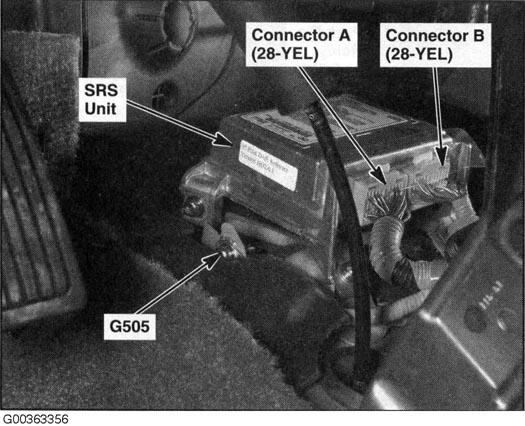

Fig 65: Under Middle Of Dash

G00363356

Courtesy of AMERICAN HONDA MOTOR CO., INC.

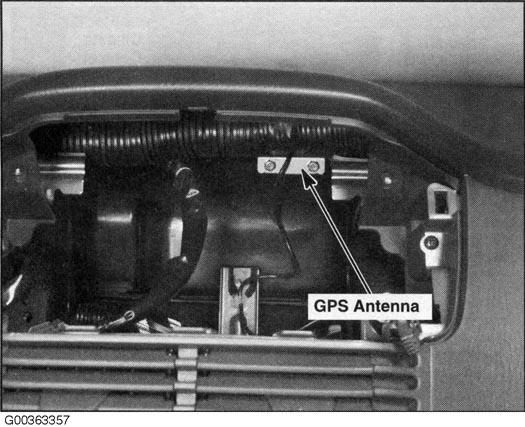

Fig 66: Behind Middle Of Dash (EX-L: Navigation)

G00363357

Courtesy of AMERICAN HONDA MOTOR CO., INC.

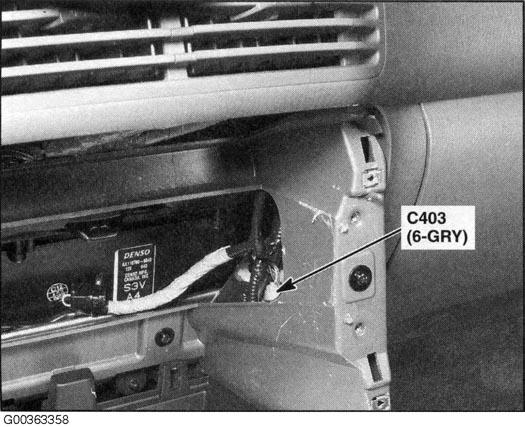

Fig 67: Behind Center Of Dash (EX, EX-L)

G00363358

Courtesy of AMERICAN HONDA MOTOR CO., INC.

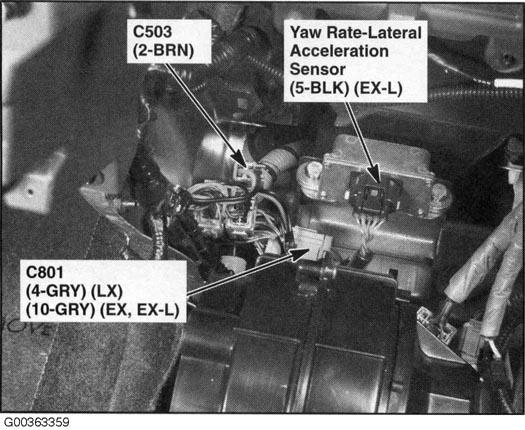

Fig 68: Under Middle Of Dash

G00363359

Courtesy of AMERICAN HONDA MOTOR CO., INC.

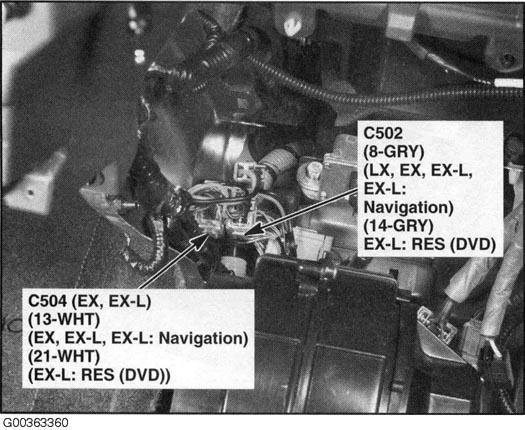

Fig 69: Under Middle Of Dash

G00363360

Courtesy of AMERICAN HONDA MOTOR CO., INC.

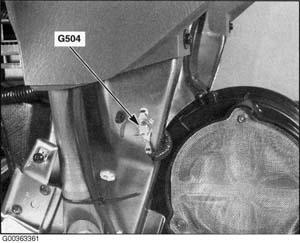

Fig 70: Under Middle Of Dash

G00363361

Courtesy of AMERICAN HONDA MOTOR CO., INC.

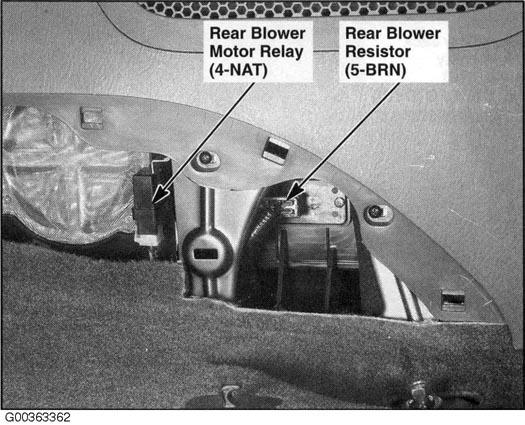

Fig 71: Left Side Of Center Console (LX)

G00363362

Courtesy of AMERICAN HONDA MOTOR CO., INC.

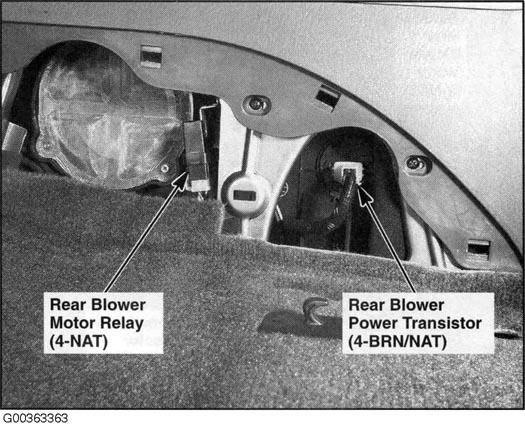

Fig 72: Left Side Of Center Console (EX, EX-L)

G00363363

Courtesy of AMERICAN HONDA MOTOR CO., INC.

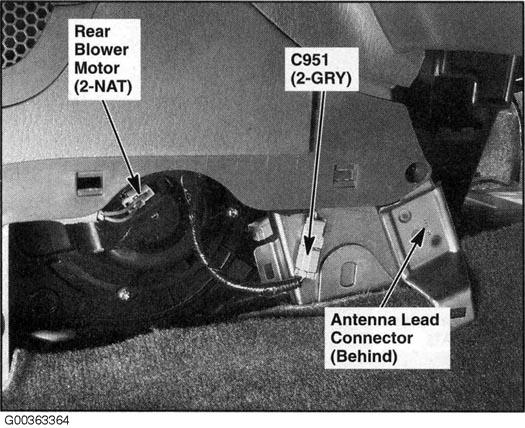

Fig 73: Right Side Of Center Console

G00363364

Courtesy of AMERICAN HONDA MOTOR CO., INC.

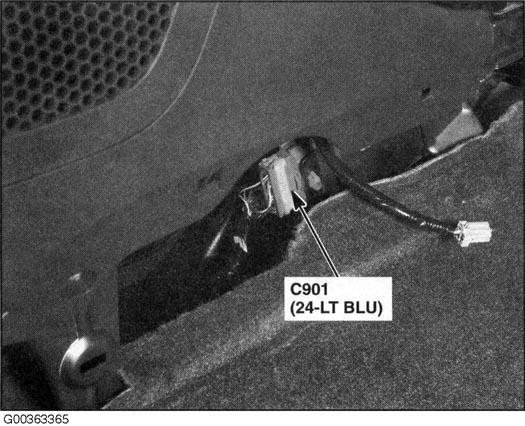

Fig 74: Right Side Of Center Console (EX-L: Navigation)

G00363365

Courtesy of AMERICAN HONDA MOTOR CO., INC.

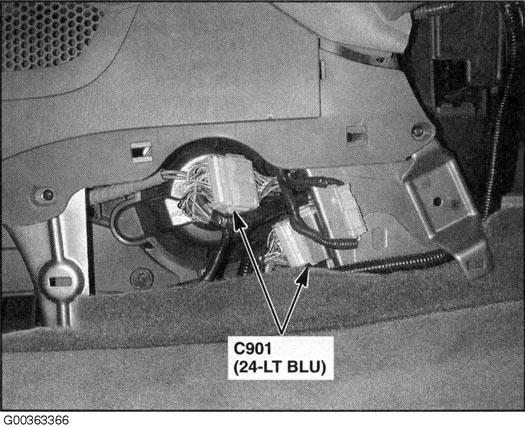

Fig 75: Right Side Of Center Console (EX-L: Honda Accessory)

G00363366

Courtesy of AMERICAN HONDA MOTOR CO., INC.

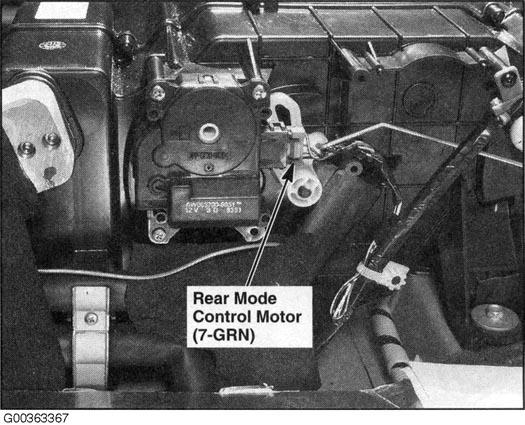

Fig 76: Under Center Console (LX)

G00363367

Courtesy of AMERICAN HONDA MOTOR CO., INC.

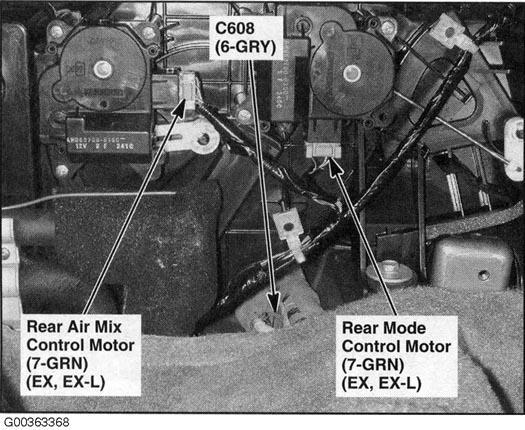

Fig 77: Under Center Console

G00363368

Courtesy of AMERICAN HONDA MOTOR CO., INC.

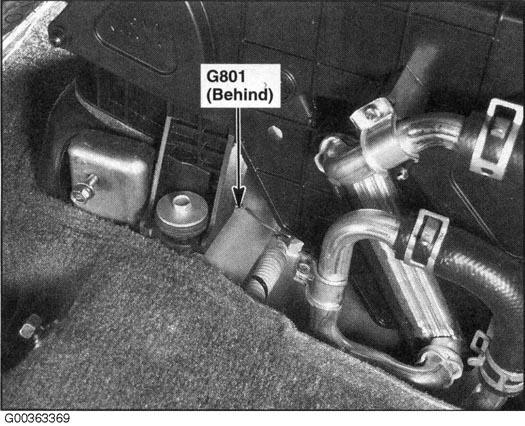

Fig 78: Under Middle Of Center Console

G00363369

Courtesy of AMERICAN HONDA MOTOR CO., INC.

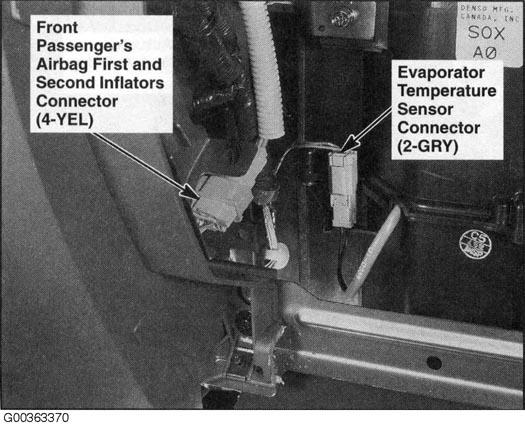

Fig 79: Behind Glove Box

G00363370

Courtesy of AMERICAN HONDA MOTOR CO., INC.

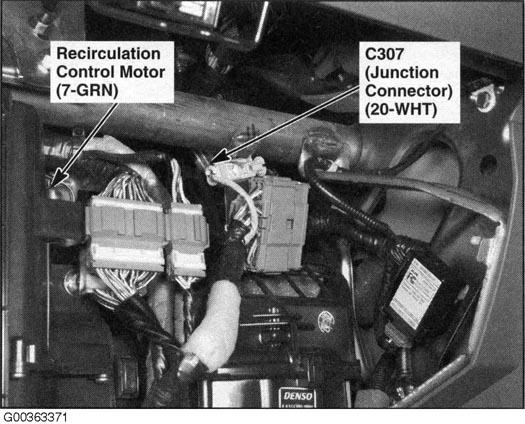

Fig 80: Behind Glove Box

G00363371

Courtesy of AMERICAN HONDA MOTOR CO., INC.

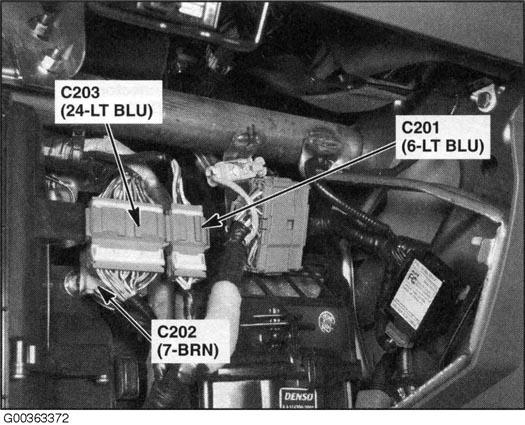

Fig 81: Behind Glove Box

G00363372

Courtesy of AMERICAN HONDA MOTOR CO., INC.

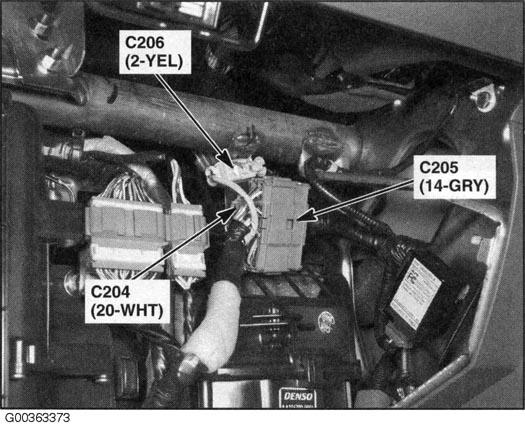

Fig 82: Behind Glove Box

G00363373

Courtesy of AMERICAN HONDA MOTOR CO., INC.

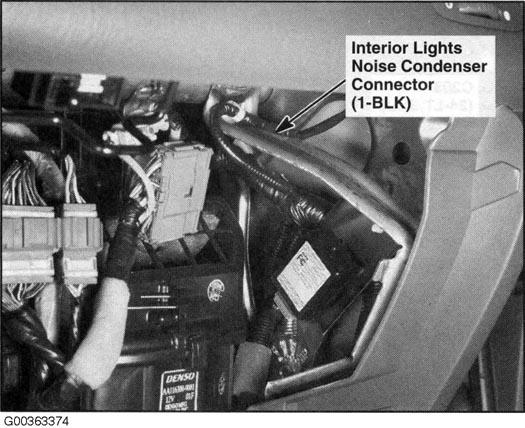

Fig 83: Behind Glove Box

G00363374

Courtesy of AMERICAN HONDA MOTOR CO., INC.

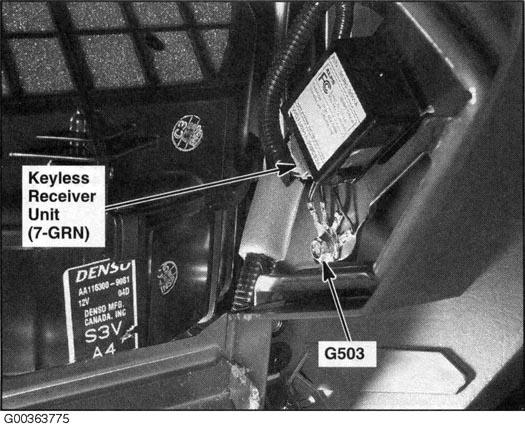

Fig 84: Behind Glove Box

G00363775

Courtesy of AMERICAN HONDA MOTOR CO., INC.

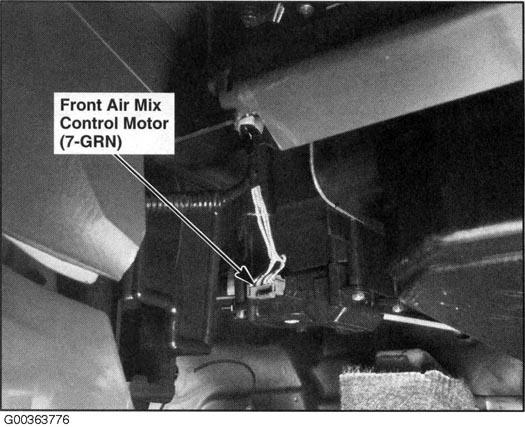

Fig 85: Under Right Side Of Dash

G00363776

Courtesy of AMERICAN HONDA MOTOR CO., INC.

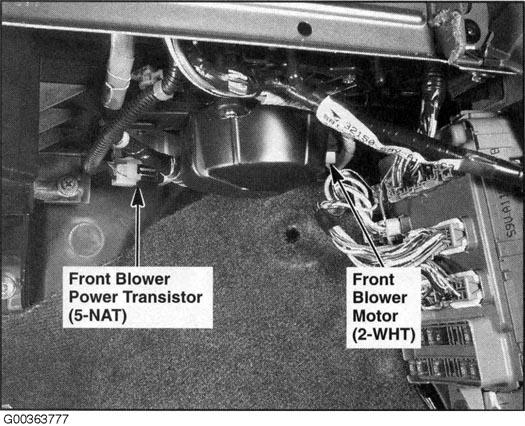

Fig 86: Under Right Side Of Dash

G00363777

Courtesy of AMERICAN HONDA MOTOR CO., INC.

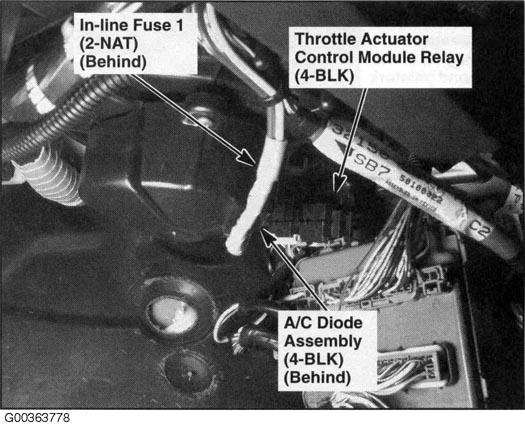

Fig 87: Behind Right Kick Panel

G00363778

Courtesy of AMERICAN HONDA MOTOR CO., INC.

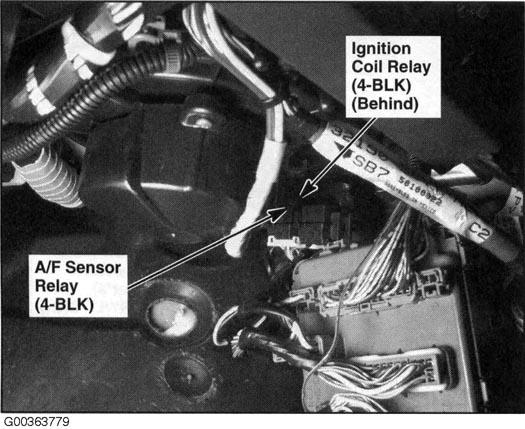

Fig 88: Behind Right Kick Panel

G00363779

Courtesy of AMERICAN HONDA MOTOR CO., INC.

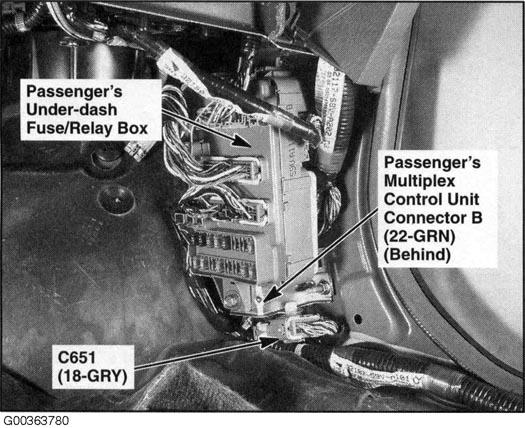

Fig 89: Behind Right Kick Panel

G00363780

Courtesy of AMERICAN HONDA MOTOR CO., INC.

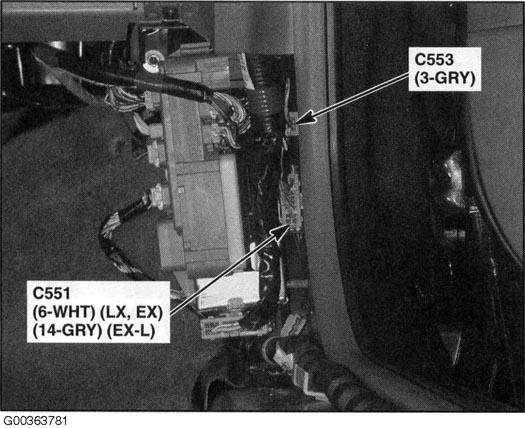

Fig 90: Behind Right Kick Panel

G00363781

Courtesy of AMERICAN HONDA MOTOR CO., INC.

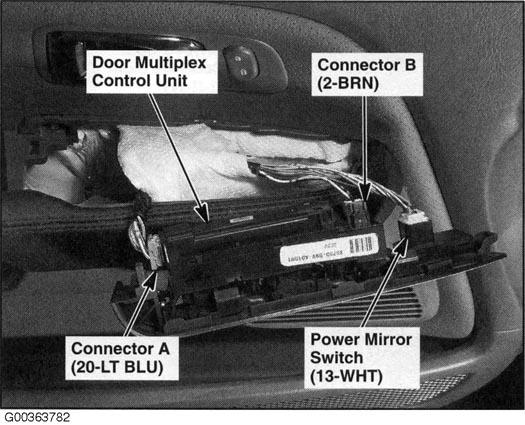

Fig 91: Driver's Door

G00363782

Courtesy of AMERICAN HONDA MOTOR CO., INC.

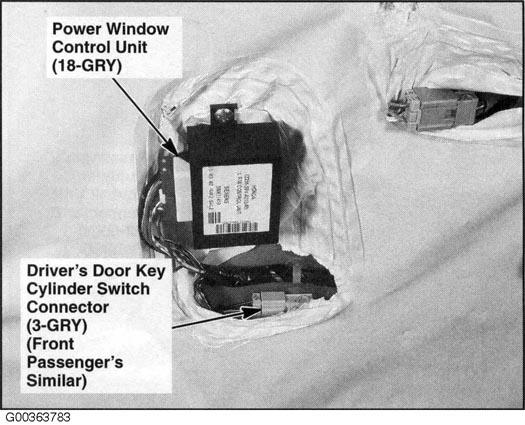

Fig 92: Driver's Door (Front Passenger's Similar)

G00363783

Courtesy of AMERICAN HONDA MOTOR CO., INC.

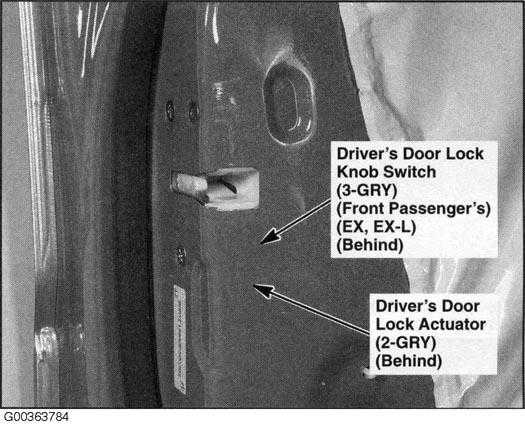

Fig 93: Driver's Door (Front Passenger's Similar)

G00363784

Courtesy of AMERICAN HONDA MOTOR CO., INC.

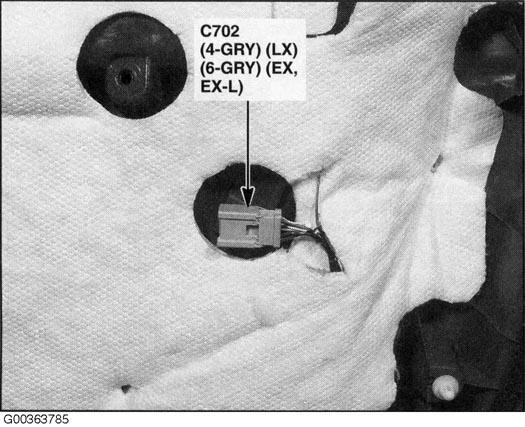

Fig 94: Driver's Door

G00363785

Courtesy of AMERICAN HONDA MOTOR CO., INC.

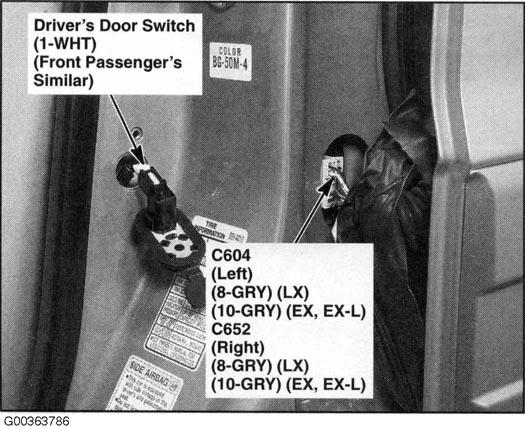

Fig 95: Left "B" Pillar (Right Similar)

G00363786

Courtesy of AMERICAN HONDA MOTOR CO., INC.

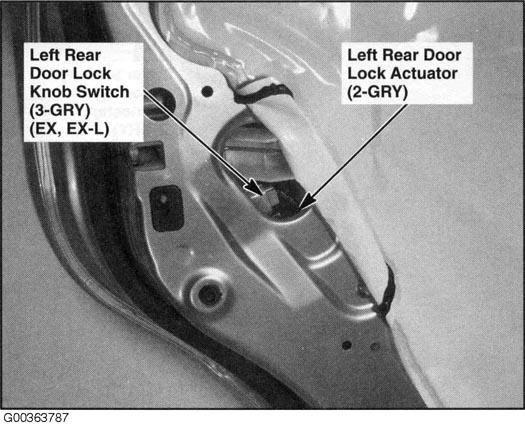

Fig 96: Left Rear Door (Right Similar)

G00363787

Courtesy of AMERICAN HONDA MOTOR CO., INC.

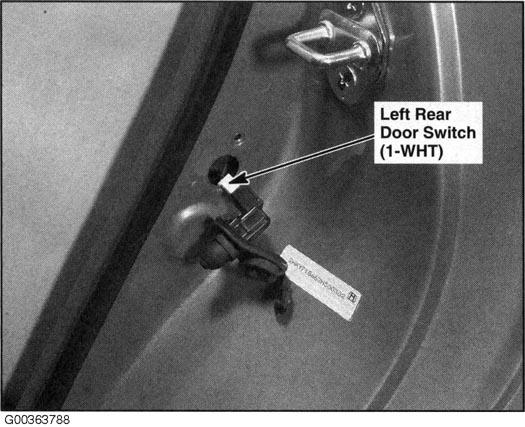

Fig 97: Left "C" Pillar (Right Similar)

G00363788

Courtesy of AMERICAN HONDA MOTOR CO., INC.

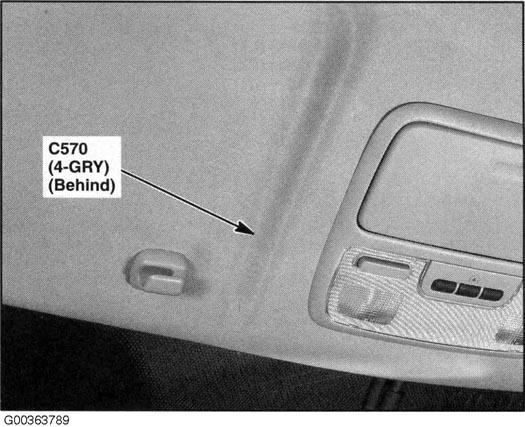

Fig 98: Front Middle Of Roof (Honda Accessory)

G00363789

Courtesy of AMERICAN HONDA MOTOR CO., INC.

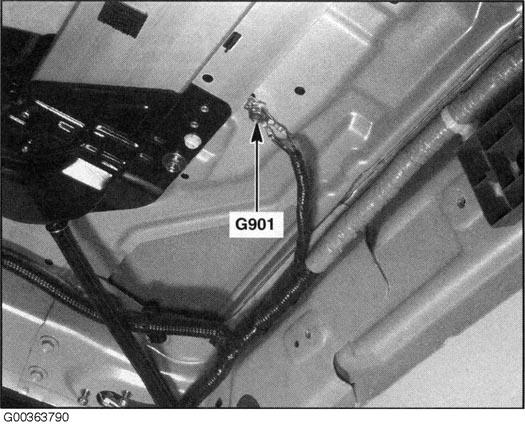

Fig 99: Right Side Of Roof (EX-L)

G00363790

Courtesy of AMERICAN HONDA MOTOR CO., INC.

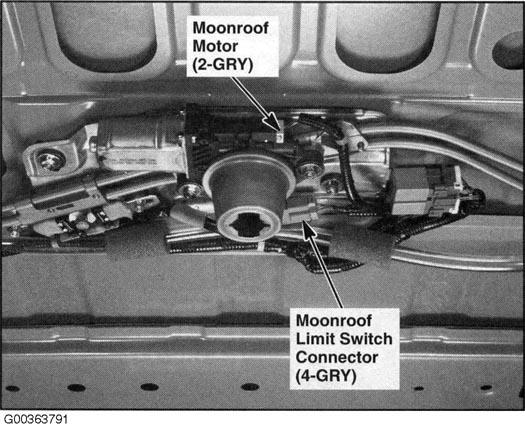

Fig 100: Middle Of Roof (EX-L)

G00363791

Courtesy of AMERICAN HONDA MOTOR CO., INC.

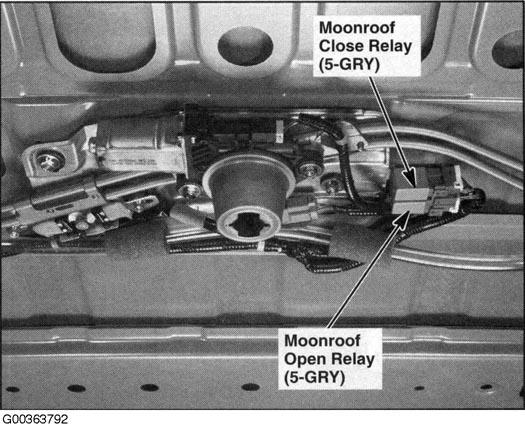

Fig 101: Middle Of Roof (EX-L)

G00363792

Courtesy of AMERICAN HONDA MOTOR CO., INC.

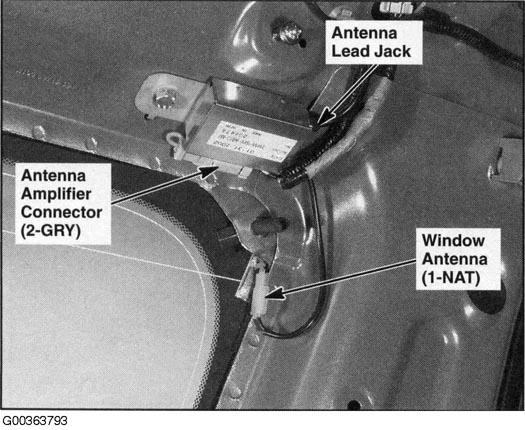

Fig 102: Left Rear Of Roof

G00363793

Courtesy of AMERICAN HONDA MOTOR CO., INC.

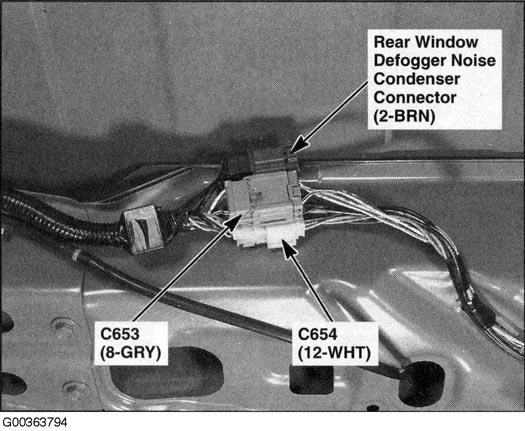

Fig 103: Behind Tailgate Upper Trim

G00363794

Courtesy of AMERICAN HONDA MOTOR CO., INC.

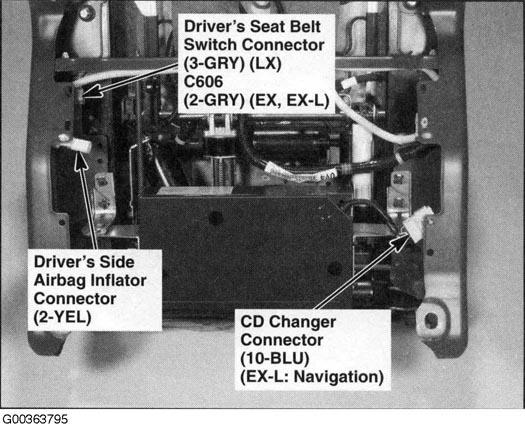

Fig 104: Under Driver's Seat (EX, EX-L) (LX Similar)

G00363795

Courtesy of AMERICAN HONDA MOTOR CO., INC.

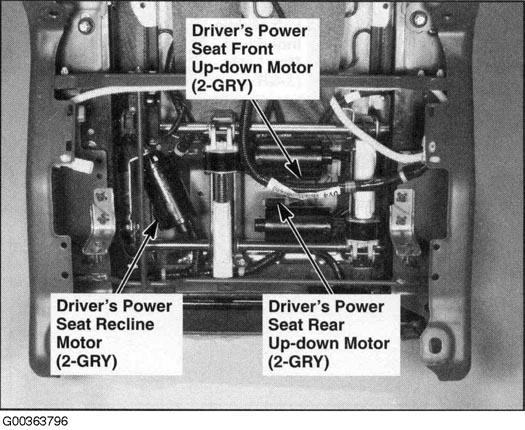

Fig 105: Under Driver's Seat (EX, EX-L)

G00363796

Courtesy of AMERICAN HONDA MOTOR CO., INC.

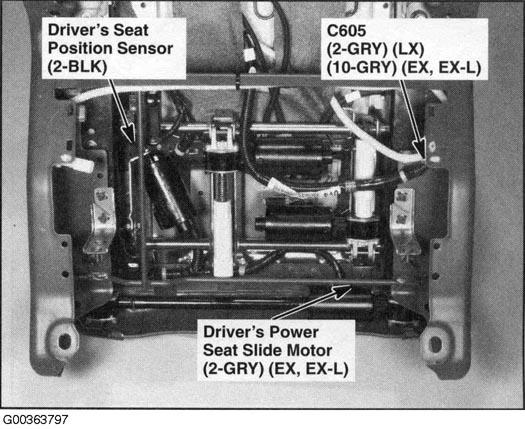

Fig 106: Under Driver's Seat (EX, EX-L) (LX Similar)

G00363797

Courtesy of AMERICAN HONDA MOTOR CO., INC.

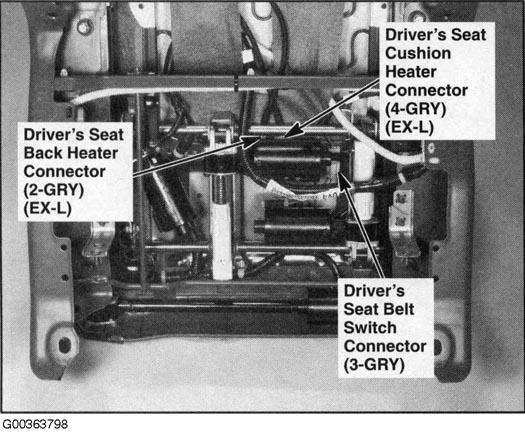

Fig 107: Under Driver's Seat (EX, EX-L)

G00363798

Courtesy of AMERICAN HONDA MOTOR CO., INC.

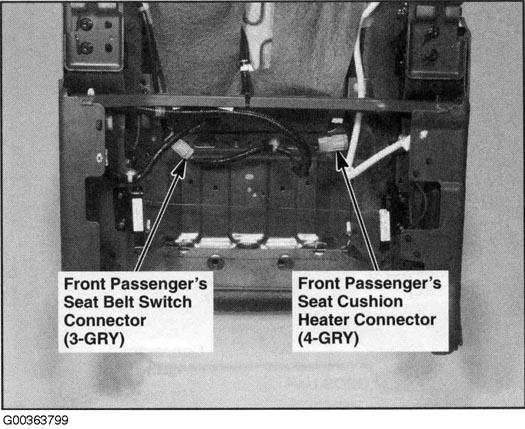

Fig 108: Under Front Passenger's Seat (EX-L)

G00363799

Courtesy of AMERICAN HONDA MOTOR CO., INC.

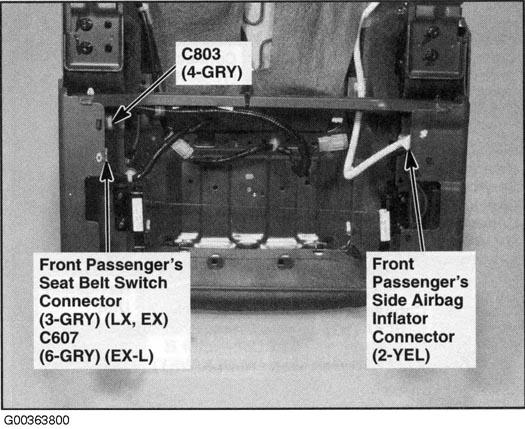

Fig 109: Under Front Passenger's Seat

G00363800

Courtesy of AMERICAN HONDA MOTOR CO., INC.

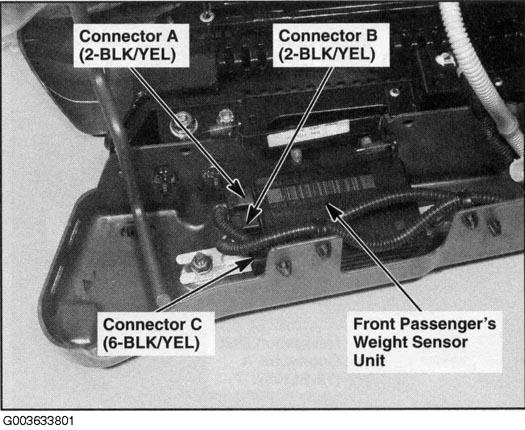

Fig 110: Under Front Passenger's Seat

G00363801

Courtesy of AMERICAN HONDA MOTOR CO., INC.

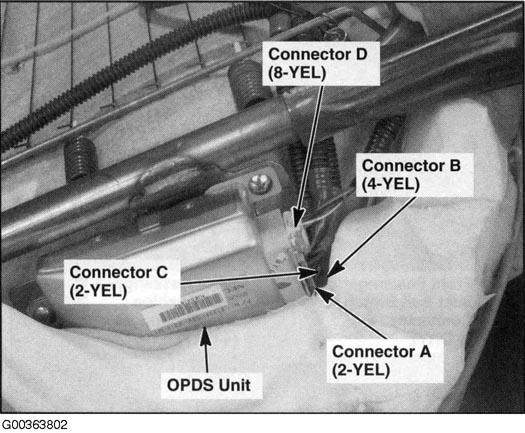

Fig 111: In Front Passenger's Seat

G00363802

Courtesy of AMERICAN HONDA MOTOR CO., INC.

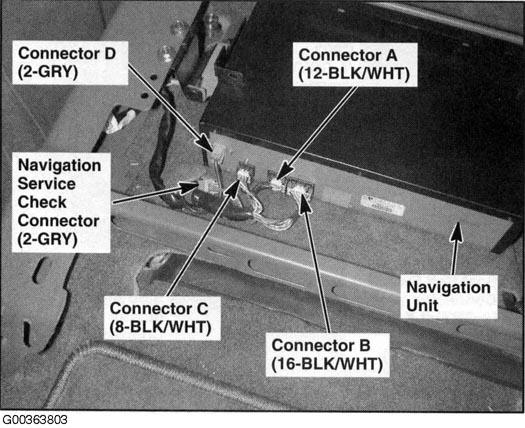

Fig 112: Under Front Passenger's Seat (EX-L)

G00363803

Courtesy of AMERICAN HONDA MOTOR CO., INC.

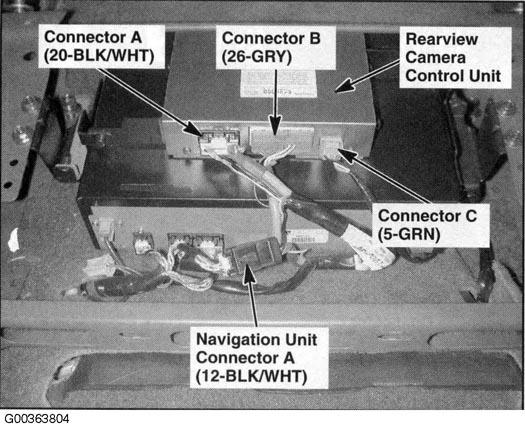

Fig 113: Under Front Passenger's Seat (EX-L: Honda Accessory)

G00363804

Courtesy of AMERICAN HONDA MOTOR CO., INC.

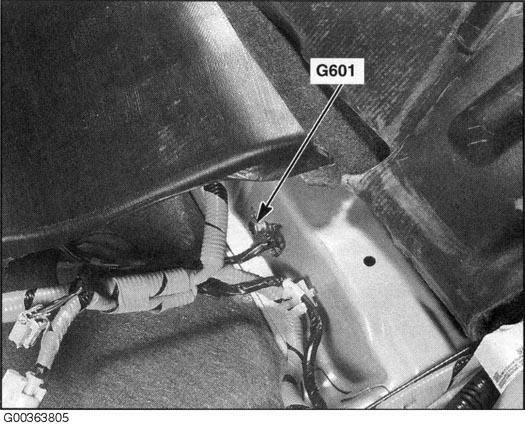

Fig 114: Left Side Of Floor

G00363805

Courtesy of AMERICAN HONDA MOTOR CO., INC.

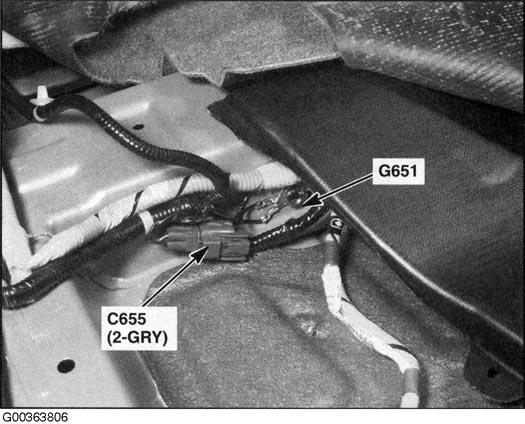

Fig 115: Right Side Of Floor

G00363806

Courtesy of AMERICAN HONDA MOTOR CO., INC.

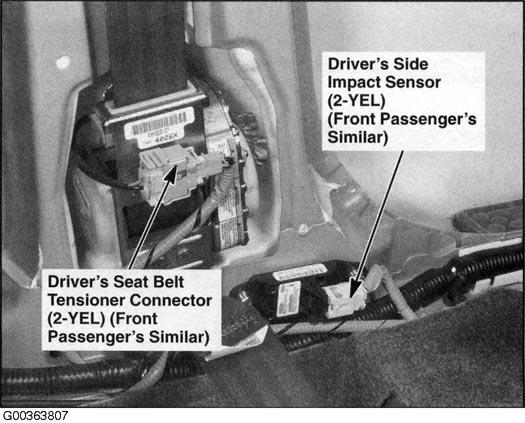

Fig 116: Left "B" Pillar (Right Similar)

G00363807

Courtesy of AMERICAN HONDA MOTOR CO., INC.

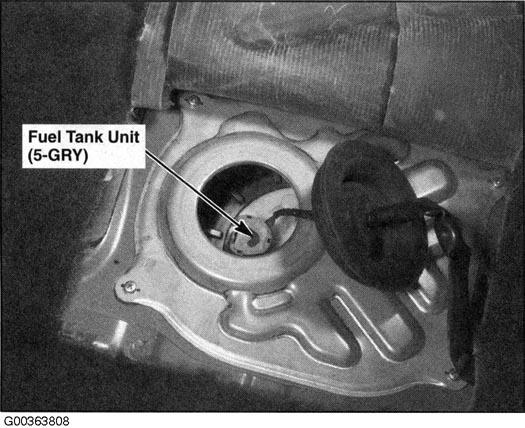

Fig 117: Middle Of Floor

G00363808

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 118: Left Side Of Cargo Area

G00363809

Courtesy of AMERICAN HONDA MOTOR CO., INC.

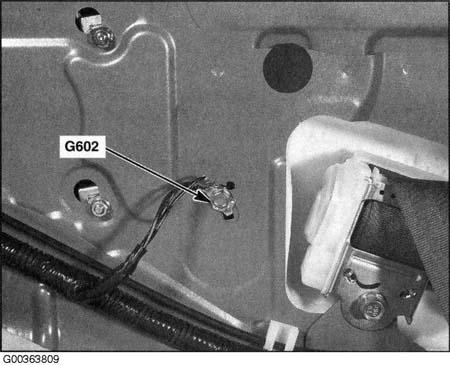

Fig 119: Left Side Of Cargo Area

G00363810

Courtesy of AMERICAN HONDA MOTOR CO., INC.

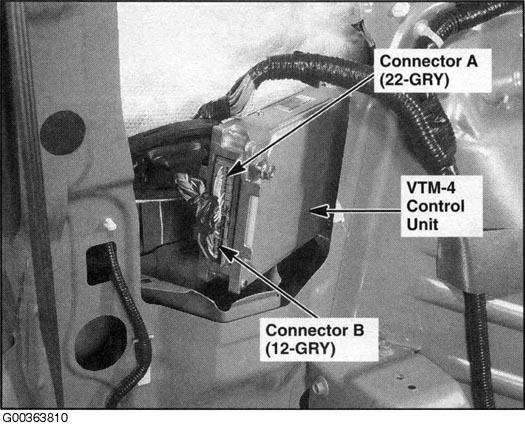

Fig 120: Left Side Of Cargo Area

G00363811

Courtesy of AMERICAN HONDA MOTOR CO., INC.

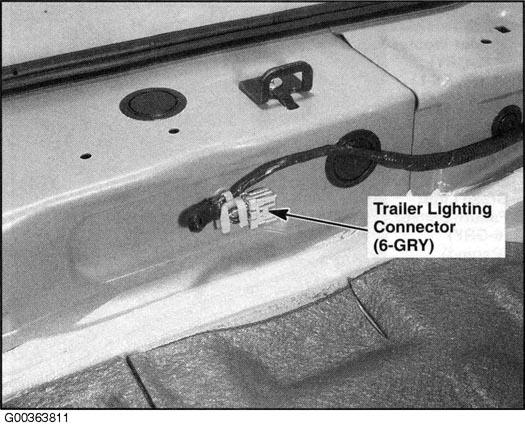

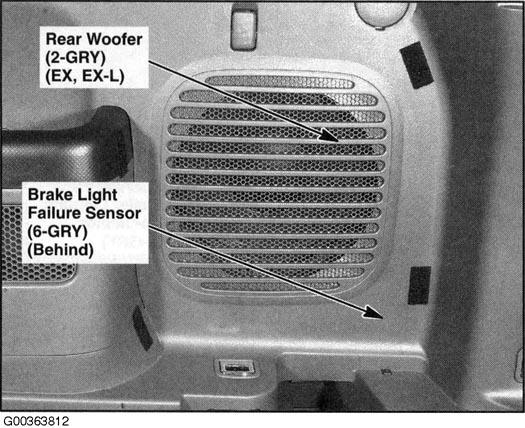

Fig 121: Right Side Of Cargo Area

G00363812

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 122: Right Side Of Cargo Area

G00363813

Courtesy of AMERICAN HONDA MOTOR CO., INC.

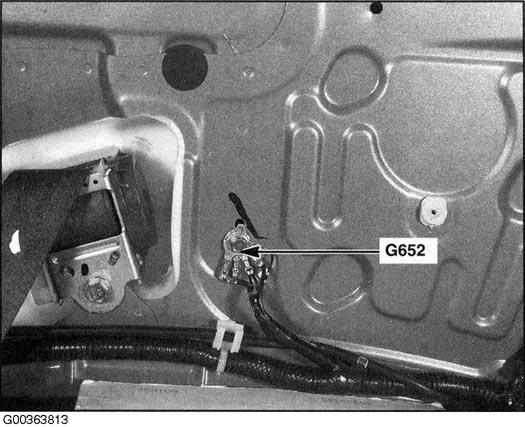

Fig 123: Right Side Of Cargo Area (Honda Accessory)

G00363814

Courtesy of AMERICAN HONDA MOTOR CO., INC.

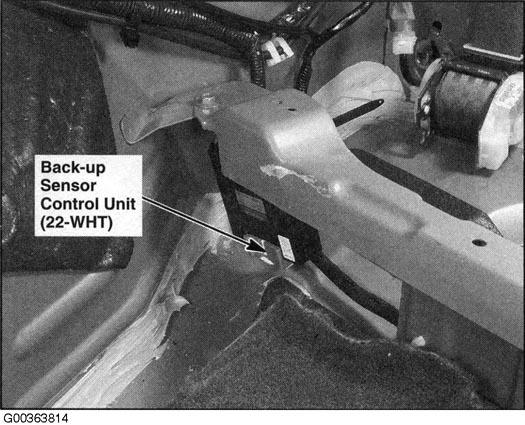

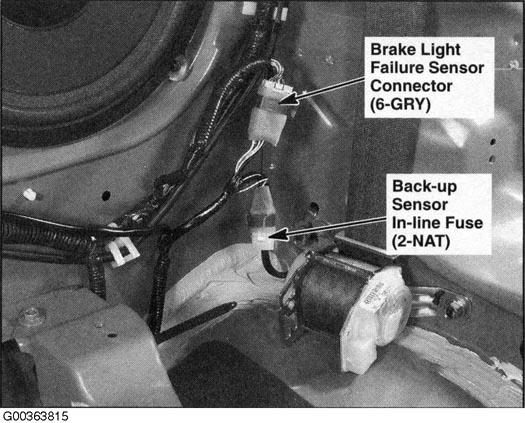

Fig 124: Right Rear Of Cargo Area (Honda Accessory)

G00363815

Courtesy of AMERICAN HONDA MOTOR CO., INC.

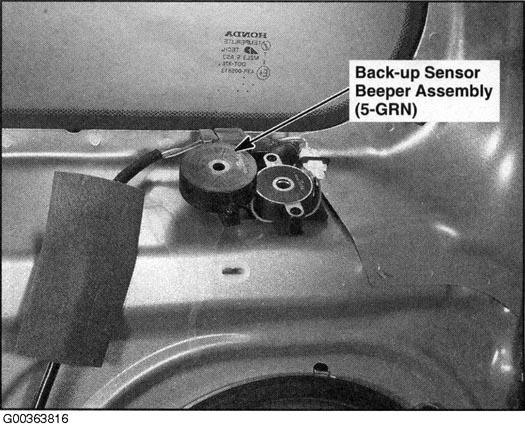

Fig 125: Right Side Of Cargo Area (Honda Accessory)

G00363816

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 126: Behind Tailgate Trim Panel

G00363817

Courtesy of AMERICAN HONDA MOTOR CO., INC.

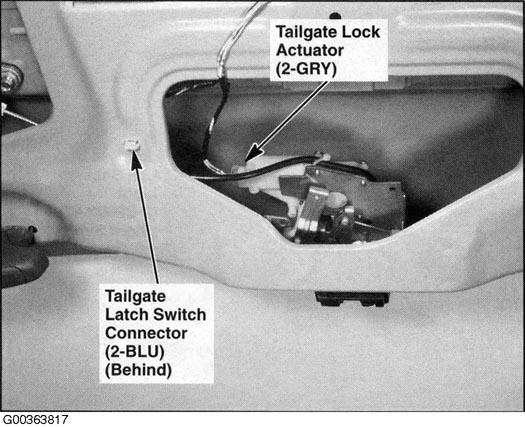

Fig 127: Behind Tailgate Trim Panel

G00363818

Courtesy of AMERICAN HONDA MOTOR CO., INC.

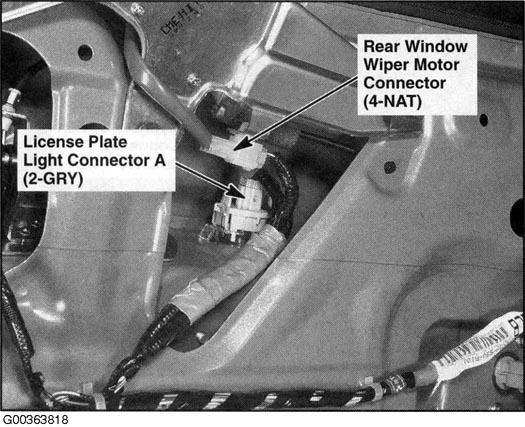

Fig 128: Behind Tailgate Trim Panel

G00363819

Courtesy of AMERICAN HONDA MOTOR CO., INC.

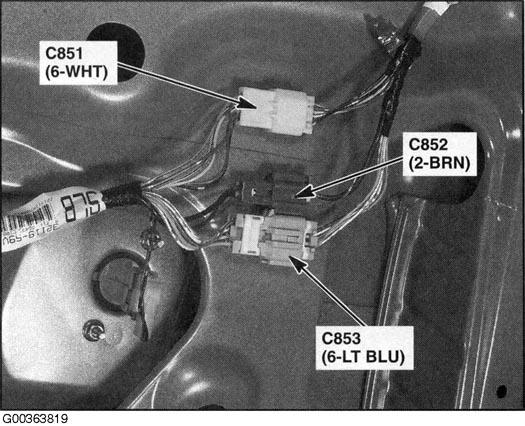

Fig 129: Behind Middle Of Front Bumper (EX, EX-L)

G00363820

Courtesy of AMERICAN HONDA MOTOR CO., INC.

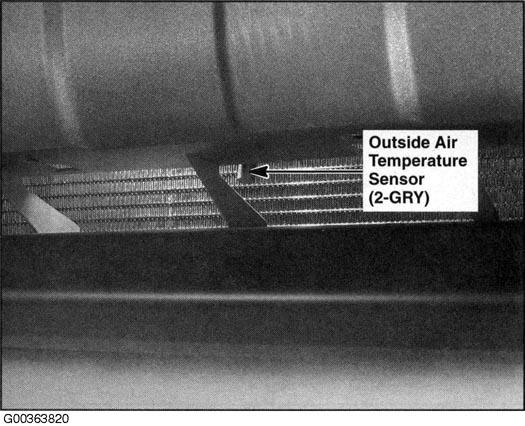

Fig 130: Behind Left Side Of Front Bumper

G00363821

Courtesy of AMERICAN HONDA MOTOR CO., INC.

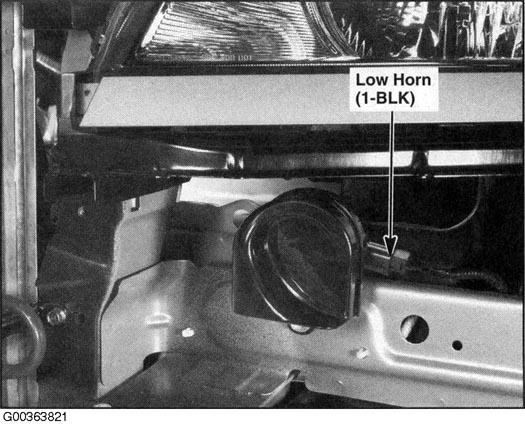

Fig 131: Behind Right Side Of Front Bumper

G00363822

Courtesy of AMERICAN HONDA MOTOR CO., INC.

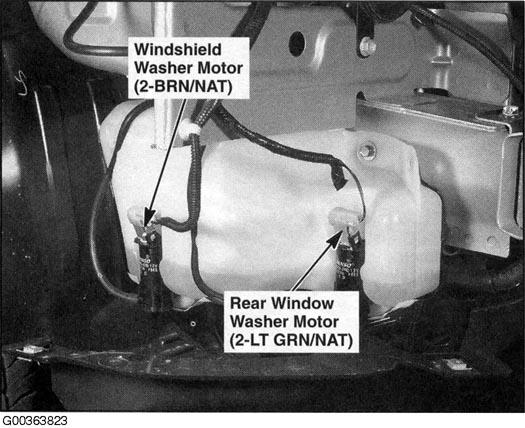

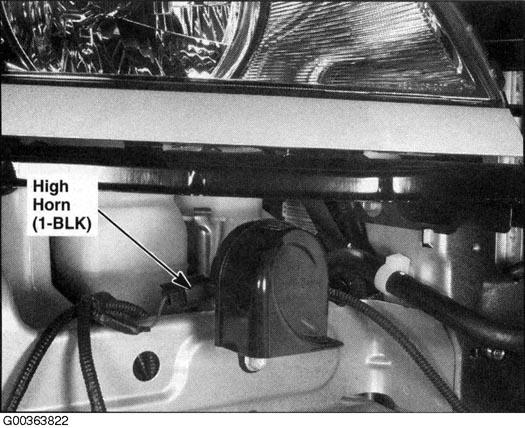

Fig 132: Behind Right Side Of Front Bumper

G00363823

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 133: Right Side Of Engine Compartment (Left Similar)

G00363824

Courtesy of AMERICAN HONDA MOTOR CO., INC.

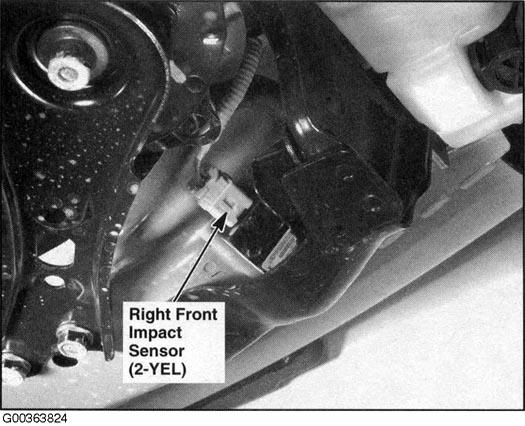

Fig 134: Middle Of Engine Compartment

G00363825

Courtesy of AMERICAN HONDA MOTOR CO., INC.

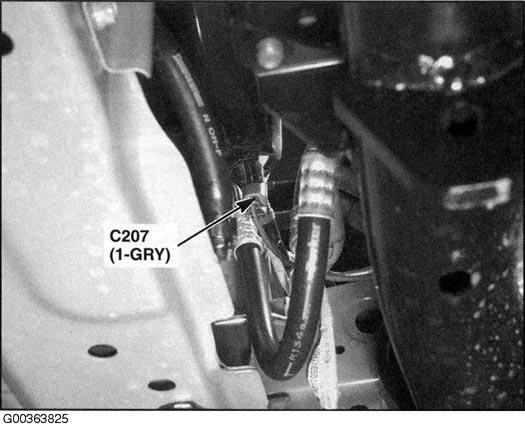

Fig 135: Right Side Of Engine Compartment

G00363826

Courtesy of AMERICAN HONDA MOTOR CO., INC.

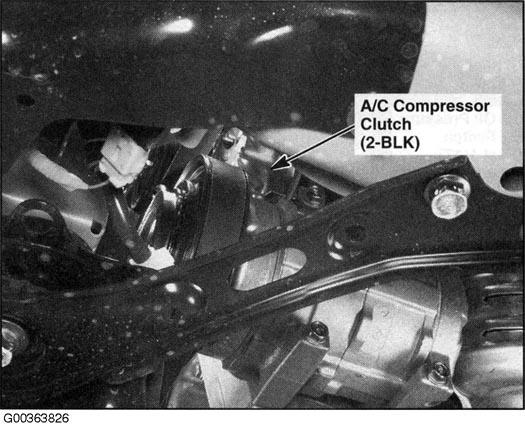

Fig 136: Right Side Of Engine Compartment

G00363827

Courtesy of AMERICAN HONDA MOTOR CO., INC.

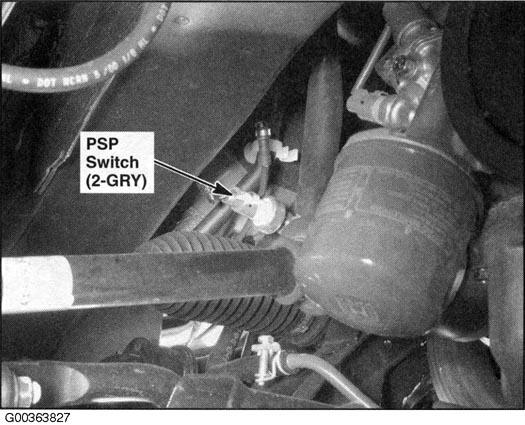

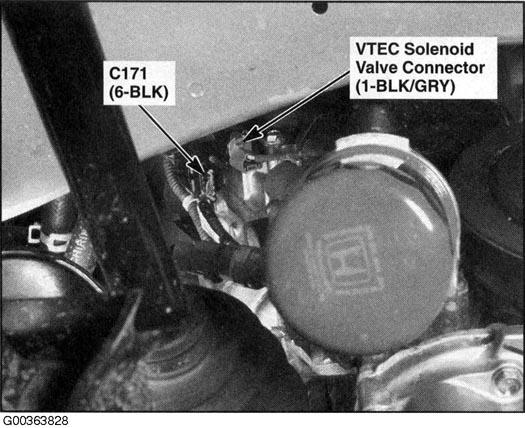

Fig 137: Right Side Of Engine Compartment

G00363828

Courtesy of AMERICAN HONDA MOTOR CO., INC.

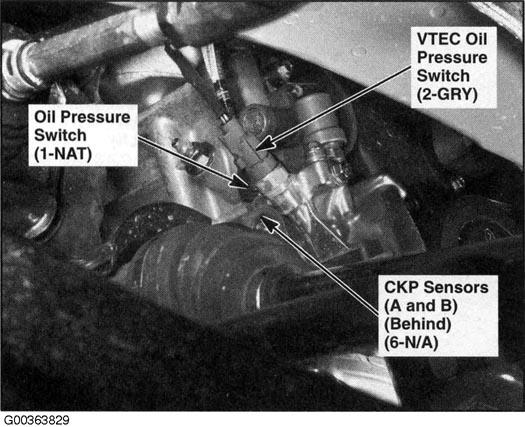

Fig 138: Right Side Of Engine Compartment

G00363829

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 139: Left Side Of Engine Compartment

G00363830

Courtesy of AMERICAN HONDA MOTOR CO., INC.

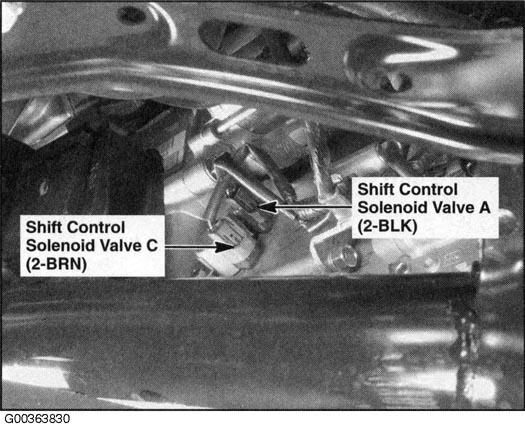

Fig 140: Left Side Of Engine Compartment

G00363831

Courtesy of AMERICAN HONDA MOTOR CO., INC.

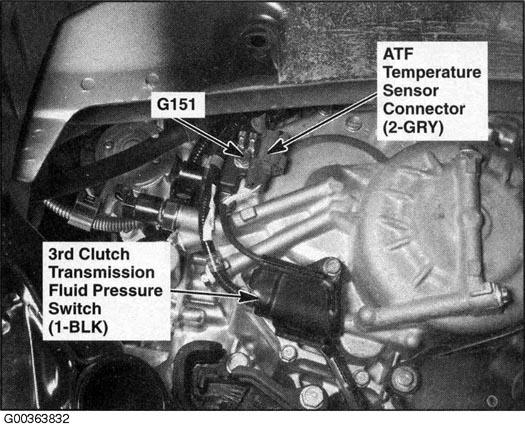

Fig 141: Transmission Housing

G00363832

Courtesy of AMERICAN HONDA MOTOR CO., INC.

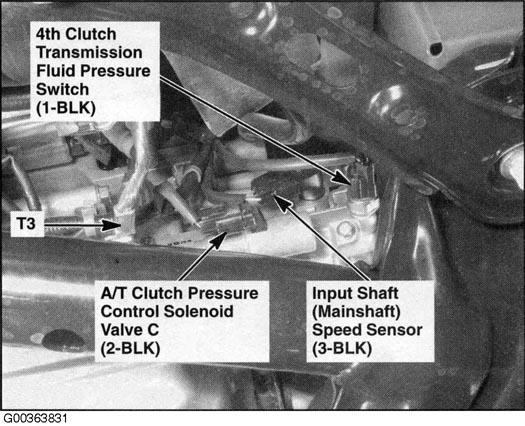

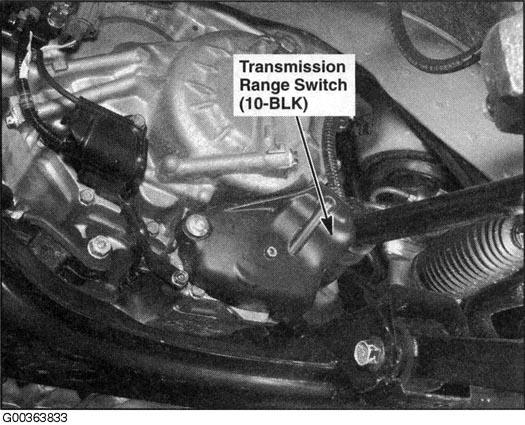

Fig 142: Transmission Housing

G00363833

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 143: Behind Left Front Fender (Right Similar)

G00363834

Courtesy of AMERICAN HONDA MOTOR CO., INC.

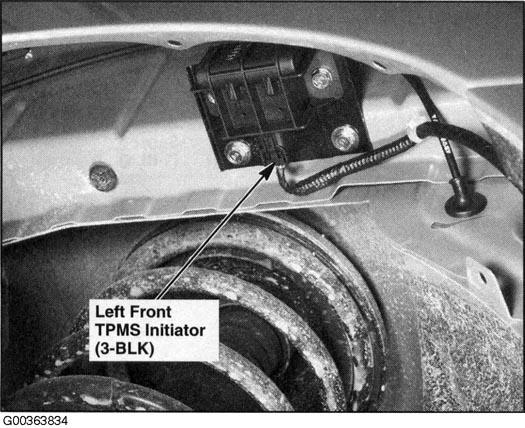

Fig 144: Under Left Side Of Floor

G00363835

Courtesy of AMERICAN HONDA MOTOR CO., INC.

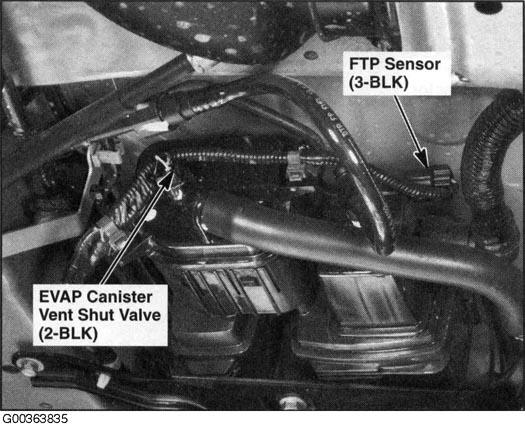

Fig 145: Rear Differential

G00363836

Courtesy of AMERICAN HONDA MOTOR CO., INC.

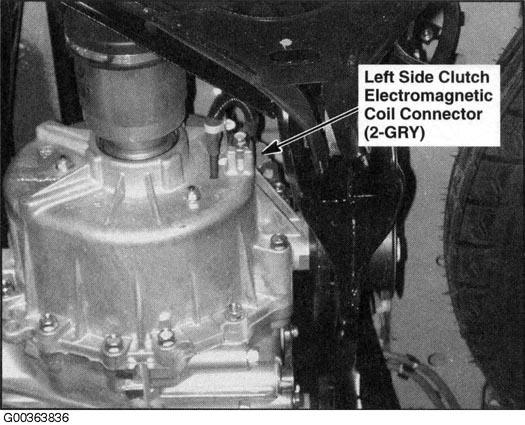

Fig 146: Under Rear Floor

G00363837

Courtesy of AMERICAN HONDA MOTOR CO., INC.

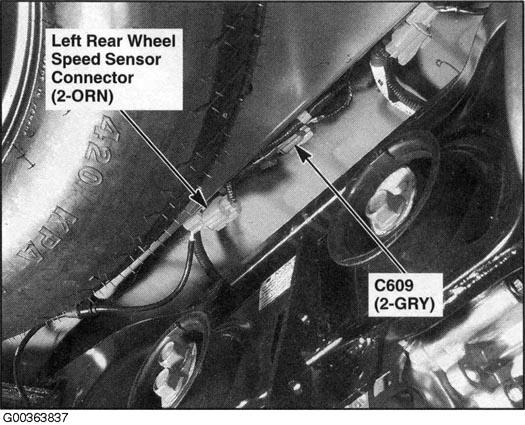

Fig 147: Under Rear Floor

G00363838

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 148: Rear Differential

G00363839

Courtesy of AMERICAN HONDA MOTOR CO., INC.

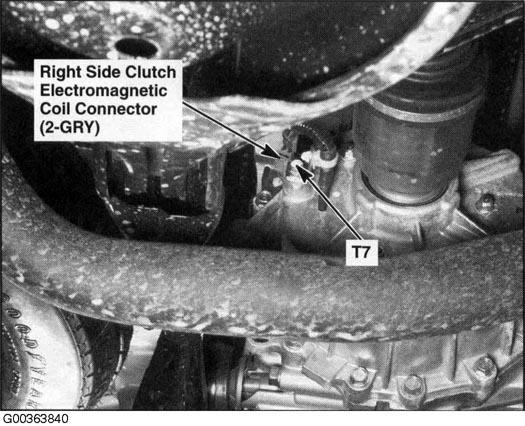

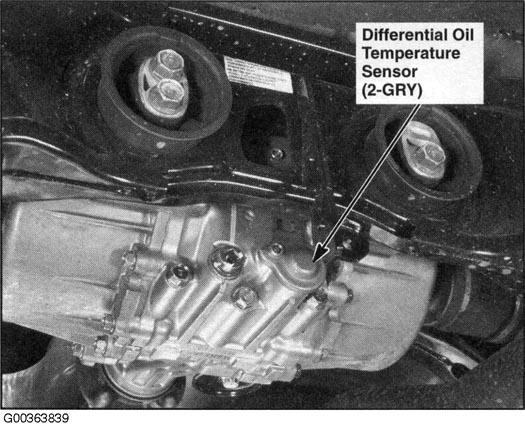

Fig 149: Rear Differential

G00363840

Courtesy of AMERICAN HONDA MOTOR CO., INC.

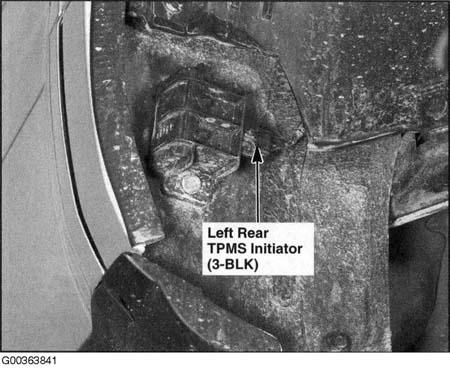

Fig 150: Front Of Left Rear Wheelwell (Right Similar)

G00363841

Courtesy of AMERICAN HONDA MOTOR CO., INC.
