Starter Solenoid Test

Check the hold-in coil for continuity between the S terminal and the armature housing (ground). There should be continuity.
- If there is continuity, go to step 2.
- If there is no continuity, replace the solenoid.

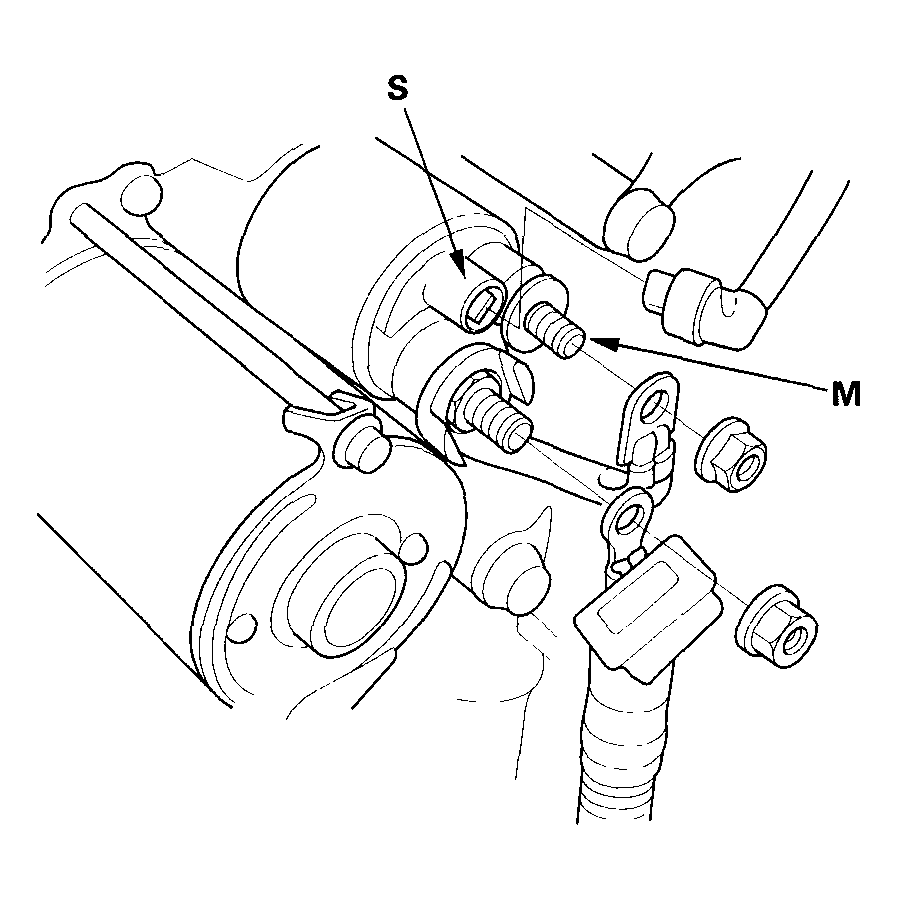

  Fig 1: Identifying Starter Assembly
  Courtesy of AMERICAN HONDA MOTOR CO., INC.
Check the pull-in coil for continuity between the S terminal and M terminal. There should be continuity.
- If there is continuity, the solenoid is OK.
- If there is no continuity, replace the solenoid.
