Engine Mount Replacement

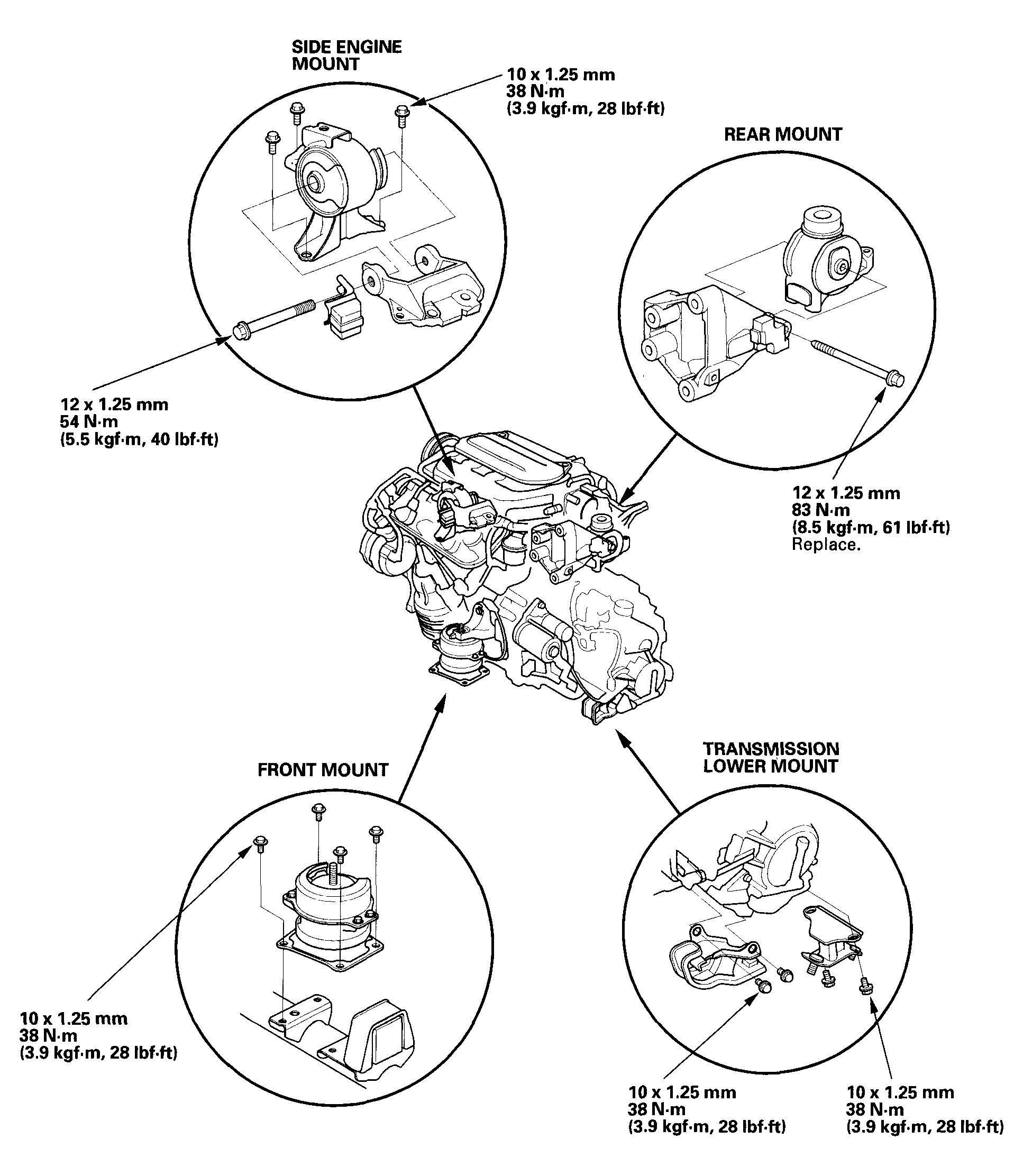

Fig 1: Replacing Engine Mount
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
