Ignition Coil Removal/Installation

Remove the intake manifold cover.

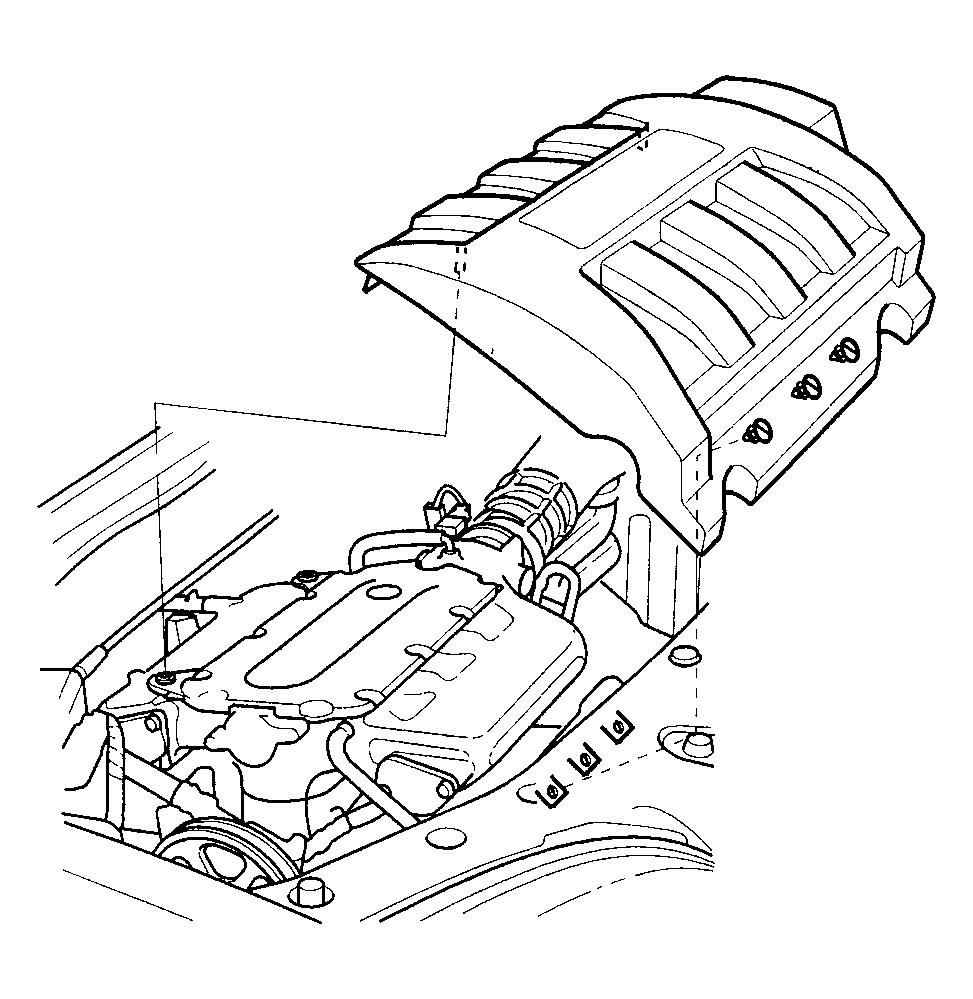

Fig 1: Removing Intake Manifold Cover
Courtesy of AMERICAN HONDA MOTOR CO., INC.

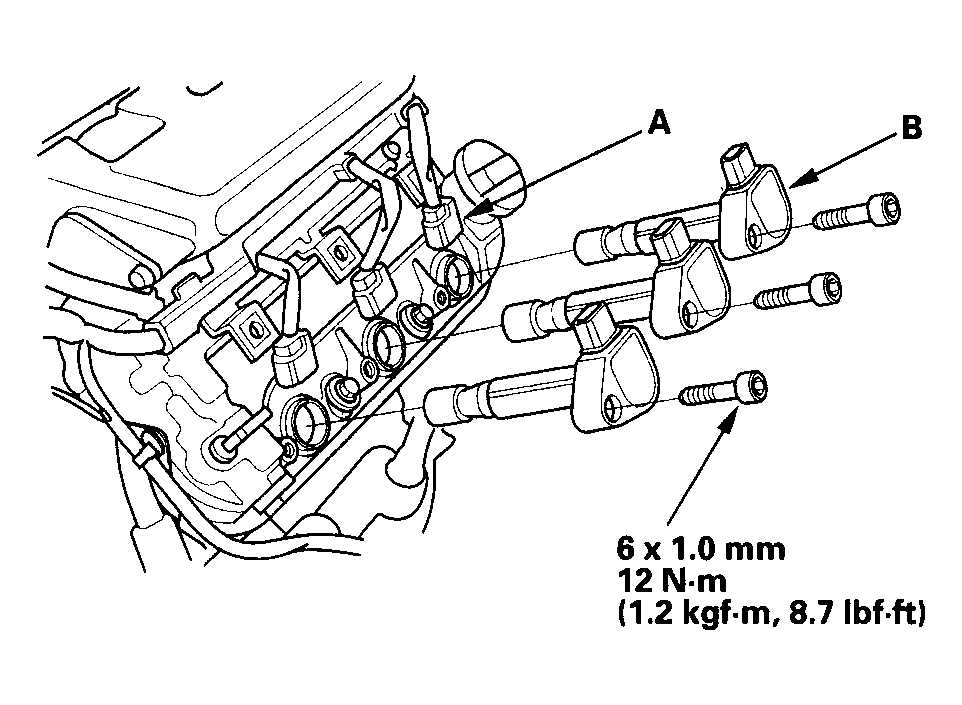

Disconnect the ignition coil connectors (A), then remove the ignition coils (B).

Fig 2: Removing Ignition Coils
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Install the ignition coils in the reverse order of removal.
