First drive cycle

During the first drive cycle after a cold start, the PCM alerts the driver to check the fuel fill cap by showing a "CHECK FUEL CAP" message in the Multi-Information Display (A), and it stores Temporary DTC P0457 "Evaporative Emission (EVAP) System Leak Detected/Fuel Cap Loose or Missing". Tightening the fuel cap does not make the message go off immediately.

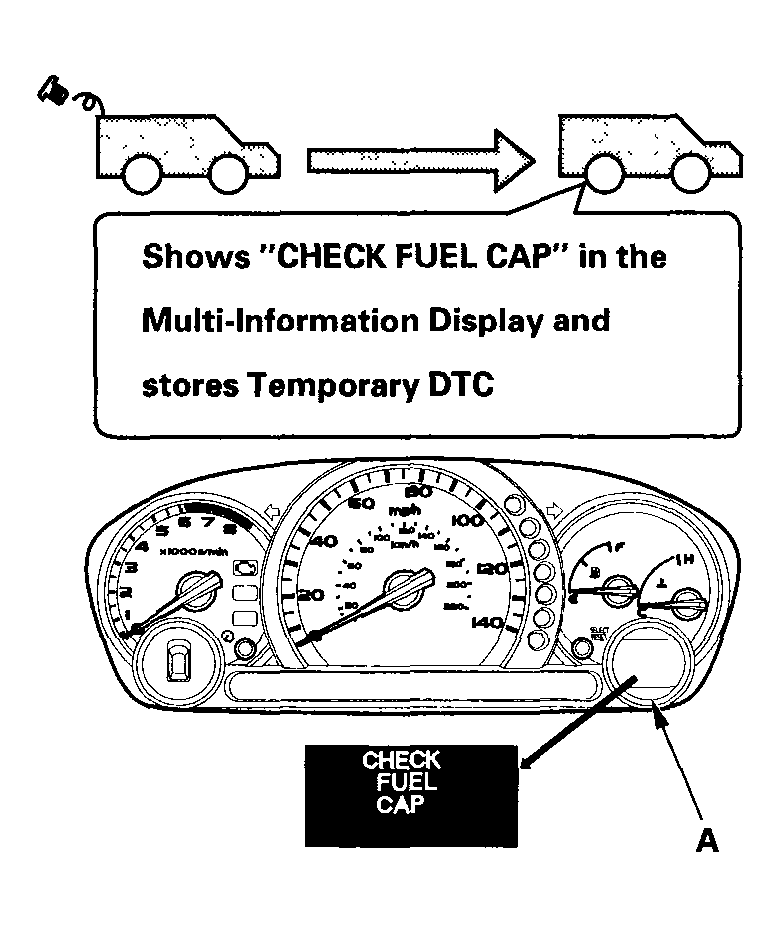

Fig 1: Identifying Multi-Information Display
G04545865Courtesy of AMERICAN HONDA MOTOR CO., INC.
