Fuel Pressure Regulator Replacement
- Remove the fuel tank unit (see FUEL TANK UNIT REMOVAL/INSTALLATION
).

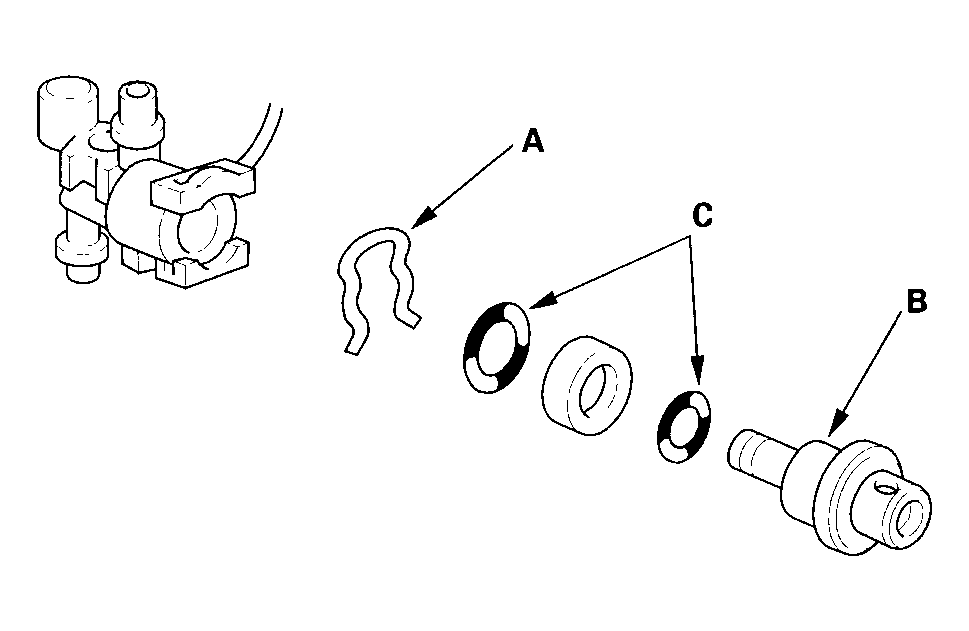

- Remove the clip (A).
Courtesy of AMERICAN HONDA MOTOR CO., INC.
- Remove the fuel pressure regulator (B).
- Install the regulator in the reverse order of removal with new O-rings (C).
NOTE:
- Coat the O-ring with clean engine oil.
- Apply the engine oil to the O-ring, and install the pressure regulator with care hot to pinch the O-ring. Never apply the brake fluid, vegetable oil or alcohol-based oil to the O-ring.
