Alternator FR Signal Circuit Troubleshooting
- Start the engine, and let it idle.
- Monitor the ALTERNATOR in the DATA LIST with the HDS.
- Check if the indicated percentage varies when the headlight switch is on.
Does the percentage vary?
YES - The alternator signal circuit is OK.
NO - Go to step 4.
- Turn the headlight switch and ignition switch OFF.
- Jump the SCS line with the HDS.
- Disconnect the alternator 4P connector.
- Disconnect PCM connector C (44P).

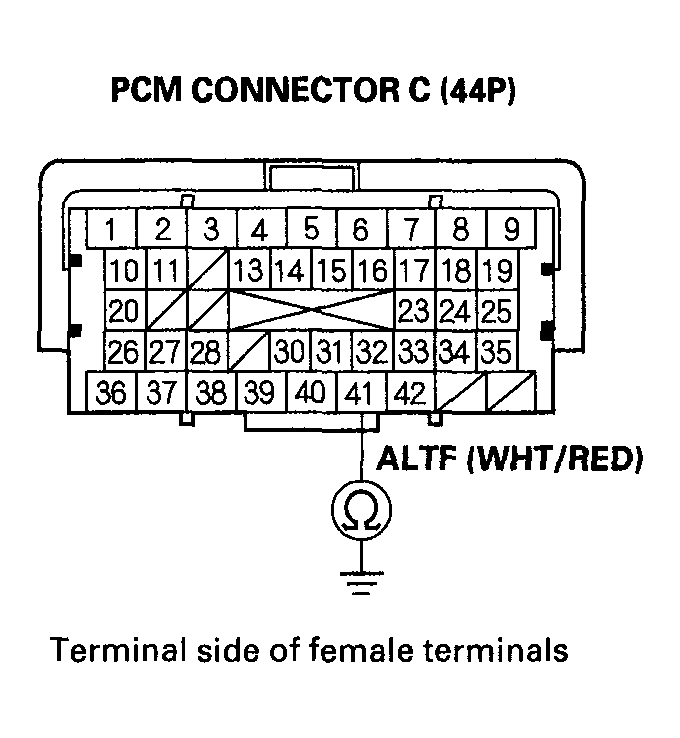

- Check for continuity between body ground and PCM connector terminal C41.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Is there continuity?
YES - Repair short in the wire between the PCM (C41) and the alternator.
NO - Update the PCM if it does not have the latest software, or substitute a known-good PCM, then recheck (see PCM UPDATING AND SUBSTITUTION FOR TESTING ). If the symptom/indication goes away with a known-good PCM, replace the original PCM (see PCM REPLACEMENT ).
