PCV Valve Replacement

  1. Remove the ignition cover.
  2. Disconnect the bolt (A).
    NOTE: Take care not to spill oil on the hot exhaust manifold.

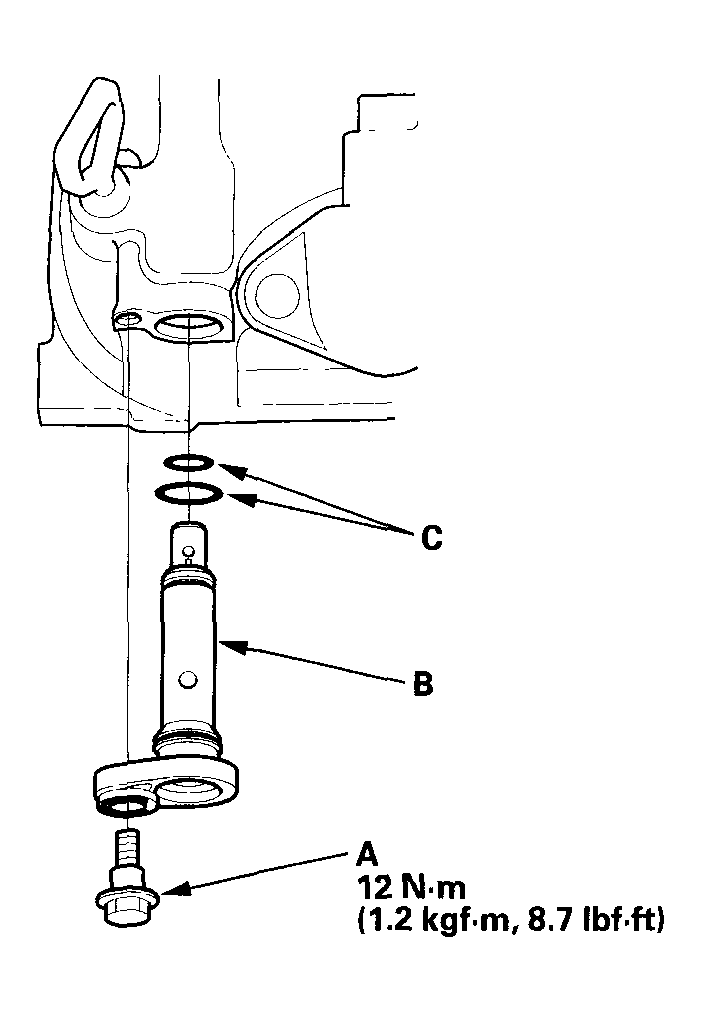

    Fig 1: Disconnecting Bolt
    G04546235Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Remove the PCV valve (B).
  4. Install the valve in the reverse order of removal.
    NOTE:
    • When installing a new PCV valve, make sure the O-rings (C) are in place.
    • When installing a used PCV valve, use new O-rings.
