VTEC Oil Pressure Switch Replacement

  1. Disconnect the VTEC oil pressure switch 2P connector (A), then remove the VTEC oil pressure switch (B).

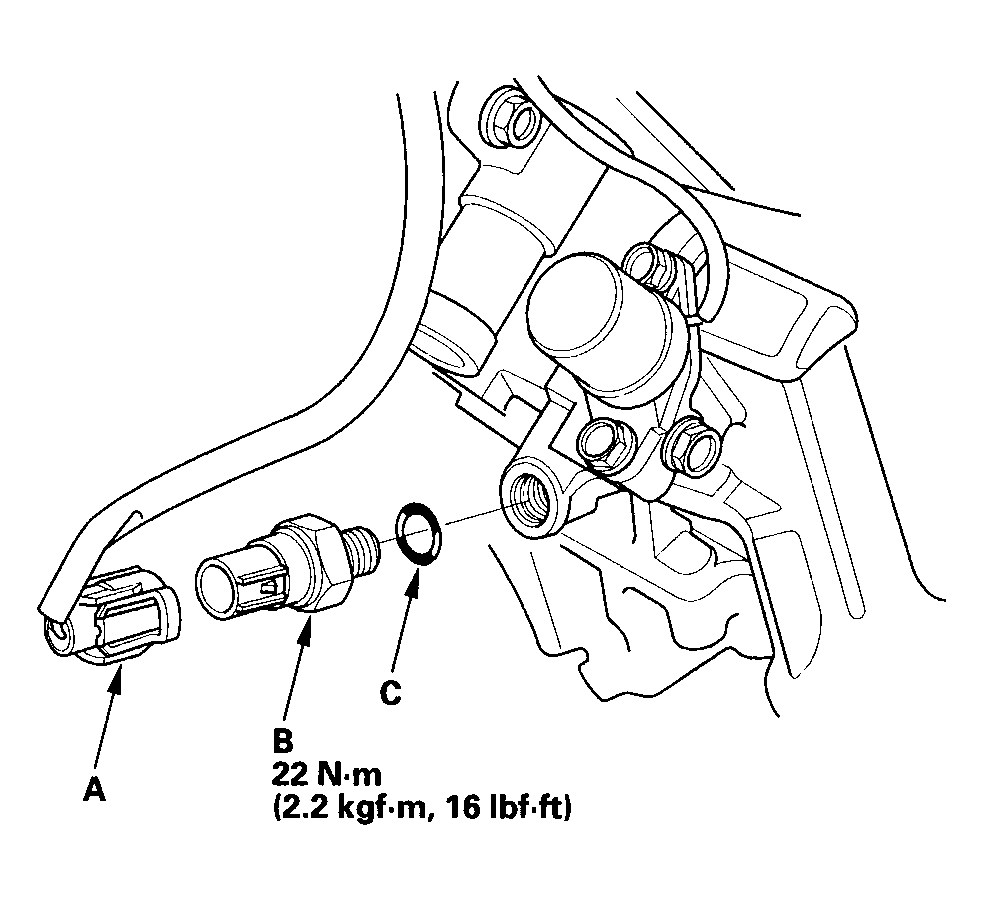

    Fig 1: Disconnecting VTEC Oil Pressure Switch 2P Connector
    G04546127Courtesy of AMERICAN HONDA MOTOR CO., INC.
  2. Install the switch in the reverse order of removal with a new O-ring (C).
