VTEC Solenoid Valve Replacement

  1. Disconnect the VTEC solenoid valve 1P connector (A).

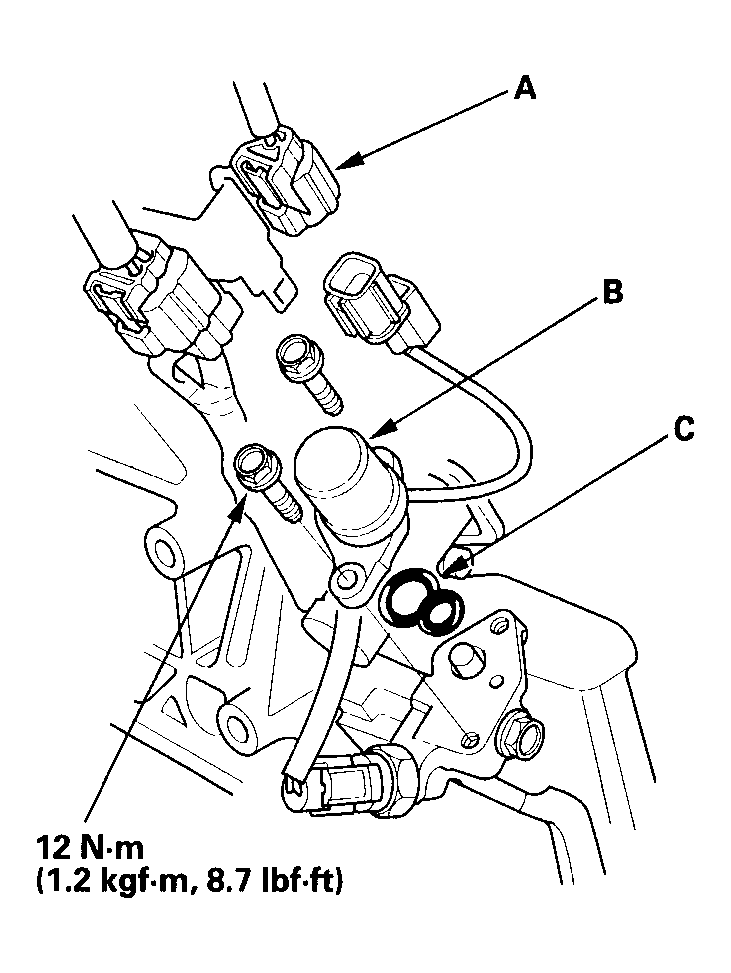

    Fig 1: Disconnecting VTEC Solenoid Valve 1P Connector
    G04546126Courtesy of AMERICAN HONDA MOTOR CO., INC.
  2. Remove the VTEC solenoid valve (B).
  3. Install the parts in the reverse order of removal with a new O-ring (C).
