Park Pin Switch Test

SRS components are located in this area. Review the SRS component locations (see COMPONENT LOCATION INDEX ), and the precautions and procedures (see PRECAUTIONS AND PROCEDURES ) in SRS (SUPPLEMENTAL RESTRAINT SYSTEM) - PILOT before performing repairs or service.

1. Remove the steering column covers (see step 6 in REMOVAL ).
2. Disconnect the park pin switch connector.
3. Shift the shift lever into the P position, then check for continuity between the No. 1 and No. 3 terminals. There should be no continuity.

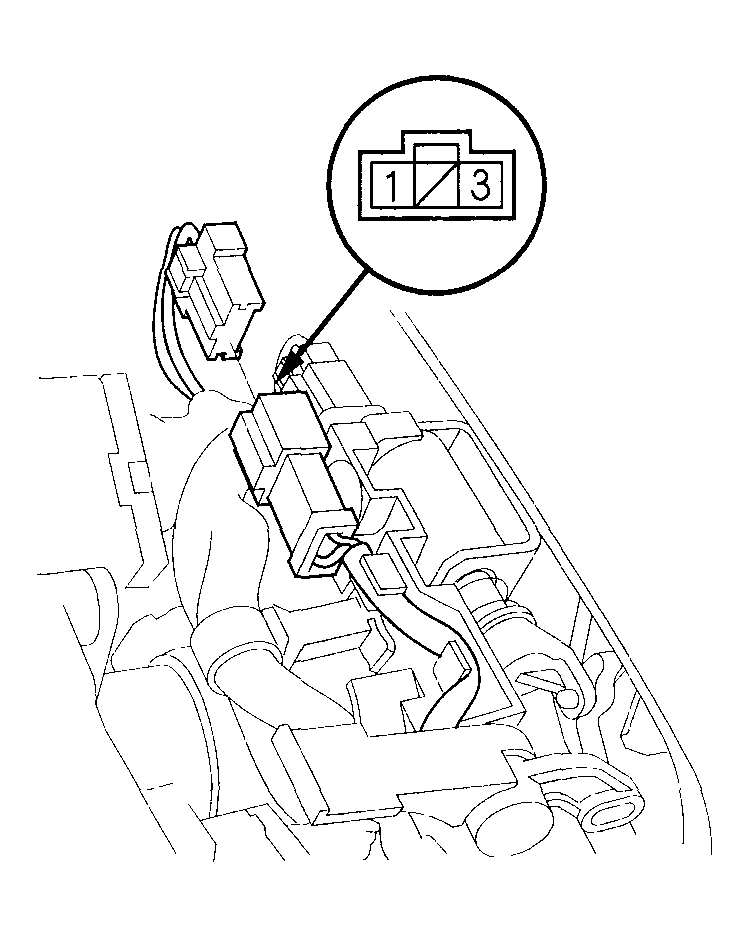

   Fig 1: Checking Continuity Between No. 1 And No. 3 Terminals

   Courtesy of AMERICAN HONDA MOTOR CO., INC.
4. Move the shift lever out of the P position, and check for continuity the terminals. There should be continuity.
5. If the park pin switch is faulty, replace the shift lever assembly. The park pin switch is not available separately.
