System Description
>>
Clutches
>>
Transmission Sectional View
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.

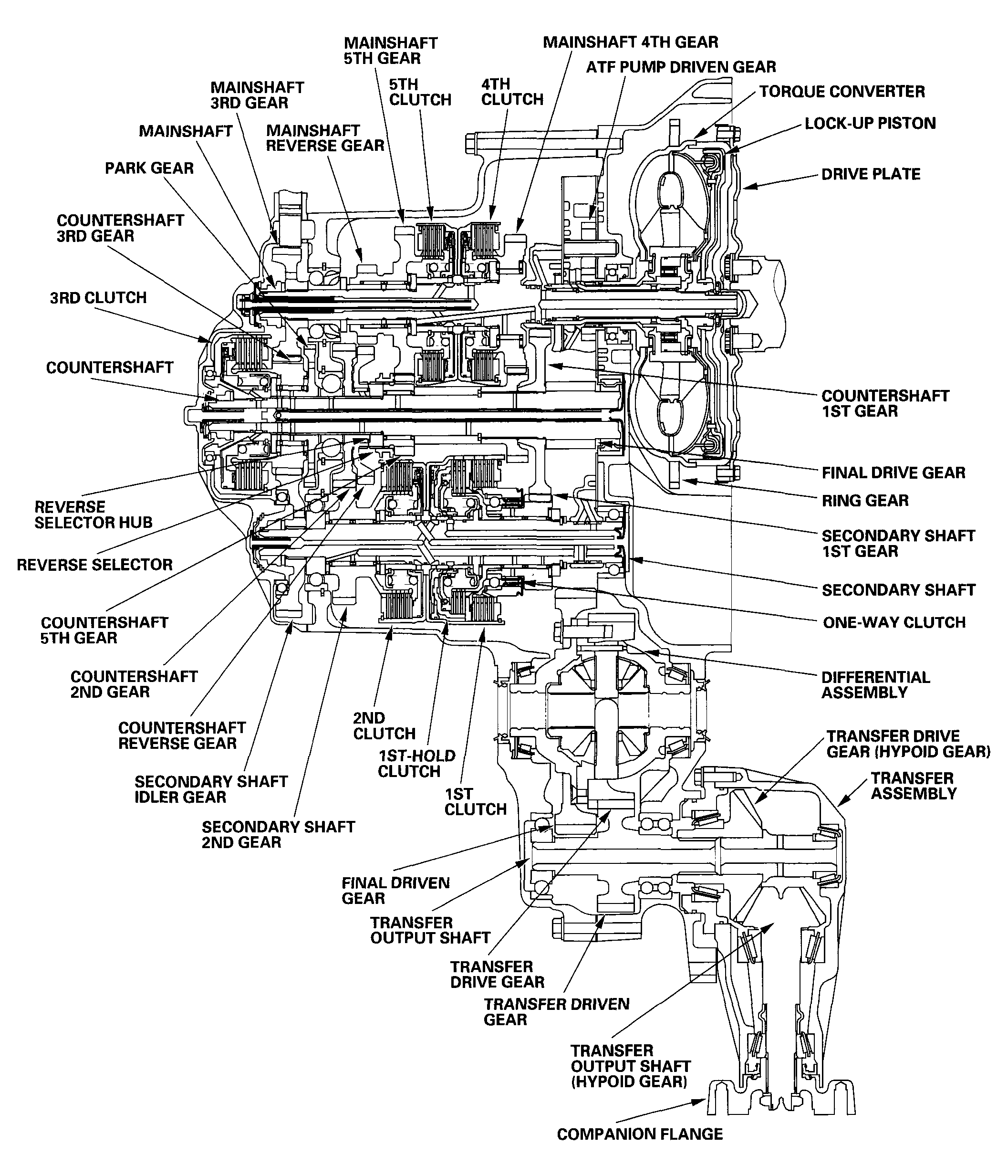

Transmission Sectional View
Fig 1: Identifying Transmission Sectional View
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
