Transfer Drive Gear Replacement

Special Tools Required

• Driver 07749-0010000
• Attachment, 24 x 26 mm 07746-0010700
• Attachment, 42 x 47 mm 07746-0010300

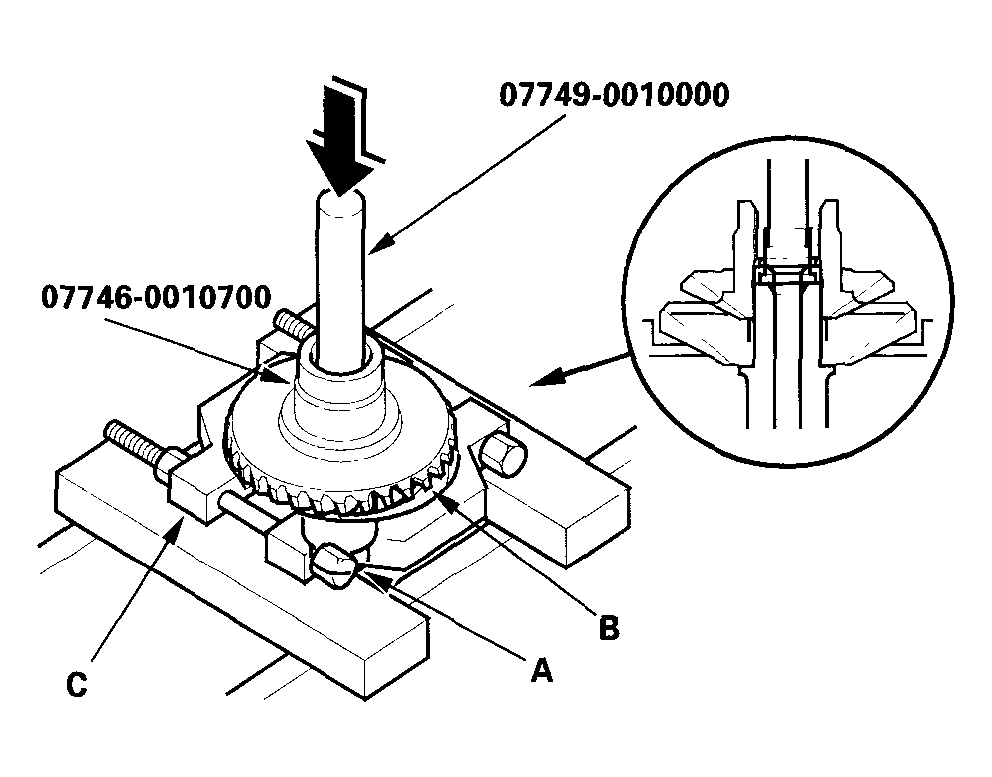

1. Remove the transfer shaft (A) from the transfer drive gear (B) with the special tools, bearing separator (C) and a press.
   Fig 1: Removing Transfer Shaft (A) From Transfer Drive Gear (B), Bearing Separator (C)

   Courtesy of AMERICAN HONDA MOTOR CO., INC.

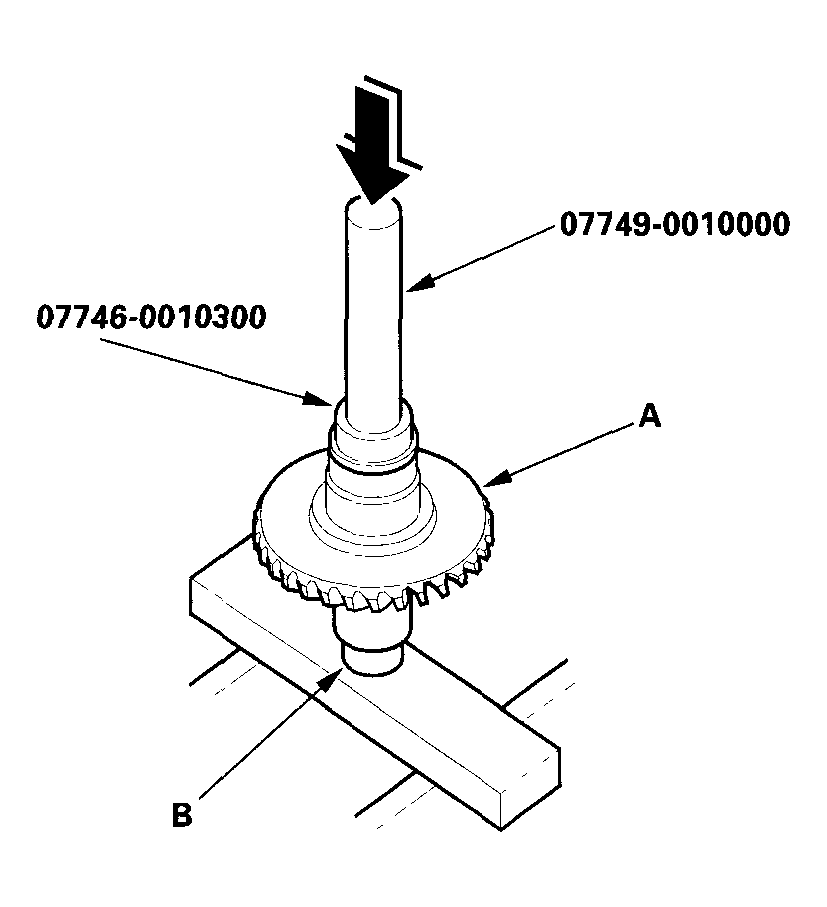

2. Install the new transfer drive gear (A) on the transfer shaft (B) with the special tools and a press.
   Fig 2: Installing New Transfer Drive Gear (A) On Transfer Shaft (B)

   Courtesy of AMERICAN HONDA MOTOR CO., INC.
